3x Industrial MiniPC mBOX-T27H v.2

Przemys³owy MiniPC mBOX-T27H




Industrial MiniPC

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

mBOX-
1x VGA  is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimension are 215 (W) x190 (L) x60 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.0 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR2 memory. Integrated Intel Graphics 950 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space from 8GB SSD or 32GB SDD.

Przemys³owy MiniPC mBOX-T27H

go topdo góry   menu… menu


Communication & Connectors

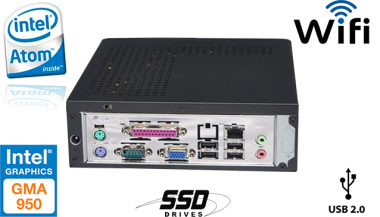

Integrated card - Intel 8105E and WiFi module allow connection to the network. The computer is equipped with: one LAN port, one LPT port, one VGA output, four USB 2.0, two PS/2,  one COM(RS232) port, one way audio, one microphone input.

Przemys³owy MiniPC mBOX-T27H

1. Power ON/OFF



Przemys³owy MiniPC mBOX-T27H

1. DC-IN 12V
  4. 1x LPT
7. 1x RJ-45
2. 2x PS/2
  5. 1x VGA
8. Audio/Mic
3. 1x COM(RS232)
  6. 4x USB 2.0


Przemys³owy MiniPC mBOX-T27H

Cooling

The industrial MiniPC mBOX-T27H uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go topdo góry   menu… menu

Application

      Industrial MiniPC Series mBOX-T27H are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesPrzemys³owy MiniPC mBOX-T27H of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Przemys³owy MiniPC mBOX-T27H


Areas of use of industrial MiniPC

Digital Engine

Przemys³owy MiniPC mBOX-T27H

Trade

Small computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Przemys³owy MiniPC mBOX-T27H
Przemys³owy MiniPC mBOX-T27H

Magazine

Industrial MiniPC mBOX-T27H by to four USB ports and one LAN can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC mBOX-T27H can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Przemys³owy MiniPC mBOX-T27H

Przemys³owy MiniPC mBOX-T27H



Przemys³owy MiniPC mBOX-T27H



Specifications


    Dimension





   H: 60 mm

   L: 190 mm

   W: 215 mm

   Weight    2,0kg
   Processor
   Intel Atom N270 (1.6GHz)
   Chipset
   Intel 945GSE+ICH7M
   RAM Memory
   2GB DDR2
   Graphic Card
   Intel Graphics 950
   Sound Card
   Realtek ALC662
   WLAN
   Intel 8105E
   Connectors

   1x wyj¶cie 12V DC_JACK

   4x USB 2.0

   1x COM(RS232)

   1x RJ-45

   1x wyj¶cie Audio

   2x PS/2

   1x Mic

   1x VGA

   1x LPT

Przemys³owy MiniPC mBOX-T27U


Others: Colour Black, Case
Chipset: Intel 945GSE+ICH7M
CPU Support: -----
Installed CPU: Intel Atom N270 (1.6GHz)
Memory Support: 1GB DDR2 (can up to 2GB)
Installed Memory: 2GB DDR2
Graphic Card: Intel Graphics 950
Storage (HDD) Support: -----
Installed Storage (HDD): 32 GB SSD
CD/DVD Drive: -----
LAN: Intel 8105E
Wireless LAN card: Yes
Bluetooth: -----
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: -----
Front Panel (ports): Power ON/OFF
Rear Panel (ports): 4x USB 2.0,
1x Audio,
1x RJ-45,
DC-in Jack,
1x LPT,
1x Mic,
1x VGA,
1x COM(RS232),
2x PS/2
Power: 12V
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: -----
Dimensions: 215 x 190 x 60 mm
Weight: 2.0 kg
Expansion: -----
Fanless: No
Humidity: 0 ~ 95%
Temp: 0 - 50 ℃
IP Norm: -----
Storage temperature: -15 - 70 ℃


CURRENT PRICE
2203.34 € Net
2710.11€ Gross
