3x Industial Touch Monitor - CCETM121-SAW
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/3x-przemyslowy-monitor-dotykowy--ccetm121-saw-produkt-86793.html

3x Industial Touch Monitor - CCETM121-SAW

CCETouch Industial Touch Monitor CCETM121-SAW Przemysłowy Monitor Panelowy  Norma odporności IP54 Monitor dotykowy Ekran SAW wyświetlacz 12 cali LED mobilator.pl New Portable Devices VGA DVI HDMI

Industrial Touch Monitors

Small dimensions Industrial Panel Monitor are used in environments dominated by dust, dirt and moisture. They are ideal for applications requiring quiet and continuous operation. Industrial touch screen monitor, through its function of touch, replaces: mouse, keyboard, or other pointing device.

Description


CCETouch Industial Touch Monitor CCETM121-SAW Przemysłowy Monitor Panelowy  Norma odporności IP54 Monitor dotykowy Ekran SAW wyświetlacz 12 cali LED mobilator.pl New Portable Devices VGA DVI HDMI

CCETouch

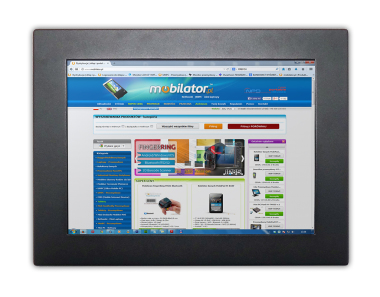

Industial Touch Monitor CCETM121-SAW






Industial Touch PC CCETouch CT08-PC Komputer panelowy Panel PC

CCETouch Industial Touch Monitor CCETM121-SAW Przemysłowy Monitor Panelowy  Norma odporności IP54 Monitor dotykowy Ekran SAW wyświetlacz 12 cali LED mobilator.pl New Portable Devices VGA DVI HDMI

Resolution: 800 x 600 / 4:3


LCD size: 12.1"


Backlight: LED


Connectors: VGA / DVI / HDMI / AV


Screen Protection: IP 54- front panel



Mounting: VESA: 75mm x 75mm / 100mm x 100mm

Built-in speakers: Yes


Detailed specification of the configuration available in the "Technical data"


Using the latest technology Industrial Monitor is designed for continuous multitasking operating with low power consumption 9-25W. An important advantage is the effective combination of small size with considerable opportunities.

Dimensions:

Housing dimension are 316 (W) x 254 (L) x 53,3 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 3 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

CCETouch Industial Touch Monitor CCETM121-SAW Przemysłowy Monitor Panelowy  Norma odporności IP54 Monitor dotykowy Ekran SAW wyświetlacz 12 cali LED mobilator.pl New Portable Devices VGA DVI HDMI

go top… do góry   menu… menu

Connector

Connector:

Industrial Touch Monitor CCETM15-5WR is equipped with the essential connectors such as:

1. ON / OFF
5. Audio for PC
2. HDMI
6. RS232 or USB(for touch screen)
3. DVI-I 7. AV
4. VGA
8. DC-in

For proper operation of the touch controller is needed connect the monitor to the computer using the USB cable.

CCETouch Industial Touch Monitor CCETM121-SAW Przemysłowy Monitor Panelowy  Norma odporności IP54 Monitor dotykowy Ekran SAW wyświetlacz 12 cali LED mobilator.pl New Portable Devices VGA DVI HDMI

Screen

Industial Touch Monitor CCETM121-SAW has a water-resistant scratch resistant LED screen with 7H hardness. With 800x600 resolution and high brightness of 350 cd/m2, screen of SAW type with high sensitivity to touch, offers the user a clear picture and ease of use.

The LCD monitor backlight LED technology results in realistic color rendering, energy consumption reduced by up to 40% and much lower failure rate compared to traditional LCD monitors with CCFL backlight.

CCETouch Industial Touch Monitor CCETM121-SAW Przemysłowy Monitor Panelowy  Norma odporności IP54 Monitor dotykowy Ekran SAW wyświetlacz 12 cali LED mobilator.pl New Portable Devices VGA DVI HDMI



Vandal-proof SAW Touch Screen

This type of touchscreen uses tempered glass, which provides excellent impact performance and strength several times that of ordinary glass. Even if a touchscreen is broken, the fragments are safe with no sharp edges. Special anti-vandalism design for applications in industry, nobody-on-duty and public, with excellent performance for safety and anti-vandalism.


CCETouch Industial Touch Monitor CCETM121-SAW Przemysłowy Monitor Panelowy  Norma odporności IP54 Monitor dotykowy Ekran SAW wyświetlacz 12 cali LED mobilator.pl New Portable Devices VGA DVI HDMI

SAW Acoustic Technology

The principle of SAW acoustic technology is similar to IR technology. Acoustic wave emitters that cover the monitor are necessary. When the screen is touched, the sound wave is partly absorbed, causing the registration of touch. You do not need a special coating, so there is no concern about the distortion of the image presented on the monitor. The technology is cheap and proven, which guarantees its low failure rate. In addition, touch screens, acting on the basis of SAW acoustic technology can be used outdoor and in other public places. SAW acoustic technology touch screen also recognizes the touch in a glove. Still, as in the case of IR technology, you need to have regard to the casual touch, and as a result a misstatement. However, the sensitivity of this technology is lower.

Application

Applicable standards and tests carried out.

Industial Touch Monitor CCETM121-SAW is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial IP54 front panel aluminum housing protects the display from the outside against mechanical damage, drops of water, sand and dust. CCETM121-SAW is the best solution for extreme applications in dust or moisture.

CCETouch Industial Touch Monitor CCETM121-SAW Przemysłowy Monitor Panelowy  Norma odporności IP54 Monitor dotykowy Ekran SAW wyświetlacz 12 cali LED mobilator.pl New Portable Devices VGA DVI HDMI

 Operating Temp
0-60 °C
 Operating Humidity 5%-95%
 Dust IP6x(dust)
 Water IPx5(drops of water)

Resistance IP54 (front panel)

The IP Code, International Protection Marking. IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC).

go top… do góry menu… menu

The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids
No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8

Protection against complete, continuous submersion in water

CCETouch Industial Touch Monitor CCETM121-SAW Przemysłowy Monitor Panelowy  Norma odporności IP54 Monitor dotykowy Ekran SAW wyświetlacz 12 cali LED mobilator.pl New Portable Devices VGA DVI HDMI

Industrial Monitors from the company CCETouch are based on efficient high-quality displays.CCETouch Industial Touch Monitor CCETM121-SAW Przemysłowy Monitor Panelowy  Norma odporności IP54 Monitor dotykowy Ekran SAW wyświetlacz 12 cali LED mobilator.pl New Portable Devices VGA DVI HDMI

Industrial Monitors are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of monitors models of industrial and the ability to change the configuration, allow for optimal selection monitors for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model monitors has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

CCETouch Industial Touch Monitor CCETM121-SAW Przemysłowy Monitor Panelowy  Norma odporności IP54 Monitor dotykowy Ekran SAW wyświetlacz 12 cali LED mobilator.pl New Portable Devices VGA DVI HDMI

Areas of use of industrial panel computers.

With industrial touch screens (touch screen) can be used on virtually any computer, and the list of applications is limited only by the imagination. Common applications of the touch screens:

  •          information points,
  •          electronic catalogs,
  •          gambling, lotteries and slot arcade
  •          marketing media
  •          ATMs,
  •          Ticket
  •          interactive public telephones,
  •          Industrial control rooms,
  •          terminals at points of sale,
  •          control of industrial processes,
  •          palmtop computers,
  •          medical equipment,
  •          office equipment (photocopiers, franking machines, etc.)
  •          handling vehicles and machines airlines.



CCETouch Industial Touch Monitor CCETM121-SAW Przemysłowy Monitor Panelowy  Norma odporności IP54 Monitor dotykowy Ekran SAW wyświetlacz 12 cali LED mobilator.pl New Portable Devices VGA DVI HDMI

go top… do góry   menu… menu

Specifications


   Display

   Screen: 12.1"

   Resolution:800 x 600

   Type: SAW

   Backlight: LED

   Aspect ratio: 4:3

   Brightness: 350 nits

   Contrast Ratio: 500:1

   Resistance IP

   IP: 54 - front panel

   Connectors

   1 x VGA

  1 x HDMI

  1 x DVI

  1 x Audio for PC

  1 x AV

  1 x RS-232 or USB (touch screen)

  1 x DC-in


   Dimensions



  Height:  254 mm

   Width: 53.3 mm

   Length: 316mm

    Weight    3 kg

CCETouch Industial Touch Monitor CCETM121-SAW Przemysłowy Monitor Panelowy  Norma odporności IP54 Monitor dotykowy Ekran SAW wyświetlacz 12 cali LED mobilator.pl New Portable Devices VGA DVI HDMI



Ports - rear panel: 1x VGA, 1x HDMI, 1x DVI, 1x RS232 or USB(for touch screen), 1x AV, 1x Screwable DC-in
Power: 12V DC
Dimensions: 316 x 254 x 53.5 mm
Weight: 3 kg
Expansion: -----
Humidity: 5%~ 95%
Temp: 0°C ~ 60°C
Storage Temp: -15°C ~ 70°C
IP Norm: IP 54 (front panel)
IP Level (back panel): -----
IP Level (front panel): IP 54
Screen size: 12.1"
Resolution: 800 x 600
Aspect ratio: 4:3
Touchscreen: SAW
Response time touch-panel (ms): < 10
Contrast Ratio: 500:1
Brightness: 350 cd/m2
Viewing Angle: 160;160
Backlight MTBF: LED/40,000 h
Color Resolution: 262K
Surface hardness (display): 7H
Touch Life(contacts): >50.000.000 times
Housing material: Aluminium & High impact automotive synthetic thermoplastic polymer
Mounting VESA: Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
Folding Bracket (for office type working): No (optional)
Power Consumption: 9-25 W
Others: -----
Anti-vibration: -----
Anti-shock: -----
Built-in speakers: Yes (2x2W)


CURRENT PRICE
5402.83 € Net
6645.48€ Gross
