Fanless Industrial Computer MiniPC moBOX-5041H v.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/komputer-przemyslowy-fanless-minipc-mobox-5041h-v.1-produkt-87564.html

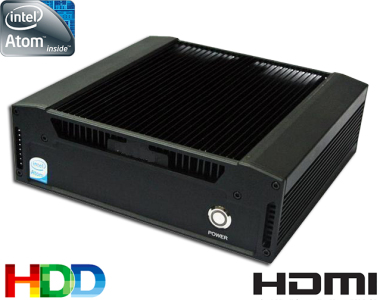

Fanless Industrial Computer MiniPC moBOX-5041H v.1

Fanless Industrial Computer MiniPC moBOX-5041H




Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

moBOX-5041h is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimension are 214 (W) x 206 (L) x 68 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 3.2 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space from 64GB SSD or 320GB HDD.

Fanless Industrial Computer MiniPC moBOX-5041H

go topdo góry   menu… menu


Communication & Connectors

Integrated card - Intel 1000M Lan RTL8111E allow you to connect the device to the network. The computer is equipped with: two connectors LAN, four COM ports (RS232)- optionally one COM port can be replaced with a COM (RS485), one VGA output, four USB 2.0 ports, one HDMI output, one audio input.

Fanless Industrial Computer MiniPC moBOX-5041H

1. 1x Power




Fanless Industrial Computer MiniPC moBOX-5041H

1. 1x DC-IN 12V
4. 1x VGA
7. 4x COM
2. 4x USB 3.0
5. 2x RJ 45

3. 1x HDMI
6. 1x Audio


Fanless Industrial Computer MiniPC moBOX-5041H

Cooling

The industrial fanless MiniPC moBOX-5041h uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go topdo góry   menu… menu

Application

Industrial MiniPC Series moBOX-5041h are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of moBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesFanless Industrial Computer MiniPC moBOX-5041H of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Fanless Industrial Computer MiniPC moBOX-5041H


Areas of use of industrial MiniPC

Digital Engine

Fanless Industrial Computer MiniPC moBOX-5041H

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Fanless Industrial Computer MiniPC moBOX-5041H
Fanless Industrial Computer MiniPC moBOX-5041H

Magazine

Industrial fanless MiniPC moBOX-5041h by to six COM port (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless moBOX-5041h can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Fanless Industrial Computer MiniPC moBOX-5041H

Fanless Industrial Computer MiniPC moBOX-5041H



Fanless Industrial Computer MiniPC moBOX-5041H



Specifications


    Dimension





   H: 68 mm

   L: 206 mm

   W: 214 mm

   Weight    3,2kg
   Processor
   Intel Atom N2600 (2x 1.6GHz)
   Chipset
   Intel® NM10
   RAM Memory
   2GB DDR3 (optional 4GB)
   Graphic Card
   Intel HD Graphics
   Sound Card
   Realtek ALC662
   WLAN
   Intel RTL8111E 1000M Lan
   Connectors

   4x COM(RS232)

   1x 12V DC_JACK

   4x USB 2.0

   2x RJ-45

   1x HDMI

   1x VGA

   1x Audio

Fanless Industrial Computer MiniPC moBOX-5041H


Others: Colour: Black, Case Aluminium alloy
Chipset: Intel® NM10
CPU Support: -----
Installed CPU: Intel Atom N2600 (2x 1.6GHz)
Memory Support: 2GB DDR3 (can up to 4GB)
Installed Memory: 2GB DDR3
Graphic Card: Intel HD Graphics
Storage (HDD) Support: -----
Installed Storage (HDD): 320 GB HDD
CD/DVD Drive: -----
LAN: 2x Intel RTL8111E 1000M RJ45
Wireless LAN card: No
Bluetooth: -----
3G: -----
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0 ~ 255 sec
Front Panel (ports): -----
Rear Panel (ports): 4x COM(RS232)
4x USB 2.0
1x HDMI
1x VGA
2x RJ45
1x Audio
1x DC-in
Power: 12V
Supported OS: Microsoft Windows: XP/7, Linux
Installed OS: -----
Dimensions: 214 x 206 x 68 mm
Weight: 3.2 kg
Expansion: -----
Fanless: Yes
Humidity: 0 ~ 95%
Temp: -10℃ ~ 50℃
IP Norm: -----
Storage temperature: -20 - 60 ℃


CURRENT PRICE
2260.60 € Net
2780.54€ Gross
