Mini PC - ECS MD100 v.160

producer code:

Data update: 2011-08-17

guarantee 2 years

Ask about the product

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated

Description Technical data Available versions Accessories Gallery Download

Energy saving and cost reducing - click detail

	ECS MD Series is new alternative for stationary pc computers, design for people who important is speed in working and keeping silent.
MD100 surprise us not the only efficiency of work, thanks to use of hard discs of type SATA II 3,5" we can be to please with disc reaching space 1TB what even including to 1000 titles of movies in our collection.	go top…

pc_ecs

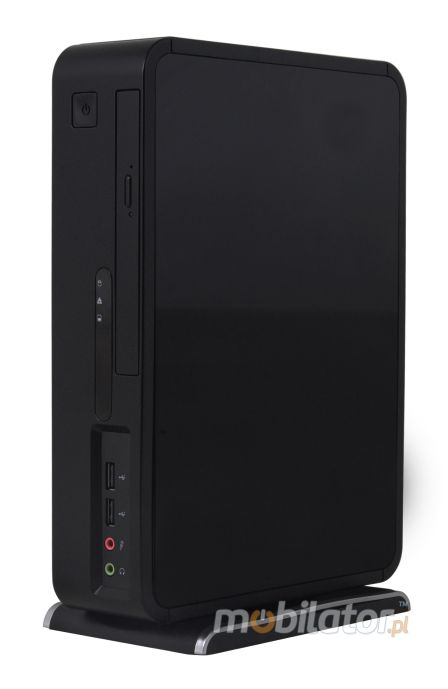

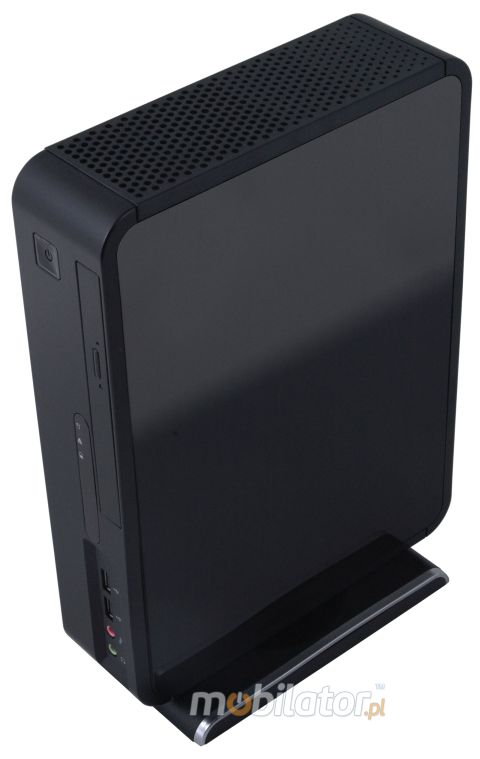

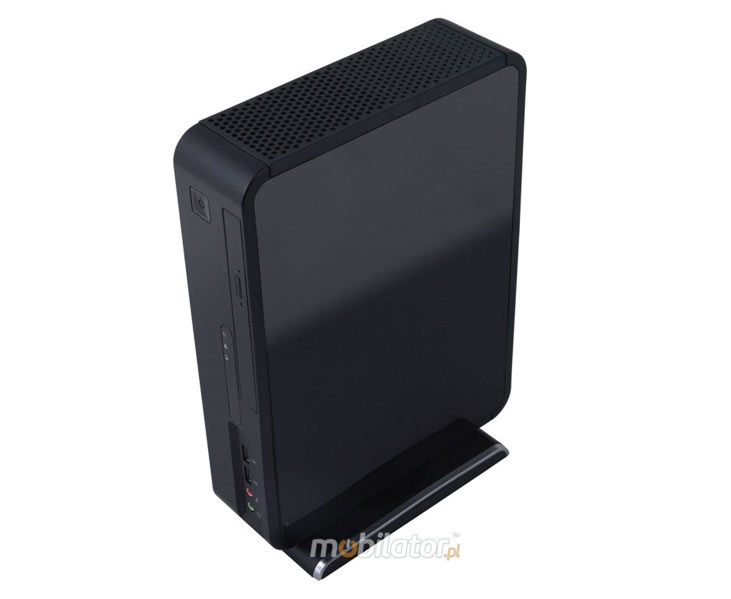

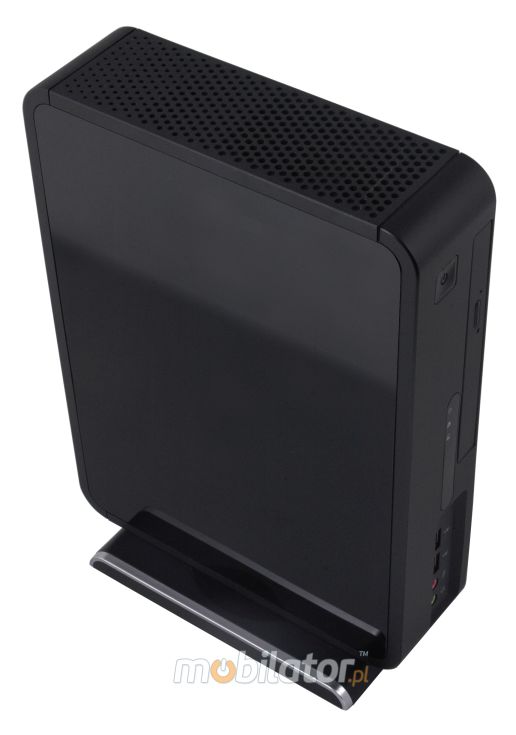

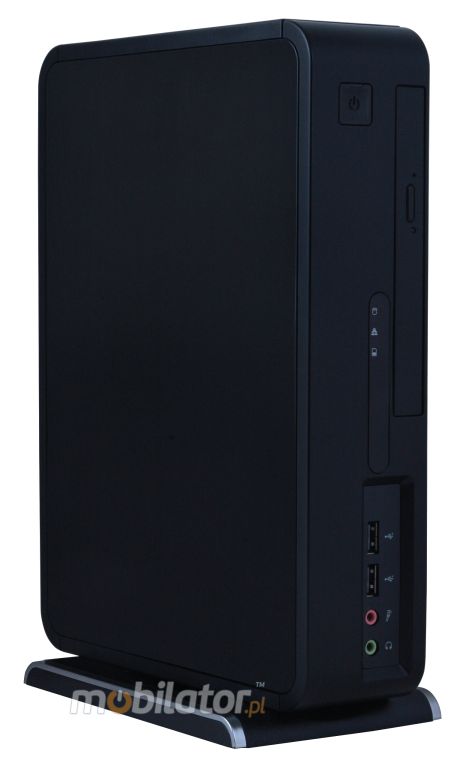

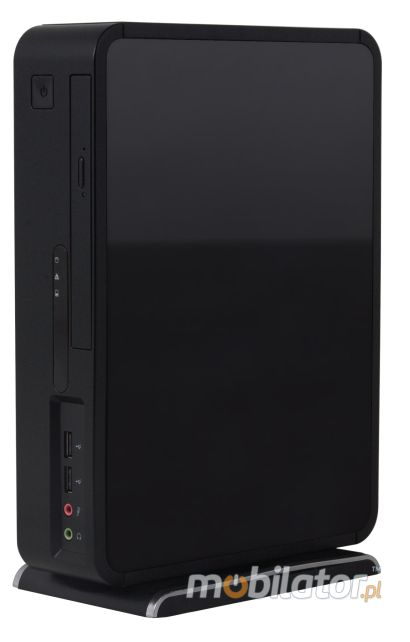

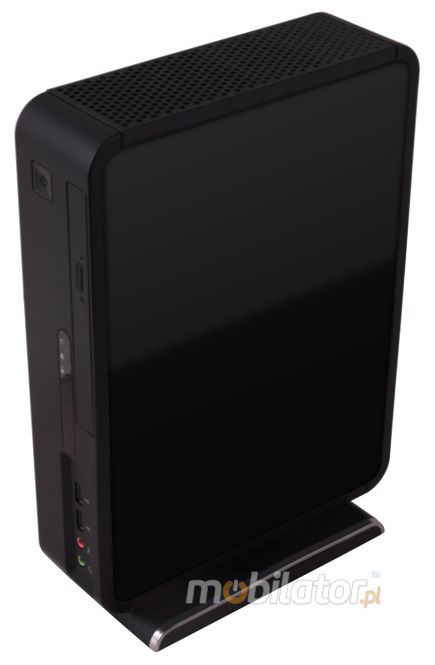

Performance and multi use MD100 are not his the largest advantages. It first of all is then computer, so small, that his sizes (270mm x 200mm x 60mm) it reminds home encyclopaedia, and use of systems soundproofing work it inflicts that he is practically inaudible for human ear.

It’s time to replace DVD player, MD100 ideally it will check in player of films, music and pictures, and additionally (on customer's wish) which can be equipped in Television Tuner it will make him multimedia combines harvester.

go top…

MD100 is supported Intel Single Core Atom® processor, thanks to what it is unsually energy-saving, keeping near this large efficiency of work, what proof system is Windows Vista Home the Basic which be dedicated for this device.

Energy saving and cost reducing

Others:	Brak
Chipset:	945GC + ICH7
FSB:	533
CPU Support:	Intel® Atom (MD100: 230 processors)
Installed CPU:	Intel Atom 1.6 GHz (Z520)
Memory Support:	1 x SODIMM - DDR2 up to 2GB
Installed Memory:	1GB DDR II
Graphic Card:	Built-in Intel® GMA 950 Graphics
Storage (HDD) Support:	Support 1 x 3.5”SATA II HDD, up to 1TB
Installed Storage (HDD):	160GB - 3,5'' SATA II

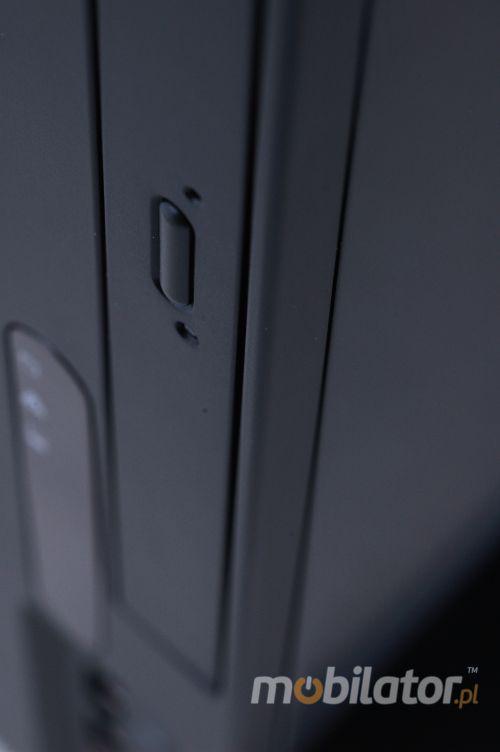

CD/DVD Drive:	Support SATAII Slim DVD Supermulti Tray type
LAN:	10/100 Mbps LAN on-board
Wireless LAN card:	No (Optional Yes)
TV Tuner:	No (Optional Yes)

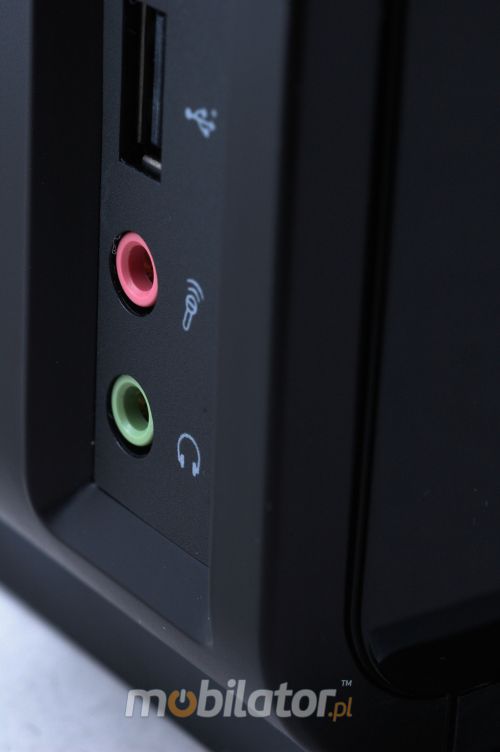

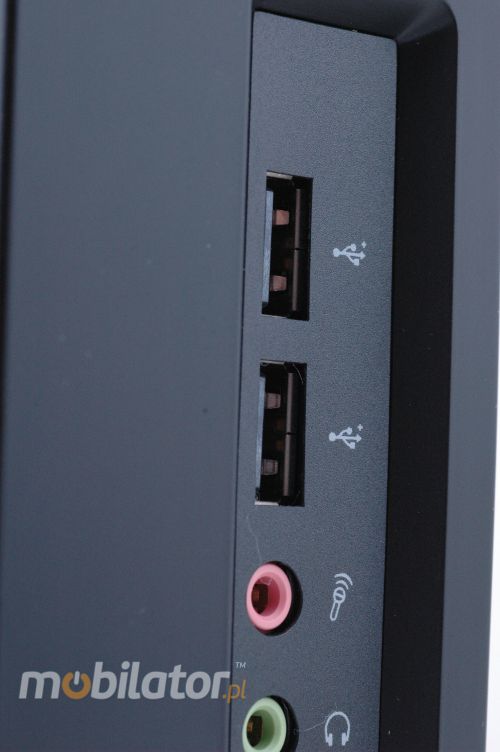

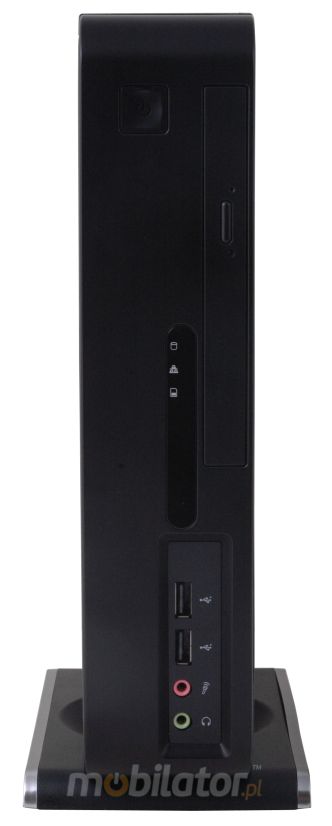

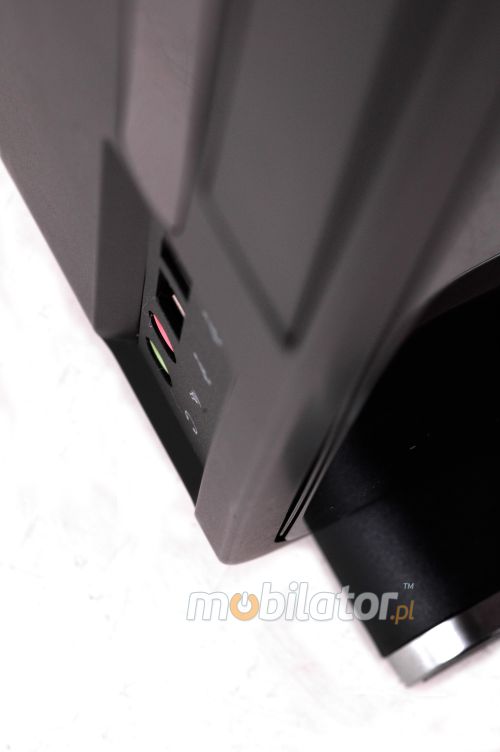

Front Panel (ports):	2 x USB, 1 x Headphone output, 1 x MIC-IN, Card Reader (Optional)

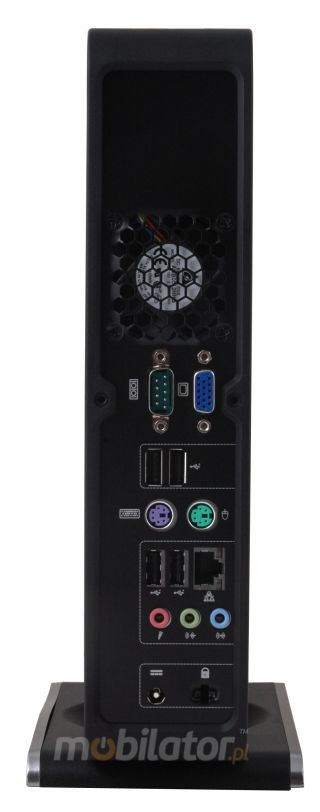

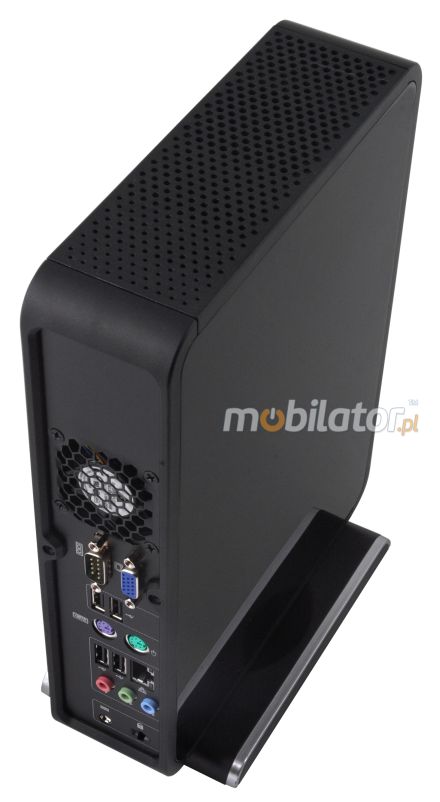

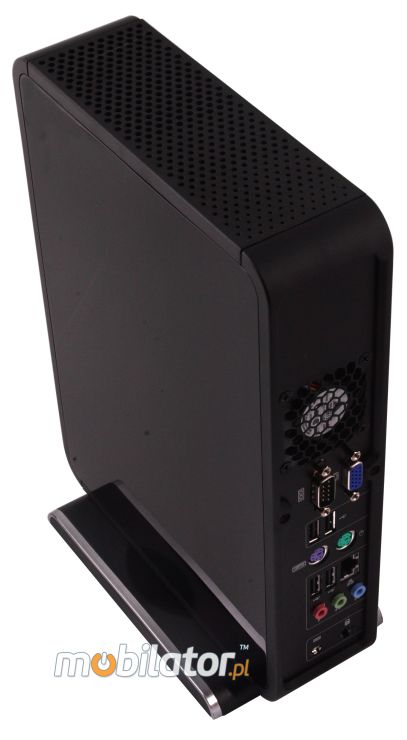

Rear Panel (ports):	4 x USB, 1 x D-SUB, 2 x PS2/Keyboard & Mouse, 1 x COM, LAN RJ45 (10/100), 6 Channel Audio, 3 Jacks, DC-in Jack, Kensington lock, WiFi antenna (Optional)
Power:	65W/ 19V Adaptor
Supported OS:	Windows XP, Windows Vista
Installed OS:	None
Dimensions:	270mm x 200mm x 60mm
Expansion:	Hybrid Tuner TV DVB-T (analog + digital + FM) or WiFi 802.11 a/b/g/n
