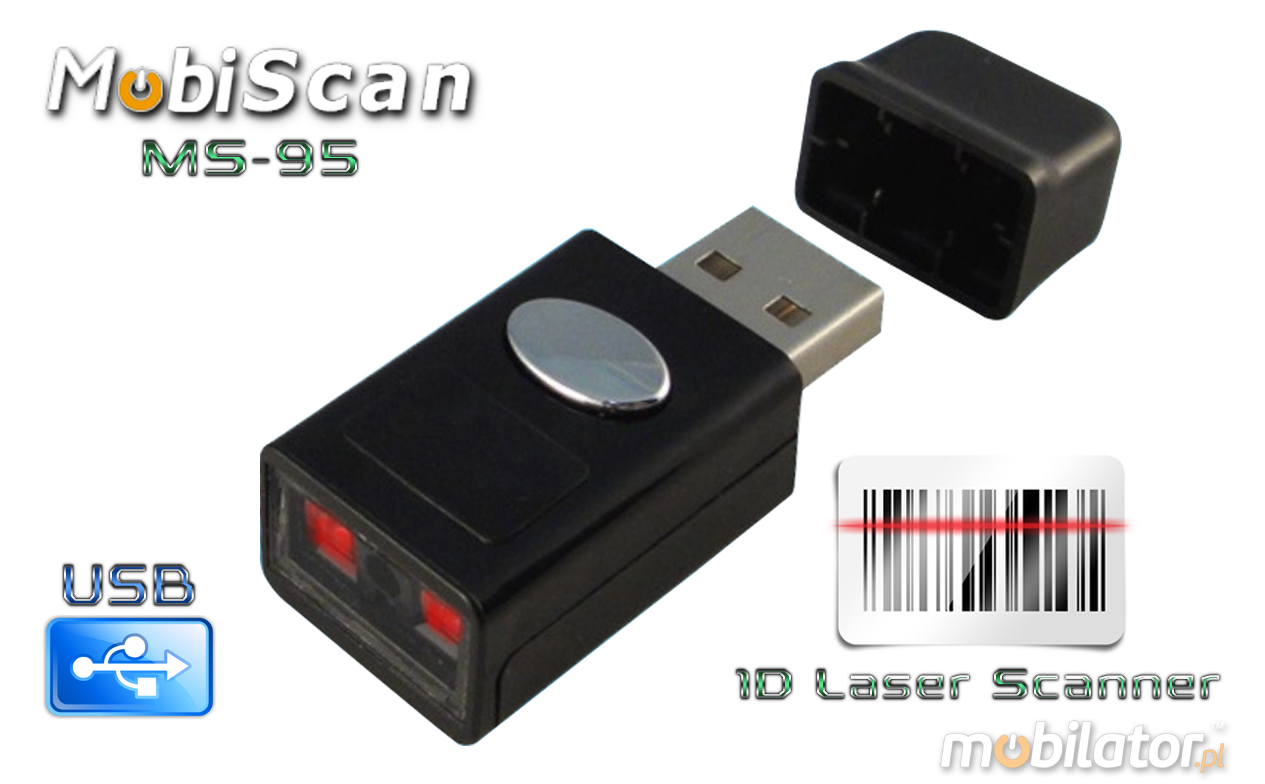

MobiScan MS-95 Scanner (USB)
|
|
The product from the archive - production terminated
|
|
|
The company's MobiScan new distribution of Mobilator. Company achieved an excellent reputation as a manufacturer of bar code scanners. Due to the high position of the products in the high-tech won the trust of many customers around the world.
|
|
|
|
The bar code scanner is a device that allows data read barcodes from boxes, equipment, documents and all the places where these codes were implemented. MobiScan products are of high quality and the ability to trouble-free operation for many years.
|
|
MobiScan MS-95 |
|
Barcode scanner |
1D |
|
Working time |
Power supply of the device (USB) |
|
Support system |
iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux |
|
Range |
USB (HID / VCP)
|
|
Dimensions |
19 x 41.8 x 12.5mm
|
|
Weight |
10g |
|
Other |
None |
|
The detailed specification of the configuration available in the "Technical data"
|
|
Quirky, curious, mini barcode scanner MobiScan MS-95 is connected to the device via the USB port is designed for users who require the meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc. .
 MS-95 intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers and logistics, quality controllers and inspectors of manufacturing processes and all those who work in need of cataloging and storing information sczytanych with barcodes.

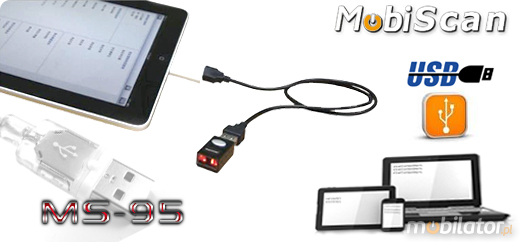

1D Barcode Scanner - MobiScan MS-95 via USB (which ensures proper communication) is compatible with mobile devices, data collectors and computers running on different operating systemch, having built-in USB connector. (see the text "Communication" - below).

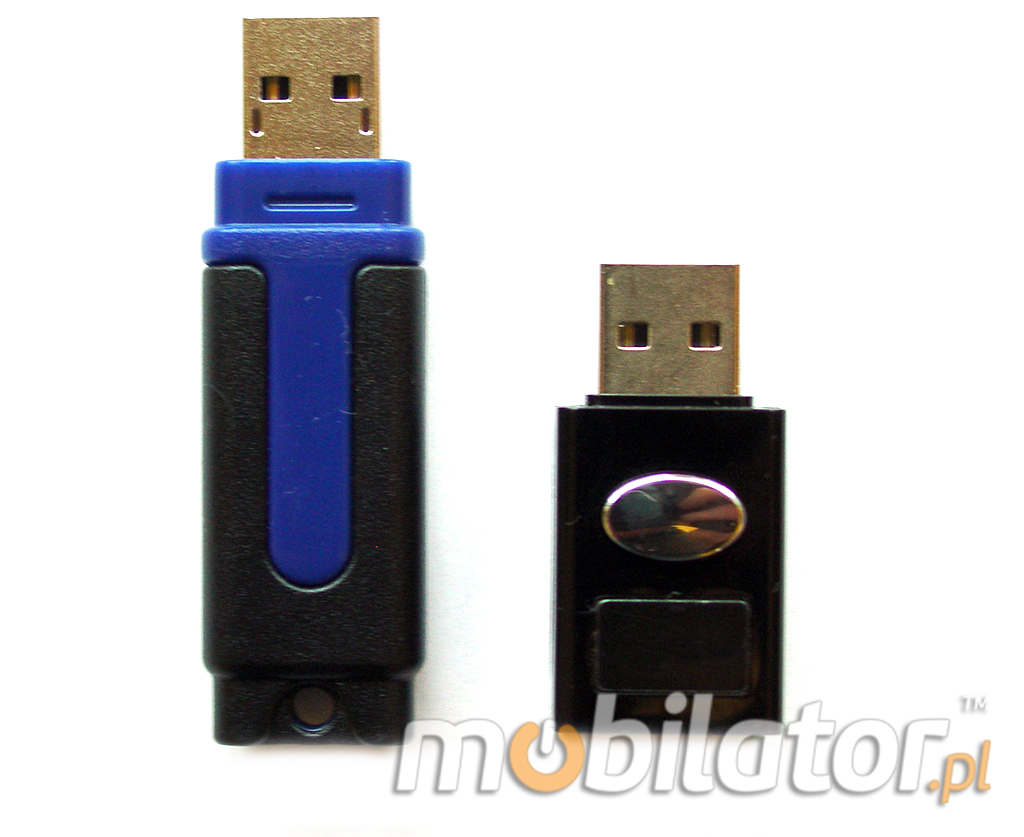

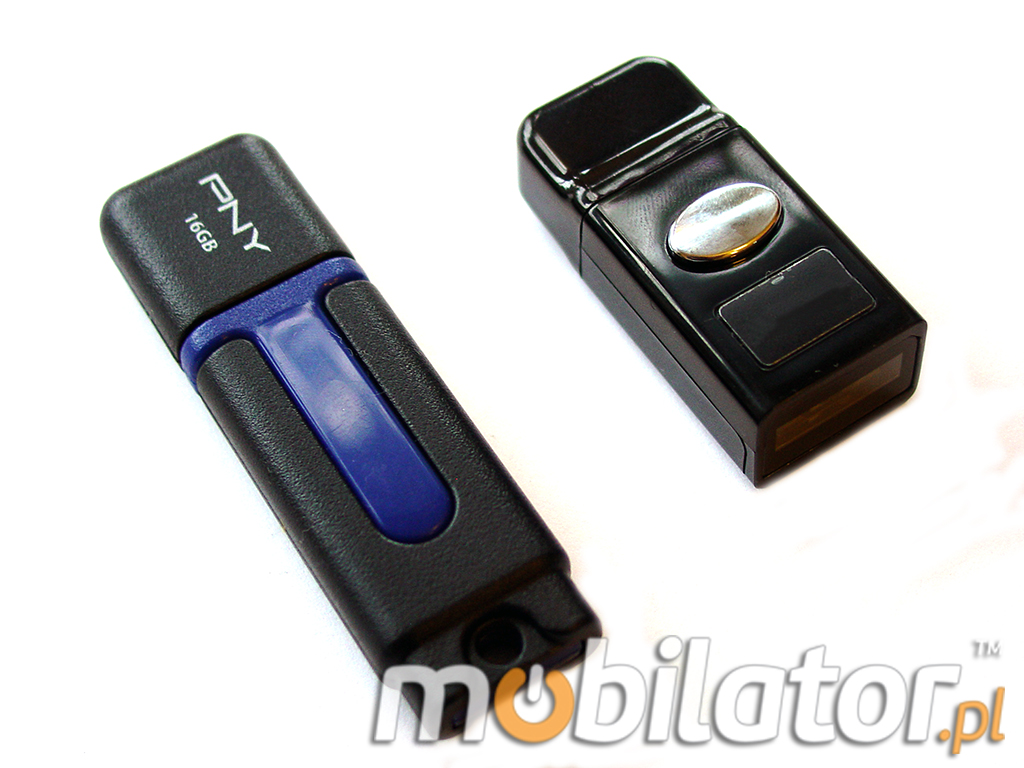

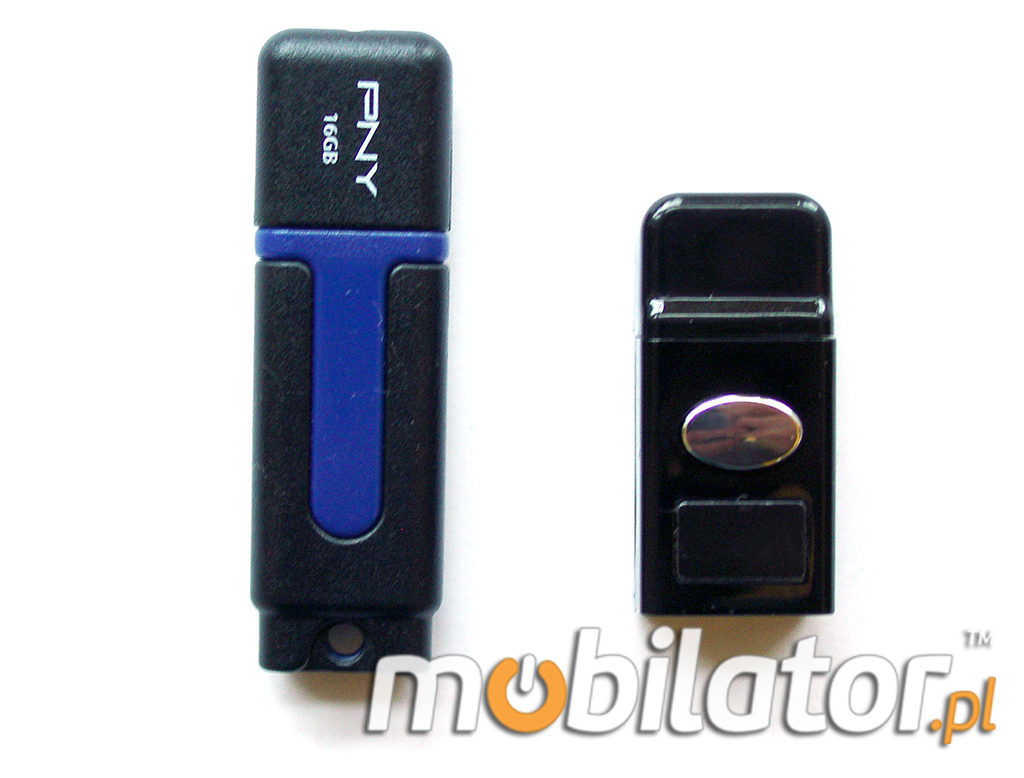

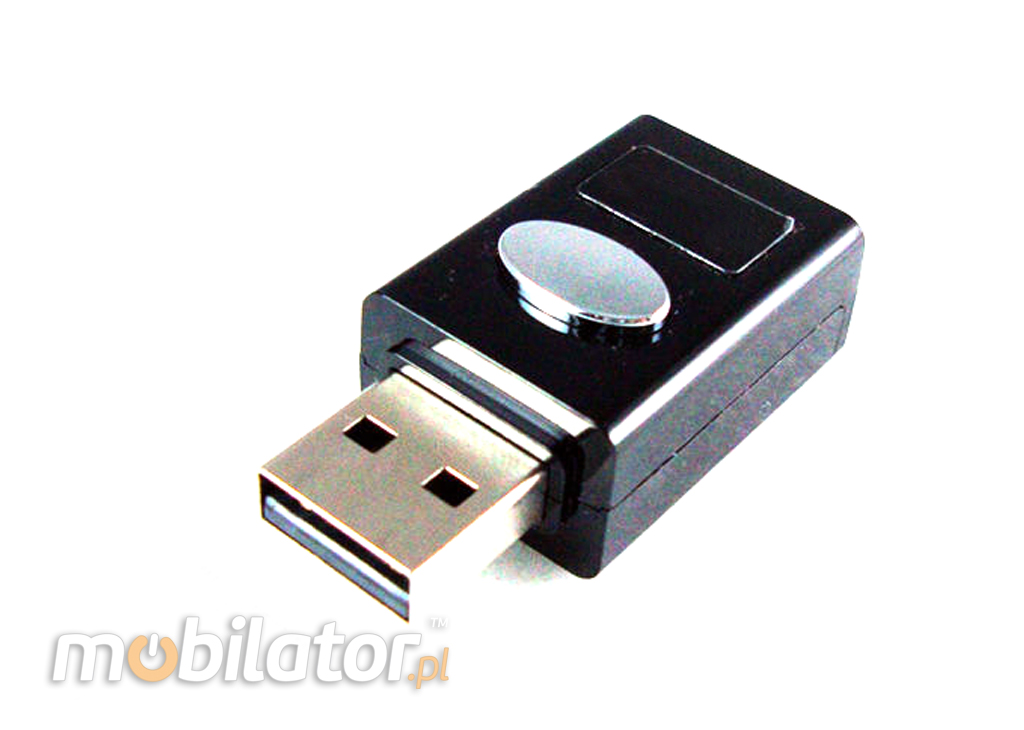

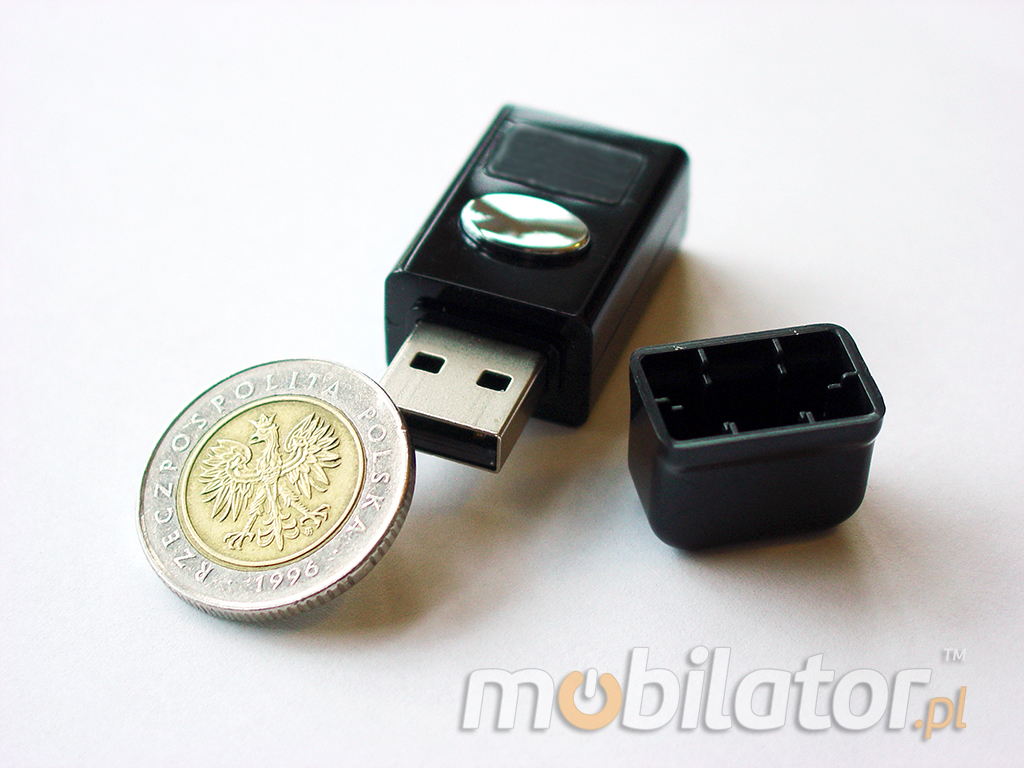

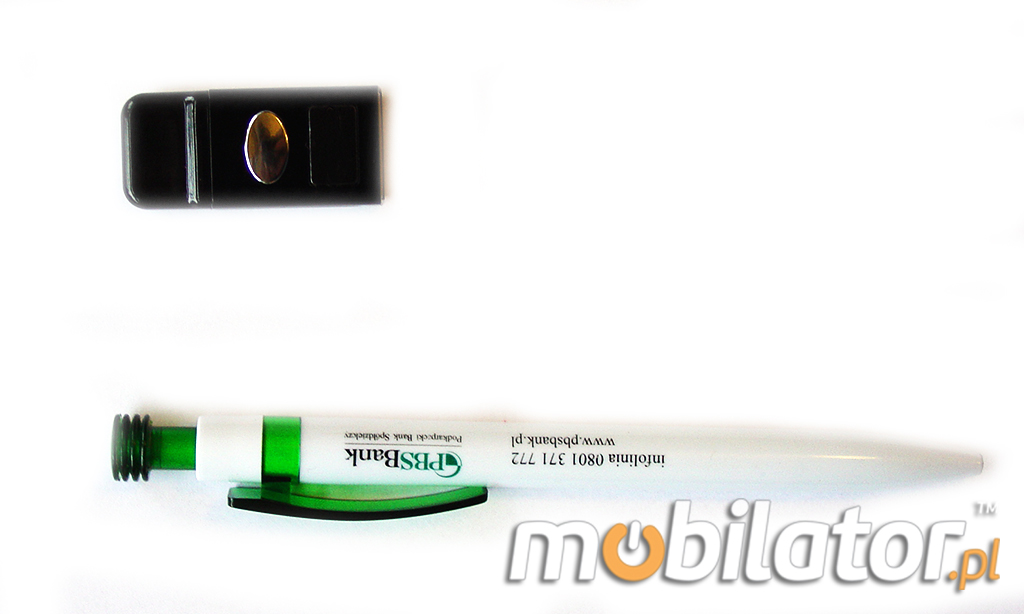

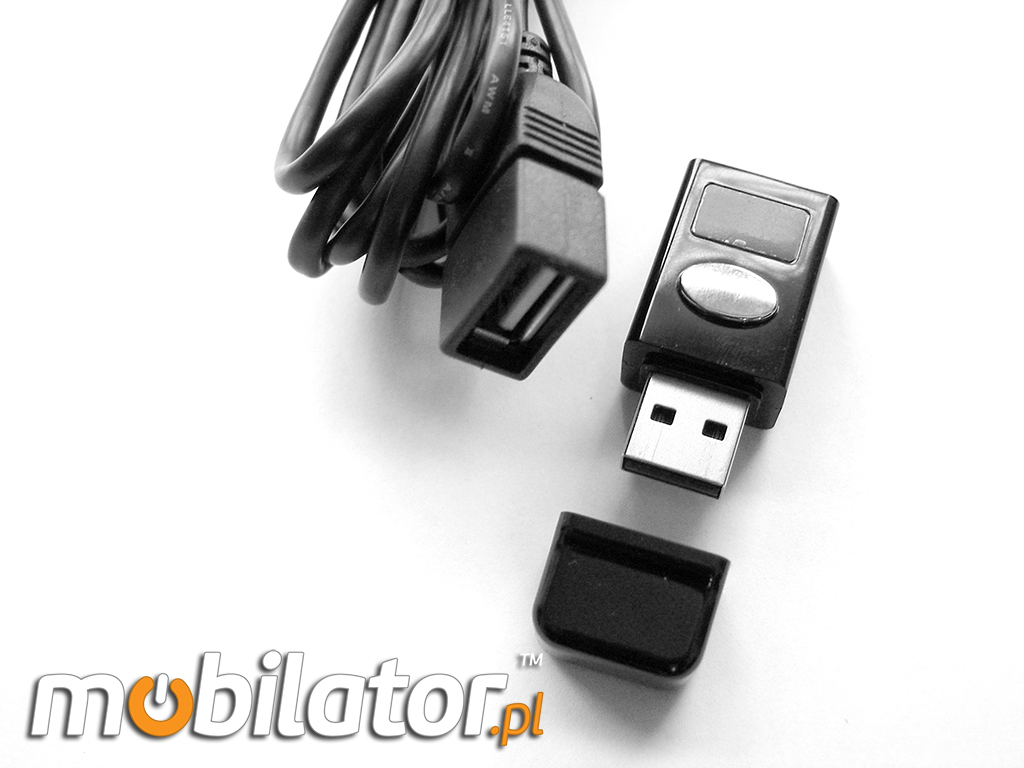

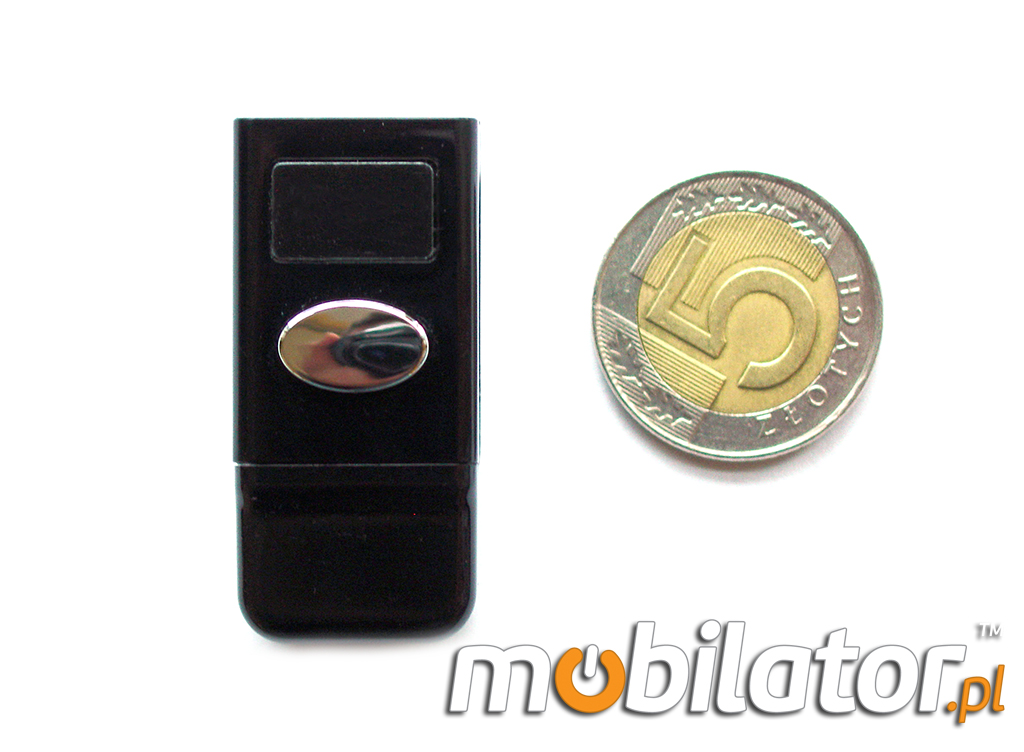

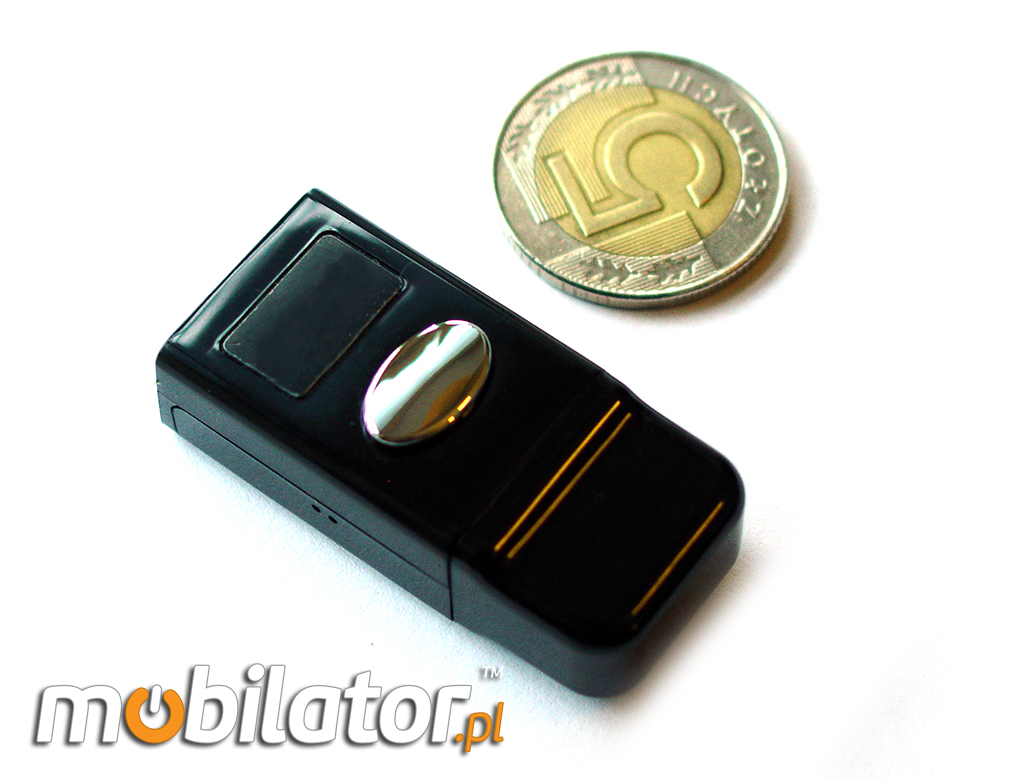

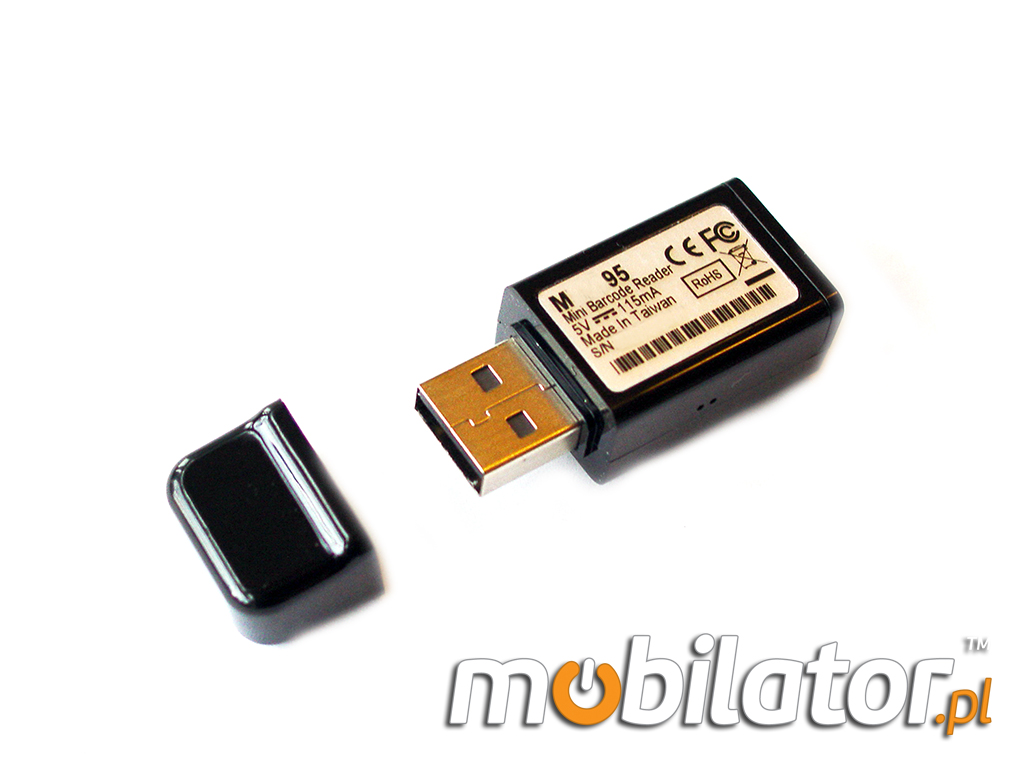

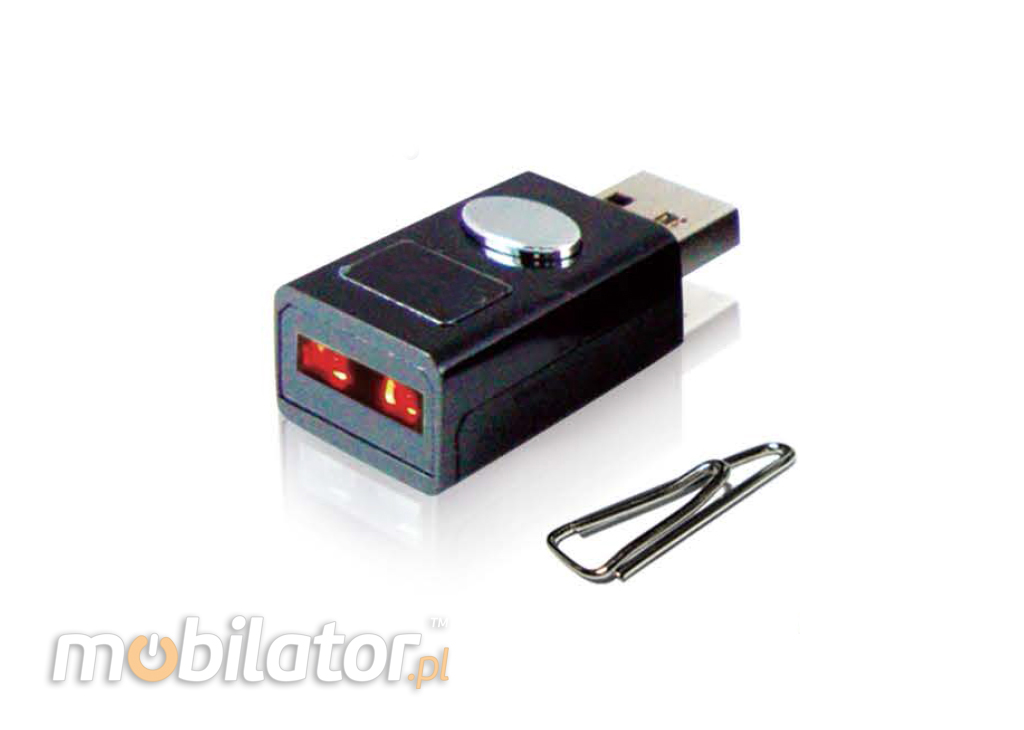

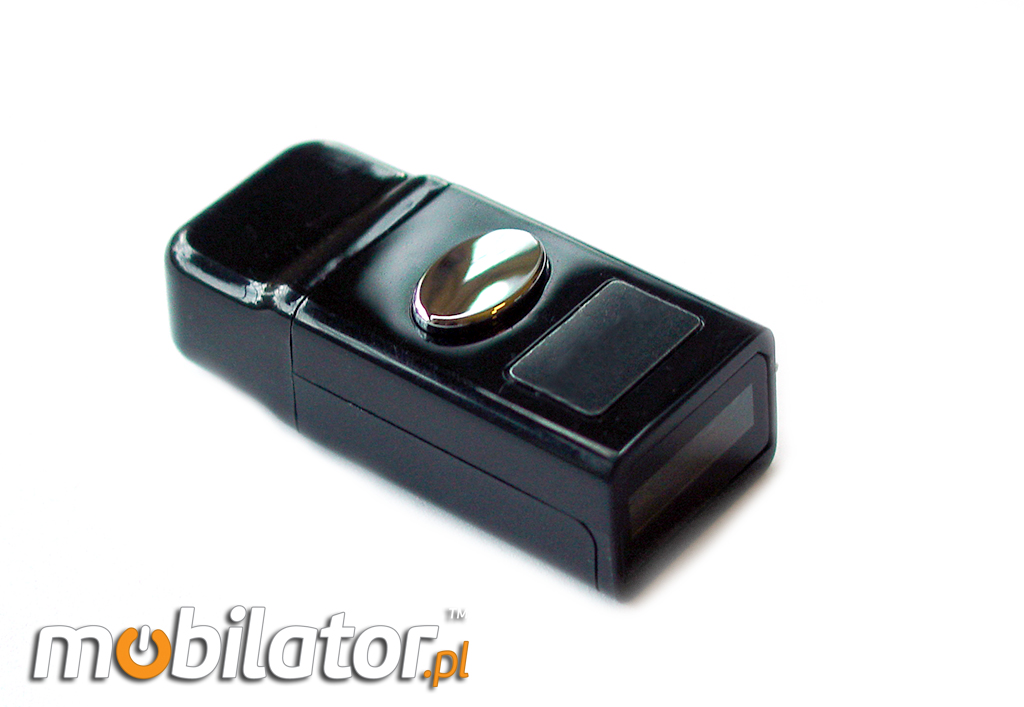

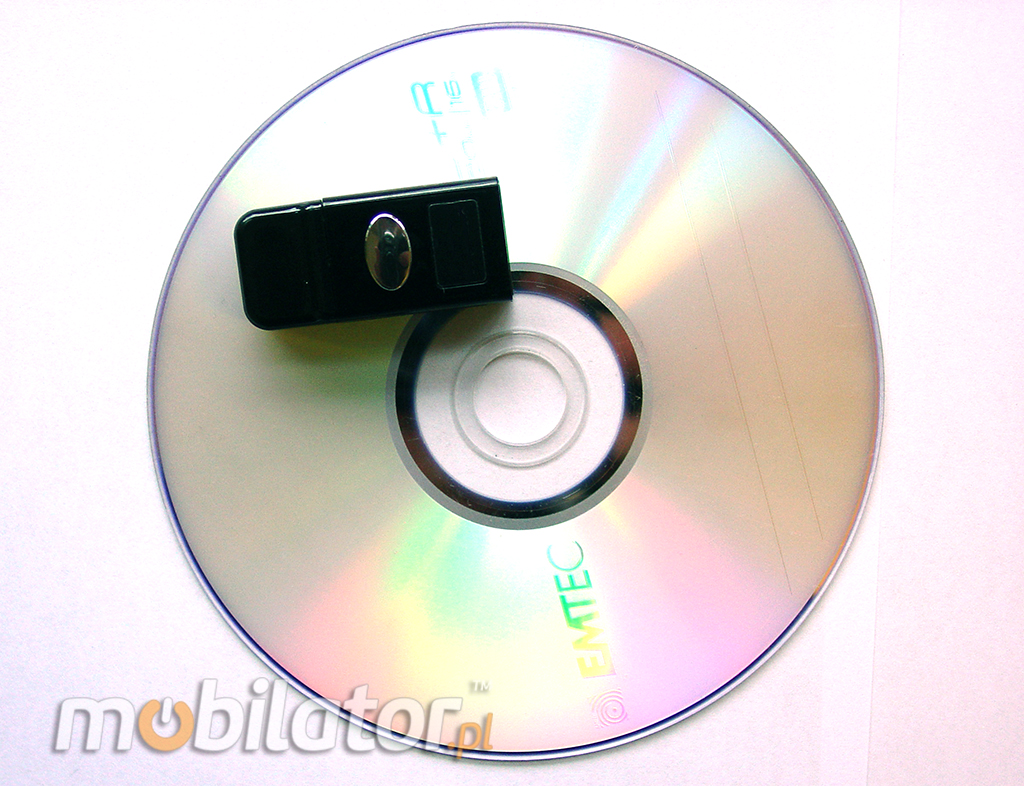

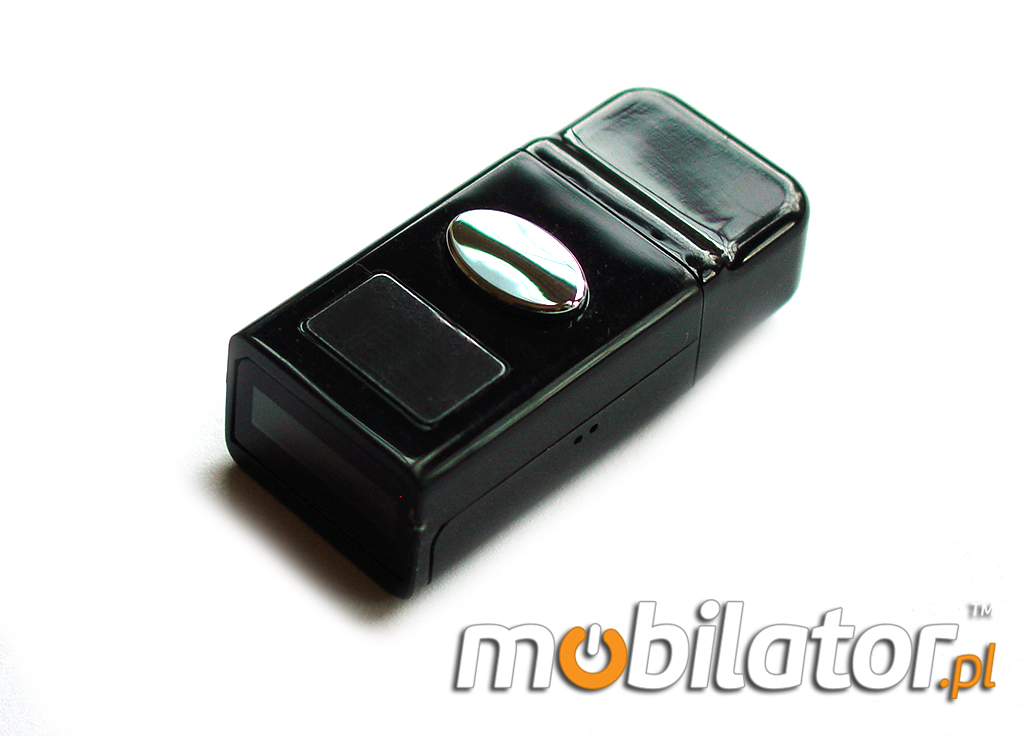

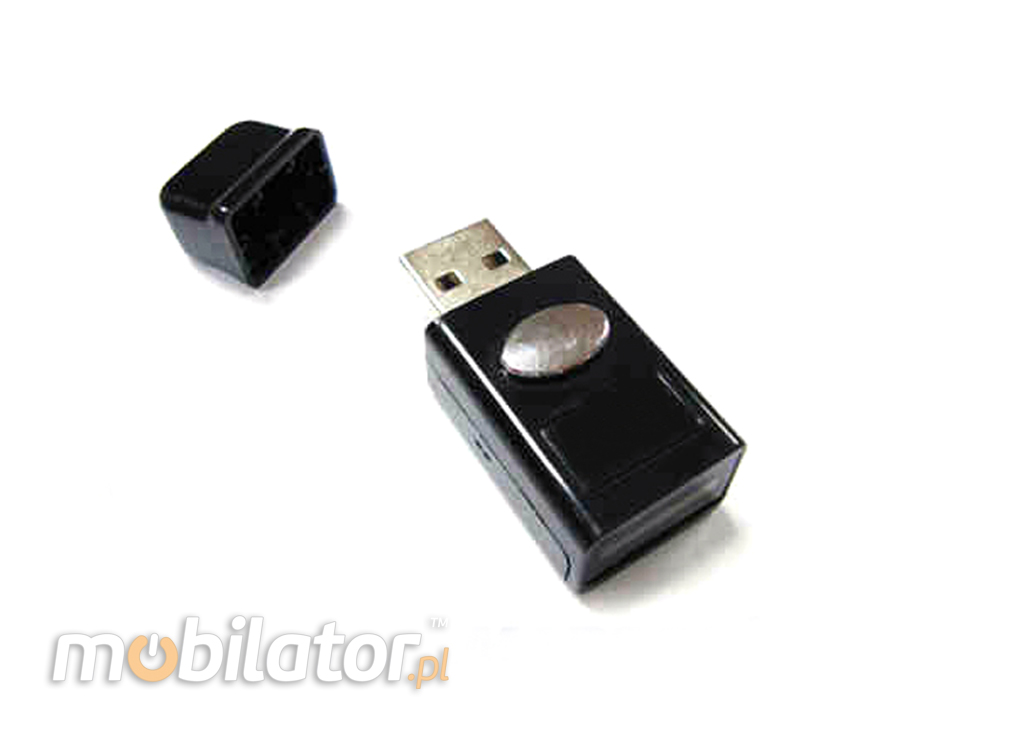

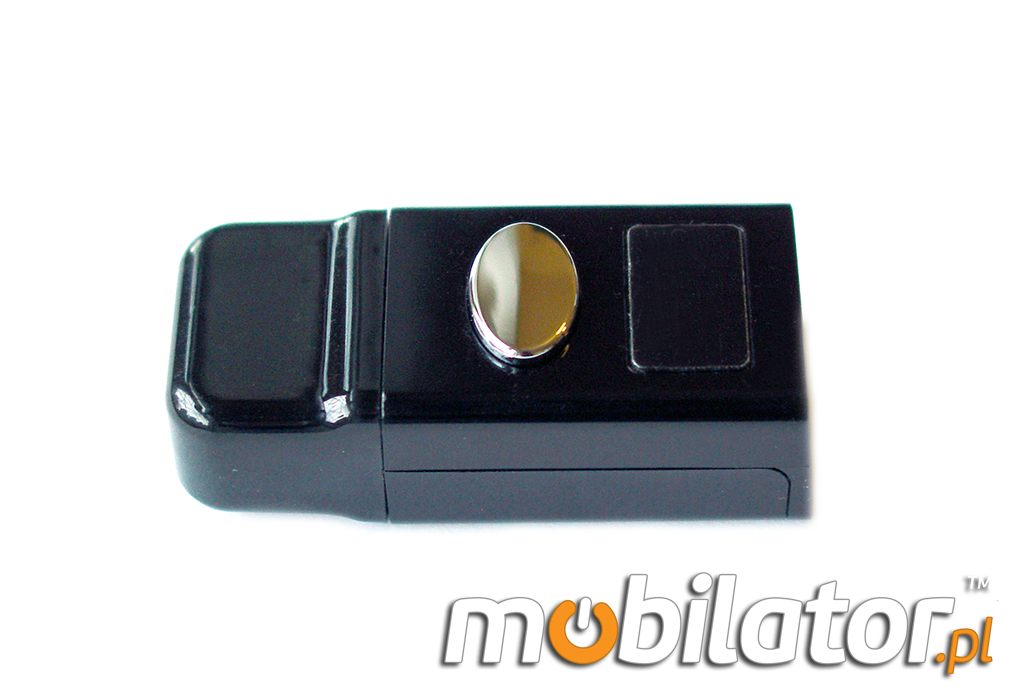

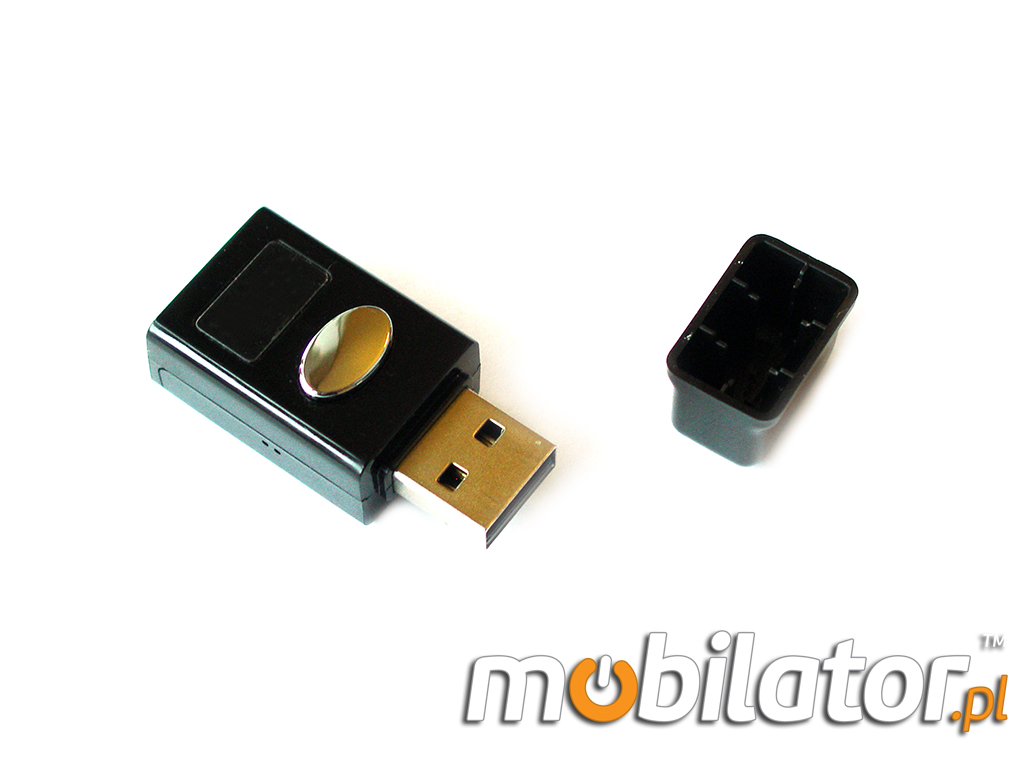

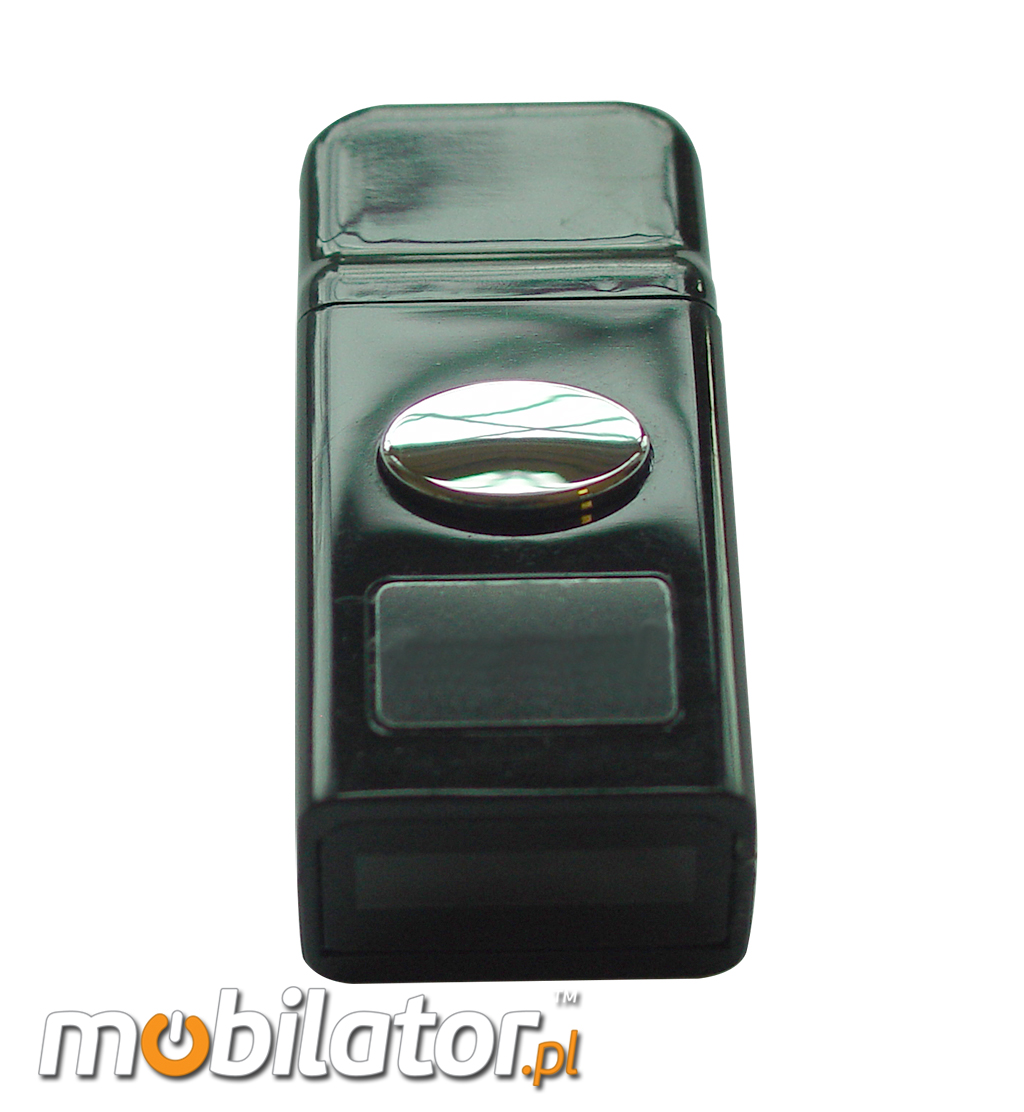

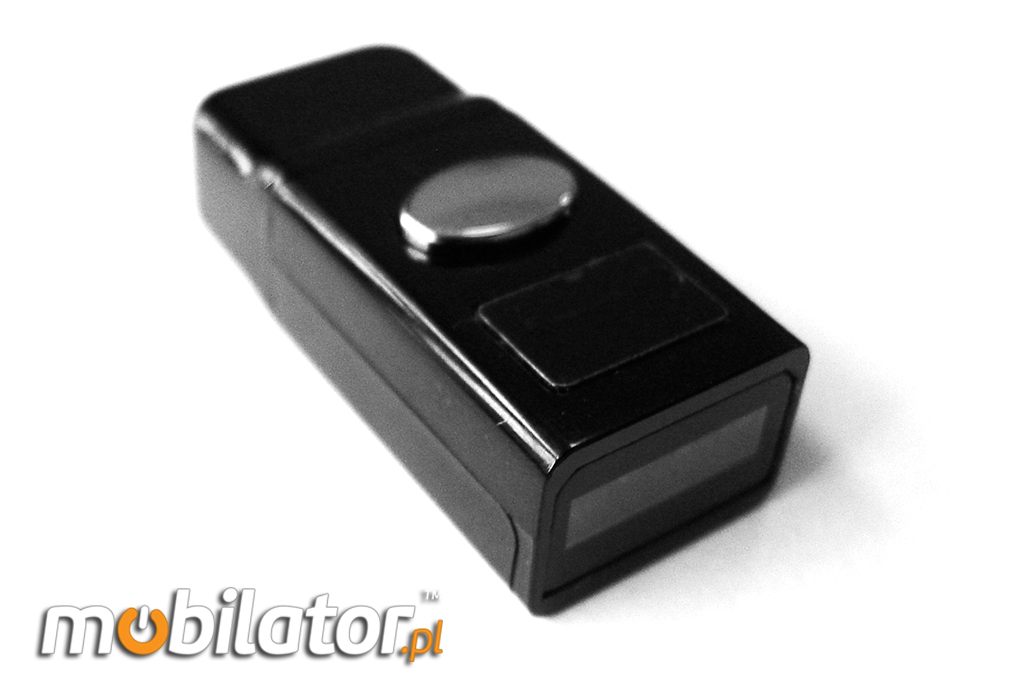

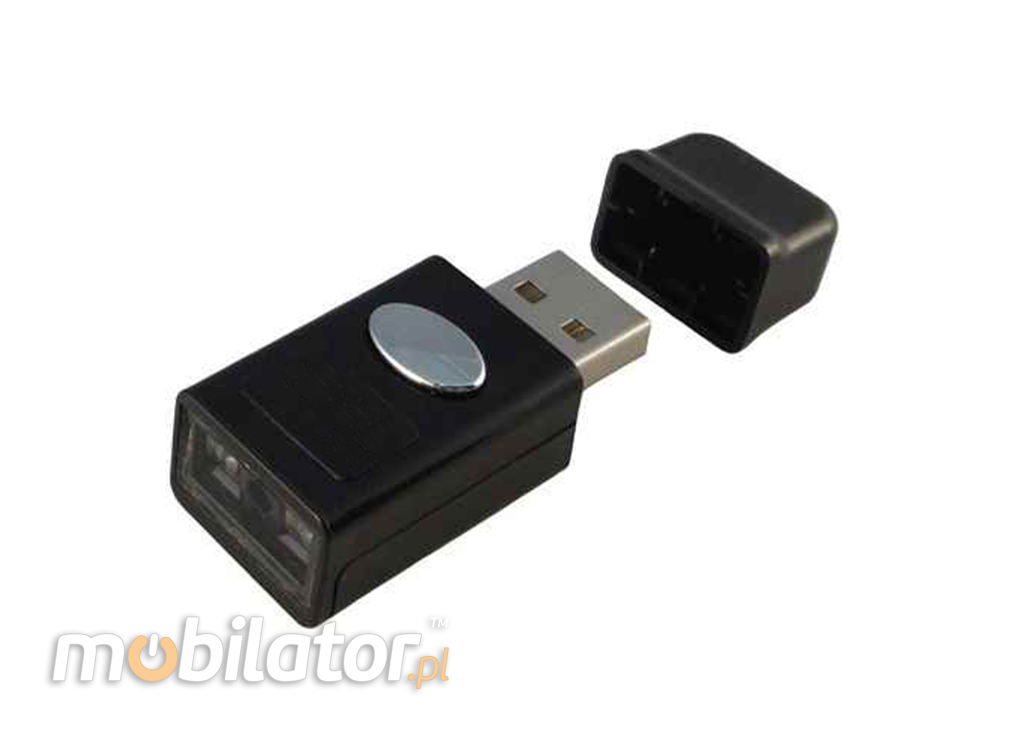

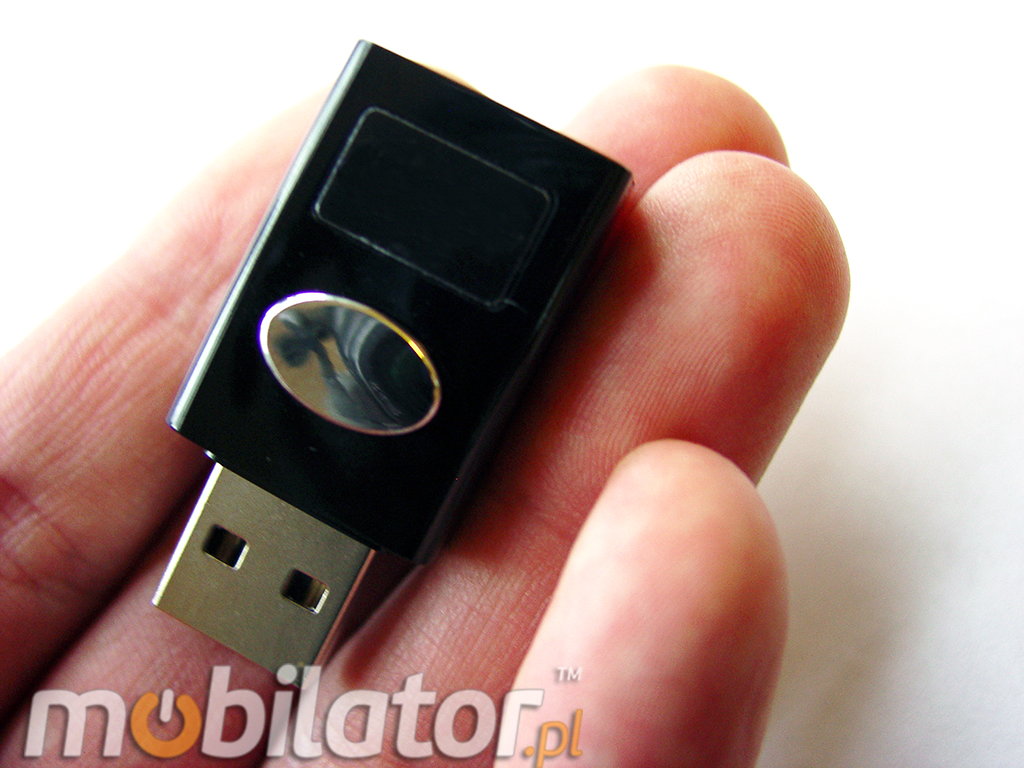

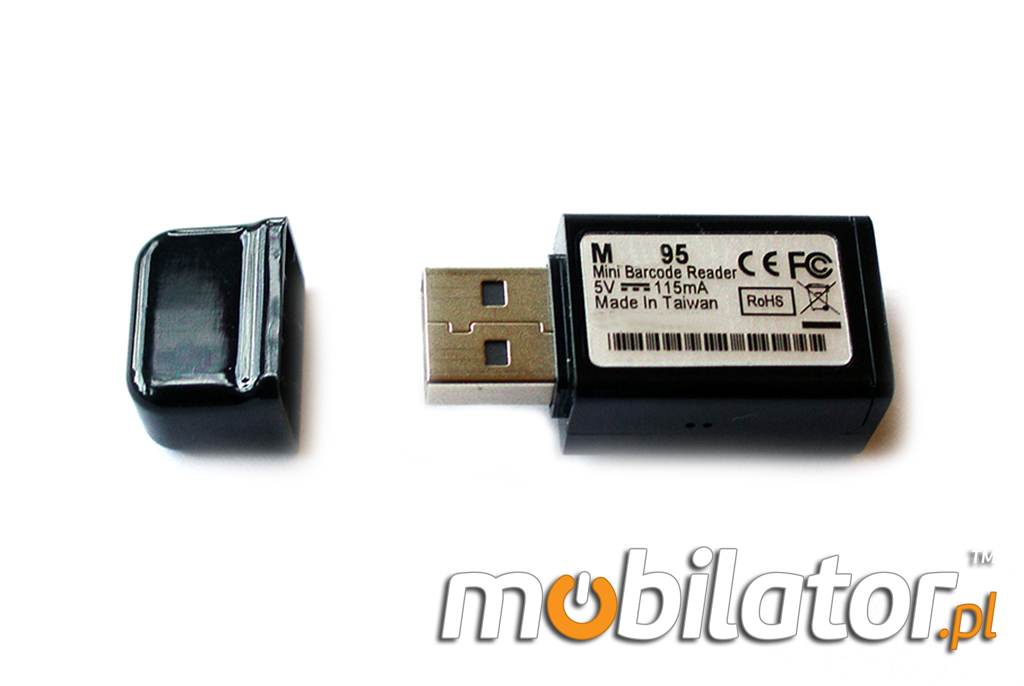

 The next generation of mini scanner surprises his appearance, like pendrive. The world's smallest exceptionally lightweight barcode reader with appropriate surface texture provides good anchorage in the device and is designed for long hours of dependent work in from the power devices.
|

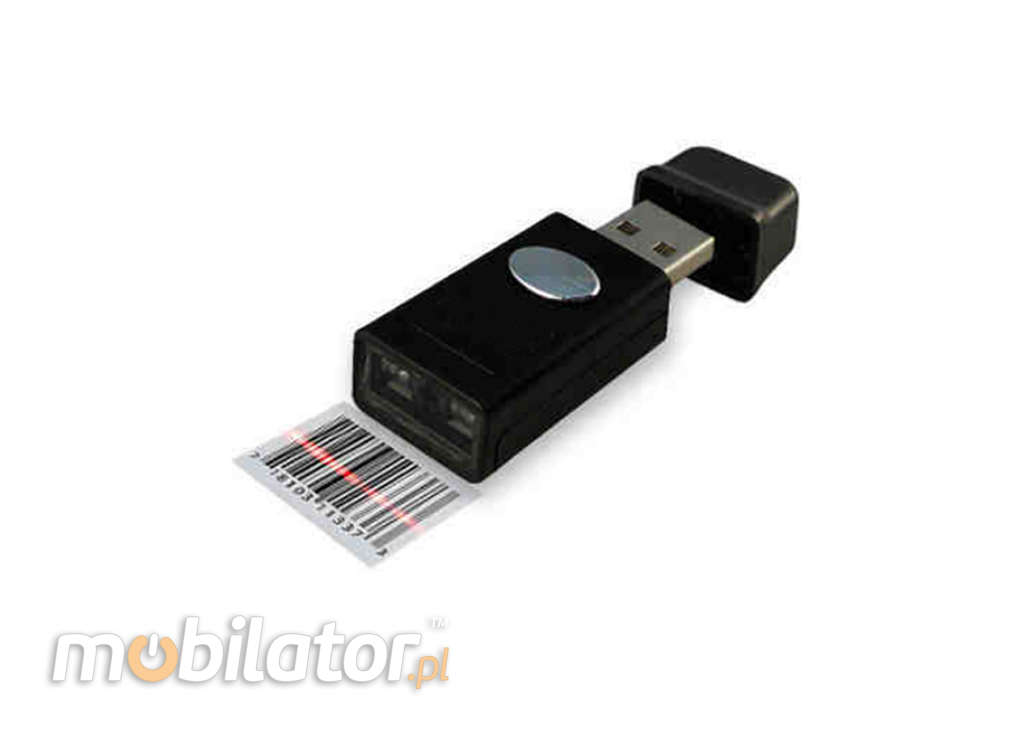

Mini scanner has a built-in 1D barcode reader that through the USB to the device provides information such as the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.
.jpg)

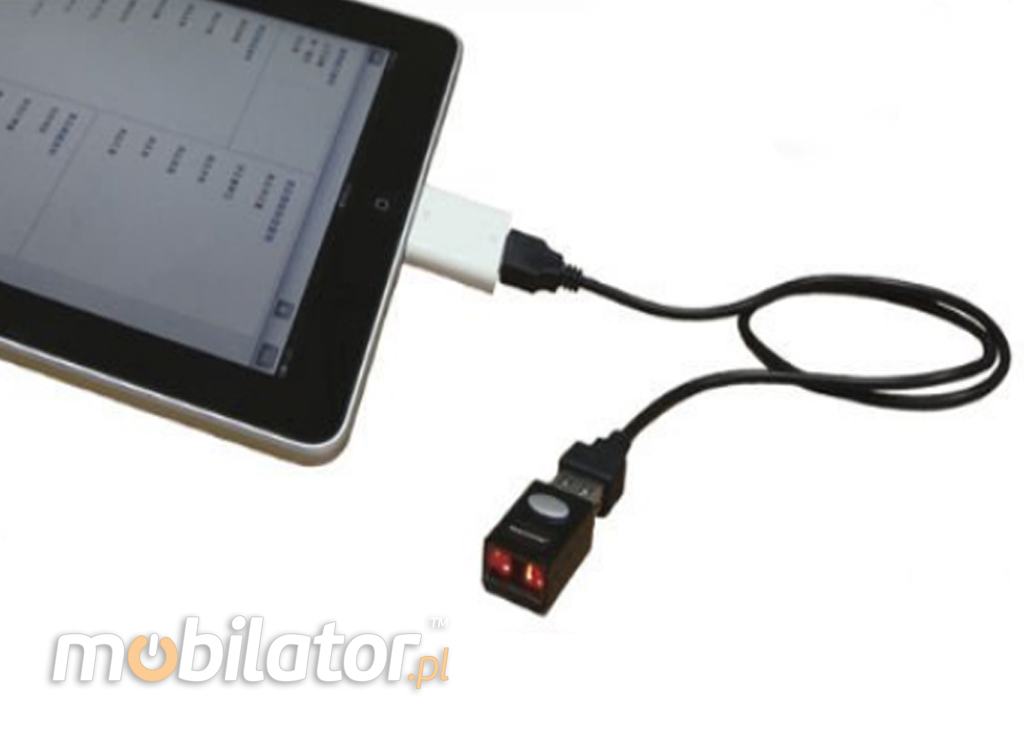

Designed to be fitted to a variety of applications, a barcode scanner can be compatible with systems such as Android, iOS (iPhone does not support), MAC, Windows CE, Windows XP, Windows 7, Windows 8 and Linux. Users can transfer data in real time to a PC or mobile devices.
|
|
Portable (USB) barcode readers through the use of laser read-out techniques are convenient and easy to use and offer a wealth of configuration parameters. Enable automatic operation and manual. Read codes with different contrasts with a distance of several centimeters. The scanner needs power to work, so that it is possible to read-out code for a device that powers it.
The device uses the HID interface
To scanner devices need to use the right software to a serial port (RS-232) collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.If we have the right scanner (USB HID) - when barcode in fact our introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswaæ text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.
|
|
|
|
|
|
MobiScan MS95 which the manufacturer recommends widely used in situations where it is necessary to rapidly identify the goods in commerce, logistics, transport, shipping, industrial, financial and public sectors.
|
|
Pharmacy
MS-95 allows you to quickly identify and enter prescriptions into the database. With a small, mobile, lightweight design is easy to carry and effectively accepting orders.
|
|
Trade
The device is used for fast read-out bar codes. Certainly can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Mini barcode reader allows you to quickly update inventory via USB device.
|
|
Logistics and transport
Small scanner will find all kinds of use including in transport - a portable and super light barcode reader for fast identification.
|
|
|
Barcode readers allow you to read and send to your data stored in the bar code. We offer the highest quality devices work flawlessly even in harsh industrial environments..jpg)
After scanning the coded data can be transferred to a computer or a portable database. Mobile, quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes.

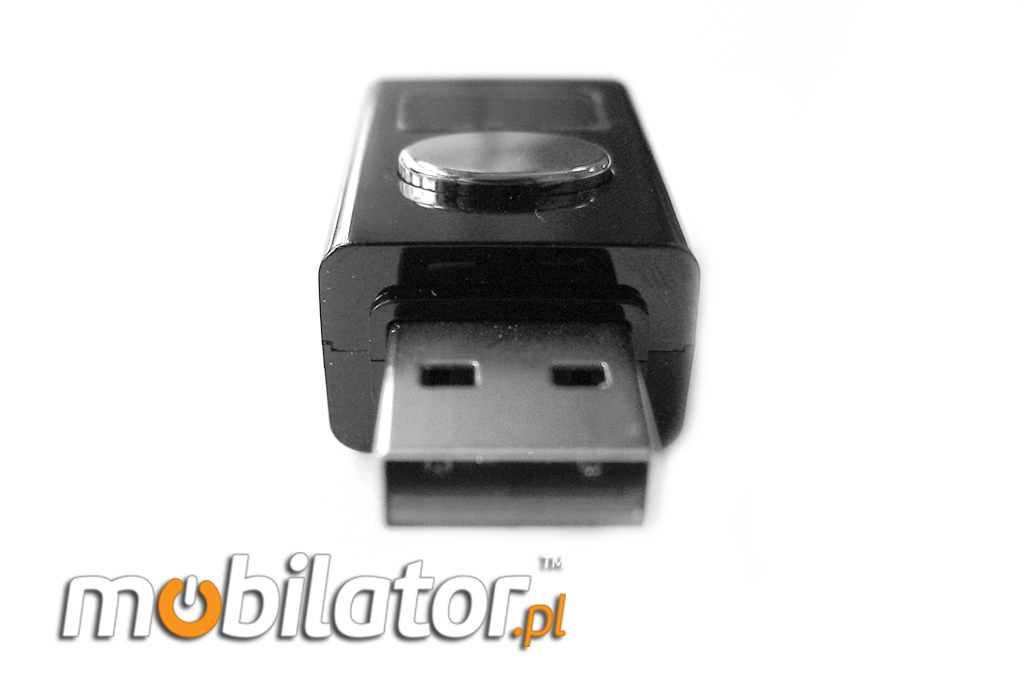

The bar code scanner can be connected to almost any device of computer - via USB.

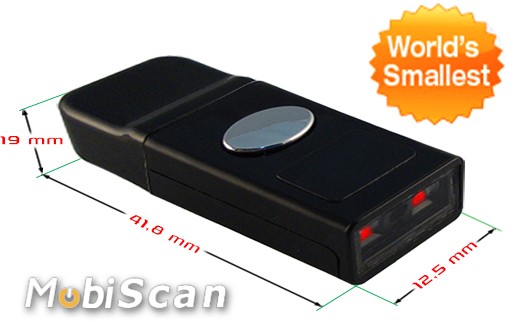

MobiScan MS-95
|
Mechanical
|
Height: 19 mm
Width: 12.5 mm
Lenght: 41.8 mm
Weight: 10g
|
Electrical
|
DC: 5V± 5%
|
Scan Preformence
|
Sensor Type: 625 nm visible red LED
Scan Rate: 240 skan/sek
Scan Angle: 46⁰
Contrast: 30%
|
Barcode Type
|
UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code128, Standard Code 39,
Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code,
IATA Code, GS1 Databar |
|
Communication |
USB
|
Scan Range
|
CODE-39 : Readable @ 5 mil
CODE-39 : 30~140mm @ 13 mil
CODE-39 : 35~185mm @ 20 mil |
|

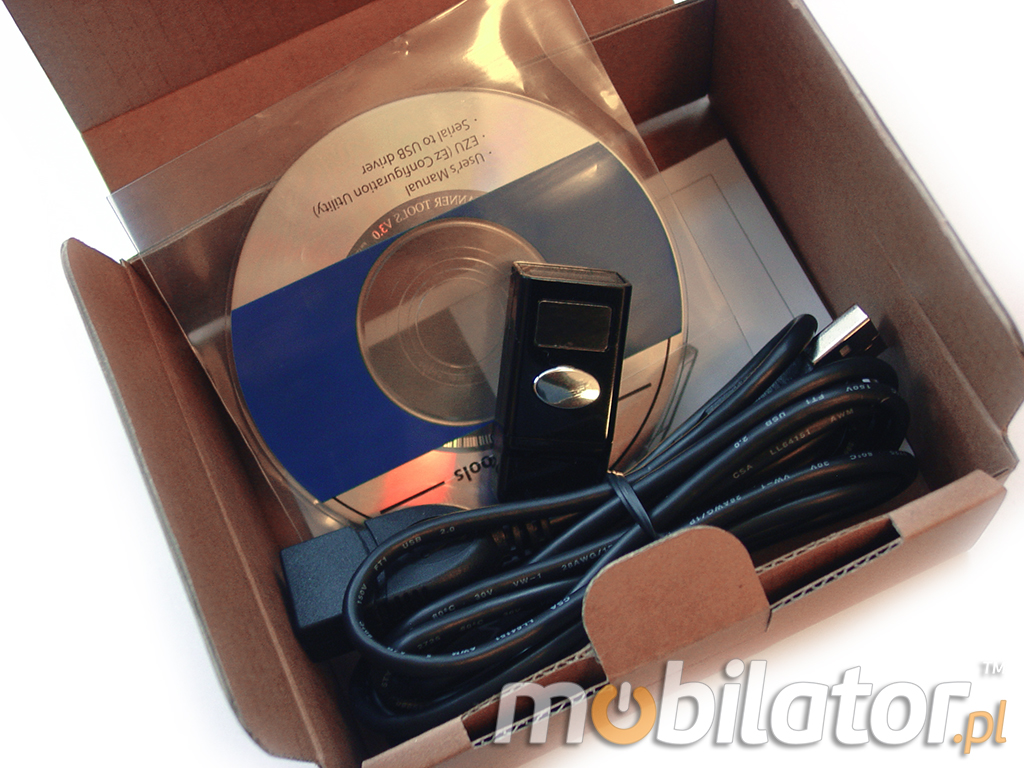

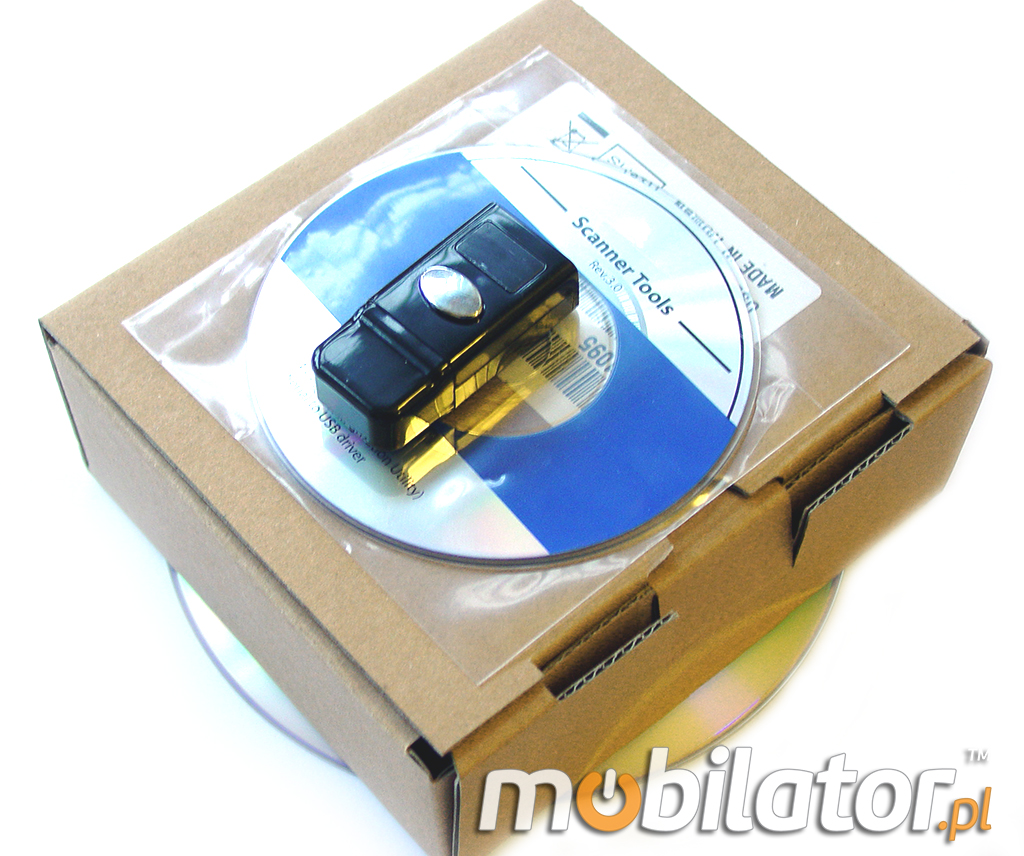

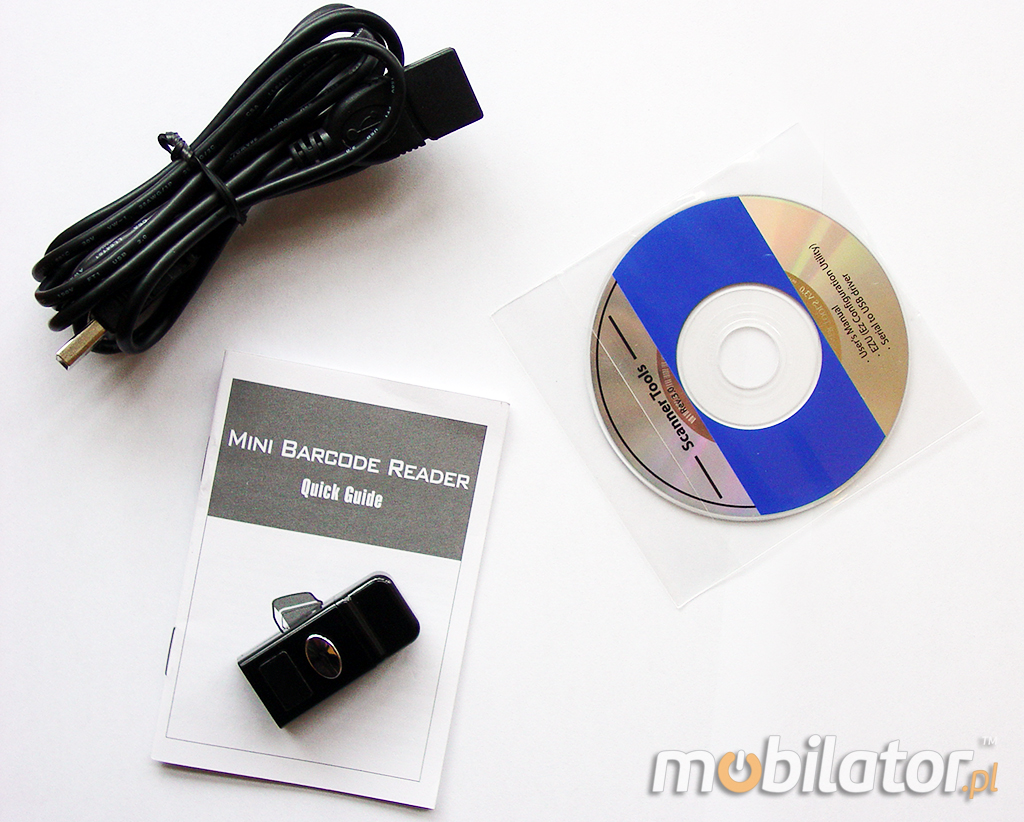

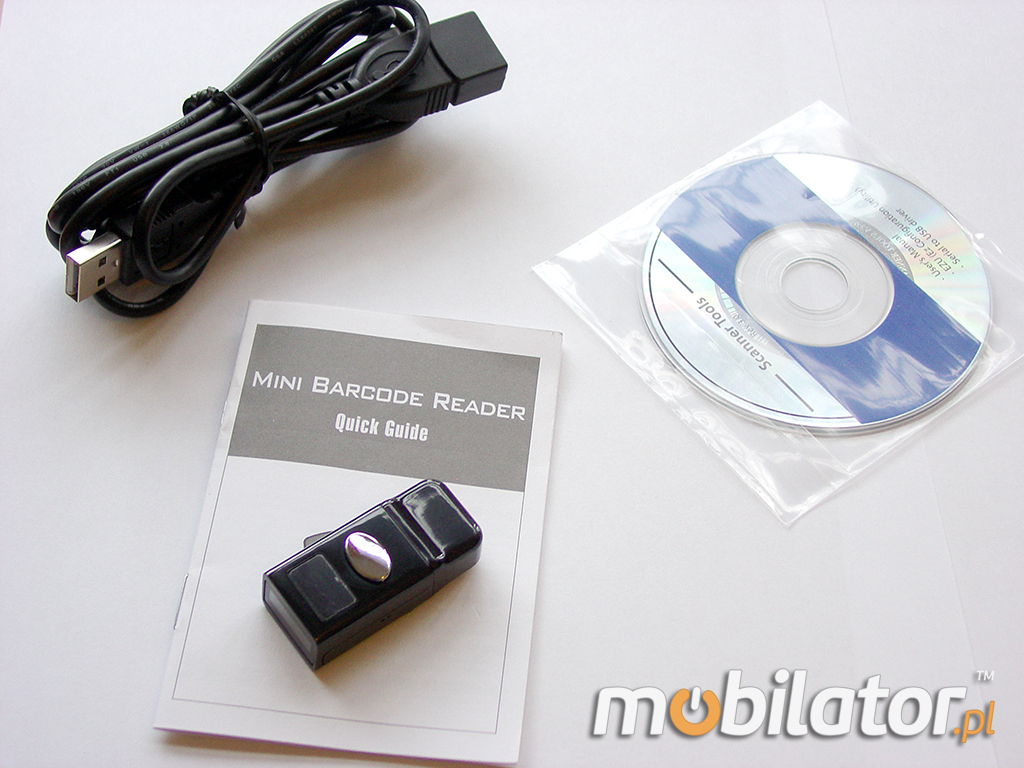

Accessories |

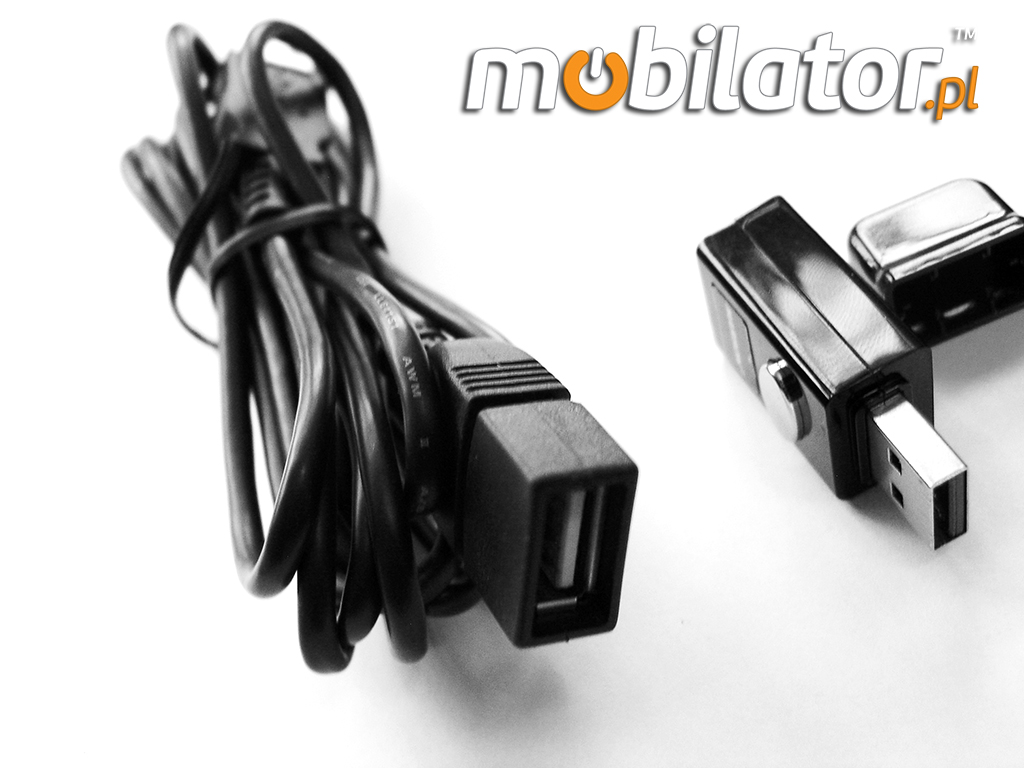

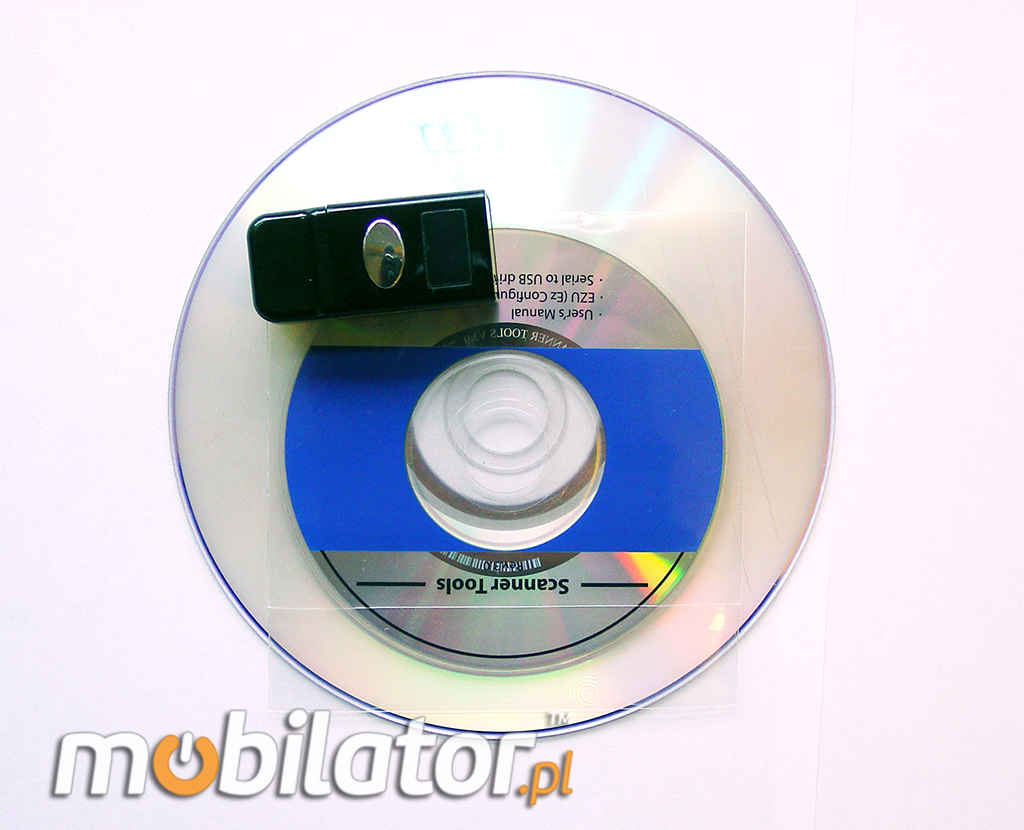

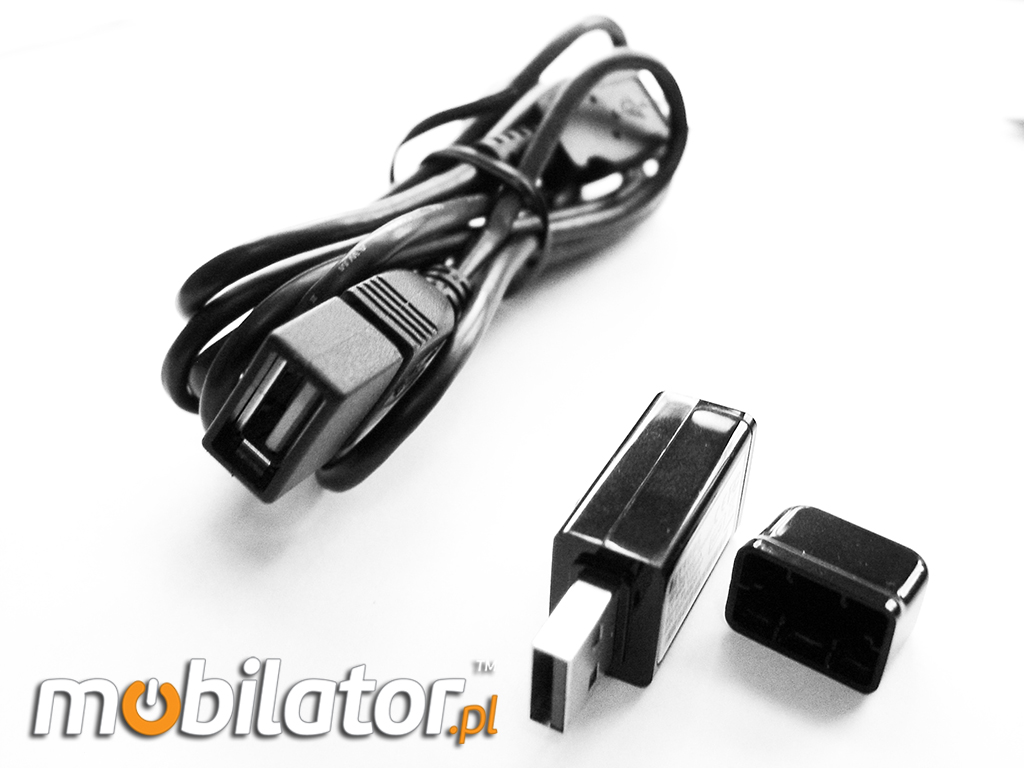

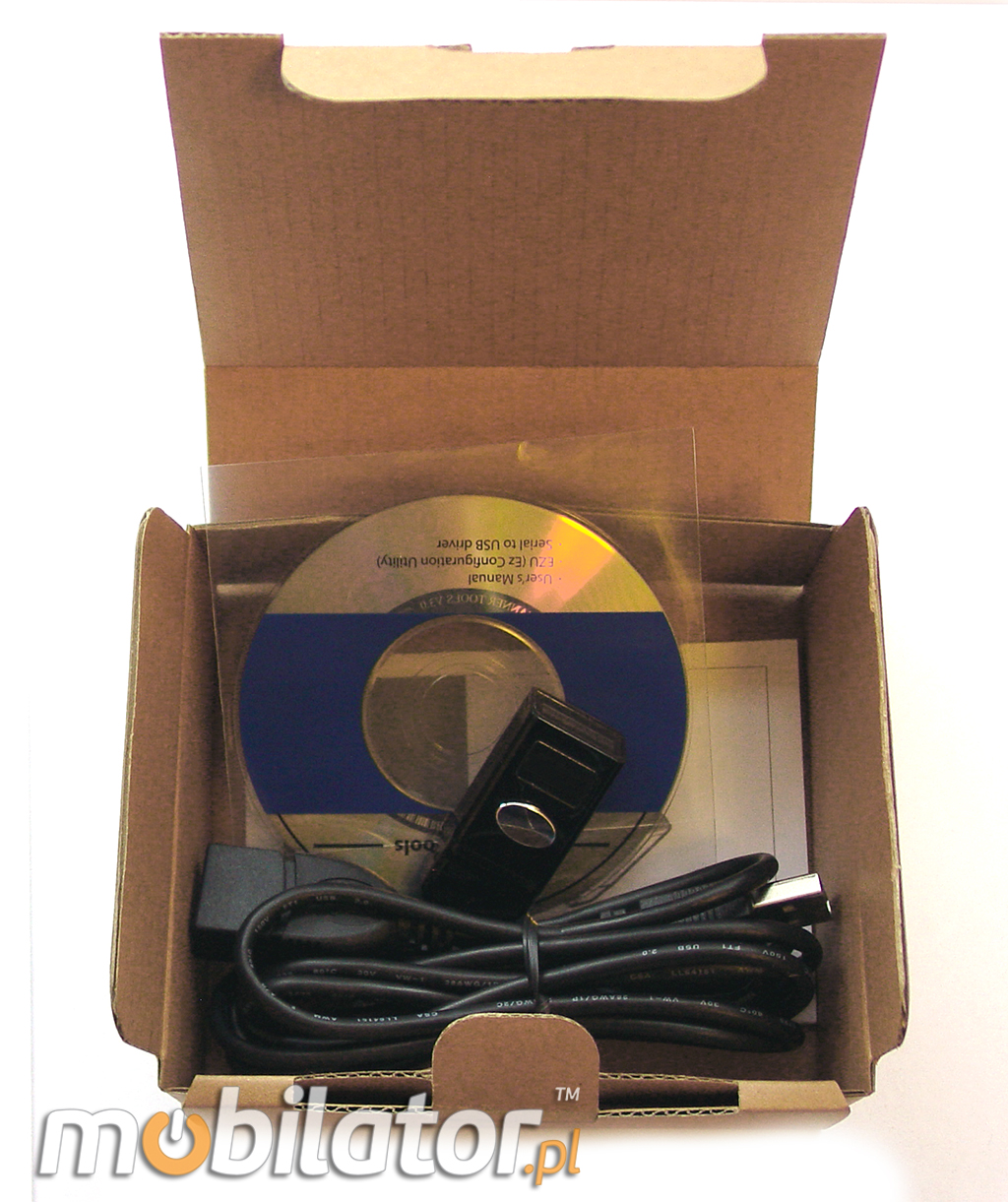

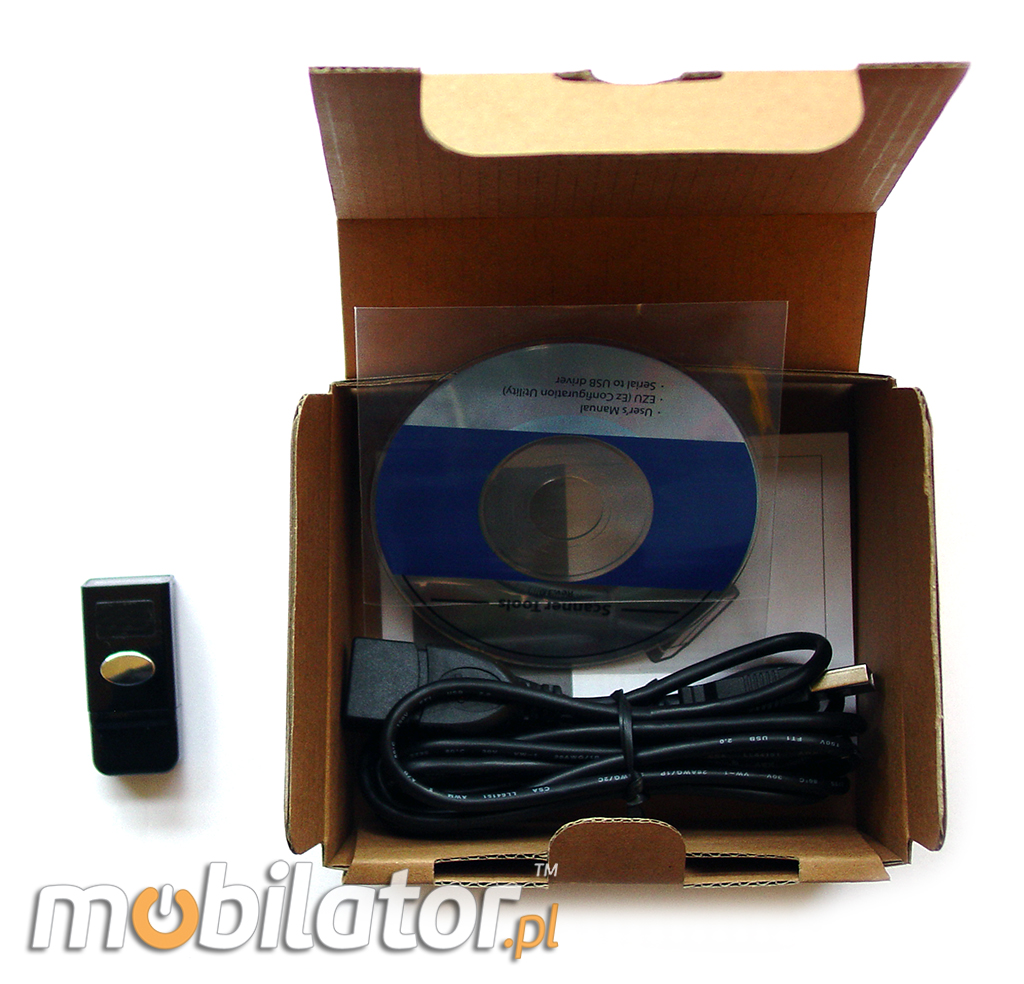

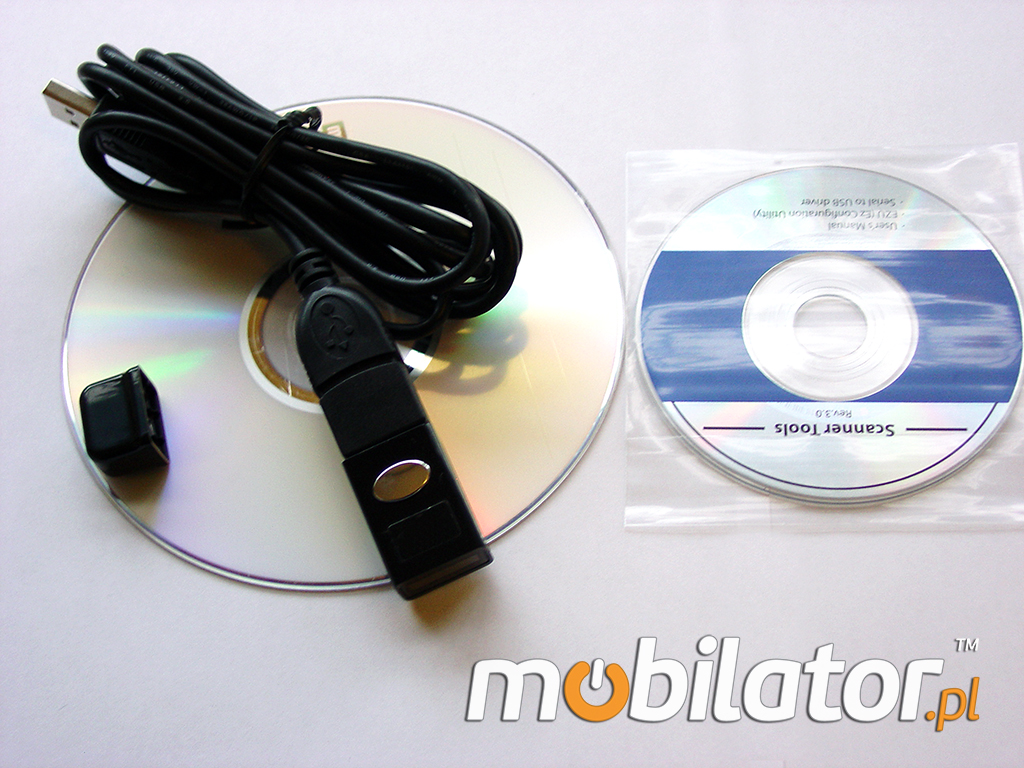

User Manual, cabel USB,
|
|
more photos in "Gallery"...
specification of this version is available in the "Specifications"...
|
|
|
VIDEO
MobiScan MS-95 Mini  MobiScan MS-95 USB  MobiScan MS-95 USB Barcode Scanner  MobiScan MS-95 (ANDROID)
| Supported Operating Systems: |
Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux |
| Internal memory: |
- |
| Operation Voltage: |
5V ± 5% - DC |
| Reading indicator: |
1D |
| Dimensions: |
19 x 41.8 x 12.5 mm |
| Weight: |
10 g |
| Battery: |
- |
| Housing material: |
Plastic |
| Scan rate: |
240 scan/sec |
| Light source: |
625 nm visible red LED |
| Resolution: |
5 mil/ 0.127 mm (PCS=90%) |
| Communication distance: |
- |
| Readable codes: |
UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar |
| Sensor: |
1000 pixels CMOS Sensor |
| Scan Angle: |
46⁰ |
| Print Contrast Ratio: |
30% |
| Scan range: |
CODE-39 : Readable @ 5 mil CODE-39 : 30~140mm @ 13 mil CODE-39 : 35~185mm @ 20 mil |
| Cable Type: |
USB |
| Battery Life: |
- |
| Communication: |
USB |
| Interface/ Pro le: |
HID / VCP |
| Operating Temperature: |
0°C ~ 50°C |
| Storage Temperature: |
-20°C ~ 60°C |
| Relative Humidity: |
20% ~ 85%, non-condensing |
| Resistance IP: |
- |
| Drop test: |
- |
| Barcodes 1D: |
Barcodes 1D: |
| 2 of 5 Chinese: |
No |
| 2 of 5 Discrete: |
No |
| 2 of 5 IATA: |
Yes |
| 2 of 5 Industrial: |
Yes |
| 2 of 5 Interleaved: |
Yes |
| 2 of 5 Matrix: |
Yes |
| 2 of 5 Standard: |
Yes |
| BC - 412: |
No |
| Bookland EAN: |
No |
| Codabar: |
Yes |
| Codabar - NW7: |
Yes |
| Code - 11: |
Yes |
| Code - 11(USD-8): |
No |
| Code - 32: |
Yes |
| Code - 39: |
Yes |
| Code - 39 Extended (full ASCII): |
Yes |
| Code - 39 Trioptic : |
No |
| Code - 93: |
Yes |
| Code - 128 (A, B, C): |
Yes |
| EAN-8: |
Yes |
| EAN-13: |
Yes |
| EAN -128 / UCC-128: |
Yes |
| GS1 DataBar: |
Yes |
| Intelligent Mail: |
No |
| ISBN: |
Yes |
| ISBT - 128: |
No |
| ISSN: |
Yes |
| ITF-6: |
No |
| ITF-14: |
Yes |
| KIX code: |
No |
| Matrix 25: |
Yes |
| MSI: |
Yes |
| MSI - Plessey: |
Yes |
| Pharmacode - One Track: |
No |
| Pharmacode - Two Track: |
No |
| Planet: |
No |
| Plessey: |
Yes |
| Post - Australian (4-State Postal Code): |
No |
| Post - China (4-State Postal Code): |
No |
| Post - Japanese (4-State Postal Code): |
No |
| Post - Singapore (4-State Postal Code): |
No |
| PostNET: |
No |
| Royal Mail (RM-4SCC): |
No |
| Telepen Code: |
Yes |
| UK/Plessey: |
Yes |
| UPC - A: |
Yes |
| UPC - E: |
Yes |
| UPC - E1: |
Yes |
| Barcodes 2D: |
Barcodes 2D: |
| Aztec: |
No |
| Composite code: |
No |
| DataMatrix: |
No |
| MaxiCode: |
No |
| Micro PDF 417: |
No |
| Micro QR Code : |
No |
| PDF 417: |
No |
| QR Code : |
No |
| RSS: |
No |
| TLC-39: |
No |
