MiniPC AOpen DE67-HAI v.5
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/minipc-aopen-de67-hai-v.5-produkt-85881.html

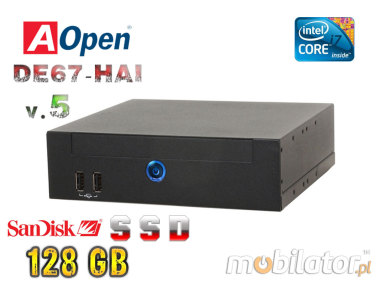

MiniPC AOpen DE67-HAI v.5



MiniPC Industrial AOpen DE67-HAI

Terms and Conditions:




AOpen DE67-HAI MiniPC Komputer przemysłowy DIGITAL ENGINE Intel i3 i5 i7  mSata SSD


DIGITAL ENGINE the series of products AOpen firm dedicate to industrial use.
Digital Engine DE67-HAI

The Digital Engine DE67-HAI, supports the latest Intel® Active Management Technology (Intel® AMT) 8.0 firmware and 3rd generation Intel® Core™ processor family.

Aimed at those with the most demanding multimedia and computational workloads, the DE67-HAI is currently AOPEN’s most powerful small form factor device. Stunning performance and razor sharp graphics intensify the computing experience. Designed for use in digital communications technology solutions, it can also be used as a light server.

This small and powerful system offers a range of high end features:

  - It supports 2nd generation and 3rd generation Intel® Core™ i3, i5 and i7 processor families.
  - Intel® Active Management Technology (Intel® AMT) lets users query, restore, upgrade, and protect networked digital signage devices remotely. By enabling remote manageability from a central console and allowing users to avoid the expense of on-site technician visits, Intel AMT helps reduce the total cost of ownership.
  - Flawlessly smooth, 1080p full HD video playback on multiple displays.
  - The DE67-HAI has low noise and low power consumption, which means lower heat dissipation, less energy use, which saves money and supports green computing.
  - It has two expansion slots, full size and half size, supporting mSATA.





AOpen_logo
digital_engine_logo




Resistance on damage & small size ...
list of content… do góry…
go top… do góry…




The AOpen Digital Engine DE67-HAI is a rugged, high performance Intel-based system in a 6.5W x 6.3H x 1.89D footprint that weighs less than 3 pounds.




Environment specifications:

Operating Temperature: -10°C ~ 55°C

Non-Operating Temperature:-30°C ~ 65°C

Humidity: 95% RH(55℃non-condensed)

Operating Vibration: 0.45Grms, 10 ~ 500Hz

Non-Operating Vibration: 2Grms, 5 ~ 500Hz

Operating Shock: Half Sine, 8G, 11ms

Non-Operating Shock: Half Sine, 50G, 11ms

Drop test: IEC 60068-2-32




AOpen DE67-HAI MiniPC Komputer przemysłowy DIGITAL ENGINE Intel i3 i5 i7  mSata SSD



Advenced technology ...

Using the latest technology Digital Engine is designed for continuous multi-tasking operating with low power consumption (90W). An important advantage is the effective combination of small size with considerable potential for use processors from Intel (Intel® Core™ i3-2330M / Intel® Core™ i5-3210M / Intel® Core™ i5-3320M /Intel® Core™ i7-3612QM) chipset (Intel QM67) and DDRIII memory expandability (up to 8GB). Integrated audio-visual application allows you to play (video, audio) in HD quality. Disk space offers available (up to) 500GB or optional use of a very fast 256GB SSD for storage.

AOpen DE67-HAI MiniPC Komputer przemysłowy DIGITAL ENGINE Intel i3 i5 i7  mSata SSD
AOpen DE67-HAI MiniPC Komputer przemysłowy DIGITAL ENGINE Intel i3 i5 i7  mSata SSD



Using & interface ...



Front Panel :



AOpen DE67-HAI MiniPC Komputer przemysłowy DIGITAL ENGINE Intel i3 i5 i7  mSata SSD




Rear Panel :



AOpen DE67-HAI MiniPC Komputer przemysłowy DIGITAL ENGINE Intel i3 i5 i7  mSata SSD





Use ...
For thanks of use optional handles and adapters, it many possibilites to mount Digital Engines - for example: in factory halls, with LCD / LED monitors, hipermarkets, shops, under table top and cars.

  AOpen DE67-HAI MiniPC Komputer przemysłowy DIGITAL ENGINE Intel i3 i5 i7  mSata SSD
AOpen DE67-HAI MiniPC Komputer przemysłowy DIGITAL ENGINE Intel i3 i5 i7  mSata SSD
AOpen DE67-HAI MiniPC Komputer przemysłowy DIGITAL ENGINE Intel i3 i5 i7  mSata SSD



Recapitulation ...


AOpen Digital Engine DE67-HAI is a complete solution for Digital Signage, Projector PC, Media Player, and Vehicle PC. AOpen DE67 is a compact system of 1.25L with Intel QM67 Express Chipset supporting Intel socket P Core 2 Duo/Penryn processors. The AOpen DE67 had 40,000 hour MTBF and passed shock and vibration operation tests. It can be installed both vertically and horizontally without having thermal issues. AOpen DE67 adapts mobile CPU, chipset and memory to reduce heat. With less heat, the speed of the fans will drop and create a silent working condition.




Accessory in Box ...

- L Type Holder : X1
- DVI to VGA converter : X1
- 90W PWR 20V (EPA5)Adapter x 1
- Power Cord x 1
- HDMI To DVI Cable (1500mm) x 1
- Power Clamp x 1
- Utilities & Drivers CD x 1
- Assembly Guide x 1

AOpen DE67-HAI MiniPC Komputer przemysłowy DIGITAL ENGINE Intel i3 i5 i7  mSata SSD




AOpen DE67-HAI MiniPC Komputer przemysłowy DIGITAL ENGINE Intel i3 i5 i7  mSata SSD

Energy saving and cost reducing


AOpen DE67-HAI MiniPC Komputer przemysłowy DIGITAL ENGINE Intel i3 i5 i7  mSata SSD



table energy saving md100

AOpen DE67-HAI MiniPC Komputer przemysłowy DIGITAL ENGINE Intel i3 i5 i7  mSata SSD

Others: Colour Black, Case: Steel
Chipset: Intel QM67
CPU Support: Socket FCBGA1023/ PPGA988 - Intel Core i3/i5/i7
Installed CPU: Intel® Core™ i7-3612QM(4x2.10GHz)
Memory Support: DDR3 SO-DIMM x 2 800/1066/1333MHz (up to 8 GB)
Installed Memory: 8GB RAM (2x4GB) Kingston SODIMM DDR3 1333MHz CL9 (or Samsung)
Graphic Card: Intel® HD Graphics 4000
Storage (HDD) Support: 2.5" SATA II/III HDD up to 500GB/ SSD up to 256GB
Installed Storage (HDD): SanDisk 2.5'' 128GB SSD SATA3
CD/DVD Drive: No (Optional Yes- Multicombo DVD/CD)
LAN: Realtek Gigabit Ethernet/ 10/100/1000
Wireless LAN card: No (Optional Yes)
Bluetooth: -----
3G: -----
4G LTE:
TV Tuner: -----
Watch Dog Timer: 1 ~ 255 sec/min
Front Panel (ports): 2x USB 2.0
Rear Panel (ports): 2x USB 2.0, 2xUSB 3.0, HDMI, Audio , Rk, DVI-I, RS232,J-45, DC-in Jac
Power: 90W (20V, 4.5A)
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: No (Optional Windows 7/Vista/XP)
Dimensions: 166 x 157 x 48 mm
Weight: 1,2kg
Expansion: MultiCombo DVD/CD, WiFi card, HSDPA module
Fanless: -----
Humidity: 95% RH (50 °C non-Condensing)
Temp: 0 ~ 50°C (32 ~ 122°F)
IP Norm: -----
Storage temperature: -30 ~ 60°C (-22 ~ 140°F)


CURRENT PRICE
4206.21 € Net
5173.64€ Gross
