MiniPC Industrial AOpen DE45-Pro v.2
| CURRENT PRICE |
| 633.57 € |
Net |
| 779.29 € |
Gross |
MiniPC Industrial AOpen DE45-Pro v.2
Terms and Conditions: |
|
|
|
DIGITAL ENGINE the series of products AOpen firm dedicate to industrial use ...
|
|
Resistance on damage & small size ... |
|
|
The AOpen Digital Engine DE45-Pro is a rugged, high performance Intel-based system in a 6.5W x 6.3H x 1.89D footprint that weighs less than 3 pounds.
|
|
Environment specifications:
Operating Temperature: -10°C ~ 55°C
Non-Operating Temperature:-30°C ~ 65°C
Humidity: 95% RH(55℃non-condensed)
Operating Vibration: 0.45Grms, 10 ~ 500Hz
Non-Operating Vibration: 2Grms, 5 ~ 500Hz
Operating Shock: Half Sine, 8G, 11ms
Non-Operating Shock: Half Sine, 50G, 11ms
Drop test: IEC 60068-2-32
|
|
The AOpen MiniPC DE45-Pro line offers Intel-based desktop products with a similar footprint and features an enclosure that balances ergonomics, size and function. Both systems include the Intel GM45 / ICH9M chipset, one Mini PCI slot as well as extensive I/O that includes DVI, S-Video, GB LAN, USB, HD audio and more. The systems have the ability to add up to 4GB of memory as well as a notebook hard drive or flash disk. |
|
For thanks of use optional handles and adapters, it many possibilites to mount Digital Engines - for example: in factory halls, with LCD / LED monitors, hipermarkets, shops, under table top and cars.
|
|
 |
|
AOpen Digital Engine DE45-Pro is a complete solution for Digital Signage, Projector PC, Media Player, and Vehicle PC. AOpen DE45-Pro is a compact system of 1.25L with Intel GM45 Express Chipset supporting Intel socket P Core 2 Duo/Penryn processors. The AOpen DE45-Pro had 40,000 hour MTBF and passed shock and vibration operation tests. It can be installed both vertically and horizontally without having thermal issues. AOpen DE45-Pro adapts mobile CPU, chipset and memory to reduce heat. With less heat, the speed of the fans will drop and create a silent working condition.
|
|
Converter board |
HDMI to DVI cable |
|
|
|
|
(90Watt) Adapter |
Power cord |
|
|
|
Energy saving and cost reducing
|
| Others: |
None |
| Chipset: |
Intel GM45 / ICH9M |
| FSB: |
1066 / 800 / 667 |
| CPU Support: |
Socket P - Intel Core 2 Duo (Penryn) |
| Installed CPU: |
Intel Pentium Core 2 Duo T7500, 2.2GHz, (cache 4MB) |
| Memory Support: |
2 x SODIMM DDR2, Up to 4GB |
| Installed Memory: |
4GB DDR II |
| Graphic Card: |
Intel GMA X4500MHD |
| Storage (HDD) Support: |
1 x 2,5'' - Up to 750GB |
| Installed Storage (HDD): |
320GB - 2,5'' SATA II |
| CD/DVD Drive: |
None |
| LAN: |
10/100/1G Intel GbE LAN controller |
| Wireless LAN card: |
No (Optional Yes) |
| TV Tuner: |
No (Optional Yes) |
| Front Panel (ports): |
2 x USB 2.0 |

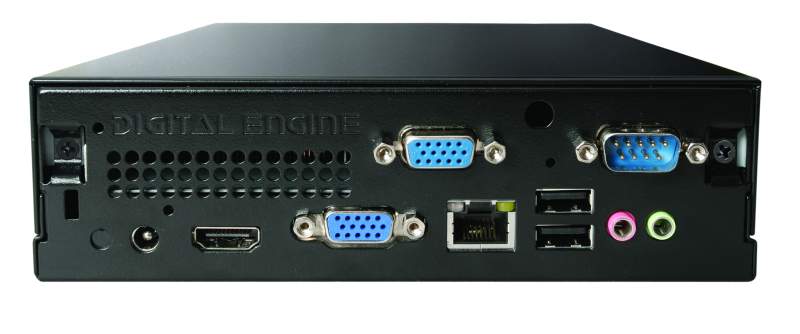

| Rear Panel (ports): |
2x USB 2.0, LAN RJ45 (10/100/1G LAN),1 x Audio Jack Stereo (Line In, Line Out), 1 x HDMI (cable to DVI in Box) , 2 x VGA , 1 x COM (RS232) |
| Power: |
External AC adapter |
| Supported OS: |
Windows XP, Windows Vista |
| Installed OS: |
None |
| Dimensions: |
166mm x 48mm x 157mm |
| Expansion: |
Hybrid TV Tuner DVB-T (analog + digital + FM), , WiFi 802.11 a/b/g/n, Card rider CF, Handles and Adapters |
|
