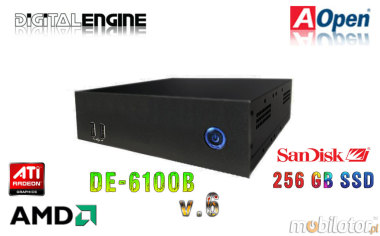

AOpen MiniPC Industrial DE6100B v.6



MiniPC Industrial AOpen DE6100B

Terms and Conditions:




MiniPC Przemys這wy AOpen DE6100 B AMD Quad core R-464L 4x2.3GHz 16GB DDR3 256GB SSD SATA 3
DIGITAL ENGINE the series of extreme products AOpen firm dedicate to industrial use ...




AOpen_logo
digital_engine_logo




Resistance on damage & small size ...
list of content… do g鏎y…
go top… do g鏎y…




The AOpen Digital Engine DE6100B is a rugged, high performance Intel-based system in a 166 (W)x 48 (H) x 157 (D)mm footprint that weighs less than 1,12 kg.




MiniPC Przemys這wy AOpen DE6100 B AMD Quad core R-464L 4x2.3GHz 16GB DDR3 256GB SSD SATA 3



Advenced technology ...

Using the latest technology Digital Engine is designed for continuous multi-tasking operating with low power consumption (90W). An important advantage is the effective combination of small size with a significant potential for the use of high-performance processor family AMD Quad core R-464L (4x2.3GHz), chipset (AMD A70M) and expandable DDR3 memory (up to 16GB). Integrated audio-visual application allows you to play (video, audio). Disk space offers available (up to) 500GB HDD or 256GB SSD.

MiniPC Przemys這wy AOpen DE6100 B AMD Quad core R-464L 4x2.3GHz 16GB DDR3 256GB SSD SATA 3

Realtek 10/100/1000 Gigabit Ethernet or WiFi adapter (optional) to connect the device to the network. The computer is equipped with: LAN connector, one COM port (RS232), four USB 2.0 ports, two USB 3.0 ports, two HDMI outputs, one Display Port two audio inputs, and optional WiFi, Bluetooth.



MiniPC Przemys這wy AOpen DE6100 B AMD Quad core R-464L 4x2.3GHz 16GB DDR3 256GB SSD SATA 3
MiniPC Przemys這wy AOpen DE6100 B AMD Quad core R-464L 4x2.3GHz 16GB DDR3 256GB SSD SATA 3

Your system's performance will never disappoint thanks to the latest DDR3 1333/1600MHz system memory providing greater memory bandwidth for performance that will never lag behind. Max up to 16GB!



Using & interface ...



Front Panel :



MiniPC Przemys這wy AOpen DE6100 B AMD Quad core R-464L 4x2.3GHz 16GB DDR3 256GB SSD SATA 3




Rear Panel :



MiniPC Przemys這wy AOpen DE6100 B AMD Quad core R-464L 4x2.3GHz 16GB DDR3 256GB SSD SATA 3







Use ...
It many possibilites to mount Digital Engines - for example: in factory halls, with LCD / LED monitors, hipermarkets, shops, under table top and cars.
MiniPC Przemys這wy AOpen DE6100 B AMD Quad core R-464L 4x2.3GHz 16GB DDR3 256GB SSD SATA 3


MiniPC Przemys這wy AOpen DE6100 B AMD Quad core R-464L 4x2.3GHz 16GB DDR3 256GB SSD SATA 3




Recapitulation ...


AOpen Digital Engine DE6100B is rightly regarded as a model of industrial MiniPC for use in outdoor environments. This model is ideal for industry. It's super-efficient, reliable, and no other, and in every respect optimally adapted to the most severe operating conditions. Shock, shock, cold, heat, dust and moisture do not represent any danger for him.

MiniPC Przemys這wy AOpen DE6100 B AMD Quad core R-464L 4x2.3GHz 16GB DDR3 256GB SSD SATA 3




Energy saving and cost reducing





table energy saving md100


Others: Colour Black, Case: Steel
Chipset: AMD A70M
CPU Support: Socket FS1r2 - AMD Quad core R-464L
Installed CPU: AMD Quad core R-464L 4x2.3GHz
Memory Support: DDR3 SO-DIMM x 2 1333/1600MHz (do 16GB)
Installed Memory: 16GB RAM (2x8GB) Kingston Xyperx SODIMM DDR3 1600MHz CL9
Graphic Card: AMD Radeon HD 7660G
Storage (HDD) Support: 2.5" SATA II/III HDD up to 500GB/ SSD up to 256GB
Installed Storage (HDD): 256GB SSD SATA3 SanDisk 2.5''
CD/DVD Drive: -----
LAN: Realtek GbE LAN controller RTL8111E-VL 10/100/1000
Wireless LAN card: No (Optional Yes)
Bluetooth: -----
3G: -----
4G LTE:
TV Tuner: -----
Watch Dog Timer: 1 ~ 255 sec/min
Front Panel (ports): 2x USB 2.0
Rear Panel (ports): 2x USB 2.0, 2xUSB 3.0, 2xHDMI, Audio , RJ-45, DC-in Jack, Display Port, RS232,
Power: 90W (19V, 4.74A)
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: No (Optional Windows 7/Vista/XP)
Dimensions: 166 x 157 x 48 mm
Weight: 1,12kg
Expansion: WiFi card, HSDPA module,Bluetooth
Fanless: -----
Humidity: 95% RH (50 蚓 non-Condensing)
Temp: 0 ~ 50蚓 (32 ~ 122蚌)
IP Norm: -----
Storage temperature: -30 ~ 60ºC (-22 ~ 140ºF)
