MiniPC Industrial AOpen DE965-Pro v.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/minipc-przemyslowy-aopen-de965pro-v.1-produkt-212.html

MiniPC Industrial AOpen DE965-Pro v.1



MiniPC Industrial AOpen DE965-Pro v.1

Terms and Conditions:











DIGITAL ENGINE the series of products AOpen firm dedicate to industrial use ...




AOpen_logo
digital_engine_logo






Resistance on damage & small size ...
list of content… do góry…
go top… do góry…

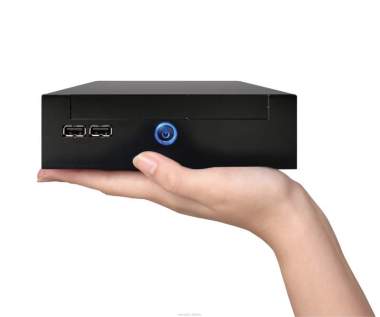

The AOpen Digital Engine DE965-Pro is a rugged, high performance Intel-based system in a 6.5W x 6.3H x 1.89D footprint that weighs less than 3 pounds.






Environment specifications:

Operating Temperature: -10°C ~ 55°C

Non-Operating Temperature:-30°C ~ 65°C

Humidity: 95% RH(55℃non-condensed)

Operating Vibration: 0.45Grms, 10 ~ 500Hz

Non-Operating Vibration: 2Grms, 5 ~ 500Hz

Operating Shock: Half Sine, 8G, 11ms

Non-Operating Shock: Half Sine, 50G, 11ms

Drop test: IEC 60068-2-32






reka_digital_engine





Advenced technology ...




The AOpen MiniPC DE965-Pro line offers Intel-based desktop products with a similar footprint and features an enclosure that balances ergonomics, size and function. Both systems include the Intel 965GM / ICH8M chipset, one Mini PCI slot as well as extensive I/O that includes DVI, S-Video, GB LAN, USB, HD audio and more. The systems have the ability to add up to 4GB of memory as well as a notebook hard drive or flash disk.




Using & interface ...





Front Panel :











Rear Panel :














Use ...
For thanks of use optional handles and adapters, it many possibilites to mount Digital Engines - for example: in factory halls, with LCD / LED monitors, hipermarkets, shops, under table top and cars.





Recapitulation ...




AOpen Digital Engine DE965-Pro is a complete solution for Digital Signage, Projector PC, Media Player, and Vehicle PC. AOpen DE965-Pro is a compact system of 1.25L with Intel 965GM Express Chipset supporting Intel socket P Core 2 Duo processors. The AOpen DE965-Pro had 40,000 hour MTBF and passed shock and vibration operation tests. It can be installed both vertically and horizontally without having thermal issues. AOpen DE965-Pro adapts mobile CPU, chipset and memory to reduce heat. With less heat, the speed of the fans will drop and create a silent working condition.




Accessory in Box ...






Converter board

HDMI to DVI cable
(90Watt) Adapter
Power cord









Energy saving and cost reducing







table energy saving md100





Others: None
Chipset: Intel 965GM / ICH8M
CPU Support: Socket P - Intel Core 2 Duo
Installed CPU: Intel Pentium Dual Core E5300
Memory Support: 2 x SODIMM DDR2, Up to 4GB
Installed Memory: 1GB DDR II
Graphic Card: Intel GMA X3100MHD
Storage (HDD) Support: 1 x 2,5'' - Up to 750GB
Installed Storage (HDD): 160GB - 2,5'' SATA II
CD/DVD Drive: None
LAN: 10/100/1G Intel GbE LAN controller
Wireless LAN card: No (Optional Yes)
Bluetooth:
3G:
4G LTE:
TV Tuner: No (Optional Yes)
Watch Dog Timer:
Front Panel (ports): 2 x USB 2.0
Rear Panel (ports): 2x USB 2.0, LAN RJ45 (10/100/1G LAN),1 x Audio Jack Stereo (Line In, Line Out), 1 x HDMI (cable to DVI in Box) , 2 x VGA , 1 x COM (RS232)
Power: External AC adapter
Supported OS: Windows XP, Windows Vista
Installed OS: None
Dimensions: 166mm x 48mm x 157mm
Weight:
Expansion: Hybrid TV Tuner DVB-T (analog + digital + FM), , WiFi 802.11 a/b/g/n, Card rider CF, Handles and Adapters
Fanless:
Humidity:
Temp:
IP Norm:
Storage temperature:


CURRENT PRICE
2285.45 € Net
2811.10€ Gross
