Industrial Tablet i-Mobile IC-8 v.11
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/tablet-przemyslowy-i-mobile-ic-8-v.11-produkt-869.html

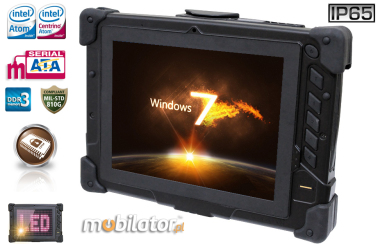

Industrial Tablet i-Mobile IC-8 v.11

industrial tablet production hall fast dual processor IP65 imobile c-8



Taiwanese company i-Mobile has an excellent reputation Achieved as a manufacturer of industrial mobile computers. Due to the high position of products in the segment of high-tech, have won many awards in tests Conducted around the world.




Description



i-Mobile IC - 8 is unrivaled in the market, ultra-modern, armored tablet meets the very stringent industry standards. Very rich furnishings, combined with affordable prices make it the perfect solution where require high performance, flexibility and strength equipment.

Warranty

Devices i-Mobile's standard with 1 year warranty, OPTIONALLY you can change the warranty period for 2 years. Any minor repairs are Carried out on the site in Poland. Defects requiring intervention in the components end up in haste to the main website i-Mobile Technology in Taiwan.



The high performance processor

Intel ® Atom ™ Dual-N2600 imobile-c-8-panel-computer-tablet-industrialTablet-Industrial-c-8-Logistics

Intel® Atom™ Dual N2600
(1M Cache, 1.6 GHz)

umpc, tablet, rugged, semi rugged, full rugged, tablet przemysłowy, tablet wojskowy, komputery medyczne, UMPC, MID, HSDPA, 3G, GPS, TABLET Z GSM, I-MOBILE, imobile, i mobile, komputer do autodiagnostyki, komputer do przemysłu, i-mobile

Dual-Core Intel ® Atom ™ N2600 is one of the fastest processors for tablets, netbooks and nettops. The use of dual-core processor made ​​the IC model - 8 is a top-class product in the category of industrial tablet. N2600 Dual Processor Provides a very good performance in such a small tablet, IC - 8 fast processor will allow for smooth operation of the device at all times.Tablet is also equipped with Intel NM10 chipset and 2GB of RAM type DDR3 SODIMM.

Super fast mSATA SSD drive

imobile-c-8-mSATA-ssd-fast-tablet-Industrial
Use your mSATA SSD 32GB (max - 256GB) on which you can install the system and frequently used applications. This approach leads to a super-fast operation of your computer. The speed of operations carried out applications installed on the mSATA drives can be increased up to 50%.

Advanced display technology

Tablet-industrial-imobile-c-8-sunlight readable

The display of the image corresponds to the 8-inch full touch screen (1024 x 768 XGA) LED-backlit display with Sunlight Readable Technology (500nit), Which uses reflected light beam as a light sensor - the bigger the better backlight illumination sensor. The Resulting display bright and is easy to read even in direct sunlight encounters..
sunlight readable-imobile-c-8-8-inch
hot-swap-imobile-tablet-przemysłowy-ip65
With the hot-swap There is a possibility to connect an additional battery quickly without shutting down the operating system. Additional optional battery extends the life of half a standard battery.

GPS-tablet-Industrial-Security-resistanceIC-8 is equipped with a tablet (optional) on 3G and 50-channel GPS armored performed. This small komputerek is made ​​of very durable materials. It is well protected against falls, shocks or vibrations. He also is harmless water (IP65) or Low Temperatures. Equipped with fast DDRII RAM expandable to 2GB and SSD.

go top... do góry menu… menu

Functionality


Barcode Reader


reader-bar-codes imobile IC8Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code.With dynamic scanning capabilities and wide range of reading-Mobile device and IC-8 quickly and accurately retrieves the data, which helps to increase the rate and efficiency. You can jump-start a whole because with simplified installation procedure and intuitive, comfortable design to prepare the scanner to work is very easy.

Barcode Skaner     1D/2D (UART)

1D symbologies: EAN/UPC, GS1 Databar (limited expanded & omni-directional), RSS, Code39, Code 128, UCC/EAN 128, ISBN, ISBT, Interlaeved/Matrix/ Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen, postal codes (Australian Post, BPO, Canada Post, Dutch Post, Japan Post, PostNet, Sweden Post)

2D symbologies Data Matrix, PDF417, Micro PDF 417, Codablock Maxicode, QR, Aztec GS1 composite codes
Scan rate 2D mode: 56/images/auto adaptive
Scan Angle
38.9" (Horizontal) 25.4" (Vertical)
Optical resolution
752 (H) x 480 (V) pixel, 256 gray levels
Print Contrast down to 25%
Version

Standard range and high density

RFID Reader

RFID imobile c-8 industrial tabletRFID technology has aroused great worldwide interest. Is expected to solve many of the problems with fast and faultless identification of people and equipment. Its development is more turbulent than gradually Introduced barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading the details of the special tags are attached That is the object (but not only, because RFID is also applicable to the identification of the animals, and even humans) is by radio. Depending on the type of tag changes the amount of information Which can hold as well as the maximum distance from Which to read data. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

RFID
13.56 MHz Mifare DESFire Reader / ISO 15693 Reader (HF RFID Reader/Writer Device LXRWHFAA-001) ISO/IEC14443A, 14443B, 15693 MIFARE 1K/4K, Ultralight NFC-IP1 protocol
Reading Distance

30mm ~ 50mm depending on tag types

Magnetic Card Reader


magnetic card reader imobile c-8Card Readers i-Mobile are the products meet the safety criteria Highest during reading. Architecture on Which readers are created to efficiently protect your personal information encoded on the cards. High safety standards allow readers to use Virtually all types of applications. Read the safety data confirms compliance with the ISO 7816 standard for encryption.
Tablet IC-8 is equipped with a magnetic card reader (MSR) for reading and encoding cards in accordance with ISO 7811. The robust plastic housing, easy integration with existing systems, fast read and write magnetic heads that make it the perfect choice.
MSR magnetic card reader imobile IC8

Magnetic card reader writes to all 3 tracks magnetic, so you can use it for all major card types (such as credit, debit, staff and membership cards, loyalty card systems, etc.)

MSR
USB Interface
Media formats ISO 7811, AMMYA, and other F2F formats
Swipe Speed 7 to 150cm per secod, bi-directional
Operating Life 1,000,000 cycles minimum

Smart Card Reader


The smart card reader Enables the secure electronic transactions through the use of digital signatures and certificates to enhance secure transactions through public and private networks. With easy access to the smart card reader you can use it in many different ways, Regardless of Whether you use it for authentication, data retrieval and verification of Their correctness, or is it the use of embedded applications. Smart cards are typically used by the departments of information technology (IT) in large Organizations. This internal device for reading and writing smart cards is reliable and easy to use, and Provides That support for applications require high-speed data from a smart card to the computer. The unit Complies with all major standards for use in companies, making it the perfect alternative to external devices That read and write smart cards.

Operates ISO7816 microprocessor or memory card
Transfer Rates 9600 to 115200 bps
Operating life 1,000,000 cycles minimum

Modules and Wireless Networks

Bluetooth 3.0 GPS 3G WCDMA industrial tablet
WiFi WLAN 802.11 b/g/n
Bluetooth Bluetooth 3.0
3G WCDMA/HSDPA/HSUPA/GSM/GPRS/CDMA 1xEV-DO/CDMA1X/EDGE
WCDMA R99 maximum data rate of 384 kbps
HSDPA Downlink Category 8 (7.2 Mbps) or 10 (14.4 Mbps)
HSUPA E-DCH data rates of up to 5.76 Mbps for 2 ms TTI (UE category 6) uplink
GSM R99 Supports CS SMS
GPRS CS schemes - CS1, CS2, CS3 and CS4
CDMA 1xEV-DO High-speed peak data rates of 3.1 Bmps on the downlink and 1.8 Mbps on the uplink
CDMA1X Supports up to 153.6 kbps data throuhput on both forward and reverse links
EDGE Downlink coding schemes - CS 1-4, MCS 1-9
GPS
High performance positioning engine. Support 50 channels

GPS L1 Frequency , C/A Code. SBAS: WAAS/EGNOS/MSAS
 go top... do góry menu… menu

Safety

Fingerprint

Fingerprint security feature makes our Tablet Becomes even more personal, Allows you to secure the device fingerprint. This is possible through the use of a small fingerprint scanner. Solutions of this kind are very effective at securing devices containing important data and confidential and also allow for easy and quick log-in to the system. It is an ideal solution for business use, when we need to Effectively protect your data.

fingerprint reader fingerprint imobile industrial tablet

TPM (Trusted Platform Module)

Trusted Platform Module security tablet banking industry imobile c-8A TPM is a microchip designed to provide basic security-related functions, primarily involving encryption keys. The TPM is usually installed on the motherboard of a computer or laptop, and communicates with the rest of the system using a hardware bus. Computers that incorporate a TPM can also create a key that has not only been wrapped, but also tied to certain platform measurements. This type of key can only be unwrapped when those platform measurements have the same values that they had when the key was created. This process is called "sealing" the key to the TPM. Decrypting it is called "unsealing".TPM BitLocker imobile c-8 industrial tabletWith a TPM, private portions of key pairs are kept separated from the memory controlled by the operating system. Keys can be sealed to the TPM, and certain assurances about the state of a system—that define its "trustworthiness"— can be made before the keys are unsealed and released for use. Because the TPM uses its own internal firmware and logic circuits for processing instructions, it does not rely upon the operating system and is not exposed to external software vulnerabilities.

go top... do góry menu… menu

Use of the device


umpc, tablet, rugged, semi rugged, full rugged, tablet przemysłowy, tablet wojskowy, komputery medyczne, UMPC, MID, HSDPA, 3G, GPS, TABLET Z GSM, I-MOBILE, imobile, i mobile, komputer do autodiagnostyki, komputer do przemysłu, i-mobile

Product of i-Mobile is directed to audiences Primarily as emergency services, industry, surveying, telecommunications, airlines, industrial equipment maintenance, repair and service, logistics, construction, industry, domestic, automotive. Also in energy and water supply, and wherever the engineers and operators need to read or monitor the parameters of the devices, Which are Often in a humid environment.

Operating temperature: -10 ° C ~ 50 °C

Operating Humidity: 0% ~ 95%

umpc, tablet, rugged, semi rugged, full rugged, tablet przemysłowy, tablet wojskowy, komputery medyczne, UMPC, MID, HSDPA, 3G, GPS, TABLET Z GSM, I-MOBILE, imobile, i mobile, komputer do autodiagnostyki, komputer do przemysłu, i-mobile

go top... do góry menu… menu

Protection Standards


High Temperature: MIL-STD 810G Method 501.5
umpc, tablet, rugged, semi rugged, full rugged, tablet przemysłowy, tablet wojskowy, komputery medyczne, UMPC, MID, HSDPA, 3G, GPS, TABLET Z GSM, I-MOBILE, imobile, i mobile, komputer do autodiagnostyki, komputer do przemysłu, i-mobile
This test procedure determines a computer’s operating performance during exposure to high temperature conditions. The operational test differs from the storage test in that the computer is evaluated while conditioned to elevated temperatures determined to be applicable to, or resulting from, exposure in its operational configuration.

Low Temperature: MIL-STD 810G Method 502.5
This test determines the performance of the computer during exposure to low temperature conditions. The operational test differs from the storage test in that the computer is evaluated under cold conditions determined to be applicable to, or resulting from, exposure in its operational configuration.
Temperature Shock: MIL-STD 810G Method 503.5
Temperature shock tests determine if an item can withstand sudden changes in the temperature of the surrounding atmosphere without experiencing physical damage or deterioration in performance.
The two objectives of the temperature shock test are set to determine whether the test item can still a) be safely operated, and b) satisfy its performance requirements, after being exposed to sudden changes in temperature of the surrounding atmosphere.
Rain: MIL-STD 810G Method 506.5
Rain Resistance tests are performed to determine the resistance to rain and wind-driven rain.
Drop: MIL-STD 810G Method 516.6
Free fall drop tests (shock) are performed to ensure that equipment can withstand relatively infrequent, non-repetitive shocks or transient vibrations encountered during handling, transportation, and normal service.
The standard requires 26 drops from 1.2 m (4 ft) onto plywood, using up to 5 units.

Tablet industry standard IC-8

Operating temperature
-10°C to +50°C
<0.5°C / min ; 24h cycle x 3 cycles
MIL-STD-810G
Methods 501.5; 502.5 (Operating)
Storage Temperature
20°C to 70°C
<0.5°C / min ; 24h cycle x 3 cycles
MIL-STD-810G
Methods 501.5; 502.5 (Non-operating)
Relative Humidity
95% @ 40°C
3 x 24hr cycles
MIL-STD-810G
Method 507.5
Dust Protection IP6x (dust) IEC 60529 / AC2:2007
Water Protection
IPx5 (water) IEC 60529 / AC2:2007
Vibration Fig 514.6E-1 & 514.6E-2 MIL-STD-810G-514.6
Procedure I Cat.24
(Non-operating)
Drop Test
1.2 meters (47") drop, 2⇒plywood over concrete, each edge,face and corner; 26 drops total (@ ambient temp) MIL-STD-810G
Method 516.6
Procedure IV
Regulatory CE / FCC CLASS B / FCC ID / EN 60950-1 2005

umpc, tablet, rugged, semi rugged, full rugged, tablet przemysłowy, tablet wojskowy, komputery medyczne, UMPC, MID, HSDPA, 3G, GPS, TABLET Z GSM, I-MOBILE, imobile, i mobile, komputer do autodiagnostyki, komputer do przemysłu, i-mobile Tablet hardware resistance IP65 industrial dust imobile IC8 watergo top... do góry menu… menu

Resistance IP65

IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust.  The second digit is a degree of protection against water.

IP65 industrial tablet imobile c-8The first digit in the range 0 to 6 the resistance to dust and the other in the range 0 to 8 the resistance of the water.

  • number 6 of the first index (protection against the penetration of foreign bodies - dust, limited ingress)
  • number 5 of the second index (protection against penetration - WATER BEFORE jet from any direction)

go top... do góry menu… menu

The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids
No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8

Protection against complete, continuous submersion in water
go top... do góry menu… menu

Connectors

I - Mobile IC-8 is an industrial tablet That Will Satisfy every user. Experience the diverse requirements The The of the customers and extensive cooperation with the Taiwanese manufacturer has created a unique device the Polish and global markets. In the back of the tablet and stylus located conveniently find That will help us to use the IC - 8 with greater precision. Neatly hidden internal antenna GPS will find Their Way in every area, and the battery indicator will Contribute to the accurate assessment of a possible operation on a removable battery. Located in the upper right corner of 5M CMOS camera with built-in LED flash Allows you to take photos in excellent quality.

imobile c - 8 tablet MMCX GPS industry 5m camera battery


That Facilitate the use of the device the user can define tasks for the selected keys were located in the right side of the tablet (Hotkey). Whereas full mobility and multitasking tablet device is equipped with a front camera for video conferencing Allows and fingerprint reader (fingerprint) access restriction ensures full data to unauthorized persons.

go top... do góry menu… menu

fingerprint reader barcode scanner, video conferencing tablet


2D barcode reader and MSR card reader is located in the upper part of the tablet industry I - MOBILE IC-8, in order to Provide convenience in daily use in any position. The lower part was reserved for the dock connector through Which the tablet can benefit from its functionality.

magnetic card reader MSR imobile industrial tablet c-8

industrial tablet dock hdmi usb imobile IC8


In the absence of wireless I-MOBILE gives us the ability to connect to the network the traditional way. All inputs are hidden under the rubber gasket to the ensure the Highest standard of immunity. IC-8 and the digital signal transmission by using the HDMI link, which is a great advantage with regard to the size and quantity of the hardware modules.

RS 232 Internet tablet industrial card reader HDMI MICRO SD intelligent industrial tablet c-8

Hardware configurations available


v.1  v.2 v.2.1  v.3  v.4  v.5  v.6  v.7  v.8  v.9  v.10  v.11 v.12  v.13  v.14  v.15
32GB
- - -
64GB
- - - - - - - - - - - - -
WIFI
Bluetooth
GPS
- - - - -
3G/GSM - - - - - - - -
Front Camera
- - - - - - - - - -
Rear Camera - - - - - -
1D/2D - - - - - - - - -
MSR - - - - - - - - - - - - -
Smart Card - - - - - - - - - - -
RFID
- - - - - - - - -
Add. Battery
- - - - - - - - - - - - - - -
Car Adapter
- - - - - - - - - - - - - - -
more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

menu… menu

Durability: Yes - MIL-STD 810G
Humidity: Yes - 0% ~ 95%
Waterproof: Yes - (IP65) IEC 60529 / AC2:2007
Weight:
Temperature: Operating: -10° –– +50°C ; Storage: -20°C –– +70°C
Shock: Yes - MIL-STD-810G
Vibration: Yes - MIL-STD-810G-514.6 Procedure I Cat.24 (Non-operating)
Drop: Yes - MIL-STD-810G Method 516.6 Procedure IV
Sand and dust: Yes - (IP65) IEC 60529 / AC2:2007
1D barcode scanner (reader): none (available in other configurations)
2D barcode scanner (reader): none (available in other configurations)
RFID scanner (reader): Yes - 13.56 MHz Mifare DESFire Reader / ISO 15693 Reader (HF RFID Reader/Writer Device LXRWHFAA-001) ISO/IEC14443A, 14443B, 15693 MIFARE 1K/4K, Ultralight NFC-IP1 protocol
Magnetic card reader (MSR): none (available in other configurations)
Microchip card reader: none (available in other configurations)
Docking station connector: Yes - 1 x 24 pin docking connector (interface include Power, USB , Audio)
VESA standard – holders and mounts support: Yes
COM port: Yes - RS232 (DB9 full function connector)
Dispaly: TFT LCD 8" (1024 x 768 XGA) LED Sunlight Readable
Brightness: 500 nits Sunlight Readable
Contrast: 1000:1
Touch screen: Yes - Resistive-Capacitive Touch
Graphics card: Integrated 400Mhz
Swivel Hinge: No
VGA out: No
TV Out: No
TV Tuner: No
Processor: Intel® Atom™ Dual N2600 (1M Cache, 1.6 GHz)
Chipset: Intel Express Chipset NM10
BIOS: Phoenix
Memory: 2GB DDR3 (DDR3 SO-DIMM / max 2GB)
Hard Drive: 64GB mSata SSD
Flash Memory:
Battery: Internal Battery, one cell DC3.7V / 920mah ; External 3S2P , 6 Cell, DC 11.1V/6200mAh Support Hot-swap
Working time on battery: 480 minutes (8h)
HotSwap battery: Yes
Fast battery replacement ability: Yes
Size: 251 x 181 x 30 (mm) (9.8" x 7.1" x 1.1") - 1.3kg (2.8lbs) with batteries
Casing material:
Fanless casing: Yes
Operating System: Yes (option) - Windows 7 / Windows 7 Embedded Standard 7 / Linux
LAN: Yes - 10/100 Ethernet Support POE (Power-Over-Ethernet applications up to 25.5W)
WLAN: Yes - WLAN 802.11 b/g/n
Bluetooth: Yes - Bluetooth 3.0
WAN: Yes - 3.5G+GSM
GPS: Yes - Built-in (High performance positioning engine. Support 50 channels GPS L1 Frequency , C/A Code. SBAS: WAAS/EGNOS/MSAS)
Flash Card Reader: Yes - MicroSD
CD/DVD: No
Camera: Yes - Front (2M) & Rear (5M) dual CMOS Camera
Audio: Built-in speaker and microphone
Seciurity: Yes - Fingerprint, TPM 1.2
In/Out: 2x - USB 2.0 / DC Power Input (16V/4A) / 1x - DB-9 RS232 Full connector / 1x - Micro Secure Digital (SD) card slot / 1x - 24 pin docking connector / 1x - 10/100 Ethernet (Support POE) / 1x - SIM socket / 1x - Mini HDMI connector
Keyboard: No - Function keys
Additional Navigation Devices : Yes - Function keys
Color: Black
Optional accessories: Additional external battery 6100 mAh / Vehicle & Wall mount VESA / Docking station (4x USB ; 1x RS232 ; 1x VGA ; 1x RJ45 ; 1x DC in ; 1x Earphone ; 1x Microphone ; Battery charging bay)
Other: Stylus , Shoulder strap , Hand strap


CURRENT PRICE
6375.24 € Net
7841.55€ Gross
