« Back    Home / UMPC - Ruggedized / Archives

Rugged Tablet MobiPad EM-I8W v.15

Rugged Tablet MobiPad EM-I8W v.15

Data update: 2019-09-10

guarantee 1 year (opt.2)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated



Compare all versions

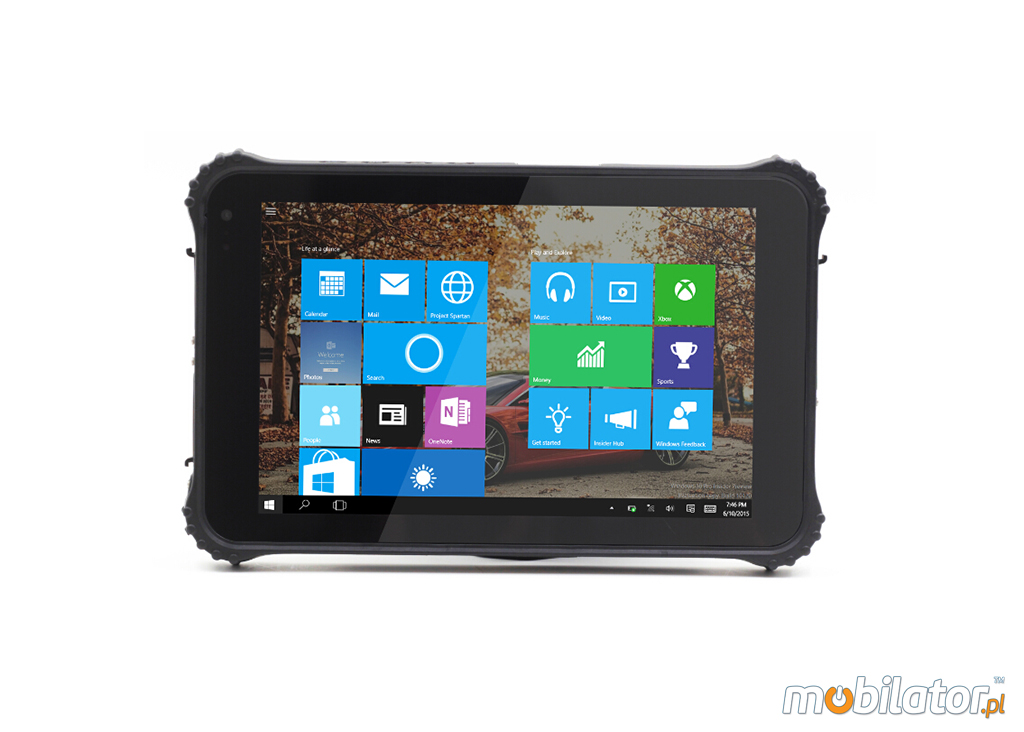

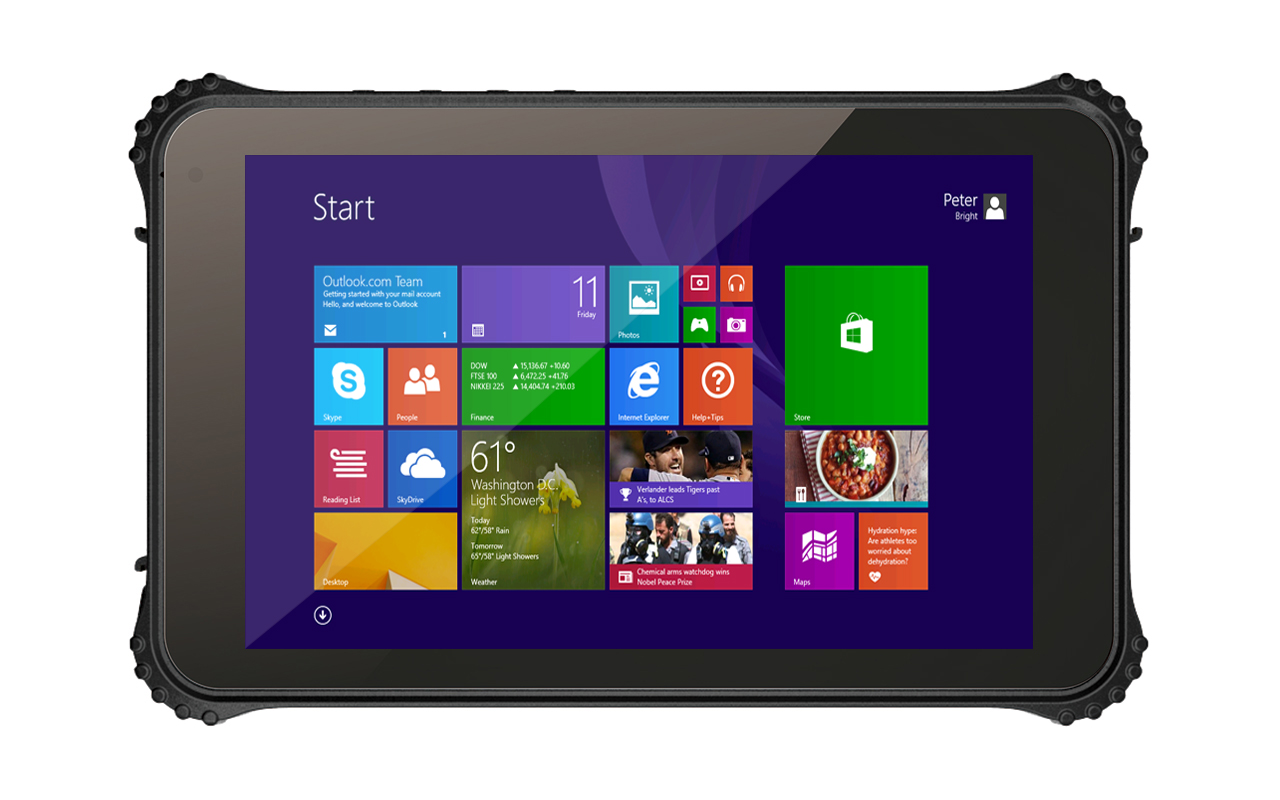

MobiPad I8W is a new proposal 8 - inch tablet works with Windows 10. The tablet has a specially designed, reinforced structure, adapted for use in harsh environmental conditions. The device works great when in the home and industrial use.

Description

mobipad i8w rugged tablet

MobiPad I8W is offered with the latest quad-core Intel® Atom ™ processor Z3735D / Z3735F to ensure the highest performance, low power consumption and long battery life. The tablet works with Windows 10 operating system to meet the growing requirements in industrial applications.

 Processor  Intel® Atom™ Processor Z3735F (QUAD CORE 1.33 - 1.83GHz)
 Graphics  Intel HD Graphic (Gen7)
 Display  8” (1280*800) 16:10
 Type of display
 LED | IPS | Dragontrail | Capacitive (5-points)
 LED
 Power
 Brightness  320nits
 RAM  2GB DDR3L
 ROM  128GB eMMc
 Connectors  mini HDMI 1.4a | Micro-SD Reader | USB 2.0 | micro USB | Docking port | DC In
 GPS (factory)  u-Blox NEO-7 (GLONASS+QZSS+GPS)
 GPS (ptional)  Unicorecomm UM220-III (GPS+Beidou)
 Audio  Built-in MIC | 1x - Speaker 0.8W/8Ω | Audio Jack

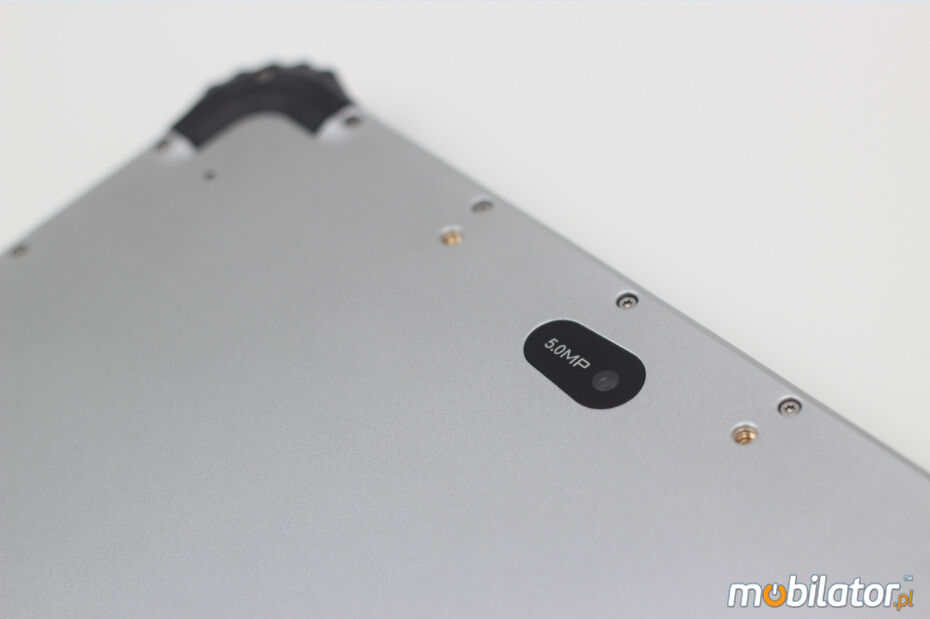

 Camera  FRONT: 2Mpx
   REAR: 5Mpx
 Battery  Li-Poly 3.7V 8500mAh
 Keyboard  on-Screen | Functional keys

 Volume + | Volume - | Power | Functional (Barcode Trigger)
 System (factory)  Windows 10 with Bing
 System (optional)  Windows 8.1 / Windows 10
 Modules (factory)
 802.11 a/b/g/n | Bluetooth 4.0 (LE) | GSM/3G | GPS
 Dimensions  228*147*16.5mm - 630g (with battery)
 Resistance  IP67
 Sensors (optional)
 RFID HF | 1D Scanner | 1D/2D Scanner | Fingerprint
 Sensors (factory)  G-Sensor
 Warranty
 12 months
Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

warehouse tablet mobipad i8w

Select the version dedicated to yourself

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".

versions mobipad i8w rugged tablet


v.1
v.2 v.3 v.4 v.5 v.6 v.7 v.8 v.9 v.10 v.11 v.12 v.13 v.14 v.15
32GB - - - - - - - -
64GB - - - - - - - - - -
128GB - - - - - - - - - - - -
3G
GPS
RFID HF
- - - - - -
1D (CCD)
- - - - - - - - - -
2D (CMOS)
- - - - - - - - - -
Fingerprint - - - - - - - - - - - -

go top... do góry menu… menu

The collection and processing of data

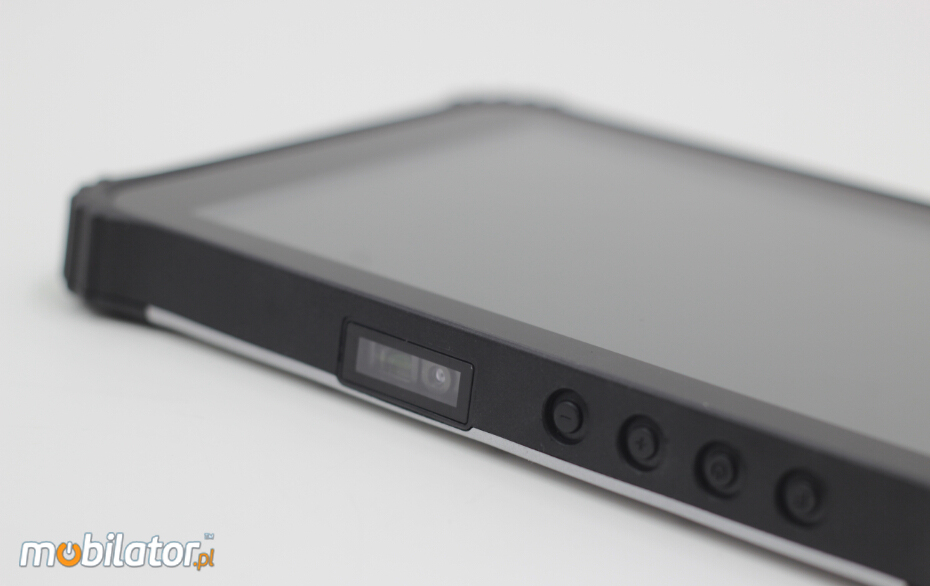

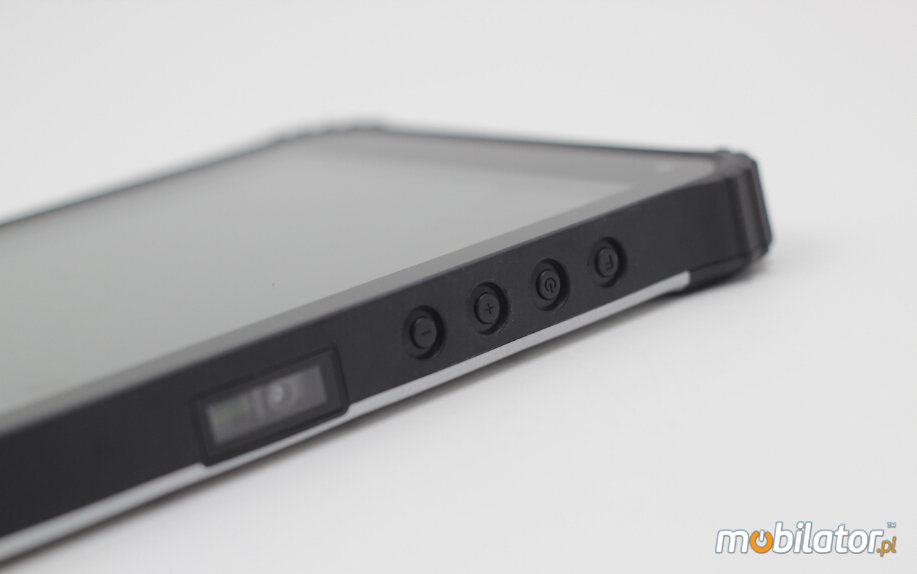

Barcode Scanner (optional)

Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code.With dynamic scanning capabilities and wide range of reading MobiPad device and I8W quickly and accurately retrieves the data, which helps to increase the rate and efficiency.

rugged tablet motorola se4710 se655 barcode scanner

 Model Motorola SE655
Motorola SE4710
 Type of scanner
1D
1D/2D
 Display type
CCD CMOS

mobipad i8w rugged tablet 3g gps

RFID (optional)

RFID technology has aroused great worldwide interest. Is expected to solve many of the problems with fast and faultless identification of people and equipment. Its development is more turbulent than gradually Introduced barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products.

    RFID  HF
 Frequency 13.56 MHz
 Reading distance
do 4 cm
 Supported standards
 ISO14443 A/B

ISO15693

mobipad em-i8w SIM 3G



Fingerprint (optional)

Fingerprint security feature makes our tablet becomes even more personal, allows you to secure the device fingerprint. This is possible through the use of a small fingerprint scanner. Solutions of this kind are very effective at securing devices containing important data and confidential and also allow for easy and quick log-in to the system. It is an ideal solution for business use, when we need to effectively protect your data.

figerprint data collector 8 inch

go top... do góry menu… menu

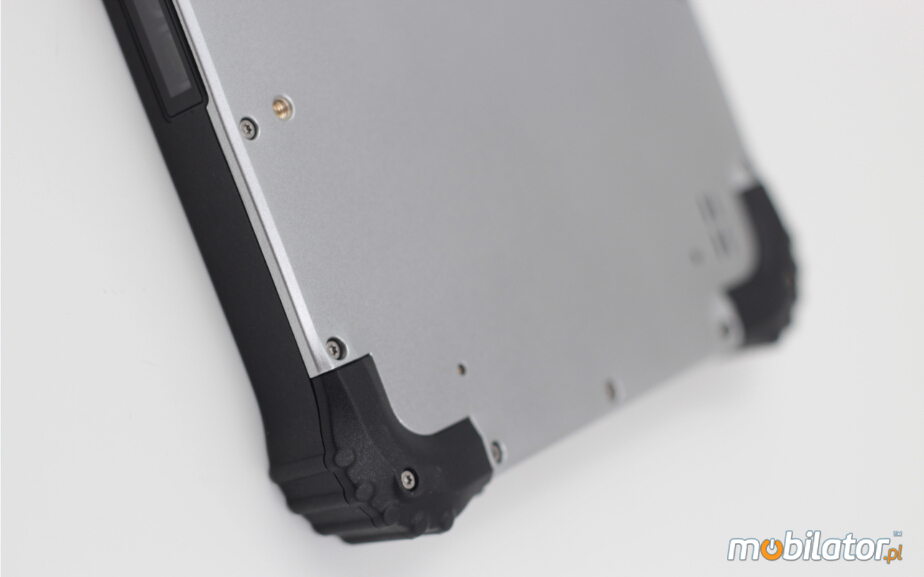

Resistance and strength

Standards

In terms of device ruggedness, the I8W can withstand a 4-foot drop, and with IP67 sealing, where the first digit "6" means the device is dustproof and the second digit "7" means that the device has the ability to handle low pressure water jets from all directions. The tablet can operate in temperature range of -20° to 60°C, optimized for most industrial deployments. I8W is a sharp looking, sturdy and powerful device that can hold up well against use in harsh environment with its industrial grade rugged design.

waterproof dustproof rugged tablet

 Operating temperature
-20°C -- +60°C
 Storage temperature
-30C -- +70°C
 Dust IP6x
 Water IPx7
 Humidity 95% non-condensing
 Drop 1.2m



MIL-STD 810G



Durability is one of the most important factors to consider when choosing mobile solutions, which is why MobiPad ensures that its fully rugged units operate even when dropped onto concrete, or used in harsh environmental conditions such as heat and cold, dust and rain. Rigorous tests that pass MobiPad products ensures that our customers receive products that meet the highest standards of durability and reliability. MobiPad ensures compliance with the most rigorous standards in this area - MIL-STD 810G according to test its products. This standard, set by the US military, is the most widely used international standard.

MIL-STD 810G covers a broad range of tests used to measure equipment reliability:

High Temperature: MIL-STD 810G Method 501.5
This test procedure determines computer's operating performance during exposure to high temperatures. This test differs from the standard test that the computer is evaluated under conditions of elevated temperature.

Low Temperature: MIL-STD 810G Method 502.5
This test procedure determines computer's operating performance during exposure to low temperature. This test differs from the standard test that the computer is evaluated under conditions of low temperature.

Changing Temperatures: MIL-STD 810G Method 503.5
Research on temperature changes is to determine whether the components can withstand sudden changes in the surrounding temperature and do not cause of damage or deterioration in performance.

In this study they are to establish two goals: whether the test item can still be safely operated, and whether it meets the requirements, after being exposed to sudden changes in ambient temperature.

Rain: MIL-STD 810G Method 506.5
Tested rain is conducted in order to determine the resistance to rain and wind-driven rain.

The collapse of MIL-STD 810G Method 516.6
Tests of free fall (shock) are performed to ensure that equipment can withstand relatively infrequent, non-repetitive shocks and vibrations encountered during handling, transportation and collisions.

The standard requires 26 drops from 1.2 m (4 ft) onto plywood.



 Shock 10Hz - 500Hz
 Drop 1.2m

The battery at its best


High quality Li-Polymer battery provides a long operating life under severe temperature conditions. With MobiPad I8W you can easily work out at temperatures as low as -20 ° C.

go top... do góry menu… menu



rugged rfid 13.56mhz rfid uhf rugged tablet 8

IP67

IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust.  The second digit is a degree of protection against water.



Complete protectionm against contact, protection from infiltration of dust.
6

7

Protection against immersion.

go top... do góry menu… menu



Modules and Wireless Networks

docking station mobipad em-i8w

Winmate describes the I8W tablet as "rugged" and with its corner protection it certainly looks much tougher than all those Barbie-thin and fragile consumer tablets. MobiPad's experience in rugged mobile computing, we assume those are just partial specs.

 WIFI  802.11 a/b/g/n
 GPS (factory) u-Blox NEO-7 (GLONASS+QZSS+GPS)
 GPS (optional) Unicorecomm UM220-III (GPS+Beidou)
 Bluetooth  Bluetooth 4.0 (LE)
 3G (factory)
GSM/WCDMA (850 / 900 / 1900 / 2100 MHz)
 4G (optional) (LTE FDD/LTE | TDD/WCDMA/TD-SCDMA/GSM)

hdmi tablet rugged

go top... do góry menu… menu

Functionality

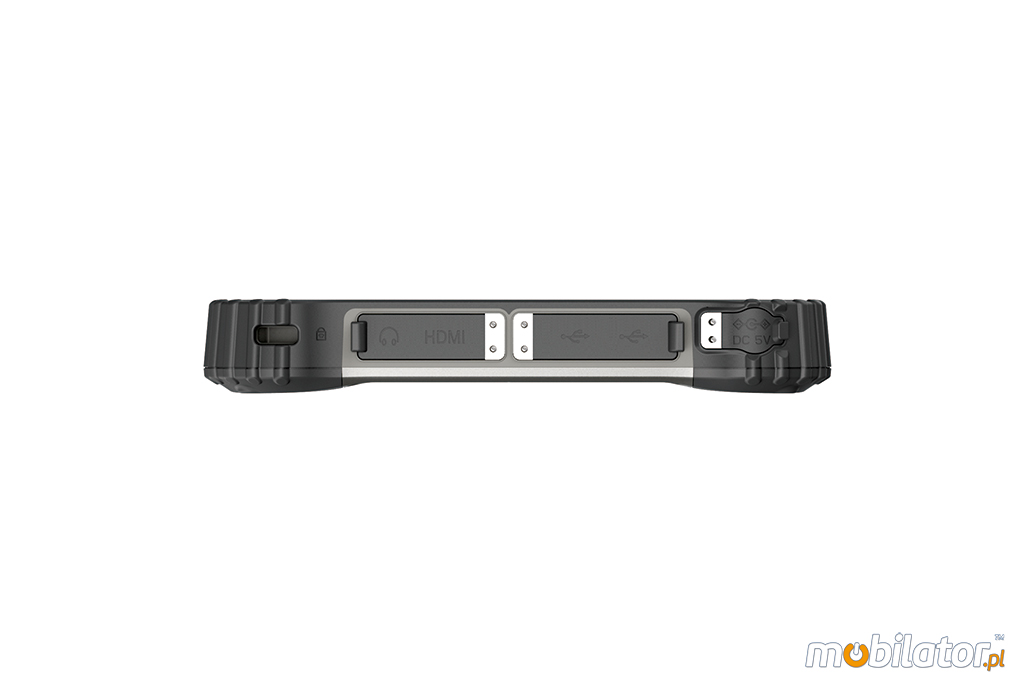

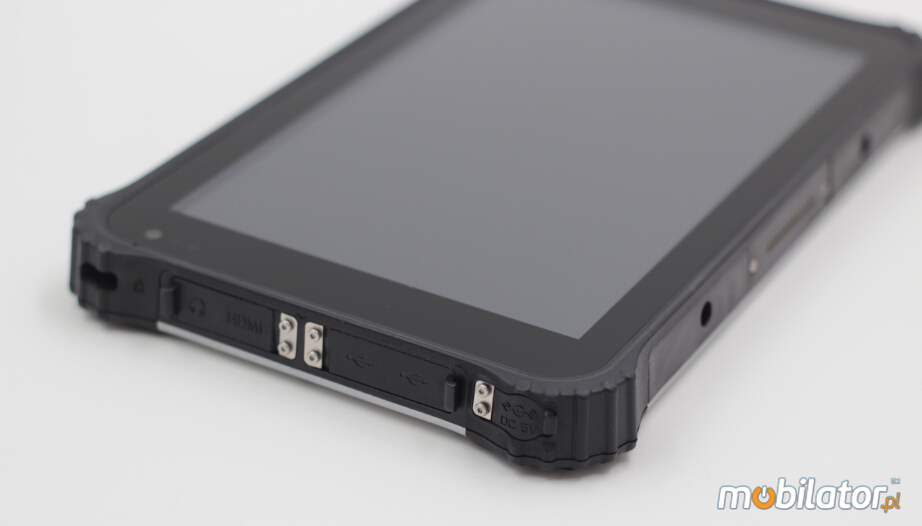

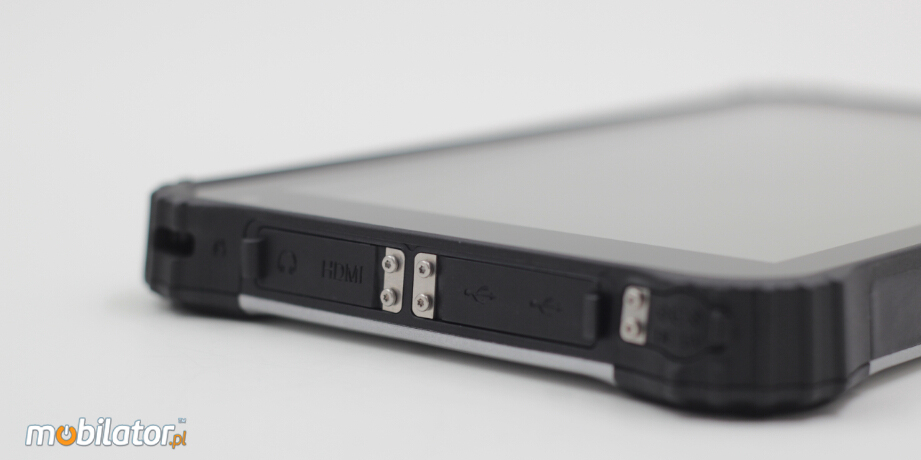

hdmi microusb otg barcode scanner connectors

Real-time data access to the right information is very important to mobile users. I8W offers 3G, GPS, WiFi 802.11 a/b/g/n, Bluetooth 4.0 which enable users to get connect in the way that best suits their needs. With built-in 5.0 Mega Pixels camera on rear side, users can capture photos, videos, documents instantly, or utilize the front 2.0 Mega Pixel camera for application such as user self video recording, or video communication.

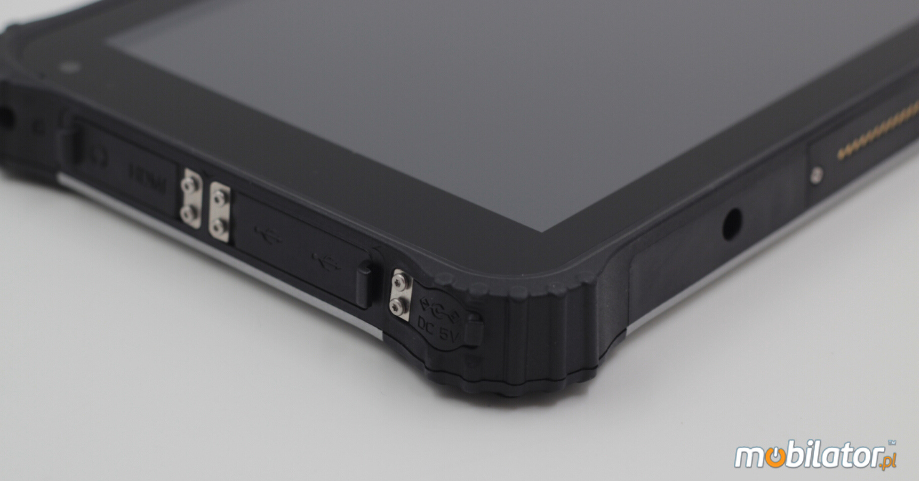

mobipad hdmi connectors camera 2/5mpx

 Dimensions 228 x 147 x 16.5mm
 Weight 630g (with battery)

Additional equipment

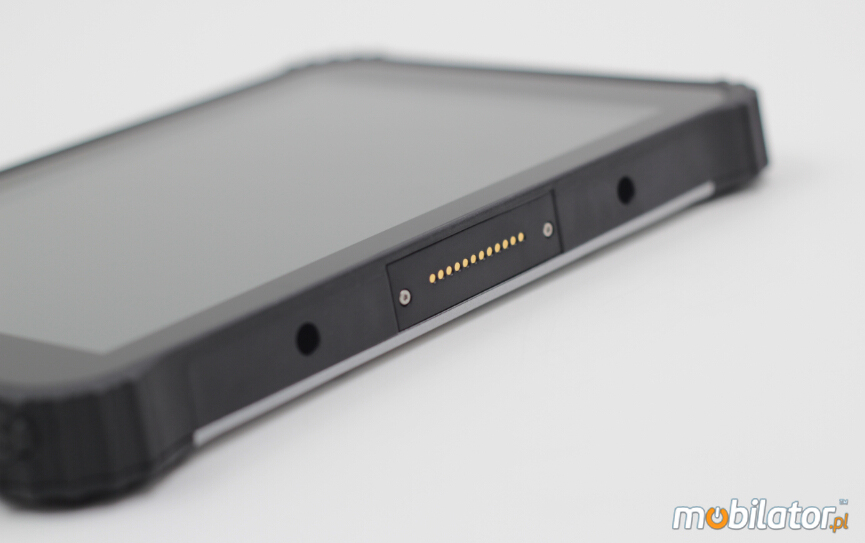

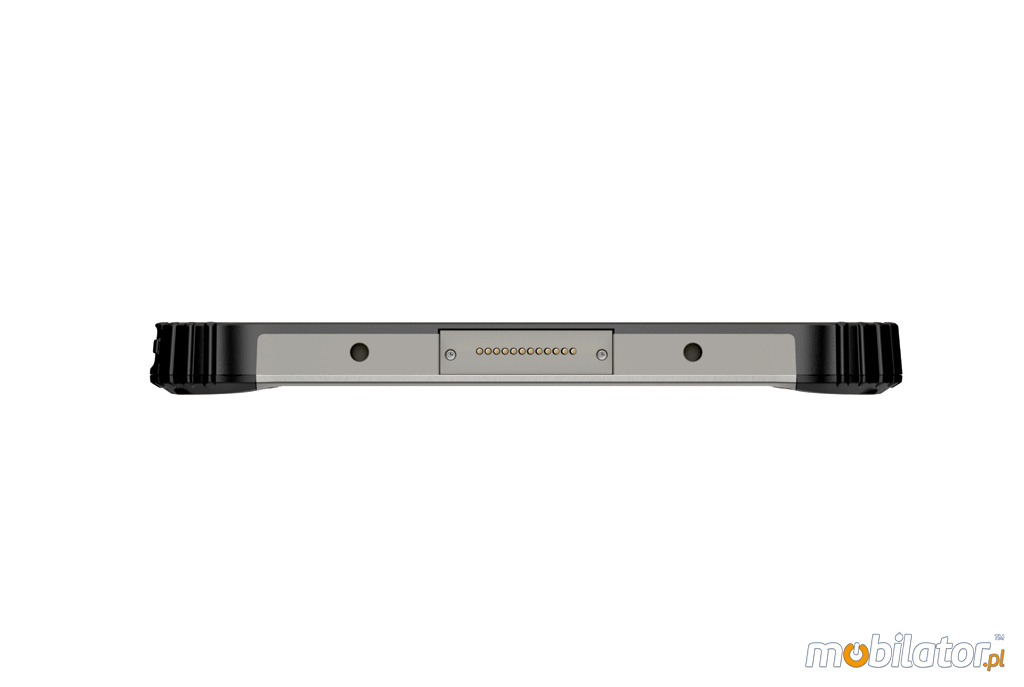

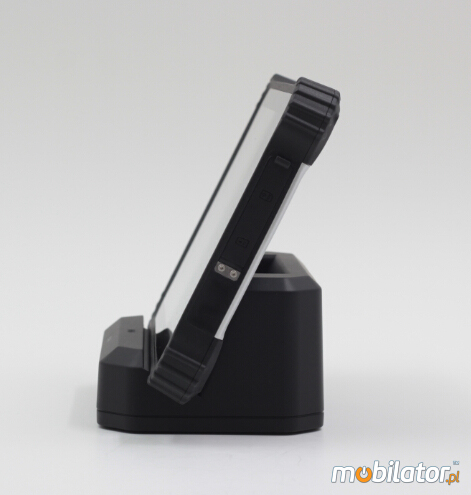

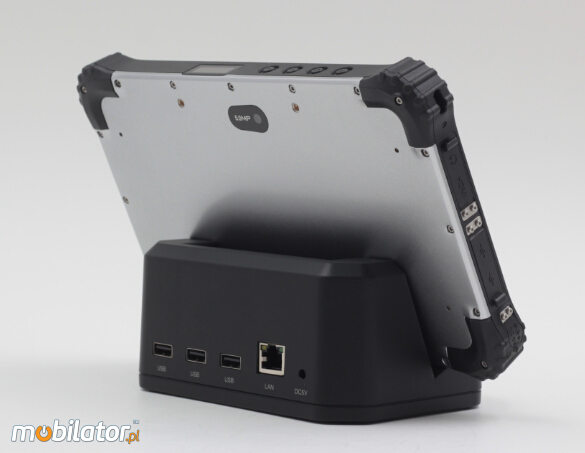

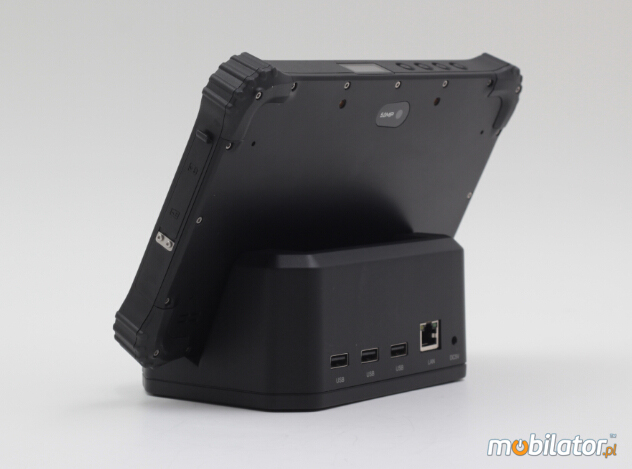

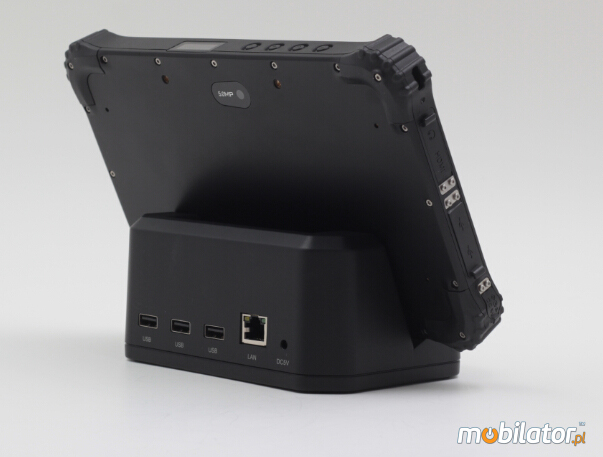

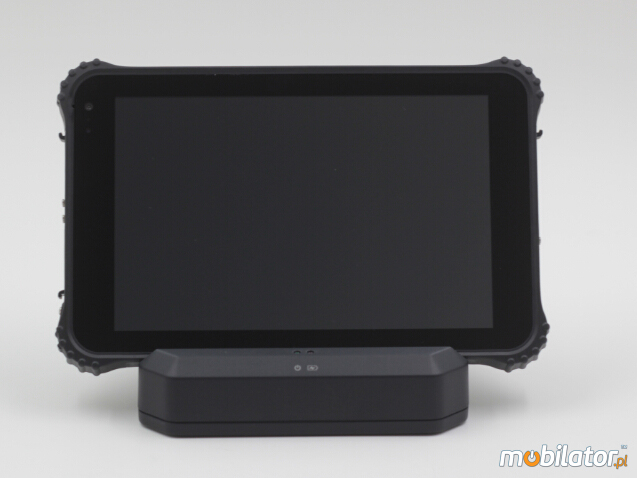

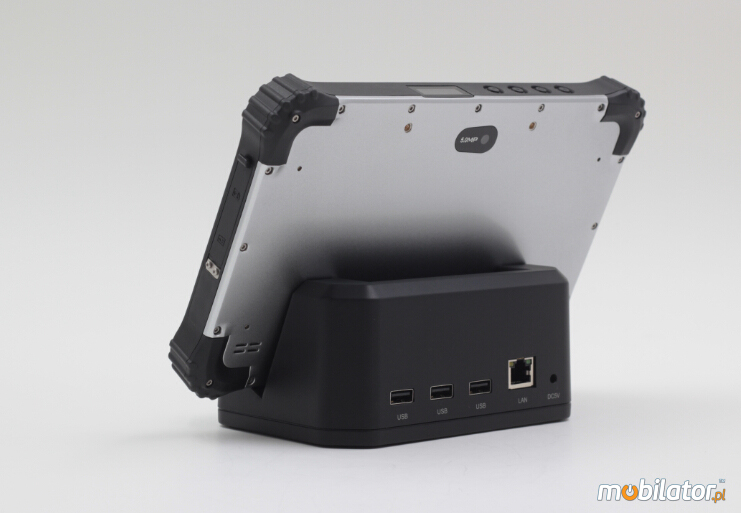

Docking station (optional)

The docking station (optional) enables simultaneous battery charging device and the battery itself. When you dock your device will be extended to additional ports located directly at the station. You can buy an accessory in the "Accessories" or direct contact with the shop.

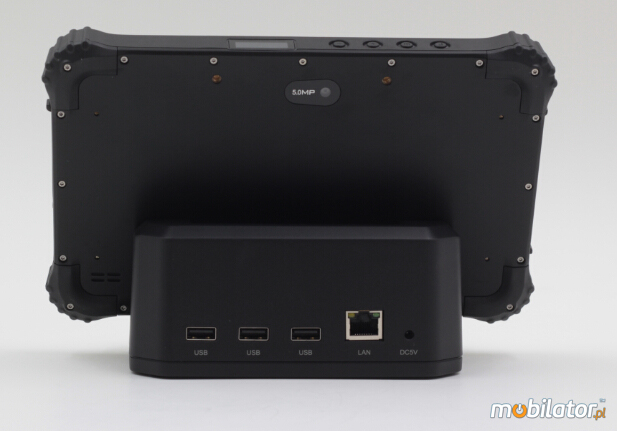

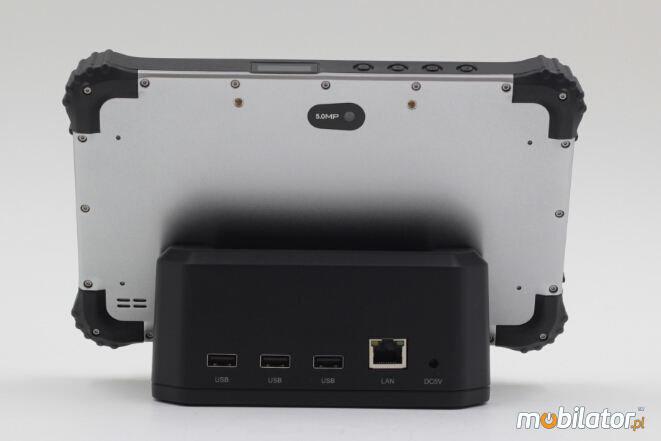

docking station i8w usb rj45 dc in

 Available ports
3x - USB 2.0
  1x - RJ45
  1x - DC In
 Weight 290g

go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...



Compare all versions
