3x Industrial Fanless MiniPC mBOX Nuc M190 v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/3-sztuki-przemyslowy-fanless-minipc-mbox-nuc-m190-v.2--produkt-87082.html

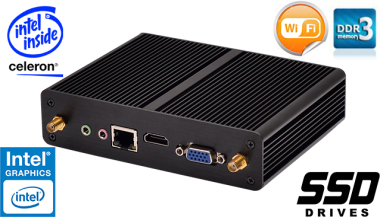

3x Industrial Fanless MiniPC mBOX Nuc M190 v.2

Industrial Fanless MiniPC mBOX Nuc M190




Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MBOX
Nuc M190 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimension are 140 (W) x100 (L) x30 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 16GB/32GB/64GB/128GB SSD.

Industrial Fanless MiniPC mBOX Nuc M190

go topdo góry   menu… menu


Communication & Connectors

Integrated card - Intel RTL8111DL 100M and WiFi module allow connection to the network. The computer is equipped with: one LAN port, one USB 3.0 port, one VGA output, four USB 2.0 ports, one HDMI output one way audio, one microphone input.


Industrial Fanless MiniPC mBOX Nuc M190

1. Power ON/OFF
  3. 1x USB 3.0
2. DC-IN 12V
  4. 4x USB 2.0

Industrial Fanless MiniPC mBOX Nuc M190

1. 1x WiFi
  4. 1x HDMI
2. 2x Audio
  5. 1x VGA
3. 1x RJ-45
  6. 1x WiFi

Industrial Fanless MiniPC mBOX Nuc M190

Cooling

The industrial fanless MiniPC MBOX Nuc M190 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go topdo góry   menu… menu

Application

      Industrial MiniPC Series MBOX Nuc M190 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesIndustrial Fanless MiniPC mBOX Nuc M190 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Fanless MiniPC mBOX Nuc M190


Areas of use of industrial MiniPC

Digital Engine

Industrial Fanless MiniPC mBOX Nuc M190

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Industrial Fanless MiniPC mBOX Nuc M190
Industrial Fanless MiniPC mBOX Nuc M190

Magazine

Industrial fanless MiniPC MBOX Nuc M190 by to five USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless MBOX Nuc M190 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 8V to 28V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Fanless MiniPC mBOX Nuc M190

Industrial Fanless MiniPC mBOX Nuc M190



Industrial Fanless MiniPC mBOX Nuc M190



Specifications


    Dimension





   H: 30 mm

   L: 100 mm

   W: 140 mm

   Weight    1,5kg
   Processor
   Intel Celeron J1900 (4x2GHz)
   Chipset
   Intel Soc Chipset
   RAM Memory
   2GB DDR3
   Graphic Card
   Intel HD Graphics
   Sound Card
   Realtek ALC662
   WLAN
   Intel RTL8111DL 100M Lan
   Connectors

   1x USB 3.0

   1x wyjście 12V DC_JACK

   4x USB 2.0

   1x RJ-45

   1x wyjście Audio

   1x HDMI

   1x Mic

   1x VGA

Industrial Fanless MiniPC mBOX Nuc M190


Others: Colour Black, Aluminum
Chipset: Intel Soc Chipset
CPU Support: -----
Installed CPU: Intel Celeron J1900 (4x2GHz)
Memory Support: 2GB DDR3 (can up to 4GB)
Installed Memory: 2GB DDR3
Graphic Card: Intel HD Graphics
Storage (HDD) Support: -----
Installed Storage (HDD): 32GB SSD
CD/DVD Drive: -----
LAN: Intel RTL8111DL 100M Lan
Wireless LAN card: Yes
Bluetooth: No
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0~255 sec
Front Panel (ports): Power ON/OFF,
DC-IN 12V,
1x USB 3.0,
4x USB 2.0
Rear Panel (ports): 1x Audio,
1x RJ-45,
1x HDMI,
1x Mic,
2x WiFi,
1x VGA
Power: 12V
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: -----
Dimensions: 140 x 100 x30 mm
Weight: 1.4 kg
Expansion: -----
Fanless: Yes
Humidity: 0 ~ 95%
Temp: 0 - 50 ℃
IP Norm: -----
Storage temperature: -15 - 70 ℃


CURRENT PRICE
2988.44 € Net
3675.78€ Gross
