3x Industrial Fanless MiniPC mBOX Nuc Q180S-01 v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/3-sztuki-przemyslowy-fanless-minipc-mbox-nuc-q180s-01-v.2-produkt-87287.html

3x Industrial Fanless MiniPC mBOX Nuc Q180S-01 v.2

Industrial Fanless MiniPC mBOX Nuc Q180S




Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MBOX
Nuc Q180S is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimension are 135 (W) x128 (L) x35 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 0.63 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 16GB/32GB/64GB/128GB SSD.

Industrial Fanless MiniPC mBOX Nuc Q180S

go topdo góry   menu… menu


Communication & Connectors

Integrated card - Intel RTL8111E LAN (optional WiFi module) allow connection to the network. The computer is equipped with: two LAN port, one COM(RS232) port, one VGA output, three USB 2.0 ports, one USB 3.0 port, one HDMI output one way audio, one microphone input.


Industrial Fanless MiniPC mBOX Nuc Q180S

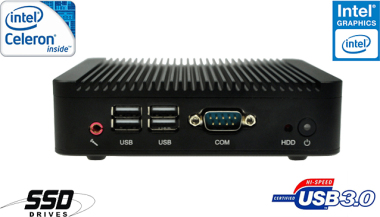

1. 1x Mic
  4. 1x COM (RS232)
2. 3x USB 2.0
  5. Power ON/OFF
3. 1x USB 3.0

Industrial Fanless MiniPC mBOX Nuc Q180S

1. DC-IN 12V
  4. 2x RJ-45
2. 1x HDMI
  5. 1x Audio
3. 1x VGA


Industrial Fanless MiniPC mBOX Nuc Q180S

Cooling

The industrial fanless MiniPC MBOX Nuc Q180S uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go topdo góry   menu… menu

Application

      Industrial MiniPC Series MBOX Nuc Q180S are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesIndustrial Fanless MiniPC mBOX Nuc Q180S of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Fanless MiniPC mBOX Nuc Q180S


Areas of use of industrial MiniPC

Digital Engine

Industrial Fanless MiniPC mBOX Nuc Q180S

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Industrial Fanless MiniPC mBOX Nuc Q180S
Industrial Fanless MiniPC mBOX Nuc Q180S

Magazine

Industrial fanless MiniPC MBOX Nuc Q180S by to four USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless MBOX Nuc Q180S can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Fanless MiniPC mBOX Nuc Q180S

Industrial Fanless MiniPC mBOX Nuc Q180S



Industrial Fanless MiniPC mBOX Nuc Q180S



Specifications


    Dimension





   H: 35 mm

   L: 128 mm

   W: 135 mm

   Weight    0,63kg
   Processor
   Intel Celeron J1800 (2x2.41GHz)
   Chipset
   Intel NM70
   RAM Memory
   2GB DDR3
   Graphic Card
   Intel HD Graphics
   Sound Card
   Realtek ALC662
   WLAN
   Intel RTL8111E Lan
   Connectors

   1x COM(RS232)

   1x wyjście 12V DC_JACK

   3x USB 2.0

   1x USB 3.0

   2x RJ-45

   1x wyjście Audio

   1x HDMI

   1x Mic

   1x VGA

Industrial Fanless MiniPC mBOX Nuc Q180S


Others: Colour Black, Aluminum
Chipset: Intel NM70
CPU Support: -----
Installed CPU: Intel Celeron J1800 (2x2.41GHz)
Memory Support: 2GB DDR3 (can up to 4GB)
Installed Memory: 2GB DDR3
Graphic Card: Intel HD Graphics
Storage (HDD) Support: -----
Installed Storage (HDD): 32GB SSD
CD/DVD Drive: -----
LAN: Intel RTL8111E Lan
Wireless LAN card: No (opctional Yes)
Bluetooth: No
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0~255 sec
Front Panel (ports): Power ON/OFF,
4x USB 2.0,
1x COM(RS232),
1x Mic
Rear Panel (ports): 1x Audio,
2x RJ-45,
1x HDMI,
1x VGA
Power: 12V
Supported OS: Microsoft Windows: 7/8/8.1, Linux
Installed OS: -----
Dimensions: 135 x 128 x35 mm
Weight: 0.63 kg
Expansion: WiFi
Fanless: Yes
Humidity: 0 ~ 95%
Temp: 0 - 50 ℃
IP Norm: -----
Storage temperature: -15 - 70 ℃


CURRENT PRICE
2699.58 € Net
3320.48€ Gross
