3x Industrial MiniPC mBOX-Nuc S01 v.4
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/3-sztuki-przemyslowy-minipc-mbox-nuc-s01-v.4--produkt-86888.html

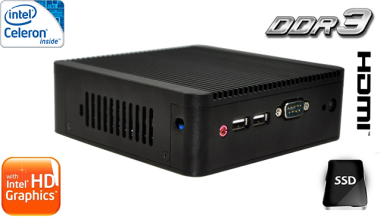

3x Industrial MiniPC mBOX-Nuc S01 v.4

Przemys³owy MiniPC mBOX-Nuc S01



Industrial MiniPC

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

mBOX-Nuc S01 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
go top… do góry   menu… menu

Description


Housing dimension are 135 (W) x128 (L) x35 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 0.630 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics  video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space from 16GB SSD to 128GB SSD.

Przemys³owy MiniPC mBOX-Nuc S01
go top… do góry   menu… menu


Communication & Connectors

Integrated card - Realtek RTL8111E (optional WiFi module) allow connection to the network. The computer is equipped with: one LAN port, one COM port (RS232), one HDMI port, one VGA output, three USB 2.0, one way audio, one microphone input.

Przemys³owy MiniPC mBOX-Nuc S01

1. 1x Mic
 3. 1x COM(RS232)
2. 2x USB 2.0
 4. Power ON/OFF

Przemys³owy MiniPC mBOX-Nuc S01

1. DC-IN 12V
 4. 1x RJ-45
2. 1x HDMI
 5. 1x USB 2.0
3. 1x VGA
 6. 1x Audio

Przemys³owy MiniPC mBOX-Nuc S01

Cooling

The industrial MiniPC mBOX-Nuc S01 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… do góry   menu… menu

Application

      Industrial MiniPC Series mBOX-Nuc S01 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesPrzemys³owy MiniPC mBOX-Nuc S01 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Przemys³owy MiniPC mBOX-Nuc S01


Areas of use of industrial MiniPC

Digital Engine

Przemys³owy MiniPC mBOX-Nuc S01

Trade

Small computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Przemys³owy MiniPC mBOX-Nuc S01
Przemys³owy MiniPC mBOX-Nuc S01

Magazine

Industrial MiniPC mBOX-Nuc S01 by to one COM port (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC mBOX-Nuc S01 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Przemys³owy MiniPC mBOX-Nuc S01

Przemys³owy MiniPC mBOX-Nuc S01



Przemys³owy MiniPC mBOX-Nuc S01



Specifications


    Dimension



   H: 35 mm

   L: 128 mm

   W: 135 mm
   Weight    0.630kg
   Processor
    Intel Celeron 1037U (2x 1.8GHz)
   Chipset
    Intel NM70
   RAM Memory
    4GB DDR3
   Graphic Card
    Intel HD Graphics
   Sound Card
    Realtek ALC662
   WLAN
    Realtek RTL8111E
   Connectors

   1x COM(RS232)

   1x wyj¶cie 12V DC_JACK

   3x USB 2.0

   1x RJ-45

   1x wyj¶cie Audio

   1x HDMI

   1x Mic

   1x VGA
Przemys³owy MiniPC mBOX-Nuc S01


Others: Colour Black, Case
Chipset: Intel NM70
CPU Support: -----
Installed CPU: Intel Celeron 1037U (2x1.8GHz)
Memory Support: 2GB DDR3 (can up to 4GB)
Installed Memory: 4GB DDR3
Graphic Card: Intel HD Graphics
Storage (HDD) Support: -----
Installed Storage (HDD): 128GB SSD
CD/DVD Drive: -----
LAN: Realtek RTL8111E
Wireless LAN card: No (opctional Yes)
Bluetooth: -----
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: -----
Front Panel (ports): 2x USB 2.0,
1x COM(RS232),
1x Mic,
Power ON/OFF
Rear Panel (ports): 1x Audio,
1x RJ-45,
DC-IN,
1x HDMI,
x USB 2.0,
1x VGA
Power: 12V
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: -----
Dimensions: 135 x 128 x 35 mm
Weight: 0.630 kg
Expansion: WiFi
Fanless: No
Humidity: 0 ~ 95%
Temp: 0 - 50 ℃
IP Norm: -----
Storage temperature: -15 - 70 ℃


CURRENT PRICE
3544.84 € Net
4360.15€ Gross
