Portable Mobile Printer series MobiPrint is a lightweight device used to print receipts, invoices or labels in places where it is not possible to use large desktop printers. Depending on the client's needs - printers are available with different wireless interfaces (depending on model): Bluetooth and WiFi and wired USB and RS232.
|
|
|||||||||||||||||||||
Description
MobiPRINT MP-T7 is equipped with a Li-Ion battery with sufficient capacity - 1500mAh, allowing you to work up to 35 minutes in continuous printing or left in standby mode for 15 days.
Easy loading paper roll "Drop-In & Print", high quality printing, fast printing (up to 5.5 mm / s), printing on rolls of plain paper with a width of 58mm makes the printer is used in various applications mobilnych. Printer stands out also on the front panel, on which is placed a display and LED indicate battery charge status, current or confirm the connection to the appropriate devices (Smatphone, tablet, PC, etc). This multiplicity of functions makes the printer easy to use and ideal for field work through a Bluetooth module.
The printer is easy to use, among other things due to the use of very high-quality EPSON mechanism for easy paper loading. The printer is operating in a wide range of temperatures and humidity. The small dimensions allow you to use the printer in a confined work area, providing high-quality prints.
|
Communication |
|
For printers deliver MobiPRINT SDK which greatly facilitates the integration of printers. MobiPrint developed a set of tools for developers SDK for Windows CE, Windows Mobile 5.0/6.0, Symbian, Blackberry, Android and iOS. |
|
Portable (radio and bluetooth) mobile printers by using dotmatrix printing methods are convenient and easy to use and offer a wealth of configuration parameters. Print fonts with different contrasts in depending of used paper roll. Thanks to the wireless communication range of connection offer up to 8m from the device (optional up to 15m).
The printer has two basic communication interfaces: wireless interface - Bluetooth and wired - USB port.
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Other: | |
| Printing Method: | Dot Matrix |
| Printing Speed: | 5.5mm/s |
| Resolution: | 240 dots/line |
| Effective Printing Width: | 48mm |
| Character Set: | ASCII, GB18030 (Chinese), BIG5 |
| Print Font: | Codepage: 7x9, Chinese: 16x16; 12x12 |
| Character per Line: | 40 |
| Paper Type: | Plain paper |
| Paper Width: | 57.5± 0.5mm |
| Paper Roll Diameter: | 40mm (max.) |
| Roll Core Inner Diameter: | 13mm (min.) |
| Paper Thickness: | 0.06~0.08mm |
| Ribbon Cassette: | ERC09 |
| Paper Supply Method: | Semi-auto paper loading |
| Printer Mechanism: | EPSON Brand |
| MCBF (Mean Cycle Between Failure): | 1 million lines |
| TPH: | 1.5 million lines |
| Smart Card: | - |
| MSR: | - |
| Barcode: | 1D: EAN-13, EAN-8, UPC-A, UPC-E, CODE39, CODE93, CODE128, CODABAR, INTERLEAVED 25 |
| Emulation: | ESC/POS |
| Sensor: | Paper End Sensor |
| Interface: | USB/Bluetooth |
| Button: | Power, Feed, Mode |
| Indicator: | Power, Feed, Mode |
| LCD: | Yes |
| Display Content: | Yes |
| Memory: | Flash: 512kb; RAM: 128kb |
| Receive Buffer Size: | 32K |
| Multi-languages: | 46 codepages |
| Supported System - Drivers: | IWindows 98 / ME / 2000 / NT / XP / 2003 Server / Vista / Win7 / Win8 / Linux |
| Supported System - SDK: | Windows CE / Windows Mobile 5.0/6.0 / Symbian / Blackberry / Android / iOS |
| Working on the cable - Systems: | IWindows 98 / ME / 2000 / NT / XP / 2003 Server / Vista / Win7 / Win8 |
| Working wireless - Systems: | Windows CE / Windows Mobile 5.0/6.0 / Symbian / Blackberry / Android |
| Setup Software: | support set bitmap download, baud rate, font, speed, density, password, black mark, Bluetooth etc. |
| Power Supply (Adapter): | DC9V/2A |
| Battery Power: | 7.4V,1.5A rechargeable Li-ion battery |
| Battery Duration: | 35m continuous printing |
| Charge Time: | less than 3 hours |
| Battery Duration: | 360 hours |
| Auto Cutter: | - |
| Weight: | 516g |
| Printer Dimension: | 103 mm x 99 mm x 46 mm |
| Color: | Black |
| Operating Temp: | 0-50 °C |
| Storage Temp: | -20-60°C |
| Operating Humidity: | 10%-80% |
| Storage Humidity: | 10%-90% |
| Accessories: | Battery,Charger USB Cable,CD Driver,Leather Case and Paper-roll Option: vehicle charger |
| Resistance IP: | IP53 |
CURRENT PRICE |
|
| 891.67 € | Net |
| 1096.75€ | Gross |
.jpg){kind=small}

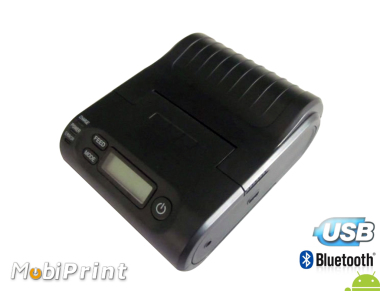

Portable printers MOBIPRINT MP-T7 has a simple paper loading, ease of use, print quality, fast printing, printing on plain paper roll. These properties make the lightweight portable printers are used in a variety of mobile applications.
.jpg)
A new generation of mini printer surprises his appearance. This ergonomic, compact and extremely lightweight dotmatrix printer dimensions (103 mm x 99 mm x 46 mm) and weight only 516g, allows complete mobility..jpg)
Designed to be tailored to different applications, wireless (Bluetooth) Mobile printer may be compatible with systems such as Android, iOS(printer model MP-T7I), Windows CE, Windows Mobile, Windows XP, Windows 7, Windows 8 Users can send data to the printer in real time with PCs or mobile devices (for PC operating systems such as Windows printer can be connected only via RS232).
.jpg)
.gif)
.jpg){kind=small}
Move the printer allows you to send her the necessary data from your computer to print. We offer the highest quality devices work flawlessly even in harsh industrial environments.
