Waterproof Storage Tablet i-Mobile Android IMT-863 v.14.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/i-mobile-android-imt-863-v.14.1-odporny-tablet-przemyslowy-z-wbudowanym-skanerem-kodow-kreskwych-1d-2d-msr-smart-card-reader-i-uhf-rfid-wyswietlacz-8-mio-calowy-produkt-91683.html

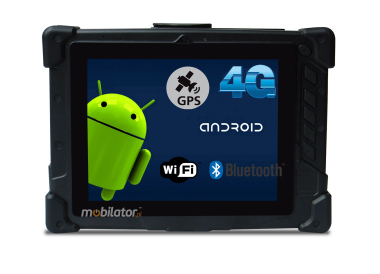

Waterproof Storage Tablet i-Mobile Android IMT-863 v.14.1

waterproof imobile 863 pc panel camera 8mpx rfid wifi rubbery protection full ip 65 mobilator





i-Mobile IMT-863 is a modern, waterproof industrial tablet designed for extreme applications. It has a specially designed, reinforced construction that meets the requirements of IP65, which confirms the protection of the device against dust and water. Like the military equipment, the tablet has the MIL-STD 810 military standard.


Specification



i-Mobile IMT-863
Processor Cortex - A53 (2.3 GHz + 1.8 GHz)
Graphics
Operating system Android 8.1
RAM 2GB DDR2
ROM 32GB EMMC
Display 8", 1024 x 768
Touch screen Capacitive
Battery 11.1V/3100mAh( Option 6800mAh)
Camera 8Mpx Rear + Flash
Protection IP65 | 1.2m. drops
Communication 4G | Bluetooth | GSM | LTE | Wi-Fi | GPS
Connectors USB | Micro USB | RS-232 | DC in | RJ-45
Memory card Micro SD
SIM card  SIM
RFID Reader  UHF | HF
1D Scanner MOTOROLA SE4500 (1D/2D - IMAGER)
2D Scanner MOTOROLA SE4500 (1D/2D - IMAGER)

go topdo góry   menu… menu
Detailed device specification is available in the "Technical data" tab.

Dustproof industrial tablet i-Mobile IMT-863 was equipped with high performance, energy-efficient ARM Cortex-A53 processor. Inside, there are eight cores that allow for more efficient processing of multiple tasks simultaneously. Shared caching, which uses a multi-level hierarchy, is dynamically allocated to each processor core according to the load. This reduces the average access time to main memory. Enhanced graphics card technology lets you enjoy full HD video and movies. Low power consumption guarantees long battery life.






Ergonomic design




2d barcode scanner imobile 863 mobilator ergonomic design industrial tablet resistance convenience




i-Mobile IMT-863 industrial tablet is designed for resistance and convenience. The sleek and rugged 39mm thick design and stylish case will make the tablet very well suited for industrial use and more. The unique size has been carefully thought out to make the device more comfortable and ergonomic. The non-slip casing makes it safe and secure to hold it in your hand, and the rubber corners further protect your device against possible damage as a result of falls.



Dimensions 251mm x 181mm x 39mm
Net weight 1200g






Capacitive screen




capacitive touch screen



With the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our tablet or the collector with a few fingers at once.


go topdo góry   menu… menu

REsistance





ip65 protection imobile mobilator imt-863 capative screen full rfid 2d barcode scanner camera rear






IP65 Protection

The IP standard defines the degree of protection provided by the enclosure of an electrical device against such factors as: access to dangerous parts inside the enclosure, penetration of foreign matter, splashing or immersion.

The first digit [x]
Protection against solid objects
Protection
Level
The second digits [y]
Protection against liquids

No special protection

No special protection
Protection from solid objects greater than 50mm in diameter Protection from dripping water
Protection from object not greater than 12mm in diamete Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter Protection from sprayed water
(tilted up to 60°)
Protection from object not greater than 1mm in diameter Protection from splashed water
Complete protection against contact, Protection against dust deposit Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust Protection against heavy seas, or powerful jets of water
  Protection against immersion
  Protection against complete, continuous submersion in water




MIL-STD 810 Standard

The MIL-STD-810 is a strict military standard used in the United States Army. It determines the immunity of the equipment to severe environmental and weather conditions such as extreme low and high temperatures, temperature changes, rain or dust, as well as various accidents (shocks, floods, high altitude falls, etc.). Although the MIL-STD-810 is mainly used for military equipment, it is often used by private companies that produce equipment that requires unmatched durability.






1.2m drop resistance

Specially designed construction gives the machine a chance of accidental falls from up to 1.2 meters in operating mode, even on hard surfaces. In addition, the tablet screen is protected by specially tempered glass Gorilla Glass.







Extreme temperatures

i-Mobile IMT-863 is suitable for continuous operation in both low and high temperatures in the range of -10 ° C to 50 ° C. When the device is off, it can handle temperatures ranging from -20 ° C to 70 ° C. In addition, the rugged industrial tablet performs well in rooms with increased humidity, ensuring proper operation even with 99% relative humidity.



Working Temp. -10°C to 50°C
Storage Temp. -20°C do 70°C
Humidity 0% do 99%

imobile mobilator imt-863 capative screen full rfid 2d barcode scanner camera rear



go topdo góry   menu… menu

wireless communication





GPS Navigation

Waterproof tablet i-Mobile IMT-863 is equipped with a professional GPS module  combining low power consumption with high accuracy. Navigation is fast and smooth, allowing you to easily and easily reach any destination.








Bluetooth 4.0

Bluetooth enables wireless short-range communication between various electronic devices, such as the keyboard, computer, laptop, palmtop, mobile phone and many others. In the fourth version of this standard, energy consumption was reduced considerably, at the expense of lower transfer costs, and real operating coverage increased.







 Wi-Fi network

Dual-band Wi-Fi provides fast network access wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a work or residence router and a wireless network that can be used at no extra cost. The shock-resistant industrial tablet, is equipped with the latest 802.11n technology, which allows file transfer speeds up to 150 Mb/s.



Standards 802.11(b/g/n)
Frequencies 2.4GHz

imt-863 capative screen with ip65 protection mobilator full rfid 2d barcode scanner camera rear

go topdo góry   menu… menu

Functionality





                        Barcode Scanner


Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code.With dynamic scanning capabilities and wide range of reading-Mobile device and IMT863 quickly and accurately retrieves the data, which helps to increase the rate and efficiency. You can jump-start a whole because with simplified installation procedure and intuitive, comfortable design to prepare the scanner to work is very easy.








                                      RFID


RFID technology has aroused great worldwide interest. Is expected to solve many of the problems with fast and faultless identification of people and equipment. Its development is more turbulent than gradually Introduced barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products.





                Magnetic Card Reader


Card Readers i-Mobile are the products meet the safety criteria Highest during reading. Architecture on Which readers are created to efficiently protect your personal information encoded on the cards. High safety standards allow readers to use Virtually all types of applications. Read the safety data confirms compliance with the ISO 7816 standard for encryption.Tablet IMT863 is equipped with a magnetic card reader (MSR) for reading and encoding cards in accordance with ISO 7811. The robust plastic housing, easy integration with existing systems, fast read and write magnetic heads that make it the perfect choice.Magnetic card reader writes to all 3 tracks magnetic, so you can use it for all major card types (such as credit, debit, staff and membership cards, loyalty card systems, etc.)





                                      RFID


The smart card reader Enables the secure electronic transactions through the use of digital signatures and certificates to enhance secure transactions through public and private networks. With easy access to the smart card reader you can use it in many different ways, Regardless of Whether you use it for authentication, data retrieval and verification of Their correctness, or is it the use of embedded applications. Smart cards are typically used by the departments of information technology (IT) in large Organizations.

i-mobile capative screen with ip65 protection mobilator full rfid 2d barcode scanner camera reargo topdo góry   menu… menu

Application



Trade and Services

Thanks to their size and light weight, tablet and smartphone data collectors are a useful tool for sales representatives. Today's applications running under the collector system enable even entering the data collector's contractor database, which allows us to later search for it quickly by name or NIP number. We can do the same with our commodity base, which can work in parallel with the database of contractors. Additional use of collectors in the trade, such as sending orders or invoices directly to the company through the GSM network or Wi-Fi.



full option ip65 tablet imobile capative screen with ip65 protection mobilator full rfid 2d barcode scanner camera rear






Industry and Construction



Industrial tablets and data collectors are characterized by high resistance to adverse working conditions. Tightness, dust and water resistance of enclosures, certified by IP (dust and water resistance standards) and often MIL-STD military standard, can withstand even the harshest conditions in industrial infrastructure or on the construction site. With appropriate applications, collectors can be used for control and control of various industrial processes, as well as for data collection and analysis.


shocproof imobile industrial rugged durable tablet NFC waterproof  4G android 8.1 military IP67 MIL-STD 810G barcode scanner 1D 2D






Warehouse



An industrial data sheet is the ideal solution for quick stocktaking. In addition, depending on the software used, it streamlines the process of entering and delivering goods into the warehouse, enables price control and dispensing, helps to collect and order orders, and identifies customers and servicing the rental. The advantages of using data collectors are undoubtedly: time savings, customer satisfaction thanks to the correct price and speed of operation.


imt-863 imobile waterproof shocproof industrial rugged durable tablet NFC 4G android 7.1 military IP67 MIL-STD 810G barcode scanner 1D 2D

go topdo góry   menu… menu



Available versions and accessories





The industry-leading i-Mobile IMT-863 tablet is available in several versions to suit different needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters given in the table below. In addition, on request, you can create a configuration not currently available in the offer.




More photos in full resolution available in the "Gallery" tab.

[tab_wersja_id_225]


Durability: IP65
Humidity: 0% -- 99%
Waterproof: IPX5
Weight:
Temperature: Operating temperature: -10°C -- 50°C
Storage temperature: -20°C -- 70°C
Shock: MIL-STD-810G
Vibration: MIL-STD-810G
Drop: 1,2m
Sand and dust: IP6X
1D barcode scanner (reader): UART INTERFACE
2D barcode scanner (reader): UART INTERFACE
RFID scanner (reader): RFID HF 13.56MHz Mifare
Reading distance: 30mm ~ 50mm
RFID UHF (860-960MHZ,2-3m)
Magnetic card reader (MSR): Tak
Microchip card reader: Yes
Docking station connector: Yes
VESA standard – holders and mounts support: Yes
COM port: Yes
Dispaly: 8" (1024 x 768)
Brightness: 350Nits (Option 700Nits)
Contrast: -----
Touch screen: Capacitive
Graphics card: -----
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: No
Processor: Octa-core ARM Cortex-A53 (2.3 GHz + 1.8 GHz)
Chipset: -----
BIOS: -----
Memory: 2GB DDR2
Hard Drive: -----
Flash Memory: 32GB EMMC
Battery: 11,1V 3100mAh Lithium
(Option 11,1V 6800mAh Lithium)
Working time on battery: 6h
HotSwap battery: No
Fast battery replacement ability: No
Size: 251mm x 181mm x 39mm - 1200g
Casing material: -----
Fanless casing: Yes
Operating System: Android 8.1
LAN: Yes
WLAN: IEEE 802.11 b/g/n
Bluetooth: Bluetooth 4.0
WAN: WCDMA 900/2100MHZ / HSPA 7.2/5.76Mbps, 3GPP R6/GSM/GPRS/EDGE: 850/900/1800/1900 MHZ / LTE-FDD:B1,2,3,5,7,8,20; LTE-TDD:B34,38,39,40,41
GPS: Yes
Flash Card Reader: micro SD
CD/DVD: -----
Camera: Camera Rear 8Mpx + Flash
Audio: Built-in microphone and speaker
Seciurity: -----
In/Out: USB 2.0 | Micro SD | RS232 | RJ-45 | DC | SCR
Keyboard: Onscreen
Additional Navigation Devices : -----
Color: Black
Optional accessories: Hand Strap
Additional external battery 6800mAh
Vehicle & Wall mount VESA
Docking station
Vehicle charger 12V
Vehicle charger 12V-36V
Station battery charger
Other: -----
