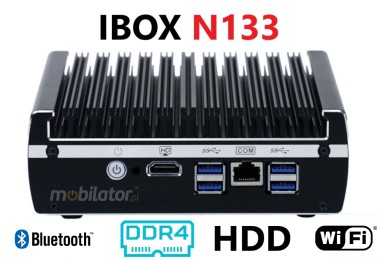

IBOX N133 v.16 - Industrial miniPC with Intel Core dual-core processor, 32GB RAM, 2TB HDD, WiFi and Bluetooth
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/ibox-n133-v.16--przemyslowy-minipc-z-procesorem-dwurdzeniowym-intel-core-pojemna-pamiecia-32gb-ram-oraz-dyskiem-2tb-hdd-wifi-oraz-bluetooth-produkt-93448.html

IBOX N133 v.16 - Industrial miniPC with Intel Core dual-core processor, 32GB RAM, 2TB HDD, WiFi and Bluetooth

 IBOX N133 v.16, industrial small fast reliable fanless industrial small LAN INTEL i3 HDD DDR4 WIFI BLUETOOTH





Small-sized industrial computers excel in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. The small and reliable MiniPCs use heat-pipe technology and aluminum fins for passive cooling. The rugged mini industrial computer iBox N133 is a device designed for all industrial and other applications requiring continuous operation - 24 hours a day, 7 days a week.




Small dimensions
The compact casing makes the Mini PC fit wherever you need it and is easy to carry.

Light construction
The weight of the computer does not exceed 1.6 kg, so it can be conveniently carried.






Efficient components
The dual-core Intel Core I3 processor ensures good device performance.


Wireless network
The mini PC can be connected to nearby wireless networks thanks to equipping it with an optional Wi-Fi module.



Quick start  *
A modern SSD drive will increase the speed of application programs and ensure quiet operation of the computer.

Passive cooling
The use of passive cooling in the Mini PC ensures noiseless operation and slows down dust deposition.





TECHNICAL SPECYFICATIONS



Mini-PC IBOX N133
Processor Intel Core I3 7100U (dual core quad threading, 2.4GHz)
Operating system

Support:  Windows 7/8/10

Linux

RAM 4GB* |  8GB|  16GB|  32GB  DDR4
Hard drive

SSD:  64* | 128|  256| 512 GB

HDD:  500GB| 1TB* | 2TB

Graphics card Integrated Intel HD Graphics 620
Communication

Bluetooth

WiFi (AC7260)

LAN:  6xRTL8111E  1000M

Connectors - front panel 4xUSB 3.0 | 1x RJ45 COM | Power button | HDMI
Connectors - rear panel 6x LAN | 1X DC
Colors

black (can be customized)

Dimensions 155 x 126.5 x 52,5 mm
Weight 1,6 kg




* Optional equipment, available only in specific versions of the device or on request.



Detailed specification of the device is available in the "Technical data" tab.

 IBOX N133 v.16, inside look, industrial small fast reliable fanless industrial small LAN INTEL i3 HDD DDR4 WIFI BLUETOOTH

Efficient processor





The industrial mini computer IBOX N133 uses a powerful and energy-saving Intel Core I3 processor. Inside, there are two cores that work together to efficiently process multiple tasks simultaneously. A shared cache that uses a multi-level hierarchy is dynamically allocated to each processor core based on workload. This leads to a reduction in the average access time to main memory. Provides greater manageability by reducing downtime and maintaining high performance by partitioning your computing processes into separate partitions.






Connectors | Interfaces



 IBOX N133 v.16, front IO, industrial small fast reliable fanless industrial small LAN INTEL i3 HDD DDR4 WIFI BLUETOOTH

 IBOX N133 v.16, back IO, industrial small fast reliable fanless industrial small LAN INTEL i3 HDD DDR4 WIFI BLUETOOTH

Dimensions



Thanks to its small dimensions, the MiniPC is versatile both at home, in the office and in industry, for example in a production hall. It fits literally anywhere.

 IBOX N133 v.16, size, industrial small fast reliable fanless industrial small LAN INTEL i3 HDD DDR4 WIFI BLUETOOTH

Dimensions

155 x 126,5 x 52,5 mm

Net weight 1,6 kg





Pass-through cooling





The industrial Mini PC uses a proven cooling system based only on solid elements, mainly heat sinks. This system uses the phenomenon of metals giving off heat energy to the environment - there are no additional moving elements such as fans. This solution ensures noiseless operation, lower failure rate and greater protection against dust and other dirt while reducing the amount of energy consumed.


do góry… do g鏎y   menu… menu



resistance and durability

 IBOX N133 v.16, industrial small fast reliable fanless industrial small LAN INTEL i3 HDD DDR4 WIFI BLUETOOTH

Temperature variation







IBOX N133 is designed for continuous operation both in very low and high temperatures in the range from -20°C to 50°C  SSD or 0°C  to 50°C HDD.





Temperature Work 0°C to +50°C  (HDD)  or -20°C  to +50°C (SSD)
Resting temperature 0°C to +50°C  (HDD)  or -20°C  to +50°C (SSD)
Humidity 5~95% relative humidity, non-condensing



Mechanical damage



The passive cooling system used in IBOX N133 in conjunction with a plateless SSD drive makes this computer very resistant to various types of mechanical damage. An additional advantage of industrial computers is a solid structure made of high-quality aluminum and specially designed in such a way that, in addition to high efficiency in heat dissipation, it can also resist any external damage.

do góry… do g鏎y   menu… menu


CONNECTIVITY AND COMMUNICATION







Wireless network (Option)





The optional Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. It is a convenient solution for people who have a router and a wireless network in their place of work or residence, which can be used at no additional charge. The industrial Mini PC IBOX N133 can be equipped with the technology standard - 802.11n, which allows you to transfer files at dizzying speeds up to 300 Mb / s.

We also have the option of extending our device with a Buetooth 4.0 module for communication with nearby devices.





                            IBOX N133 przemys這wy ma造 szybki niezawodny SSD intel wifi bluetooth fanless industrial small LAN i3



Wired LAN





MiniPC IBOX N133 has built-in network cards that can work in a fast Gigabit Ethernet network.



  IBOX N133 przemys這wy ma造 szybki niezawodny SSD intel wifi bluetooth fanless industrial small LAN i3



do góry… do g鏎y   menu… menu




APPLICATION OF THE DEVICE


Trade and services





Mini PC is an ideal tool supporting us in the implementation of many activities in the field of trade, small dimensions increase the possibility of its adaptation to such activities as invoicing or preparing documentation, which in turn allows us to conveniently and optimally manage sales.



  IBOX N133 przemys這wy ma造 szybki niezawodny SSD intel wifi bluetooth fanless industrial small LAN i3



Warehouse and logistics





Thanks to its high performance, the industrial computer can be used to connect multiple devices in the warehouse and greatly facilitate their management. Its durable housing and fanless cooling system are perfect for the harsh conditions in such rooms. The solid construction guarantees long-term operation, even in dusty and dirty environments.

  IBOX N133 przemys這wy ma造 szybki niezawodny SSD intel wifi bluetooth fanless industrial small LAN i3

  IBOX N133 przemys這wy ma造 szybki niezawodny SSD intel wifi bluetooth fanless industrial small LAN i3



Transport and automotive



A small industrial computer can be used in transport thanks to the possibility of working with a 12V power supply. Then the mini computer can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. It allows the driver to be informed about the current state of the vehicle, its current position to the management center, displaying information for passengers, etc. It will fulfill its functions very well in vehicles where small dimensions of the device are important.



  IBOX N133 przemys這wy ma造 szybki niezawodny SSD intel wifi bluetooth fanless industrial small LAN i3


do góry… do g鏎y   menu… menu





More photos in full resolution are available in the "Gallery" tab.

 IBOX N133 v.16, packing list, industrial small fast reliable fanless industrial small LAN INTEL i3 HDD DDR4 WIFI BLUETOOTH

AVAILABLE VERSIONS



The industrial mini computer IBOX N133 is offered in several versions tailored to different needs. In addition, at the customer's request, it is possible to create a configuration currently unavailable in the offer.




Others:
Chipset: Intel Chipset
CPU Support: --------
Installed CPU: Intel Core I3 7100U (dual core quad threading, 2.4GHz)
Memory Support: DDR4 1866/2133
Installed Memory: 32 GB
Graphic Card: Integrated Intel HD Graphics 620
Storage (HDD) Support: SSD, HDD
Installed Storage (HDD): 2TB HDD
CD/DVD Drive: -----
LAN: YES
Wireless LAN card: Intel Wireless-AC7260
Bluetooth: YES
3G: ---
4G LTE: ---
TV Tuner: -----
Watch Dog Timer: Yes
Front Panel (ports): Power ON
4x USB 3.0
1x COM RJ45
1x HDMI
Rear Panel (ports): 6xLAN
DC12V
Power: 12V
Supported OS: Windows 7/8/10, Linux
Installed OS: ---
Dimensions: 155 * 126.5 * 52.5mm
Weight: 1.6kg
Expansion: ---
Fanless: YES
Humidity: 5% ~ 95% non-condensing
Temp: 0℃ ~50℃ (HDD)
-20℃ ~ 50℃ (SSD)
IP Norm: ---
Storage temperature: 0-50℃


CURRENT PRICE
3035.34 € Net
3733.47€ Gross
