Open Frame Touch Screen PC CCETouch CT22-OPCR-3G
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/komputer-panelowy-open-frame-ccetouch-ct22-opcr-3g-produkt-86738.html

Open Frame Touch Screen PC CCETouch CT22-OPCR-3G

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat

(June 2014) Industrial panel PCs CCETouch company are a new distribution segment on Mobilator.pl. CCETouch company has achieved an excellent reputation as a manufacturer of industrial touch panel computers. Due to the high position of products in the segment of high-tech has won the confidence of many customers around the world.

CCETouch Industrial PC Touch

Open Frame Touch Screen PC

Fanless Industrial Panel PC computers OPEN FRAME are used in environments where you need a quick and hassle-free access to the network or data. They are ideal for applications that require quiet operation. Small but robust Panel PC using the heat-pipe technology and aluminum fins for passive cooling.



Description


Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat

CCETouch

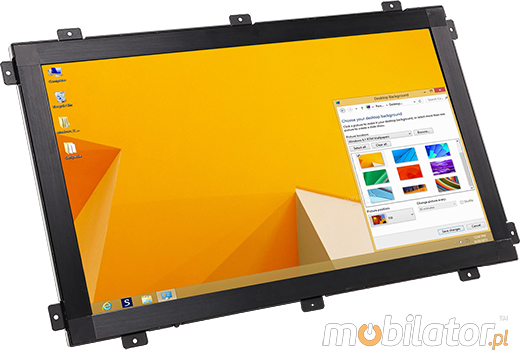

Open Frame Touch Screen PC CCETouch CT22-OPCR-3G






CCETouch

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat

CPU: Intel® Celeron™ J1900 (4 x 2.0 GHz)


Memory: 2GB RAM DDRIII SODIMM


Disk: 32GB SSD


System: Windows 8.1/8 / Windows 7 / Windows XP / Linux


Screen: 22" / 1920 x 1080 / 4:3 / IR



Expansion cards:
none



Detailed specification of the configuration available in the "Technical data"


Using the latest technology (industrial fanless) Panel PC is designed for continuous multitasking operating with low power consumption (32W). An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Celeron processor family, Intel chipsets and DDR3 memory. Integrated Intel®HD 2500 video graphics card and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB SSD to 512GB SSD (320GB to 1TB HDD option).

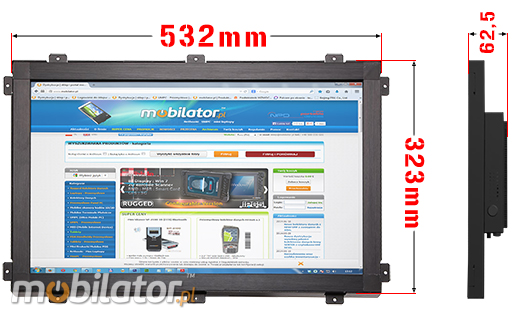

Dimensions:

Housing dimension are 532 (W) x 323 (L) x 62.5 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 8.5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat

Cooling:

Open Frame Touch Screen PC CCETouch CT22-OPCR is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat

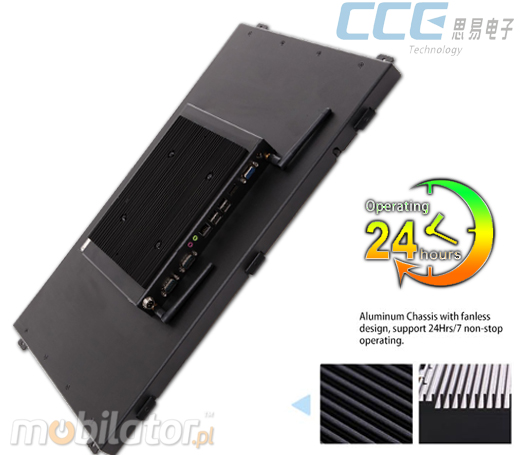

The industrial fanless Open Frame Touch Screen PC CCETouch CT22-OPCR uses a special method of cooling.This cooling takes place mainly by means of housing having a very large surface (longitudinal lamels, ribs) for heat dissipation - thanks such cooling - industrial Panel PC is faster and more efficiently cooled.

go top… do g鏎y   menu… menu

Communication & Connections

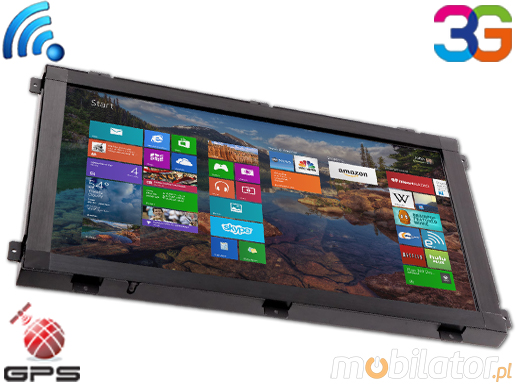

Communication:

Open Frame Touch Screen PC CCETouch CT22-OPCR standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as 3G and GPS.

With 3G module panel PC will have, wherever access to the resources of the Internet without restrictions.

The GPS module installed in PanelPC enables user exact position location on the map,  what extends PanelPC application to all types of vehicles.

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat

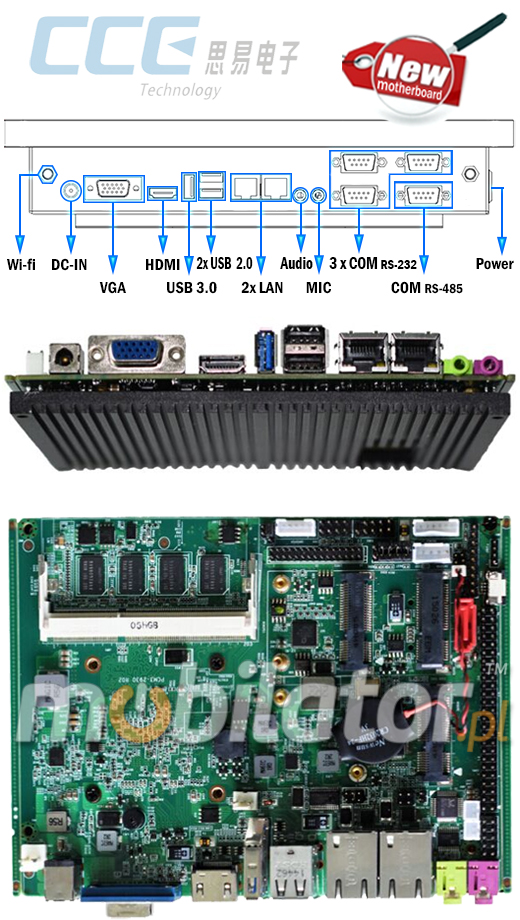

Connector:

The integrated network card  Intel RTL8111G 10/100/1000 Mbps LAN 2xRJ-45, WIFI allows you to connect the device to the network. The computer is equipped with: two LAN connector, three ports COM (RS232), one port COM (RS485), one VGA, one HDMI output, two USB 2.0 ports, one USB 3.0 port, one audio input, one  input MIC, connector DC-in.

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomatv

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat

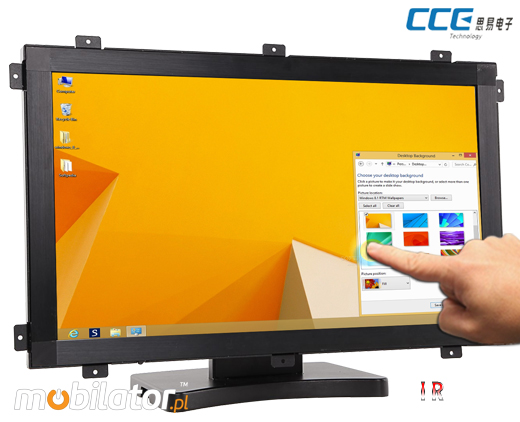

Screen

Open Frame Panel PC CCETouch CT22-OPCR has adapted to building 22 "LCD screen with 7H hardness. With 1920 x 1080 resolution and high brightness of 250 cd/m2, screen type IR with high sensitivity to touch, offers the user a clear picture and ease of use .

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat

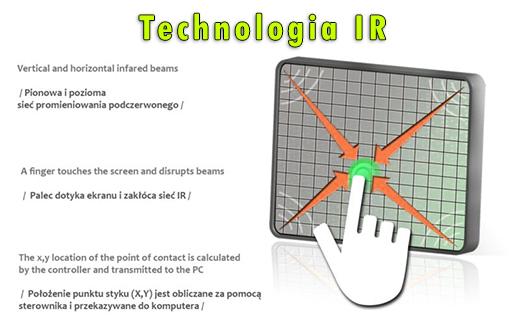

IR Technology

The oldest and hence tested and having the lowest failure rate, technology is infrared IR. Touch panels, operating on the infrared emitters have light-sensitive two rows perpendicular to each other on the walls of the screen. This solution does not require a special screen coating, which could distort the displayed content. The disadvantages of this type of panels are: poor resistance to infrared light (not suitable for outdoor use, the sunlight), and the work in a narrow temperature range (not resistant to high and low temperatures; unexpected change in temperature can damage the panel).

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat
IR technology is also not resistant to accidental touch or covering the frame emitting infrared radiation. If the monitor is outdoor, for example, it is exposed to an accidental contact with a falling leaf, which can be interpreted by IR as a touch. It is also an advantage of the technology - it has a high sensitivity to touch. Also, it recognizes the touch in a glove. Solutions with infrared touch-sensing technology can be used in very large screens. In addition, this technology is cheap.

Application

Panel PC CCETouch CT22-OPCR is specially designed for zamontowanmia in special cabinets Internet kiosks, ATMs, etc. Open Frame Panel PC is the best solution for use in public places where you need a fast and seamless access to Danch or the Internet.

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat

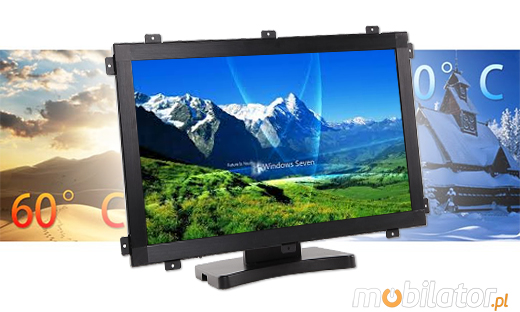

 Operating Temp
0-60 °C
 Operating Humidity 5%-95%

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat

Industrial Panel PCs with CCETouch companies are based on the efficient two-core processors and high-quality components.Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat

Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat

Areas of use of industrial panel computers.

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat

Trade

Fanless Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register),  factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat
Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat

Magazine

Industrial Panel PC through COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas.  Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

 Transport & Automotive

Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 12V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat

go top… do g鏎y   menu… menu

Versions

  CT22-OPCR
CT22-OPCR-3G CT22-OPCR-SSD
 Intel® Celeron J1900
Wi-Fi
3G + GPS - -
12V DC-IN

go top… do g鏎y   menu… menu

Specifications


   Display

   Screen: 22"

   Resolution:1920 x 1080

   Type: IR
   Resistance IP

   -

   Communication

   Wi-FI

   3G

   GPS

   Dimensions





   Height:  62.5 mm

   Width: 323 mm

   Length: 532 mm

   Weight    8.5 kg
   Processor    Intel® Celeron™ J1900 (4 x 2.0 GHz)
   Chipset
   Intel NM70
   Memory RAM
   2GB DDR3 (optional up to 8GB)
   Graphics Card
   Intel® HD 2500
   Sound Card
   Realtek ALC662
   Network Card
   Realtek  RTL8105E LAN
   Ports & interfaces

   2 x COM(RS232)

   4 x USB 2.0

   1 x RJ-45

   1 x VGA

   1 x HDMI

   1 x VGA

   1 x Audio

   1 x Mic

   1 x Power Switch

Komputer panelowy (Open Frame) CCETouch CT22-OPCR Komputer panelowy Panel PC Open Frame Przemys這wy komputer panelowy Ekran IR wy鈍ietlacz 22 cale mobilator.pl New Portable Devices Windows Intel Celeron Open Frame Touch Screen PC CCETouch CT22-OPCR do zabudowy kiosk internetowy bankomat


Screen size: 22"
Resolution: 1920 x1080
Aspect ratio: 4:3
Touchscreen: IR
Chipset: Intel® NM70 Mobile Chipset
CPU Support: Intel® Celeron™ J1900 (4 x 2.0 GHz)
Installed CPU: Intel® Celeron™ J1900 (4 x 2.0 GHz)
Memory Support: up to 8GB DDR3 Max. SODIMM
Installed Memory: 2 GB DDR3
Graphic Card: Intel® HD 2500
Audio: Realtek ALC662, 6 Channel High Definition Audio Codec 2x 2W loudspeaker
Storage (HDD) Support: 32 - 512 GB SSD / 320 - 1TB HDD
Installed Storage (HDD): 32 GB S-ATA SSD
CD/DVD Drive: -----
LAN: Realtek RTL RTL8105E, 1x10/100/1000Mbit RJ45 Ports
Wireless LAN card: Yes
Bluetooth: -----
3G: Yes
4G LTE:
GPS: Yes
TV Tuner: -----
Watch Dog Timer: -----
Ports - front panel: -----
Ports - rear panel: 1 x VGA
1 x HDMI
2 x USB 2.0
1 x USB 3.0
2 x RJ-45 LAN
3 x RS-232 COM
1 x RS-485 COM
1 x DC-in
1 x MIC
1 x Audio
1 x WIFI antenna
Ports - left panel: -----
Ports - right panel: -----
Power: 12 V
Supported OS: Microsoft Windows: XP/Vista/7/8/8.1; Linux
Installed OS: -----
Dimensions: 532 x 323 x 65.2 mm
Weight: 8.5 kg
Expansion: -----
Fanless: Yes
Humidity: 5%~ 95%
Temp: 0蚓 ~ 60蚓
Storage Temp: -15蚓 ~ 70蚓
IP Norm: -----
IP Level (back panel): -----
IP Level (front panel): -----

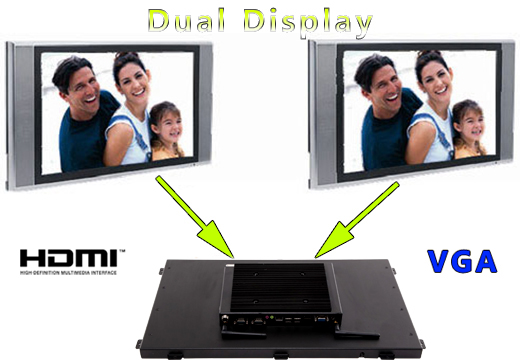

Dual display: Yes
Response time touch-panel (ms): < 10
Contrast Ratio: 1000:1
Brightness: 250 cd/m2
Viewing Angle: 170;160
Backlight MTBF: LED/40,000 h
Color Resolution: 16,7 mln
Surface hardness (display): 7H
Touch Life(contacts): >50.000.000 times
Housing material: Aluminum

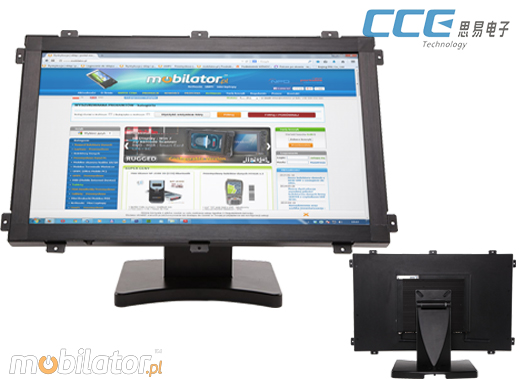

Mounting VESA: Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm
Folding Bracket (for office type working): No (optional)
Power Consumption: 32 W
Others: -----
Anti-vibration: -----
Anti-shock: -----
RFID scanner (reader): -----
Barcode reader:


CURRENT PRICE
4645.08 € Net
5713.45€ Gross
