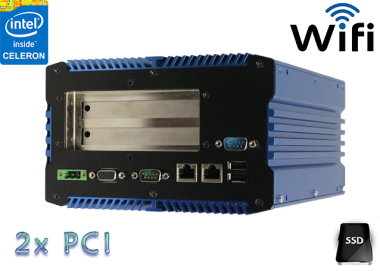

Fanless Industrial Computer MiniPC IBOX- 1037UE (2PCI) v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/komputer-przemyslowy-fanless-minipc-ibox-1037ue-2pci-v.2-produkt-87493.html

Fanless Industrial Computer MiniPC IBOX- 1037UE (2PCI) v.2

Fanless Industrial Computer MiniPC IBOX- 1037UE (2PCI)




Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

IBOX-1037UE (2PCI) is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimension are 215 (W) x185 (L) x115 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space from 32GB SSD to 128GB SSD or 500GB HDD.

Fanless Industrial Computer MiniPC IBOX- 1037UE (2PCI)

go topdo góry   menu… menu


Communication & Connectors

Integrated card - Intel RTL8111E 1000M and WiFi module allow connection to the network. The computer is equipped with: two LAN port, two COM ports (RS232) - in this can be 1x COM(RS422/485), one VGA output, four USB 2.0 ports, two PCI connector, one way audio, one microphone input and connectors built into the motherboard: two USB 2.0 ports, two PowerOUT outputs, one audio output, one CPUFAN, one LVDS connector.

LVDS Interface
This is a fast digital interface that is used for many applications requiring: a high resistance to interference electromagnetic, low energy consumption at high data rates. LVDS is used in various applications and industries, including commercial and military applications
.

Fanless Industrial Computer MiniPC IBOX- 1037UE (2PCI)

1. 2x USB 2.0

2. Power ON


Fanless Industrial Computer MiniPC IBOX- 1037UE (2PCI)

1. DC-IN 12V
  4. 2x RJ-45
2. 1x VGA
  5. 2x USB 2.0
3. 1x COM(RS232)
  6. 1x COM(RS232)

Fanless Industrial Computer MiniPC IBOX- 1037UE (2PCI)

Cooling

The industrial fanless MiniPC IBOX-1037UE uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go topdo góry   menu… menu

Application

      Industrial MiniPC Series IBOX-1037UE are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesFanless Industrial Computer MiniPC IBOX- 1037UE (2PCI) of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Fanless Industrial Computer MiniPC IBOX- 1037UE (2PCI)


Areas of use of industrial MiniPC

Digital Engine

Fanless Industrial Computer MiniPC IBOX- 1037UE (2PCI)

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Fanless Industrial Computer MiniPC IBOX- 1037UE (2PCI)
Fanless Industrial Computer MiniPC IBOX- 1037UE (2PCI)

Magazine

Industrial fanless MiniPC IBOX-1037UE by to two COM port (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless IBOX-1037UE can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Fanless Industrial Computer MiniPC IBOX- 1037UE (2PCI)

Fanless Industrial Computer MiniPC IBOX- 1037UE (2PCI)



Fanless Industrial Computer MiniPC IBOX- 1037UE (2PCI)



Specifications


    Dimension





   H: 115 mm

   L: 185 mm

   W: 215 mm

   Weight    2,4kg
   Processor
   Intel Celeron 1037u (2x 1.8GHz)
   Chipset
   Intel NM70 express chipset
   RAM Memory
   2GB DDR3 (optional 4GB)
   Graphic Card
   Intel HD Graphics
   Sound Card
   Realtek ALC662
   WLAN
   Intel RTL8111E 1000M Lan
   Connectors

   2x COM(RS232)

   1x wyjście 12V DC_JACK

   4x USB 2.0

   2x RJ-45

   1x wyjście Audio

   2x PCI

   1x Mic

   1x VGA

Fanless Industrial Computer MiniPC IBOX- 1037UE (2PCI)


Others: Colour Black, Case
Chipset: Intel NM70
CPU Support: -----
Installed CPU: Intel Celeron 1037u (2x1.8GHz)
Memory Support: 2GB DDR3 (can up to 8GB)
Installed Memory: 2GB DDR3
Graphic Card: Intel HD Graphics
Storage (HDD) Support: -----
Installed Storage (HDD): 32 GB SSD
CD/DVD Drive: -----
LAN: Intel RTL8111E 1000M Lan
Wireless LAN card: Yes
Bluetooth: -----
3G: No (opctional Yes)
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0 ~ 255 sec
Front Panel (ports): 2x USB 2.0,
Power ON
Rear Panel (ports): 2x USB 2.0,
2x RJ-45,
DC-in Jack,
2x PCI,
2x COM(RS232),
1x VGA
Power: 12V
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: -----
Dimensions: 215 x 185 x 115 mm
Weight: 2.4 kg
Expansion: -----
Fanless: Yes
Humidity: 0 ~ 95%
Temp: -10℃ ~ 60℃
IP Norm: -----
Storage temperature: -20 - 70 ℃


CURRENT PRICE
2019.95 € Net
2484.54€ Gross
