Computer MiniPC mBOX Q6-610S v8
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/komputer-przemyslowy-minipc-mbox-q6-610s-v.8-produkt-90713.html

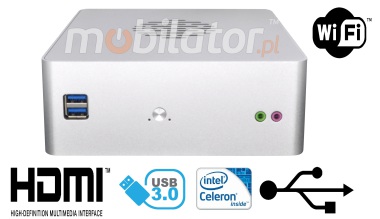

Computer MiniPC mBOX Q6-610S v8

 Komputer Przemysłowy MiniPC mBOX Q6-610S MOBILATOR.PL INTEL CELERON



Small dimensions computers are at the forefront in environments where dust, dirt and moisture predominate. They are ideal for applications requiring quiet operation. The rugged mini mBOX-Q610S is a device designed for all home, office and other uses requiring continuous operation - 24 hours, 7 days a week.








Small dimensions
The compact housing means that the Mini PC will fit wherever you need it and is easy to carry.
Lightweight design
The computer's weight does not exceed 2.5kg, so it can be conveniently carried in a bag or backpack.



Efficent components
The Intel Celeron dual-core CPU provides improved device performance.
Wireless network
The mini PC can be connected to nearby wireless networks by equipping it with a
Wi-Fi module.



Quick start
A modern SSD drive will increase the speed of application programs and ensure quiet computer operation.
Cooling
The use of fan cooling in
the Mini PC ensures quiet
operation of the device.






go up… do góry menu… menu



SPECIFICATION


Performance
Processor Intel Celeron (2x 2.80 GHz)
Graphics card Intel HD Graphics 510
Operating system Windows 7/8/10 | Linux
RAM  32GB DDR 4
Drive  256GB SSD
Interfaces
Connectivity

Wi-Fi - Realtek 5572 N 300 Mb/s

LAN - 2x Intel i211AT  1Gb/s

Front panel  2x USB 3.0 / Power On/Off
Rear panel

Power connector / 2x Gigabit LAN/
1 x DC Jack / 5 x USB 2.0 / 1 x 1 x USB 3.0 / 4 x RS-232, COM1/COM2 Supports 5V/12V

Other
Available colors White
Dimensions 165 x 165 x 57mm
Weight 2.0kg

EFFICIENT PROCESSOR

The mini-computer mBOX-Q610s uses an efficient and energy-saving Intel Celeron processor. Inside it there are four cooperating cores enabling more efficient processing of many tasks at the same time. The shared cache memory in which the multilevel hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory.



INTERFACES

 Computer Industrial MiniPC  mBOX Q6-610S



DIMENSIONS



 Computer Industrial MiniPC  mBOX Q6-610S


Detailed device specification is available in the "Technical data" tab.


go up do góry menu… menu



RESISTANCE



Temperatures

mBOX-Q610s is designed for continuous operation in both very low and high temperatures ranging from 0 ° C to 50 ° C. If the device is switched off, it can already handle temperatures in the range of -20 ° C to 80 ° C.


 MiniPC mBOX Q6-610S MOBILATOR.PL INTEL CELERON



Work temp. 0°C — 50°C
Storage temp. -20°C — 80°C
Humidity 10% — 95%


Mechanical damage

MiniPC mBOX-Q6-610S combined with the non-disk SSD make this computer very resistant to various types of mechanical injuries.

go up do góry menu… menu



ŁĄCZNOŚĆ


Wireless network (Option)

The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. Mini-PC mBOX-Q610s has been equipped the standard of  - 802.11n, which allows transfer of files at a dizzying speed of up to 300 Mb / s.





WIRED LAN NETWORK

The MiniPC mBOX Q610s has built-in two Intel i211AT network adapters that can work in a fast Gigabit Ethernet network.



MiniPC mBOX Q6-610S MOBILATOR.PL INTEL CELERON



go up do góry menu… menu



APPLICATIONS



Trade and services

Thanks to its small size, the MiniPC can work at home. It will fit virtually everywhere, so you can mount them. It will already work as a device for storing and retrieving information. COM ports hosting the installation of multiple devices in the office and its management. Its durability of the casing is in difficult conditions prevailing in such frames. Robust construction ensures long-lasting work, even in terms of safety and protection against dirt.

More pictures of the device available in the "Gallery" tab.

go up do góry menu… menu



VERSIONS



MiniPC mBOX Q6-610S MOBILATOR.PL INTEL CELERON



The  mini-computer mBOX-Q610s is offered in several versions to suit different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a
configuration that is currently unavailable on the customer's request

. [tab_wersja_id_107]


Others: Color White
Chipset: Intel B150
CPU Support: Intel Celeron
Installed CPU: Intel Celeron G3900 (2x 2.8GHz) 2MB SmartCache
Memory Support: DDR4 max.32GB
Installed Memory: 32 GB DDR4 2133 MHz
Graphic Card: Intel HD Graphics 510
Storage (HDD) Support: SSD/HDD
Installed Storage (HDD): 256 GB SSD
CD/DVD Drive: -----
LAN: Intel I211-AT 10/100/1000M
Wireless LAN card: None
Bluetooth: -----
3G: -----
4G LTE:
TV Tuner: -----
Watch Dog Timer: Yes
Front Panel (ports): 2x USB 3.0
1x Mic
1x Audio
Power button
Rear Panel (ports): Power connector DC12V
2x Intel i211 RJ45 Gigabit LAN
1 x DC Jack
1 x USB 3.0
5 x USB 2.0
4x RS-232, COM1/COM2 Supports 5V/12V
Power: 12V3A/5A
Supported OS: Microsoft Windows: 7/8/8.1/10, Linux
Installed OS: -----
Dimensions: 165 x 165 x 57mm
Weight: 2000g
Expansion: -----
Fanless: None
Humidity: 10% ~ 90%
Temp: 0°C — 50°C
IP Norm: -----
Storage temperature: -20°C — 80°C


CURRENT PRICE
2701.90 € Net
3323.34€ Gross
