Medical industrial Data Collector MobiPad Cruise 2D Android 7.1 v.4.1 - 2Y
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/medyczny-przemyslowy-kolektor-danych-mobipad-cruiser-2d-android-7.1-v.4.1--2-lata-gwarancji-produkt-90912.html

Medical industrial Data Collector MobiPad Cruise 2D Android 7.1 v.4.1 - 2Y

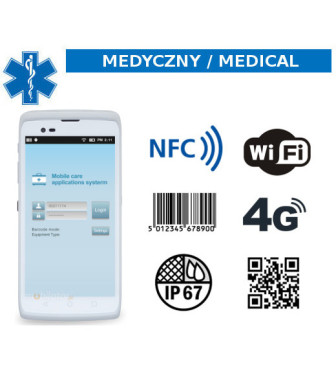

Medical industrial data collector MobiPad cruiser wifi


MobiPad Cruiser has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP67 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.



Description

MobiPad cruiser 2d nfc wifi medical MobiPad Cruise

 Processor  Cortex A53 (1.5 GHz Quad Core + 1.2 GHz Quad Core)
 GPU  Qualcomm Adreno 304
 Display  5.2" |  IPS | Capacitive | 1920x1080 Full HD
 RAM  4GB
 ROM  64GB
 Connectors  USB Type C | Micro SD | Micro SIM | 3.5mm Jack
 GPS  GLONASS,  GPS
 Audio  AudioJack | Speaker | Microphone
 Camera  13Mpx Rear, 5Mpx Front
 Battery  3.8V/4400mAH Li-Ion
 Keyboard  On-Screen + Function keys
 Environment  Android 7.1
 Modules
 3G/4G | GPS | Wi-Fi | BT 4.0 | NFC
 Dimensions and weight
 152 x 75.9 x 12.8mm - 220g
 Resistance  IP67
 Readers  2D Honeywell (CMOS)
 Sensors  G-sensor | Gyroscope | E-compass | Barometer

Cruiser is offered with the latest Quad Core Cortex A53 to ensure the highest performance, low power consumption and long battery life. The data collector works with Android 7.1 operating system to meet the growing requirements in industrial applications.

MobiPad cruiser 2D Laser 2d MobiPad cruiser wifi  medical



Application in medical field

In modern medical centers employee should have comfortable and handy data collectors to their daily work. Device should be durable and easy to use. Thanks case with IP67 rate its resistant also for dust and water. Special antibacterial shell effectively prevents growth of bacteria. Additional device's case might be disinfected in any time by using alcohol.

do góry… do góry menu… menu



The collection and processing of data

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

Near Field Communication (NFC)


It's a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less.

MobiPad cruiser 2D 2d MobiPad Cruiser wifi nfc medical data collector



NFC
 Frequency 13.56 MHz
 Reading distance up to 6cm (ISO 15693), up to 4cm (ISO14443A/B)
 Supported card standard
Mifare
 Supported standards

ISO14443

ISO15693

ISO14443A/B

go top... do góry menu… menu

Resitance

Applicable standards

Storage -40°C -- +60°C
Operating -20°C -- +50°C
Dust IP6x (dust)
Water IPx7 (water)
Drop  1.5m
Humidity 5% - 95% non-condensing

go top... do góry menu… menu

MobiPad cruiser 2D 2d MobiPad  wifi nfc medical mobipad cruise

IP67 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from solid objects greater than 50mm in diameter
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection from water projected from a nozzle


7

Protection against immersion


8


Protection against complete, continuous submersion in water

go top... do góry menu… menu



Modules and Wireless Networks

MobiPad cruiser 2d MobiPad MP cruiser wifi gps medical

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 4G module used in MobiPad MP-Q62 adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

WiFi  802.11(b/g/n) 2.4GHz
GPS  Yes
Bluetooth  Bluetooth  V4.0
4G

CMCC 5M:LTE 1/3/7/20/38/39/40/41

WCDMA 1/2/5/8

TD-SCDMA 34/39

GSM 2/3/5/8

  The ability to make voice calls

go top... do góry menu… menu

Minimalism

mobipad  2d laser MobiPad cruiser medical data collector mobipad Cruise

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have MobiPad Cruiser. The device weighs just 220g and its dimensions  (152 x 75.9 x 12.8mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that Cruiser is in a group of devices which enjoy great popularity in the European market in the industrial segment.

 Dimensions 152 × 75.9 × 12.8mm
 Weight 220g



go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

product does not have any accesories in set...

[tab_wersja_id_126]


Durability: IP67
Humidity: 5% - 95% (no condensation)
Waterproof: IP67
Temperature: Operating temperature: -20°C -- +50°C
Shock: -----
Vibration: -----
Drop: 1.5 meters
Sand and dust: IP67
1D barcode scanner (reader): -----
2D barcode scanner (reader): 2D (CMOS) Honeywell N6603
RFID scanner (reader): NFC 13.56MHz
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: Yes
VESA standard – holders and mounts support: -----
COM port: -----
Dispaly: 5.2" | IPS | Capacitive
1920x1080 Full HD
Brightness: -----
Contrast: -----
Touch screen: Yes
Graphics card: -----
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: -----
Processor: Cortex A53 Eight Core - 1.5 GHz Quad Core + 1.2 GHz Quad Core
Chipset: -----
BIOS: -----
Memory: 4GB
Hard Drive: -----
Flash Memory: 64GB
Battery: 3.8V 4400mAh Li-Ion
Working time on battery: >8 hours
HotSwap battery: Nie
Fast battery replacement ability: Nie
Size: 152 × 75.9 × 12.8mm - 227g
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Android 7.1
LAN: No
WLAN: 802.11 a/b/g/n/ac
Bluetooth: Bluetooth 4.0
WAN: 3G/4G
GSM : Quad Band(850/900/1800/1900M hz)
TD - SCDMA : Band34,Band39
WCDMA : Band1 , Band2 , Band5 , Band8
CDMA 1x /EVDO : BC0
TDD - LTE : Band38 , Band39 , Band40 , Band41
FDD - LTE : Band1 , Band3 , Band7
GPS: Built-in
Flash Card Reader: microSD (max. 32GB)
CD/DVD: -----
Camera: Rear: 13Mpx wuth Flash, Front: 5Mpx
Audio: AudioJack : Built-in Speaker : Microphone
Seciurity: -----
In/Out: 1 x USB Type C, 1 x AudioJack , 1 x Micro SD, 2 x SIM
Keyboard: On-screen + Function Keys
Additional Navigation Devices : -----
Color: -----
Optional accessories: -----
Other: Antibacterial shell


CURRENT PRICE
2699.09 € Net
3319.88€ Gross
