Mini PC Manli M-T4H40 v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/mini-pc-manli-m-t4h40-v.2--produkt-86656.html

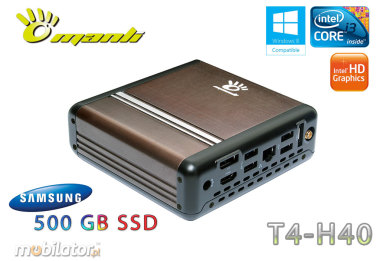

Mini PC Manli M-T4H40 v.2

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40

Company Manli is a new distribution Mobilator s. It has achieved an excellent reputation as a manufacturer of computers MiniPC. Due to the high position of the products in the high-tech won the trust of many customers around the world.

manli-logo T2 T4 T6 Mini-PC minipc



MiniPC for the most demanding users



Manli T4 Mini-PC is designed for users who require the greatest amount of power and ease of use in such a small device. Aluminium elements and modern desing complete with incredible performance and optimized power consumption puts Manli M-T4H40 in first place in the ranking of the world's MiniPC.



MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40


Mini PC Manli M-T4H40 - v.2
Processor Intel® Core™ i3-4010U ( 2x1.70GHz )
RAM 4GB Kingston SODIMM DDR3 1600MHz CL11 PC3-12800
Disk 128GB SSD SanDisk 2.5'' SATA3 (Read/Write:490/350 MB/sec.)
Graphics Intel® HD 4000
Chipset HM77
Communication WiFi 802.11n 150Mbps + Bluetooth 3.0
Dimensions 126.7 x 126.7 x 45mm
Other MCE Remote Control

The detailed specification of the configuration available in the "Technical data"

go topdo g鏎y menu… menu

Processor Intel® Core™ i3-4010U

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40

New generation of Intel® Core™ i3-4010U

Manli Mini-PC is supported with Intel ® Core ™ i3-4010U, making it extremely energy efficient (17W), while retaining the high performance, as evidenced in Windows 8 that is dedicated for this device. Intel ® Core ™ i3-4010U is a dual-core processor with a frequency (2x1.7GHz) for small netbooks and MiniPC. It offers powerful integrated graphics Intel ® HD 4000 and a single channel DDR3-1333MHz memory.


Processors available in a series of MiniPC MANIL T4


Model R/W Frequency

Max. Frequency

L2 cache L3 cache
Max. GPU
TDP
AMD E2-1800 Dual Core
2/2
1.7GHz
1.7GHz 1MB
-
680 MHz
18 Wat
Intel® Atom D2550 2/4
1.86 GHz 1.86 GHz  1 MB -
640 MHz
10 Wat
Intel® Core™ i3-4010U 2/4 1.7 GHz 1.7 GHz 512KB 3 MB
1.1 GHz
17 Wat
Intel® Core™ i5-3337U 2/4 1.8 GHz 2.7 GHz 512 KB
3 MB
1.1 GHz
17 Wat
Intel® Core™ i7-3537U 2/4 2.0 GHz 3.1 GHz 512 KB
4 MB
1.2 GHz
17 Wat

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40

New series of Intel® HD 4000

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40

New generation Intel® HD 4000

Nettop Manli M-T4H40 equipped with powerful integrated graphics Intel ® HD 4000. Intel ® graphics solution adds a new generation of computer power, offering extremely high performance graphics. Go beyond simple Internet browsing by offering the rich multimedia capabilities, the clever arrangement of the Intel ® HD. Watch the video in full 1080p on sites like YouTube HD, and played with the stick. Play the most popular PC games and enjoy the acceleration popular applications in the field of video and image processing, providing higher performance when editing and converting videos, face tracking during the pictures and much more.

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40

do góry do g鏎ymenu… menu

Description


Flexible storage

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40Flash SSD (Solid State Disc). They have no moving parts and only the same electronics. SSD two times faster reads and writes data over standard drives 2.5 ". Additionally, consumes little energy, and in general does not heat up and reduces the CPU load up to 10%..

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40



Manli M-T4H40 can support a total of one HDD or SSD 2.5 ". Nettop Manli T4 is an alternative to installing two mSATA drive on which you can install and frequently used applications. Such a solution leads to a super-fast action of our little computer.

The speed of operations carried out applications installed on the mSATA drives can increase up to 30%.

Increased security and faster work in RAID

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40 RAID 0 allows you to hook up physical drives into a single logical which allows for better use of space. With RAID 1, your data will be safer because a disk is an exact copy of the other. If one drive fails all data is still available on the other. RAID 1 is almost twice as fast as reading data from the disk.

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40



Very small size

You do not have to worry about where you bet your old desktop computer in the house or office. The Manli M-T4H40 problem disappears forever, because it has a very small size (126.7 x 126.7 x 45mm) which allows you to set him everywhere. With exquisite workmanship and energy efficient it is in the forefront of devices in this segment and is hit on the Polish market. Additionally MiniPC housing is made of an elegant brushed aluminum, which is very small nettop ii has a modern design.

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40



MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40
With the optional mounting brackets and adapters, there are many mounting options such as  LCD / LED, in stores, on the desktop and in the car, etc





Application

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40

Du篡 zapas pami璚i

Performance of your computer will never again let you down by technology, dual-channel RAM. Sharing channels reduces data latency and increase memory bandwidth to satisfy most storage-hungry applications.MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40

With up to 8GB of memory, Windows 8 always cope with the number of assigned tasks in parallelMiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40 .


Now is the time to effectively replace the DVD player, Manli T4 ideally suited to the role player for movies, music and photos with him on your TV to display whatever you want.

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40

About 70% less energy than a standard desktop computer

Manli T4 processor with a powerful Intel ® Core ™ i3-4010U provides up to 70% more efficiency compared to a traditional desktop computer.

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40

Connectors and Ports



Realtek 10/100/1000 Gigabit Ethernet or WiFi adapter (optional) to connect the device to the network. The computer is equipped with: Card reader (SD / SDHC / SDXC / MicroSD / MS / MSPro / XD / MMC), LAN connection, four ports MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40USB (2xUSB 2.0 / 2xUSB 3.0) , one HDMI, one DisplayPort and eSATA port, two audio inputs, and optional WiFi, Bluetooth. MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40

In addition to the HDMI Nettop Manli T4 supports DisplayPort, which offers better color depth, speed of data transfer and support for high-resolution audio formats. All with a single cable.



Front

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40

1. Power 2. Audio (speaker) / SPDIF
3. Mic-IN
4. LED the-power on
5. DISK LED
6. Memory Card Reader

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40



Back

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40

1. The charging DC-IN 2. Display Port 3. mSATA
4. Antena WiFi ,Bluetooth 5. Output HDMI 6. 2 x USB 3.0
7. LAN 8. 2 x USB 2.0

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40

Accessories

MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40


- AC Adapter

- VESA Mount

- Driver CD

- User Manual

- MCE Remote Control

- Extrenal USB IR receiver



MiniPC Nettop Mini-PC Ma造 komputer Manli T4  M-T4H40

more photos in "Gallery"...

specification of this version is available in the "Specifications"...


Others: With Remote control
Chipset: HM77
FSB: 1600MHz
CPU Support: Intel® Core™ i3-3227U Processor (3M Cache, 1.90 GHz)
Installed CPU: Intel® Core™ i3-4010U Processor (2 x 1.70 GHz)
Memory Support: DDR3 SO-DIMM x 1 1600MHz (to 8GB)
Installed Memory: 4GB Kingston SODIMM DDR3 1600MHz CL11 PC3-12800
Graphic Card: Intel® HD4000
Storage (HDD) Support: 2.5" SATA II/III HDD to 1TB / SSD to 500GB
Installed Storage (HDD): 128GB SSD SanDisk 2.5' SATA3 (Read/Write: 490/350 MB/sec.)
CD/DVD Drive: None
LAN: 10/100/1000Mbps
Wireless LAN card: WiFi 802.11n 150Mbps + Bluetooth 3.0
TV Tuner: None
Front Panel (ports): Audio (Line-Out/SPDIF, Microphone) / Card Reader 7-in-1 (SD/SDHC/SDXC/MS/MSPro/XD/MMC)
Rear Panel (ports): 2x USB 2.0, 2x USB 3.0, 1x RJ-45 , 1x HDMI, 1x eSATA, 1x Display port, 1x DC-in Jack
Power: AC/100-240V to DC/19V/3.42A/65W
Supported OS: Windows 8
Installed OS: No (optional Windows 8)
Dimensions: 126.7x126.7x45mm
Expansion: None


CURRENT PRICE
1867.50 € Net
2297.03€ Gross
