Description
| • |
Durable |
| • |
Comfortable |
| • |
Compatible with MobiPAD A311-A7, A311-R2, A311-T |
| • |
Ports: 1x RS232, 1x RJ-45, 2x USB |
| • |
Arm length: 150mm |

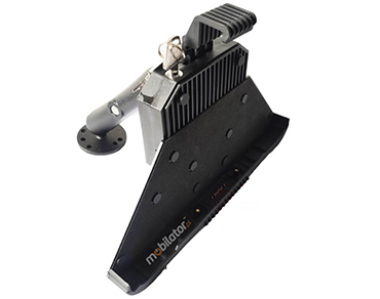

The dedicated MobiPad car holder allows for comfortable and safe use of the industrial tablet in such vehicles as: passenger car, off-road car, fire engine, bus, tram, train, trucks and military combat vehicle.
It is possible to use four different inputs/outputs in this holder: 1x RS232, 1x RJ-45 and USB which are working after plugging DC.
Basic connectors:
- USB 2.0
- Power connector (DC 5.5)
- Power connector (green) - can be powered by 6-36V
*Additional connectors:
- RJ45
- RS232+USB
*A separate "Aviation Connector" is required for additional connectors (last photo in the gallery).
The individual connectors can be used as follows:
1. RS232:
- for communication, management and control of external devices
- for connecting DTE devices managing the communication process (microprocessors or another computer)
2. RJ-45 - standard connector for data transmission from the Internet and LAN networks
3. USB - a versatile port with which today you can connect almost any device (keyboard, mouse, trackball, printers). These ports are for data transfer, but do not support battery charging in smartphones and other external devices.
Fixed screw holes for mounting in two systems:
1. 7*M4, RAM standard
2. 4*M4, VESA standard 75*75
The price for the Car Holder is only valid when purchased with a device (i.e. a tablet)
|
