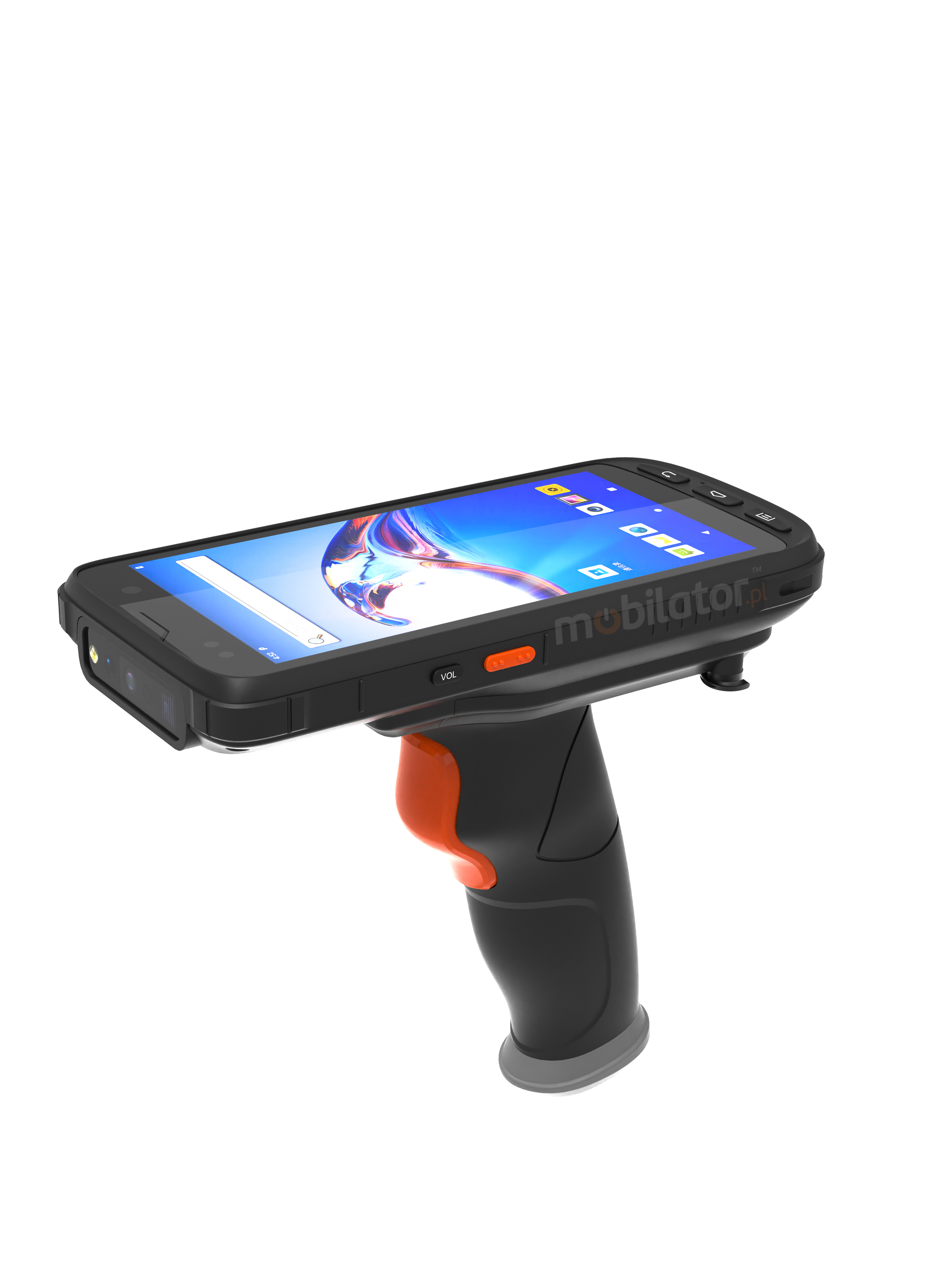

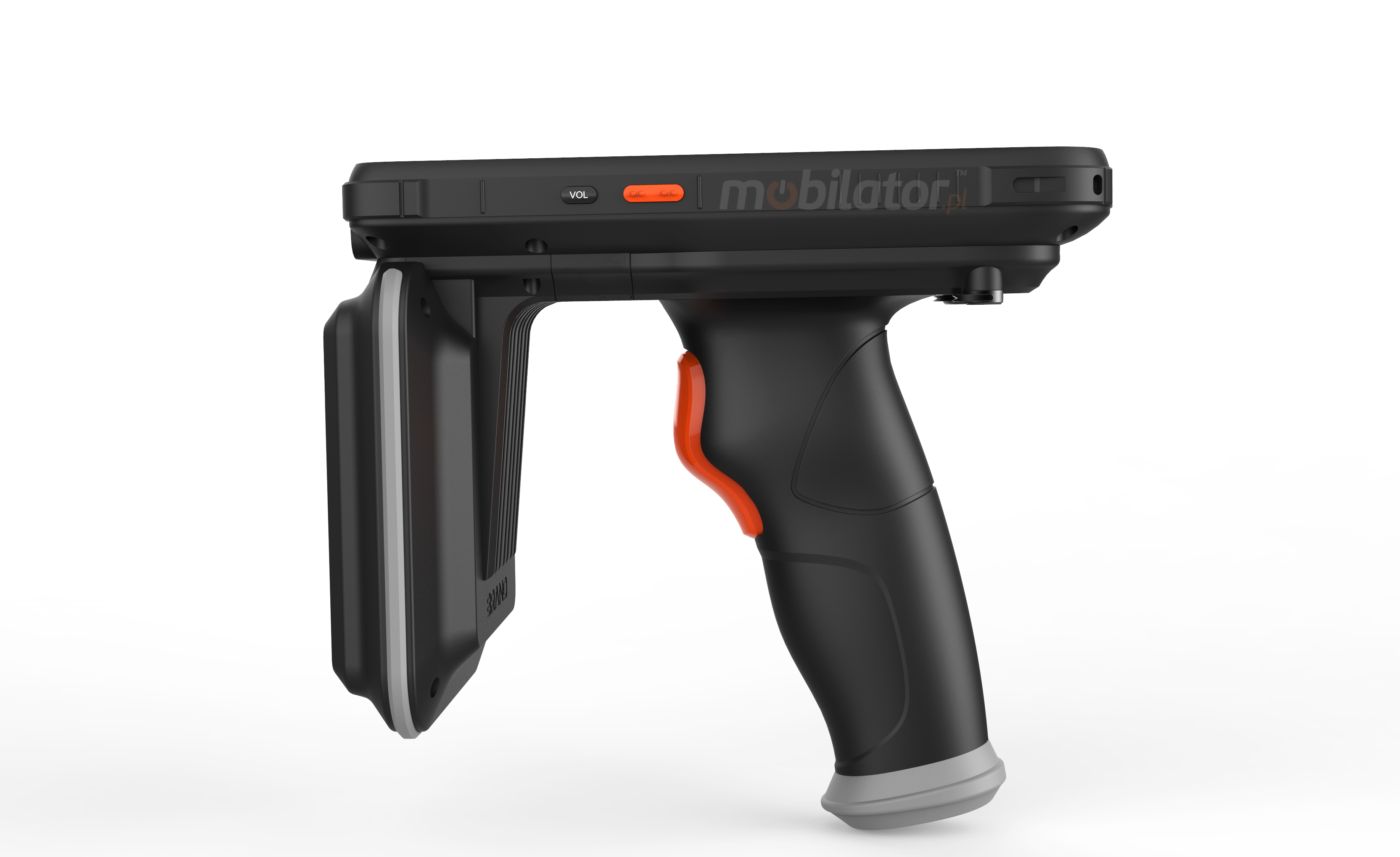

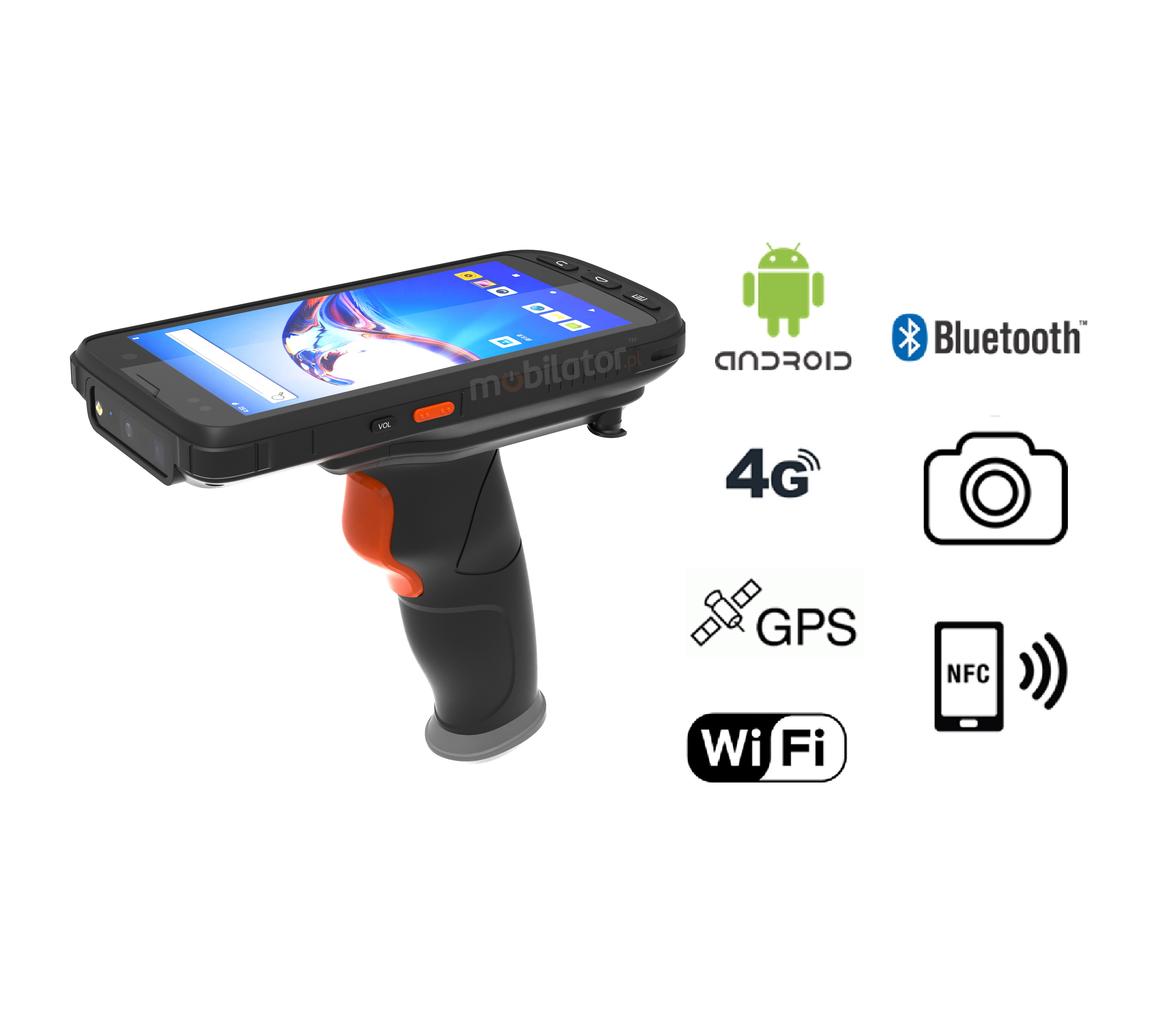

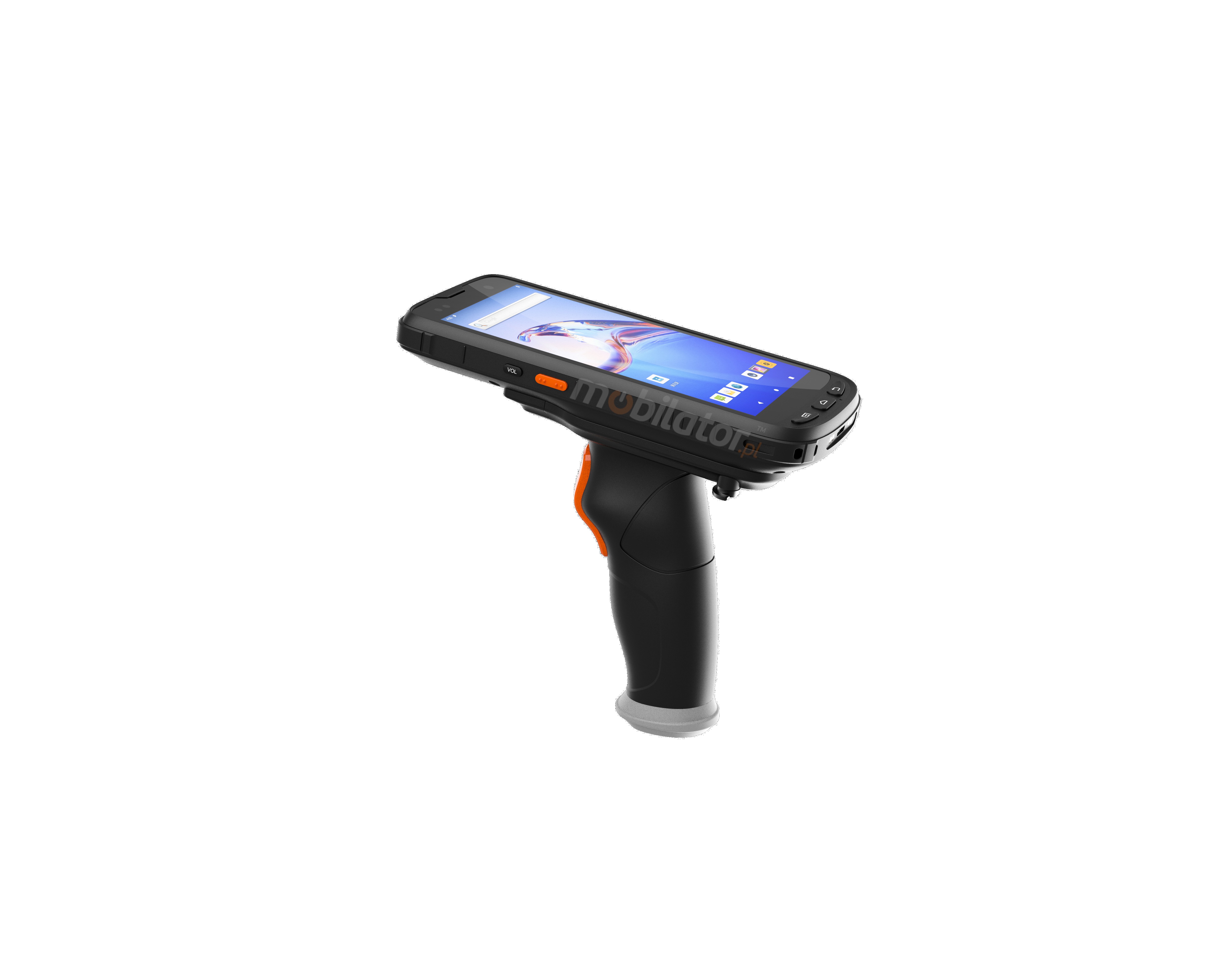

MobiPad XX-B6 v.1 - Industrial collector with a pistol grip, with resistance standard IP65 with 4G, Wifi, NFC

MobiPad XX-B6 v.1 - Industrial collector with a pistol grip, with resistance standard IP65 with 4G, Wifi, NFC

Data update: 2022-12-05

guarantee 1 year

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
14 - 20 workdays
CURRENT PRICE
463.52
Net
570.13
Gross



Compare all versions

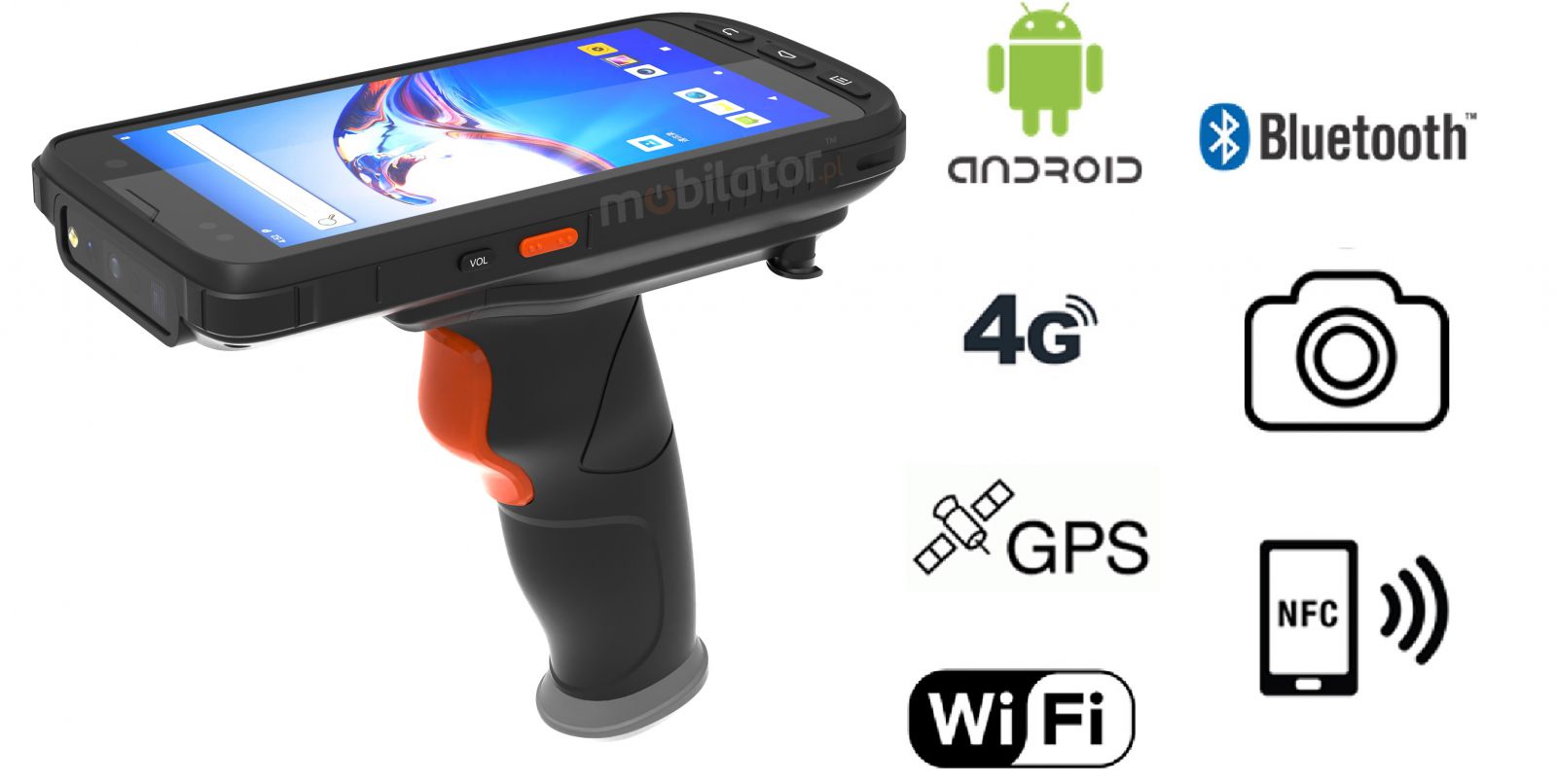

MobiPad XX-B6 v.1 - Industrial collector with a pistol grip, with resistance standard IP65 with 4G, Wifi, NFC

MobiPad XX-B6 is a modern, waterproof industrial data collector designed for extreme applications. It has a specially designed, reinforced construction that meets the requirements of IP65.



Specification



MobiPad XX-B6
Processor ARM Cortex-A73  Octa-core 2.0GHz
Operating system Android 10.0
RAM 2GB | 4GB* (optional)
ROM 16GB | 64GB* (optional)
Display 5.5" TFT-LCD (HD720 x 1280)
Touch screen Capacitive
Battery 9000 mAh
Camera 13MP autofocus + Flash
Protection IP65
Communication 4G | Bluetooth 4.2| Wi-Fi | GPS | NFC
Connectors

USB C | PSAM

Memory card Micro SD (max. 256GB)
SIM card 1x SIM
2D Scanner*  Zebra SE4710/Mindeo ME5600*
RFID reader* ThingMagic M6E Micro (UHF 9-12m)*/
Impinj R2000 (UHF 8-17m)*
NFC Yes

* Optional equipment, available on specific versions only.




Dustproof industrial data collector was equipped with high performance, energy-efficient ARM Cortex-A73 processor. Inside, there are eight cores that allow for more efficient processing of multiple tasks simultaneously. Shared caching, which uses a multi-level hierarchy, is dynamically allocated to each processor core according to the load. This reduces the average access time to main memory.



Ergonomic design



MobiPad XX-B6 v.1 - Industrial collector with a pistol grip, with resistance standard IP65 with 4G, Wifi, NFC



Industrial Data Terminal MobiPad XX-B6 is designed for resistance and convenience. The sleek and rugged 17mm thick design and stylish case will make the collector very well suited for industrial use and more. The unique size has been carefully thought out to make the device more comfortable and ergonomic. The non-slip casing makes it safe and secure to hold it in your hand.


Dimensions 166 mm x 79 mm x 32 mm (not including the pistol grip and the shield)
Net weight 600g



Capacitive screen



capacitive touch screen


With the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our  collector with a few fingers at once.

up… do góry   menu… menu

REsistance



MobiPad XX-B6 v.1 - Industrial collector with a pistol grip, with resistance standard IP65 with 4G, Wifi, NFC


IP65 Protection


The IP standard defines the degree of protection provided by the enclosure of an electrical device against such factors as: access to dangerous parts inside the enclosure, penetration of foreign matter, splashing or immersion.



IP6X No ingress of dust, complete protection against contact. A vacuum must be applied. Test duration of up to 8 hours based on air flow.
IPX5 Protection against water jets (12.5 l / min) poured on the housing from any side.




1.5m drop resistance


Specially designed construction gives the machine a chance of accidental falls from up to 1.5 meters in operating mode, even on hard surfaces. In addition, the collector screen is protected by specially tempered glass Gorilla Glass.



Extreme temperatures


MobiPad XX-B6 is suitable for continuous operation in both low and high temperatures in the range of -20°C to 50°C. When the device is off, it can handle temperatures ranging from -20°C to 70°C. In addition, the rugged industrial collector performs well in rooms with increased humidity, ensuring proper operation even with 95% relative humidity.



Working Temp. -20°C from 50°C
Storage Temp. -20°C to 70°C
Humidity 0 ~ 95%



up… do góry   menu… menu

data collecting



Barcode scanner

MobiPad XX-B6 v.1 - Industrial collector with a pistol grip, with resistance standard IP65 with 4G, Wifi, NFC

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.



2D Scanner*

Zebra SE4710/Mindeo ME5600*

* Optional equipment, available on specific versions only.

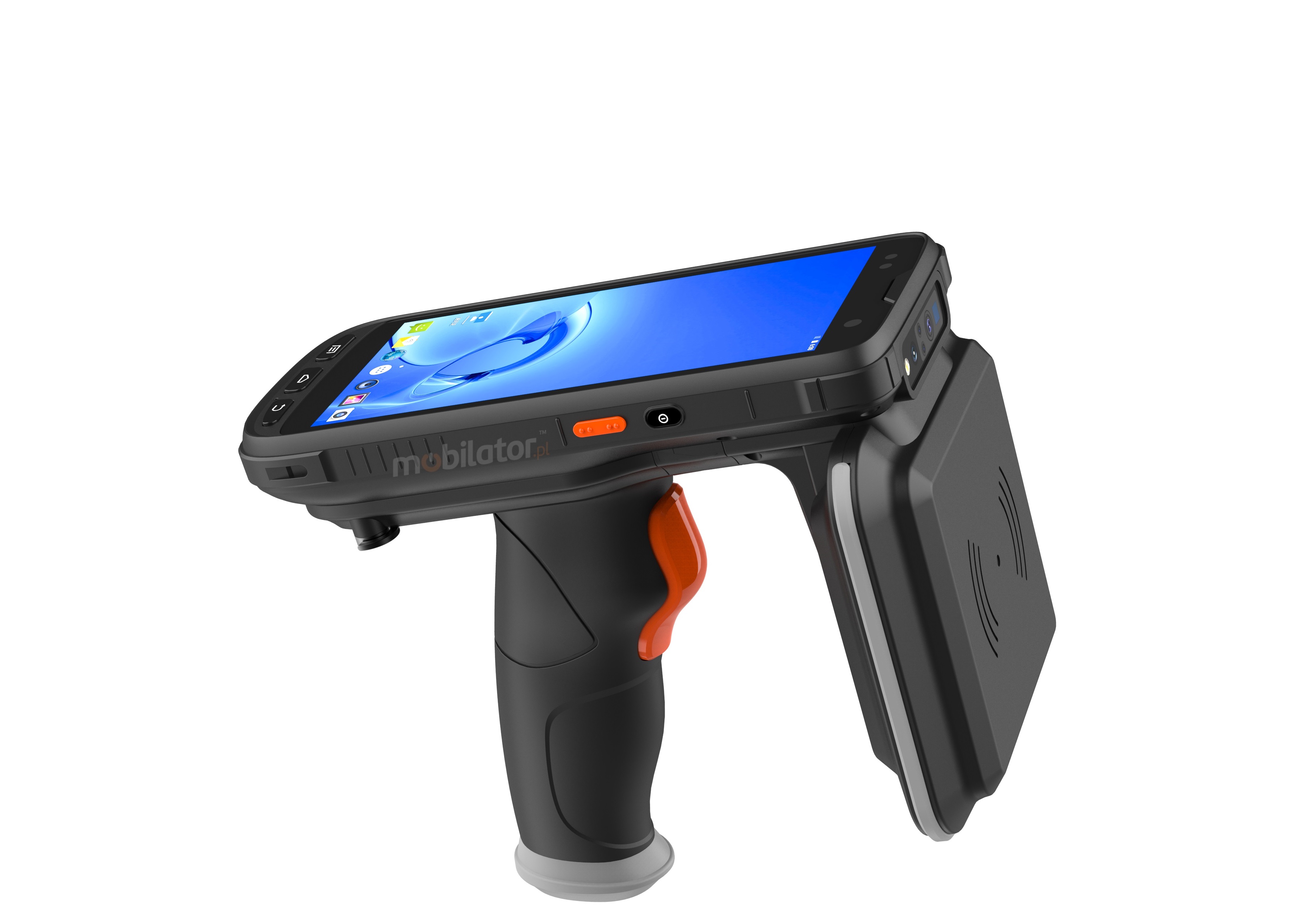

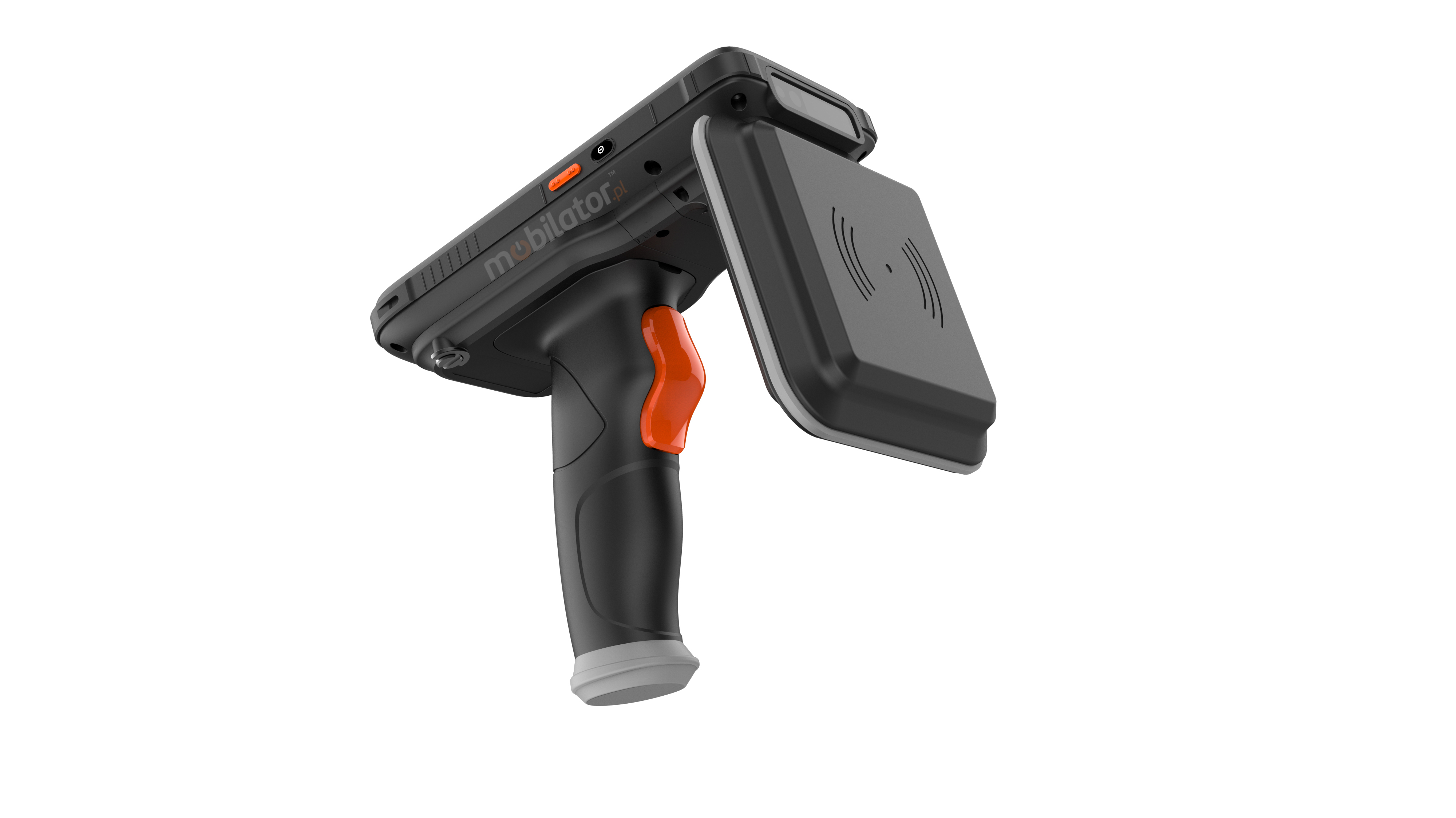

Radio Frequency Identification (RFID)*



RFID is a technology used to identify objects and control the flow of products. Reading information from special tags that are attached to objects (but not only because RFID is also used to mark animals and even people) is done by radio. Depending on the type of tag, the amount of information it can store changes, as well as the maximum distance from which data can be read. RFID tags are an alternative to barcodes - more convenient and more efficient. Scanners operate at 865-868MHz.



There are two readers to choose from ThingMagic M6E Micro and Impinj R2000.

* Optional equipment, available on specific versions only.



MobiPad XX-B6 v.1 - Industrial collector with a pistol grip, with resistance standard IP65 with 4G, Wifi, NFC

up… do góry   menu… menu

wireless communication



 4G Module


4G technology is based on a radio network with fast transmission and the rare occurrence of downtime or transfer errors. The main distinguishing feature of the 4G from its predecessor (3G) is the speed of transfer between devices. The fourth generation network offers 100 Mb / s of mobile internet speed and 25 Mb / s of packet transfer. Technology enables users, including: extremely fast radio networks, Internet access, personalized telephony, and access to modern media and games services.


4G Module

FDD-LTE: B1/B2/B3/B4/B7 B2/B4/B7/B17/B20

TDD-LTE: B38/B39/B40/B41

3G Module

WCDMA: 850/1900/2100MHz

GSM/GPS/Edge: 850/900/1800/1900MHz



GPS Navigation


Mobile terminal MobiPad XX-B6 is equipped with a professional A-GPS module with combining low power consumption with high accuracy. Navigation is fast and smooth, allowing you to easily and easily reach any destination.



Bluetooth 4.2


Bluetooth 4.2 enables wireless short-range communication between various electronic devices, such as the keyboard, computer, laptop, palmtop, mobile phone and many others. In the fourth version of this standard, energy consumption was reduced considerably, at the expense of lower transfer costs, and real operating coverage increased.



 Wi-Fi network


Dual-band Wi-Fi provides fast network access wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a work or residence router and a wireless network that can be used at no extra cost. The shock-resistant industrial collector is equipped with the latest 802.11n technology, which allows file transfer speeds up to 300 Mb/s.


Standards 802.11(a/b/g/n/ac)
Frequencies 2.4GHz + 5GHz (Dual-Band)

MobiPad XX-B6 v.1 - Industrial collector with a pistol grip, with resistance standard IP65 with 4G, Wifi, NFC

up… do góry   menu… menu

Application


Trade and Services


Thanks to their size and light weight, smartphone data collectors are a useful tool for sales representatives. Today's applications running under the collector system enable even entering the data collector's contractor database, which allows us to later search for it quickly by name or NIP number. We can do the same with our commodity base, which can work in parallel with the database of contractors. Additional use of collectors in the trade, such as sending orders or invoices directly to the company through the GSM network or Wi-Fi.



Industry and Construction



Industrial data collectors are characterized by high resistance to adverse working conditions. Tightness, dust and water resistance of enclosures, certified by IP (dust and water resistance standards).


The waterproof collector-inventory with a 2D code scanner works well in difficult conditions


Warehouse



An industrial data sheet is the ideal solution for quick stocktaking. In addition, depending on the software used, it streamlines the process of entering and delivering goods into the warehouse, enables price control and dispensing, helps to collect and order orders, and identifies customers and servicing the rental. The advantages of using data collectors are undoubtedly: time savings, customer satisfaction thanks to the correct price and speed of operation.


The waterproof collector-inventory with a 2D barcode scanner can be used in warehouses

up… do góry   menu… menu

Accessories and available versions

The industry-leading MobiPad XX-B6 data collector is available in several versions to suit different needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters given in the table below. In addition, on request, you can create a configuration not currently available in the offer.

Mobipad XX-B6 can optionally be equipped with a docking station and additional battery.





 v.1v.2v.3v.4v.5v.6v.7v.8v.9
4GB RAM + 64GB ROM
Mindeo ME5600
Zebra SE4170
Impinj R2000 UHF (8-18m)
ThingMagic M6E Micro UHF (9-18m)
 v.10v.11v.12v.13v.14v.15v.16v.17v.18
4GB RAM + 64GB ROM
Mindeo ME5600
Zebra SE4170
Impinj R2000 UHF (8-18m)
ThingMagic M6E Micro UHF (9-18m)



Compare all versions
