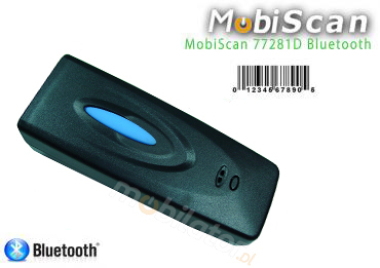

MobiScan 77281D - mini barcode reader 1D Laser - Bluetooth
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/mobiscan-77281d--mini-czytnik-kodow-kreskowych-1d-laser--bluetooth--produkt-90634.html

MobiScan 77281D - mini barcode reader 1D Laser - Bluetooth

MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

The company's  MobiScan  new distribution of Mobilator. Company achieved an excellent reputation as a manufacturer of bar code scanners. Due to the high position of the products in the high-tech won the trust of many customers around the world.

MobiScan



The bar code scanner is a device that allows read with barcodes from boxes or devices. Business accessories MobiScan porduktu guarantee high quality and serve for many years without any loss of quality.

MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

MobiScan 77281D - mini barcode reader 1D Laser - Bluetooth
Barcode scanner
1D Laser
Working time
10 h(continuously working)
Support system Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Windows 10, Linux, MAC
Range 20 - 40 m
Communication Bluetooth 3.0
Dimensions 99 x 46 x 21.3 mm
Weight
150g
Other Adapter Bluetooth 4.0

The detailed specification of the configuration available in the "Technical data"

go topdo góry menu… menu

Description


MobiScan 77281D is small size and powerful new generation barcode scanner.It design for picking and sorting application ,enable your operator to free hand and improve operational efficiency in your warehouse,distribution center and retail store. You never need setting an item down to check paper work order or picking up handheld scanner. Operator even no need to put heavy pakage to the desktop for scan ,it will save more time and physical strength. Compare with common wired handheld scanner, MobiScan 77281D wearable scanner can increase 15% -30% productivity !

MobiScan 77281D intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers and logistics, quality controllers and inspectors of manufacturing processes and all those who need to work cataloging and storing the information read from the barcode .


1D Barcode Scanner - MobiScan 77281D through Bluetooth module (which provides reliable communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).

MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI



MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINIScanner enable operator to move package ,products and materials,helping to increase more efficiency, It is very comfortable to wear it in whole working day ,with high performance laser scan engine ,even poor printed barcode can be read.The rugged rubber shell make daily use reliable even in the roughest environments.

MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINIMobiScan 77281D  is equipped with a Li-Ion battery with sufficient capacity 1000mAh, which allows the scanner to work about ten hours in scan mode (continuously working).


go topdo góry menu… menu

Communication



The present device has a built-1D barcode reader that connecting via Bluetooth with your device. It provides information such as the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.

MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI


Designed to be tailored to different applications, wireless (Bluetooth) barcode scanner can be compatible with Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8 and Linux. Users can send data directly to a PC or in real time to mobile devices.



MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI



Portable (radio and bluetooth-arid) barcode readers using laser technology are comfortable and easy to use, with wide possibilities to set parameters. Enable automatic operation and manual. Read codes with different contrasts with a distance of several centimeters. The use of wireless communication (Bluetooth or radio) offer a range of up to 20m from the computer.

The device uses the HID interface

To scanner devices need to use the right software to a serial port (RS-232) collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed ​​USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.
If we have the right scanner (USB HID) - when barcode in fact our  introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswać text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.

Supported Bluetooth profiles SPP system.

SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment).

Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .



MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI




Application



Compliance standards and tests performed

 Work 0°  do 50°C
Humidity 20% do 85% (No condensation)
 Dust IP5x (dust)
 Water IPx4 (Water splashes)
 Drop Multiple Drop 5.9ft./1.8m

go top… do góry menu… menu

MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

Resistance IP54

Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.

do góry… do góry menu… menu

The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids
No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8

Protection against complete, continuous submersion in water

do góry… do góry menu… menu

MobiScan 77281D - mini barcode scanner 1D Laser - which the manufacturer recommends widely used in situations where it is necessary to rapidly identify the goods in commerce, logistics, transport, shipping, industrial, financial and public sectors.

Accessories

The MobiScan 77281D comes standard with a charger, micro USB cable and Bluetooth 4.0 adapter.

MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

Application

MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI



MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI
Pharmacy

It allows you to quickly identify and enter prescriptions into the database. With a small and lightweight design is easy to carry around in your pocket thus increases the efficiency of the orders received.

Trade

The device used to quickly read bar codes. Certainly can be applied to any kind of trade.

MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI
MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

Magazine

Mini barcode reader allows you to quickly update the inventory with the help of Bluetooth wireless data transfer.

Logistics and transport

Scanner certainly will also use all kinds of transport as a barcode reader to help you quickly identify the goods.

MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI



Specifications



Barcode readers allow you to in the bar code read and send to your database. MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINIWe offer high quality device for reading bar codes that work flawlessly even in the harshest industrial environments.

After scanning the coded data can be transferred to a computer or a portable database. Such a rapid and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes.
MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

The bar code scanner can be connected to almost any device of computer - via USB.



MobiScan 77281D - mini barcode reader 1D Laser - Bluetooth
Mechanical

Height: 23 mm

Width: 40 mm

Lenght: 102mm

Weight: 150g

 Electrical
DC: 3.7V - 120mA - DC
Scan Performance

Sensor Type: Laser Diod 650nm

Scan Rate: 120 times

Scan Angle: 45, 60, 30(Skew,Pitch,Roll)

Contrast: >20%

Decode Speed: 120 times per second

Baterry Power

Internal Baterry:

- Li-ion 1000 mAh,

- 10 h(continuously working)

Barcode Type
 2of 5 Industrial,2 of 5
Interleaved,2 of 5 Matrix,
Codabar,Code - 11,Code - 32,
Code - 39,Code - 39 Extended
(full ASCII),Code - 93,
Code - 128 (A, B, C),EAN-8,EAN-13,
EAN -128 / UCC-128,ISBT - 128,
Matrix 25,MSI,Post - China
(4-State Postal Code),
UPC - A,UPC - E
Communication

Bluetooth 3.0 HID, SPP,

With 20 -40 m distance

MicroUSB

Scan Range
(BASED ON CODE 39)
3.13mil:42mm-58mm
3.9mil:39mm-68mm
10mil:22mm-175mm
20mil:45mm-247mm
30mil:85mm-369mm
35mil:140mm-447mm
Accessories

User manual, hand holder, Micro USB cable,, Bluetooth Adapter 4.0

MobiScan 77281D - mini czytnik kodów kreskowych 1D Laser - Bluetooth - mini skaner kodów kreskowych 1D Laser- Pierścionkowy - Bluetooth Skaner 1D Bezprzewodowy Bluetooth 3.0 Poręczny pieścień MobiSCAN  Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

more photos in "Gallery"...

specification of this version is available in the "Specifications"...


Supported Operating Systems: Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Windows 10, Linux, MAC
Internal memory: 512KB
Operation Voltage: 3.7V - 120mA - DC
Reading indicator: 1D Laser
Dimensions: 102 x 40 x 23 mm
Weight: 150g (include battery)
Battery: 100 mAh Li-ion
Housing material: ABS+PC
Scan rate: 120 times/sec
Light source: Laser Diod 650 nm
Resolution: -
Communication distance: 20-40m
Readable codes: 2 of 5 Industrial,2 of 5 Interleaved,2 of 5 Matrix, Codabar,Code - 11,Code - 32, Code - 39,Code - 39 Extended (full ASCII),Code - 93, Code - 128 (A, B, C),EAN-8,EAN-13, EAN -128 / UCC-128,ISBT - 128, Matrix 25,MSI,Post - China (4-State Postal Code), UPC - A,UPC - E
Sensor: Laser Diod 650 nm
Scan Angle: 45⁰, 60⁰, 30⁰(Skew,Pitch,Roll)
Print Contrast Ratio: >20%
Scan range: (BASED ON CODE 39) 3.13mil:42mm-58mm 3.9mil:39mm-68mm 10mil:22mm-175mm 20mil:45mm-247mm 30mil:85mm-369mm 35mil:140mm-447mm
Cable Type: MicroUSB
Battery Life: 10 h(continuously working)
Communication: Bluetooth 4.0 receiver
Bluetooth 3.0 inside scanner
Interface/ Prole: HID/ SPP
Operating Temperature: 0°C ~ 50°C
Storage Temperature: -10°C ~ 50°C
Relative Humidity: 5% ~ 85%, non-condensing
Resistance IP: IP 54
Drop test: Multiple drops 5.9ft. / 1.8m
Barcodes 1D: Barcodes 1D:
2 of 5 Chinese: No
2 of 5 Discrete: No
2 of 5 IATA: No
2 of 5 Industrial: Yes
2 of 5 Interleaved: Yes
2 of 5 Matrix: Yes
2 of 5 Standard: No
BC - 412: No
Bookland EAN: Yes
Codabar: Yes
Codabar - NW7: No
Code - 11: Yes
Code - 11(USD-8): No
Code - 32: Yes
Code - 39: Yes
Code - 39 Extended (full ASCII): Yes
Code - 39 Trioptic : No
Code - 93: Yes
Code - 128 (A, B, C): Yes
EAN-8: Yes
EAN-13: Yes
EAN -128 / UCC-128: Yes
GS1 DataBar: No
Intelligent Mail: No
ISBN: No
ISBT - 128: Yes
ISSN: No
ITF-6: No
ITF-14: No
KIX code: No
Matrix 25: Yes
MSI: Yes
MSI - Plessey: No
Pharmacode - One Track: No
Pharmacode - Two Track: No
Planet: No
Plessey: No
Post - Australian (4-State Postal Code): No
Post - China (4-State Postal Code): Yes
Post - Japanese (4-State Postal Code): No
Post - Singapore (4-State Postal Code): No
PostNET: No
Royal Mail (RM-4SCC): No
Telepen Code: No
UK/Plessey: No
UPC - A: Yes
UPC - E: Yes
UPC - E1: No
Barcodes 2D: Barcodes 2D:
Aztec: No
Composite code: No
DataMatrix: No
MaxiCode: No
Micro PDF 417: No
Micro QR Code : No
PDF 417: No
QR Code : No
RSS: No
TLC-39: No


CURRENT PRICE
407.34 € Net
501.03€ Gross
