Screen

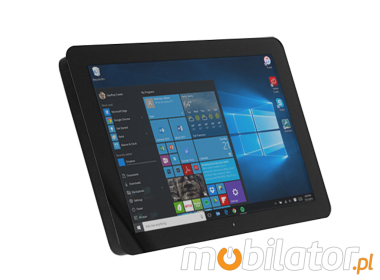

Industial Touch Monitor CCETouch CT10-OPCR has a water-resistant scratch resistant WLED screen with 6H hardness. With 1280x800 resolution and high brightness of 650 cd/m2, screen of capacitive type with high sensitivity to touch, offers the user a clear picture and ease of use.

The LCD monitor backlight LED technology results in realistic color rendering, energy consumption reduced by up to 40% and much lower failure rate compared to traditional LCD monitors with CCFL backlight.

Capacitive screen

Operation of this type of screen is a bit more complex than the resistive screens, but the comfort of their use is much higher. In the corners of the screen capacitive electrodes are placed emitting weak electric field. If you touch the display, the intensity produced before the field changes, and the system will calculate respectively, where the disturbance occurred.

The image on the capacitive screen is clearly visible both indoors and outdoors. Particularly noteworthy here precise identification of the touch system, because this is a very high level, although many here depends on the materials used in the construction of the screen. The downside may be items that responds to a capacitive display as a list is very limited.

Using capacitive screens do not have to wrestle because it only requires a light touch of the screen with your finger to the unit responded appropriately.

Application

Applicable standards and tests carried out. Industial Touch Monitor CCETouch CT10-OPCR is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial IP54 front panel aluminum housing protects the display from the outside against mechanical damage, drops of water, sand and dust. CCETouch CT10-OPCR is the best solution for extreme applications in dust or moisture.  Operating Temp 0-60 °C  Operating Humidity 5%-95%  Dust IP5x(dust)  Water IPx4(drops of water) Resistance IP54 (front panel) The IP Code, International Protection Marking. IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). go top… menu… The first digit [x] Protection against solid objects   The second digits [y] Protection against liquids No special protection 0 0 No waterproofing Protection from solid objects greater than 50mm in diameter 1 1 Protection from dripping water Protection from object not greater than 12mm in diamete 2 2 Protection from vertically dripping water (tilted up to 15°) Protection from object not greater than 2,5mm in diameter 3 3 Protection from sprayed water (tilted up to 60°) Protection from object not greater than 1mm in diameter 4 4 Protection from splashed water Complete protection against contact, Protection against dust deposit 5 5 Protection from water projected from a nozzle Complete protectionm against contact, Protection from infiltration of dust 6 6 Protection against heavy seas, or powerful jets of water   7 Protection against immersion   8 Protection against complete, continuous submersion in water

Industrial Monitors from the company CCETouch are based on efficient high-quality displays.

Industrial Monitors are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of monitors models of industrial and the ability to change the configuration, allow for optimal selection monitors for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model monitors has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Areas of use of industrial panel computers.

With industrial touch screens (touch screen) can be used on virtually any computer, and the list of applications is limited only by the imagination. Common applications of the touch screens:

•          information points,


•          electronic catalogs,


•          gambling, lotteries and slot arcade


•          marketing media


•          ATMs,


•          Ticket


•          interactive public telephones,


•          Industrial control rooms,


•          terminals at points of sale,


•          control of industrial processes,


•          palmtop computers,


•          medical equipment,


•          office equipment (photocopiers, franking machines, etc.)


•          handling vehicles and machines airlines.
