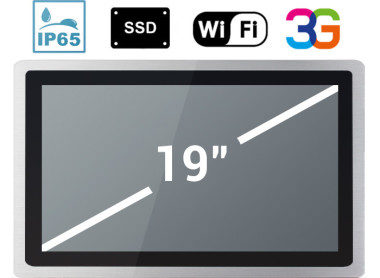

Reinforced Resistant Industrial Panel PC MobiBOX IP65 1037U 19W v.3
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/operatorski-panel-przemyslowy-mobibox-ip65-1037u-19w-v.3-produkt-90054.html

Reinforced Resistant Industrial Panel PC MobiBOX IP65 1037U 19W v.3

industrial panel operator panel PC industrial pc resistant waterproof dustproof schockproof durable IP65 wifi










Industrial PC panels are integrated devices consisting of a PC computer and a touch monitor. Due to their design, they can work even under severe conditions prevailing in industrial environments, such as high humidity, high dustiness, contact with water or very low or high temperatures. These panels are characterized by high efficiency and stability of operation in all conditions.






Waterproof
The IPX5 water-resistance standard on the front panel guarantees protection of the device for contact with water.
Dustproof
The dustproof IP6X standard on the front panel protects the panel against dust and access to hazardous parts.






Efficient
The quad-core Intel Celeron processor supported by 4GB of RAM improves the device's performance.
Bright Screen
The display with 350cd/ m² brightness makes the picture much more vivid and better readable when used outside in the sun.






Wireless network
The panel can be connected to nearby wireless networks by equipping it with an optional Wi-Fi module.
Resistive screen
The resistive screen allows you to freely use the touch screen of the PC panel in gloves or with a stylus.







up… do g鏎y   menu… menu



Specifications and parameters








Performance
Processor Intel Celeron 1037U (2x 1.8GHz)
Graphics card Intel HD Graphics
Operating system Windows 7/8/10 | Linux
RAM 4GB DDR3
Drive 64GB SSD
Display
Screen 19" (1440x900)
Touch screen Resistive / Capacitive*
Brightness 350cd/m²
Contrast 1000:1
Response time 5ms
Hardness
Interfaces
Communication Wi-Fi / 3G
Connectors HDMI / VGA / RJ45 / 4x USB 2.0 / RS232 / Audio / DC 12V
Memory card
SIM card
Other
Protection IP65 (front panel)
Dimensions 486mm x 332mm x 59.2mm
Weight 4kg


* Optional equipment, available only in specific versions of the device.




Detailed device specification is available in the "Technical data" tab.





The dust-proof industrial PC panel uses an efficient and energy-saving Intel Celeron 1037U processor. In its interior there are two cooperating cores enabling more efficient processing of many tasks at the same time. Shared cache memory in which a multi-level hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory. Improved graphics card technology allows you to enjoy movies at full resolution and HD quality.




industrial panel operator panel PC industrial pc resistant waterproof dustproof schockproof durable IP65 wifi





More photos in full resolution available in the "Gallery" tab.





up… do g鏎y   menu… menu



Display and touch





Amplified, waterproof industrial computer MobiBOX IP65 1037U 19W has a water-resistant and scratch-proof 19" LED screen 1440x900 resolution offers good image quality, and high brightness in the 350 cd/m² range gives better color saturation and contrast and allows significantly improved visibility even in the case of incident The display of the resistive type provides the user with a clear image and ease of use by touch.






Resistive Screen






In the resistive screen, the sensitive surface is made of two plastic plates. The plate on the surface is made of thin and scratch-resistant plastic. It is also covered with a thin layer of conductive materials placed on the bottom of the screen. Under the top glass (i.e. below the conductive material) is a second plastic plate. Both tiles have no contact with each other until the user of the device has pressed the screen with a finger or stylus. Then there is contact between slightly separated screens. As a result of their contact, a short-circuit is created, which by measuring the vertical and horizontal resistance is converted into data indicating the processor's contact point.





industrial panel operator panel PC industrial pc resistant waterproof dustproof schockproof durable IP65 wifi

up… do g鏎y   menu… menu



Resistance and protection








PROTECTION STANDARD IP65






IP norm (International Protection Rating) determines the degree of protection provided by the housing of an electrical device against such factors as: access to dangerous parts inside the housing, penetration of foreign solids and splashing or immersion. The first characteristic number means that the housing protects people against access to dangerous parts located inside the device, and at the same time provides protection against penetration of foreign solids. The second characteristic digit means that the housing provides protection against the effects of water penetration.





IP6X (front panel) Protection against access to dangerous parts with wire.
Dustproof protection.
IPX5 (front panel) Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.







industrial panel operator panel PC industrial pc resistant waterproof dustproof schockproof durable IP65 wifi






EXtreme temperatures






PanelPC MobiBOX IP65 1037U 19W is adapted for continuous operation in both very low and high temperatures in the range from -10 ° C to 60 ° C. If the device is switched off, it can already handle temperatures between -30 ° C and 60 ° C. In addition, the durable PanelPC is perfect for rooms with increased humidity, ensuring proper functioning even in the case of 90% relative humidity.





Work temp. -10°C to 60°C
Storage temp. -30°C to 60°C
Humidity 10% - 90%





up… do g鏎y   menu… menu



Communication and connectors








WIreless Wi-Fi network






The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. The shockproof industrial panel MobiBOX IP65 1037U 19W has been equipped with standards - 802.11n, which allows transfer of files at a dizzying speed of up to 150 Mb/s.





Standards 802.11a/b/g/n
Frequencies 2.4GHz | 5GHz








Connectors and interfaces









industrial panel operator panel PC industrial pc resistant waterproof dustproof schockproof durable IP65 wifi






up… do g鏎y   menu… menu



Application





trade and services






Waterproof and dustproof PC Panel is widely used primarily in the commercial industry, for example for controlling the sales system, displaying product information on monitors or advertising on large screens. With the VESA holder in the housing there are many possibilities for its assembly, eg in stores (at the cash register) in factory halls, in a car delivering products, etc. It will certainly be used in all types of retail chains.






warehouse and management






The industrial panel computer thanks to the RS232 interface can be used to connect many devices in the warehouse and facilitate their control. And its rugged housing is ideally suited to the harsh conditions prevailing in such rooms. No dust or dirt will prevent him from working, he will work without complaints even in a large dusty and dirty environment.






Transport and motorization






Panel computers can be used in transport by adapting it to work on 12V power supply. Then Panel PC can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. Thanks to the integrated monitor, these panels perform very well in vehicles where mobility and the small size of the device are important.





up… do g鏎y   menu… menu



Available versions and accessories







Industrial industrial computer MobiBOX IP65 1037U 19W is offered in several versions adapted to different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.



[tab_wersja_id_41]


Screen size: 19"
Resolution: 1440x900
Aspect ratio: 16:9
Touchscreen: Resistive
Chipset: Intel NM10
CPU Support: Intel Celeron 1037U (2x 1.8GHz)
Installed CPU: Intel Celeron 1037U (2x 1.8GHz)
Memory Support: up to 4GB DDR3
Installed Memory: 4GB
Graphic Card: Intel HD Graphics
Audio: RTL ALC662
Storage (HDD) Support: 64GB/128GB SSD
Installed Storage (HDD): 64GB SSD
CD/DVD Drive: -----
LAN: Realtek RTL811E
Wireless LAN card: Yes
Bluetooth: No
3G: Yes
4G LTE:
GPS: No
TV Tuner: -----
Watch Dog Timer: -----
Ports - front panel: -----
Ports - rear panel: 1x HDMI
1x RS-232
4x USB 2.0
1x VGA
1x LAN
1x DC-in
Ports - left panel: -----
Ports - right panel: -----
Power: 12V DC-in
Supported OS: Windows 7/8.1/10 | Linux
Installed OS: -----
Dimensions: 486mm x 332mm x 59.2mm
Weight: 4kg
Expansion: -----
Fanless: No
Humidity: 10%~ 90%
Temp: -10蚓 ~ 60蚓
Storage Temp: -30蚓 ~ 60蚓
IP Norm: IP65 (przedni panel)
IP Level (back panel): -----
IP Level (front panel): IP65
Dual display: Yes
Response time touch-panel (ms): 5
Contrast Ratio: 1000:1
Brightness: 350 cd/m2
Viewing Angle: -----
Backlight MTBF: LED
Color Resolution: 16.7 M
Surface hardness (display): -----
Touch Life(contacts): -----
Housing material: Aluminum
Mounting VESA: Yes
Folding Bracket (for office type working): -----
Power Consumption: -----
Others: Housing color: Black or Silver
Anti-vibration: -----
Anti-shock: -----
RFID scanner (reader): -----
Barcode reader: -----


CURRENT PRICE
3392.74 € Net
4173.07€ Gross
