Industrial Fanless MiniPC bBOX-N2800-C4 v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-bezwentylatorowy-mini-komputer-bbox-n2800-c4-v.2-produkt-87108.html

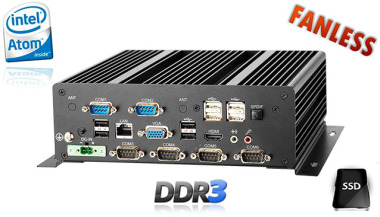

Industrial Fanless MiniPC bBOX-N2800-C4 v.2

Indrustrial Fanless MiniPC bBOX-N2800




Industrial Fanless MiniPC

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

bBOX-N2800 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimension are 204 (W) x206 (L) x67 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB SSD or 500GB HDD.

Indrustrial Fanless MiniPC bBOX-N2800

go topdo góry   menu… menu


Communication & Connectors

Integrated card - Intel LAN 82574L allow connection to the network. The computer is equipped with: one LAN port, six COM ports (RS232), one HDMI port, one VGA outpu, eight USB 2.0 ports, one port eSATA and one SPDIF.

Indrustrial Fanless MiniPC bBOX-N2800

1. Power ON/OFF
7. 1x HDMI
2. 2x USB 2.0
8. Audio/Mic
3. DC-IN 12V
9. 1x SPDIF
4. 1x RJ-45
10. 6x USB 2.0
5. 1x eSATA
11. 2x COM(RS232)
6. 1x VGA


Indrustrial Fanless MiniPC bBOX-N2800


Indrustrial Fanless MiniPC bBOX-N2800

Cooling

The Indrustrial Fanless MiniPC bBOX-N2800 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go topdo góry   menu… menu

Application

      Indrustrial Fanless MiniPC bBOX-N2800 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of bBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesIndrustrial Fanless MiniPC bBOX-N2800 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Indrustrial Fanless MiniPC bBOX-N2800


Areas of use of industrial MiniPC

Digital Engine

Indrustrial Fanless MiniPC bBOX-N2800

Trade

Small computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Indrustrial Fanless MiniPC bBOX-N2800
Indrustrial Fanless MiniPC bBOX-N2800

Magazine

Indrustrial Fanless MiniPC bBOX-N2800 by six COM ports (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC bBOX-N2800 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Indrustrial Fanless MiniPC bBOX-N2800

Indrustrial Fanless MiniPC bBOX-N2800



Indrustrial Fanless MiniPC bBOX-N2800



Specifications


    Dimension





   H: 67 mm

   L: 206 mm

   W: 204 mm

   Weight    2.5 kg
   Processor
   Intel Atom N2800 (2x 1.8GHz)
   Chipset
   Intel NM10
   RAM Memory
   4GB DDR3
   Graphic Card
   Intel HD Graphics
   Sound Card
   Realtek ALC662
   WLAN
   Intel LAN 82574
   Connectors

   6x COM(RS232)

   1x wyjście 12V DC_JACK

   8x USB 2.0

   1x RJ-45

   1x wyjście Audio

   1x HDMI

   1x Mic

   1x VGA

   1x eSATA

   1x SPDIF

Indrustrial Fanless MiniPC bBOX-N2800


Others: Colour Silver, Case
Chipset: Intel NM10
CPU Support: -----
Installed CPU: Intel Atom N2800 (2x1.8GHz)
Memory Support: 2GB DDR3 (can up to 4GB)
Installed Memory: 4GB DDR3
Graphic Card: Intel HD Graphics
Storage (HDD) Support: -----
Installed Storage (HDD): 32 GB SSD
CD/DVD Drive: -----
LAN: Intel LAN 82574L
Wireless LAN card: No
Bluetooth: -----
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: -----
Front Panel (ports): Power ON/OFF
Rear Panel (ports): 8x USB 2.0,
1x Audio,
1x RJ-45,
DC-in Jack,
1x HDMI,
1x Mic,
6x COM(RS232),
1x VGA,
1x eSATA,
1x SPDIF
Power: 12V
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: -----
Dimensions: 204 x 206 x 67 mm
Weight: 2.5 kg
Expansion: -----
Fanless: Yes
Humidity: -----
Temp: -20 - 60 ℃
IP Norm: -----
Storage temperature: -20 - 80 ℃


CURRENT PRICE
1765.06 € Net
2171.02€ Gross
