Industrial Fanless MiniPC IBOX-ZPC-H6-X4 High (8GB)
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-fanless-minipc-ibox-zpc-h6-x4-high-8gb-produkt-86927.html

Industrial Fanless MiniPC IBOX-ZPC-H6-X4 High (8GB)

Przemys³owy Fanless MiniPC IBOX-ZPC-H6-X4



Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

IBOX-ZPC-H6-X4 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
go top… do góry   menu… menu

Description


Housing dimension are 211 (W) x174 (L) x45 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel 2500 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space from 32GB SSD to 64GB SSD (or 500GB HDD).

Przemys³owy Fanless MiniPC IBOX-ZPC-H6-X4
go top… do góry   menu… menu


Communication & Connectors

Integrated card - Intel RTL8111E 100M (optional WiFi module) allow connection to the network. The computer is equipped with: two LAN ports, one COM port (RS232), one VGA output, six USB 2.0 ports, one way audio, one microphone input and connectors built into the motherboard: two USB 2.0 ports, two PowerOUT outputs, one audio output, one Mini-PCIE,, one Mini-SATA connector, one LVDS connector.

LVDS Interface
This is a fast digital interface that is used for many applications requiring: a high resistance to interference electromagnetic, low energy consumption at high data rates. LVDS is used in various applications and industries, including commercial and military applications.

Przemys³owy Fanless MiniPC IBOX-ZPC-H6-X4

1. Power ON/OFF

2. 4x USB 2.0

3. Audio/Mic

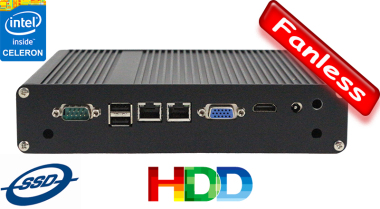

Przemys³owy Fanless MiniPC IBOX-ZPC-H6-X4

1. 1x COM(RS232)
   4. 1x VGA
2. 2x USB 2.0
   5. 1x HDMI
3. 2x RJ-45
   6. DC-IN 12V

Przemys³owy fanless MiniPC IBOX-ZPC-H6-X4

Cooling

The industrial fanless MiniPC IBOX-ZPC-H6-X4 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… do góry   menu… menu

Application

      Industrial MiniPC Series IBOX-ZPC-H6-X4 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesPrzemys³owy Fanless MiniPC IBOX-ZPC-H6-X4 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Przemys³owy Fanless MiniPC IBOX-ZPC-H6-X4


Areas of use of industrial MiniPC

Digital Engine

Przemys³owy Fanless MiniPC IBOX-ZPC-H6-X4

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Przemys³owy fanless MiniPC IBOX-ZPC-H6-X4
Przemys³owy Fanless MiniPC IBOX-ZPC-H6-X4

Magazine

Industrial fanless MiniPC IBOX-ZPC-H6-X4 by to ten COM port (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless IBOX-ZPC-H6-X4 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Przemys³owy Fanless MiniPC IBOX-ZPC-H6-X4

Przemys³owy Fanless MiniPC IBOX-ZPC-H6-X4



Przemys³owy Fanless MiniPC IBOX-ZPC-H6-X4



Specifications


    Dimension



   H: 45 mm

   L: 174 mm

   W: 211 mm
   Weight    2,4kg
   Processor
    Intel Celeron 1037u (2x 1.8GHz)
   Chipset
    Intel NM70 express chipset
   RAM Memory
    8GB DDR3
   Graphic Card
    Intel 2500
   Sound Card
    Realtek ALC662
   WLAN
    Intel RTL8111E 100M Lan
   Connectors

   1x COM(RS232)

   1x wyj¶cie 12V DC_JACK

   6x USB 2.0

   2x RJ-45

   1x wyj¶cie Audio

   1x HDMI

   1x Mic

   1x VGA
Przemys³owy Fanless MiniPC IBOX-ZPC-H6-X4


Others: Colour Black, Case
Chipset: Intel NM70
CPU Support: -----
Installed CPU: Intel Celeron 1037u (2x1.8GHz)
Memory Support: 2GB DDR3 (can up to 8GB)
Installed Memory: 8GB DDR3
Graphic Card: Intel 2500
Storage (HDD) Support: -----
Installed Storage (HDD): 64 GB SSD or 500GB HDD
CD/DVD Drive: -----
LAN: Intel RTL8111E 100M Lan
Wireless LAN card: No (opctional Yes)
Bluetooth: -----
3G: No (opctional Yes)
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0 ~ 255 sec
Front Panel (ports): 4x USB 2.0,
Audio/Mic,
Power ON/OFF
Rear Panel (ports): 2x USB 2.0,
1x Audio,
2x RJ-45,
DC-in Jack,
1x HDMI,
1x Mic,
1x COM(RS232),
1x VGA
Power: 12V
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: -----
Dimensions: 211 x 174 x 45 mm
Weight: 2.4 kg
Expansion: WiFi
Fanless: Yes
Humidity: 0 ~ 95%
Temp: -10℃ ~ 60℃
IP Norm: -----
Storage temperature: -20 - 80 ℃


CURRENT PRICE
1436.04 € Net
1766.33€ Gross
