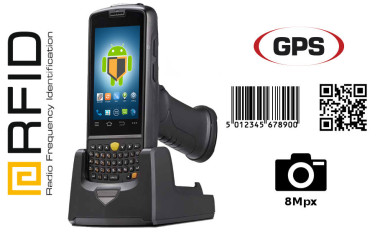

Rugged data collector MobiPad 990S has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP64 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.
| Processor | Cortex-A7 1.3GHz Dual Core |
| Operating system | Android 4.4.2 |
| RAM | 1GB |
| Flash memory | 4GB |
| Connectors | Micro USB | Micro SD | SIM | RS-232 | DC Jack |
| GPS | A-GPS |
| Audio | Buil-in speaker + microphone |
| Camera | 8Mpx (Flash + Autofocus) |
| Battery | Li-Ion 3.7V / 3200mAh |
| Keyboard | Physical (Qwerty) | On-screen + Function keys |
| Modules | Bluetooth | Wi-Fi | GPS | 3G |
| Readers | RFID LF / HF / UHF | 1D / 2D |
| Dimensions | 176 x 76 x28.5mm / 192 x 87 x 151mm (RFID + Pistol) |
| Weight | 292g / 361g (RFID + Pistol) |
| Resistance | IP64 |
| Standard Accessories | AC Adapter, battery, snap-on with USB/RS232/DC Jack inputs, USB cable |
| Check "Available versions" tab to see available configurations of this device.To get more information about this product click "Ask about the product" or use the Contact form. |
 |
MobiPad 990S is offered with the latest Cortex-A7 1.3GHz Dual Core processor to ensure the highest performance, low power consumption and long battery life. The tablet works with Android 4.4.2 operating system to meet the growing requirements in industrial applications.
Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".
| LF RFID | HF RFID | UHF RFID | 1D Scanner | 2D Scanner | Camera |
Pistol Grip |
Docking Station |
|
|---|---|---|---|---|---|---|---|---|
| v.1 | — | — | — | ✔ | — | ✔ | — | — |
| v.2 | — | — | — | — | ✔ | ✔ | — | — |
| v.3 | — | ✔ | — | — | — | ✔ | — | — |
| v.4 | ✔ | — | — | — | — | ✔ | — | — |
| v.5 | — | — | ✔ | — | — | — | ✔ | ✔ |
| v.6 | — | ✔ | — | ✔ | — | ✔ | — | — |
| v.7 | ✔ | — | — | ✔ | — | ✔ | — | — |
| v.8 | — | ✔ | — | — | ✔ | ✔ | — | — |
| v.9 | ✔ | — | — | — | ✔ | ✔ | — | — |
| v.10 | — | — | ✔ | ✔ | — | — | ✔ | ✔ |
| v.11 | — | — | ✔ | — | ✔ | — | ✔ | ✔ |
| v.12 | — | — | — | ✔ | — | ✔ | ✔ | ✔ |
| v.13 | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
| v.14 | — | ✔ | — | — | — | ✔ | — | — |
| v.15 | ✔ | — | — | — | — | ✔ | ✔ | ✔ |
| v.16 | — | ✔ | — | ✔ | — | ✔ | ✔ | ✔ |
| v.17 | ✔ | — | — | ✔ | — | ✔ | ✔ | ✔ |
| v.18 | — | ✔ | — | — | ✔ | ✔ | ✔ | ✔ |
| v.19 | ✔ | — | — | — | ✔ | ✔ | ✔ | ✔ |
Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.
RFID is a technology used to identify objects and to control the flow products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.
| RFID LF |
125kHz, 134kHz (FDX-B/HDX), ISO11784/5 Odległość odczytu: 8cm(FDX-B), 16cm(HDX) |
| RFID HF |
13.56MHz ISO14443A/B ISO15693 Odległość odczytu: 8cm |
| RFID UHF | 865-868 / 920-925MHz ISO18000-6C (EPC Gen2) |
.jpg)
| Work temperature | -10℃ – 50℃ |
| Storage temperature | -40°C – +70°C |
| Humidity | 5% - 95% non-condensing |
| Drop resistance | 1.2m |
IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.
| No protection | 0 |
 |
0 | No protection |
| Protection against any large surface of the body, such as the back of a hand | 1 |
 |
1 | Protection against vertically dripping water |
| Protection from object > 12mm, e.g. Fingers or similar objects | 2 |
 |
2 | Protection against vertically dripping water when device is tilted at an angle up to 15 degrees |
| Protection from object > 2.5mm, e.g tools, thick wires, etc. | 3 |
 |
3 | Protection against direct sprays of water when device is tilted at an angle up to 60 degrees |
| Protection from object > 1mm, e.g. most wires, slender screws, large ants etc. | 4 |
 |
4 | Protection from sprays and splashing of water in all directions |
| Dust protected - Ingress of dust is almost entirely prevented. | 5 |
 |
5 | Protection from low pressure water projected from a nozzle with a 6.3mm diameter opening in any direction |
| Dust tight - No ingress of dust, complete protection against contact. | 6 |
 |
6 | Protection from water projected in powerful jets from a nozzle with a 12.5mm diameter opening in any direction |
| — | 7 |
.gif) |
7 | Protected from immersion in water with a depth of up to 1 meter (or 3.2ft) for up to 30 mins |
| — | 8 |
|
8 | Protected from immersion in water with a depth of more than 1 meter |
High quality Li-Ion battery provides a long operating life under severe temperature conditions. With MobiPad 990S you can easily work out at temperatures as low as -10°C.
Real-time data access to the right information is very important to mobile users. MobiPad 990S offers 3G, GPS, WiFi 802.11 b/g/n and Bluetooth 4.0 which enable users to get connect in the way that best suits their needs. With built-in 8 Mega Pixels camera on rear side, users can instantly capture photos, videos or documents.
The latest WiFi wireless module operating in 802.11n provides a very fast and secure communication with the kolektor danych such as a router, providing a fast and convenient web browsing, smooth playback of HD video.
| Wi-Fi | IEEE 802.11 b/g/n |
| GPS | A-GPS |
| Bluetooth | Bluetooth 4.0 |
| 3G |
GSM/GPRS 900/1800MHz lub 850/900/1800/1900MHz WCDMA 900/2100MHz, WCDMA 850/2100MHz WCDMA 850/1900MHz, CDMA2000 EVDO: 800MHz |
| Phone calls | Yes |
Thanks to the WCDMA module, you only need to insert a SIM card in the slot and you are able to instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in MobiPad 990S adjusts automatically to transfer and network coverage.
You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, this problem disappears forever with MobiPad 990S. The device weighs just 292g and its dimensions (176 x 76 x28.5mm) allow you to take this device everywhere.
Friendly design allows for fast replacement of the battery. This is useful when working in the field with difficult conditions, when there is no additional power sources and the time is very important.
specification of this version is available in the "Technical data" ...
| Operating System: | Android 4.4.2 |
| Dispaly: | 4" TFT-LCD (800x480) Capacitive |
| Brightness: | ----- |
| Processor: | Cortex-A7 1.3GHz Dual Core |
| Memory: | 1GB DDR |
| Hard Drive: | ----- |
| Flash Memory: | 4GB |
| Touch screen: | Yes - Capacitive |
| Durability: | IP64 |
| Drop: | 1.2m |
| Shock: | ----- |
| Vibration: | ----- |
| Temperature: | Operating temperature: -10°C -- +50°C Storage temperature: -40°C – +70°C |
| Humidity: | 5% -- 95% non-condensation |
| 1D barcode scanner (reader): | ----- |
| 2D barcode scanner (reader): | Motorola SE4750 |
| RFID scanner (reader): | 125kHz, 134kHz (FDX-B/HDX), ISO11784/5 |
| Other: | ----- |
| Battery: | Li-Ion 3200mAh 3.7V + 5200mAh 3.7V for version with pistol grip |
| Working time on battery: | ----- |
| Fast battery replacement ability: | Yes |
| HotSwap battery: | No |
| LAN: | ----- |
| WLAN: | IEEE 802.11b/g/n |
| Bluetooth: | Bluetooth 4.0 |
| WAN: | ----- |
| GPS: | GPS/AGPS |
| Camera: | Rear: 8Mpx (Autofocus + Flashlight) |
| In/Out: | Micro USB | Micro SD | SIM | RS-232 | DC Jack |
| Optional accessories: | ---- |
| Docking station connector: | Yes |
| VESA standard – holders and mounts support: | No |
| COM port: | Yes - (RS232) via an adapter |
| Magnetic card reader (MSR): | ----- |
| Microchip card reader: | ----- |
| Contrast: | ----- |
| Graphics card: | ----- |
| Chipset: | ----- |
| BIOS: | ----- |
| Casing material: | high quality plastic and rubber |
| Flash Card Reader: | micro SD (max. 32GB) |
| CD/DVD: | ----- |
| Audio: | ----- |
| Keyboard: | Physical (Qwerty) | On-screen + Function keys |
| Additional Navigation Devices : | ----- |
| Color: | ----- |
| Swivel Hinge: | ----- |
| VGA out: | No |
| TV Out: | ----- |
| TV Tuner: | ----- |
| Seciurity: | ----- |
| Waterproof: | IP64 |
| Sand and dust: | IP64 |
| Size: | 176 x 76 x28.5mm / 192 x 87 x 151mm (RFID + pistol battery) 292g / 361g (RFID + pistol) |
| Fanless casing: | Yes |
| Weight: |
CURRENT PRICE |
|
| 758.80 € | Net |
| 933.33€ | Gross |
