Industrial Data Collector MobiPad A351 HIGH - 1D Laser Motorola SE955
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-kolektor-danych-mobipad-a351-high--1d-laser-motorola-se955-produkt-88968.html

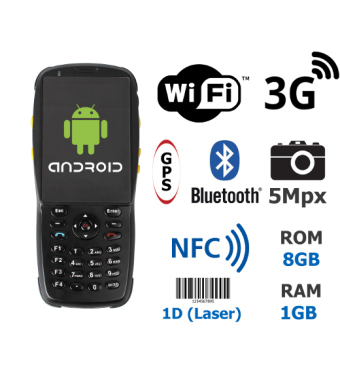

Industrial Data Collector MobiPad A351 HIGH - 1D Laser Motorola SE955

MobiPad A351 wifi IP65 NFC GPS Bluetooth 3G making calls Android 4.2


MobiPad A351 has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP65 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.


Description

MobiPad A351 functional keys mobilator.eu

 Processor Mediatek MT6580 Quad-core 1.3 GHz
 Display  3,5" (320x480 | Gorilla Glass | Capacitive
 RAM(optional)  1GB
 ROM(optional)  8GB
 Connectors  microUSB | Micro SD(max. 32GB) | SIM
 GPS  GPS(Position/Navigation)
 Audio  Speaker | Microphone
 Camera(optional)  Rear: 2Mpx or 5Mpx
 Battery  3.7V 3100mAh Li-Ion(Charging about 4.5h)
 Keyboard  Numeric (+function keys) + On-Screen
 Environment  Android 5.2
 Modules
 3G | WiFi | Bluetooth | GPS | NFC
 Dimensions  170mm*75mm*41mm
 Resistance  IP65
 Readers(optional)  1D (Laser) Motorola Symbol SE955 | 2D (CCD)



Select a version for each other

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".


go top… do góry menu… menu



Use of device





Data collector MobiPad A351 can be used for projects like: supermarket cashless payment, inventory management and logistics tracking. Device will be also good option to business data management and other services.

Operating temperature: -15 ° C ~ 60 °C

Operating Humidity: 0% ~ 90%



go top… do góry menu…menu


The collection and processing of data

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

MobiPad A351 1D Laser 1d laser MobiPad A351 wifi  2d scanner

Near Field Communication (NFC)



MobiPad A351 1D Laser 1d laser MobiPad A351 wifi nfc

Its a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less. NFC devices are used in contactless payment systems, similar to those used in credit cards and electronic ticket smartcards and allow mobile payment to replace/supplement these systems. NFC is used for social networking, for sharing contacts, photos, videos or files.





RFID (HF) NFC
 Frequency 13.56 MHz
Reading distance od 1 do 5 cm
Supported card standard
Mifare Write/Read
Supported standards  ISO 14443 A/B
  ISO 15693

go top... do góry menu… menu

Resitance

Applicable standards

Operating -15°C -- +60°C
Storage -20°C -- +70°C
Humidity 0% - 90% RH | non-condensing
Dust IP6x (dust)
Water IPx5 (water)
Drop 1.2m

go top... do góry menu… menu

MobiPad A351 1D Laser 1d laser MobiPad wifi gorilla glass 2D ccd

IP65 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from solid objects greater than 50mm in diameter
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection from water projected from a nozzle


7

Protection against immersion


8


Protection against complete, continuous submersion in water

go top... do góry menu… menu


Modules and Wireless Networks

MobiPad A351 Laser 1d laser MobiPad A351 wifi gps modules

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in MobiPad A351 NFC devices are used in contactless payment systems, similar to those used in credit cards and electronic ticket smartcards and allow mobile payment to replace/supplement these systems. NFC is used for social networking, for sharing contacts, photos, videos or files.

WiFi  802.11 b/g/n
GPS  Yes
Bluetooth  Bluetooth  V4.0
3G

3G(WCDMA UMTS 900/1900/2100) oraz GMS


The ability to make voice calls

go top... do góry menu… menu

Minimalism

mobipad 1d laser MobiPad A351 functional keys case description

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have MobiPad A351. The device weighs just 272g and its dimensions  (170 x 75 x 41mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that  A351 is in a group of devices which enjoy great popularity in the European market in the industrial segment.

 Dimensions 170 × 75 × 41mm
 Weight 275g


Quick change battery

Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.

MobiPad a351 1D Laser 1d laser MobiPad a351 wifi fast replacement battery

go top... do góry menu… menu


more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...



Durability: IP65
Humidity: 0 - 90% (no condensation)
Waterproof: IP65
Weight:
Temperature: Operating temperature: -15°C -- +60°C
Storage temperature: -20°C -- +70°C
Shock: -----
Vibration: -----
Drop: 1.2 meters
Sand and dust: IP65
1D barcode scanner (reader): 1D (Laser) Motorola Symbol SE955
2D barcode scanner (reader): -----
RFID scanner (reader): NFC (13.56MHz) ISO 14443 A, ISO 14443 B, ISO 15693
Mifare
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: Tak
VESA standard – holders and mounts support: -----
COM port: Nie
Dispaly: 3.5"(320x480) - capacitive
Gorilla Glass
Brightness: -----
Contrast: -----
Touch screen: Yes
Graphics card: -----
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: -----
Processor: Mediatek MT6580 Quad-core 1.3 GHz
Chipset: -----
BIOS: -----
Memory: 1GB
Hard Drive: -----
Flash Memory: 8GB
Battery: 3.7V 3100mAh Li-Ion
Working time on battery: >9 hours
HotSwap battery: -----
Fast battery replacement ability: Yes
Size: 170 × 75 × 41mm- 272g
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Android 5.1
LAN: No
WLAN: 802.11 b/g/n
Bluetooth: Bluetooth 4.0
WAN: 3G WCDMA UMTS900/1900/2100 and GMS
GPS: Built-in
Flash Card Reader: microSD (max. 32GB)
CD/DVD: -----
Camera: Yes - 5Mpx
Audio: Built-in Speaker : Microphone
Seciurity: IP65
In/Out: 1 x microUSB 2.0, 1 x Micro SD(max.32GB), 1 x SIM, 1 x PSAM
Keyboard: Alphanumeric (+ function keys) : On-screen
Additional Navigation Devices : -----
Color: -----
Optional accessories: -----
Other: -----


CURRENT PRICE
1243.73 € Net
1529.79€ Gross
