Industrial data collector MobiPad M38S-L v.6
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-kolektor-danych-mobipad-m38s-l-v.6-produkt-86481.html

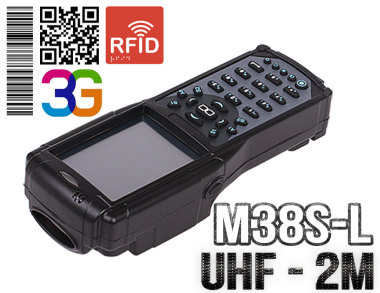

Industrial data collector MobiPad M38S-L v.6

mobipad m38s-l uhf rfid 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 2d


MobiPad M38S-L has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP54 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.



Description

windows ce 6 rfid uhf mobipad m38s-l

 Processor  Marvell PXA3XX (624MHZ)
 Display  3.5" (240x320) TFT-LED QVGA Sunlight Readable : Resistive
 RAM  128MB
 ROM  128MB (optional - 256MB)
 Connectors  MicroSD/TF Reader (max. 2GB)
 Audio  Speaker
 Battery  7.4V 2500MAH + Chargeable Button battery
 Keyboard  Numeric + Functions (30 keys)
 Environment  Windows CE 6.0 R3
 Modules (factory)  WiFi
 Modules (Optional)  GPRS/3G (WCDMA) : GPS
 Dimensions  190×78×40mm - 430g (with battery)
 Resistance  IP65
 Certificates  CE : RoHS
 Readers (Optional)  UHF - (860-928Mhz) - 2 meters 1D - MOTOROLA SE955 (LASER)
    1D/2D - OPTICON MDL2000 (CMOS)
Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

mobipad m38s-l rfid uhf 4m

Select a version for yourself

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".

  WIFI+BT UHF (10M) 1D 2D GPS GPRS/WCDMA
v.1 - - - -
v.2 - - -
v.3 - -
v.4 -
v.5 - -
v.6 -
v.7

go top... do góry menu… menu

Collection and processing of data

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

1D 1D / 2D
MOTOROLA SE955 (LASER) OPTICON MDL2000 (CMOS)

motorola laser scanner opticon cmos barcode scanner mobipad m38s-l

RFID

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of  products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

  LF HF UHF
 Frequency 124 kHz, 125 kHZ lub 135 kHz 13,56 Mhz 865-928 Mhz
 Reading Range few centimeters to 0.5 meters 2-10 meters

RFID UHF (860-928Mhz)

rfid uhf 860-868mhz kolektor danych data collector m38s-l

RFID UHF
(860-928Mhz)
UHF ISO180006C (EPC C1 GEN2) / ISO 180006B - (10m)

In the UHF (Ultra High Frequency) band, where RFID tags work according to the principles of the electromagnetic coupling, the most popular technology at the moment is the one based on the ISO 18000-6C protocol, best known as EPC Class 1 Gen 2 or for short Gen 2. The EPC Class 1 Gen 2 standard was proposed by the private organization EPCGlobal and then adopted in 2006 as the ISO 18000-6C standard by the International Standards Organization (ISO).  The EPC Class 1 Gen 2 standard was created to address some issues of previous UHF RFID standards conceived for logistics applications (such as the ISO 18000-6a and the ISO 18000-6b). The new standard was developed specifically to track fluxes of goods between different companies and across all world regions with good read performance in environments with a high density of tags.

mobipad m38s-l antena gprs gps wcdma uhf

go top... do góry menu… menu

Resistance

Applicable standards

Operating -15°C -- +50°C
Storage -20°C -- +60°C
Humidity 5% - 95% RH | non-condensing
Dustk IP6x (dust)
Water IPx5 (water)
Drop Multiple drops to concrete 4ft./1.2m the entire operation range

go top... do góry menu… menu

IP65 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water

go top... do góry menu… menu

Modules and Wireless Networks

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in MobiPad adjusts automatically to transfer and network coverage.

mobipad m38s-l windows ce rfid uhf

WiFi  WPA 802.11i (WPA2), WEP, TKIP, TLS, TTLS, AES, PEAP, MD5
GPS (optional)  GPS - 48 | Accuration 2.5m | Speed Below 0.01m/s
GSM/3G (optional)  GPRS/3G WCDMA


go top... do góry menu… menu

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP65
Humidity: 95%
Waterproof: IP65
Weight:
Temperature: Operating temperature: -15°C -- +50°C
Storage temperature: -20°C -- +60°C
Shock: -----
Vibration: -----
Drop: 1.2 meters
Sand and dust: IP65
1D barcode scanner (reader): OPTICON MDL2000 (CMOS)
2D barcode scanner (reader): OPTICON MDL2000 (CMOS)
RFID scanner (reader): UHF (860-928Mhz)
ISO180006C (EPC C1 Gen2) | ISO 180006B
Range: 2m
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: -----
COM port: -----
Dispaly: 3.5" (240x320) TFT-LED QVGA : Sunlight Readable : Resistive
Brightness: -----
Contrast: -----
Touch screen: Yes
Graphics card: -----
Swivel Hinge: -----
VGA out: -----
TV Out: -----
TV Tuner: -----
Processor: Marvell PXA3XX (624MHZ)
Chipset: -----
BIOS: -----
Memory: 128MB
Hard Drive: 128MB (optional - 256MB)
Flash Memory:
Battery: 7.4V 2500MAH
Working time on battery: Up to 20 hours (depending on usage)
For 10 days in standby mode.
HotSwap battery: -----
Fast battery replacement ability: -----
Size: 190×78×40mm - 430g (with battery)
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Windows CE 6.0 R3
LAN: -----
WLAN: WPA 802.11i (WPA2), WEP, TKIP, TLS, TTLS, AES, PEAP, MD5
Bluetooth: -----
WAN: GPRS/3G (WCDMA)
GPS: -----
Flash Card Reader: microSD/TF (max. 2GB)
CD/DVD: -----
Camera: -----
Audio: Built-in Speaker
Seciurity: IP65 | CE | RoHS
In/Out: -----
Keyboard: Numeric (+ function keys) : On-screen
Additional Navigation Devices : -----
Color: -----
Optional accessories: -----
Other: Charger


CURRENT PRICE
4988.23 € Net
6135.52€ Gross
