Industrial Data Collector MobiPad MP-HTK38 v.7
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-kolektor-danych-mobipad-mp-htk38-v.7-produkt-88227.html

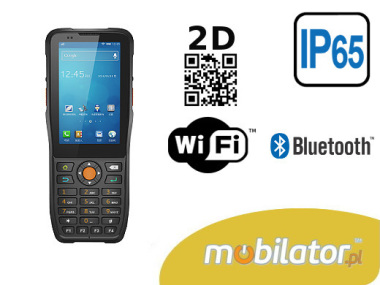

Industrial Data Collector MobiPad MP-HTK38 v.7

MobiPad MP-HTK38 wifi IP65


MobiPad MP-HTK38 has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP65 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.



Description

MobiPad MP-HTK38 1d laser scanner 2D mobilator.eu

 Processor Qualcomm MSM8916 Quad-Core 1.2GHz
 Display  3,5" (800x480) IPS |  Gorilla Glass 3 | Capacitive
 RAM  1GB
 ROM  8GB
 Connectors  microUSB | Micro SD | SIM
 GPS  GPS
 Audio  AudioJack | Speaker | Microphone
 Camera  Rear: 8Mpx (Auto-Focus + LED Flash)
 Battery  3.8V 4000mAh Li-Ion
 Keyboard  Numeric (+function keys) + On-Screen
 Environment  Android 4.4
 Modules(optional)
 4G | WiFi | Bluetooth | GPS | NFC
 Dimensions  166mm*68mm*28mm
 Resistance  IP65
 Readers(optional)  1D (Laser) | 2D (CMOS)



Select a version for each other

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".



  v.0.0
v.0 v.1
v.2 v.3 v.4 v.5  v.6
v.7
 v.8
v.9
NFC - - - -
Camera
- - - - - - -
1D (Laser) Motorola - - - - - - - -
1D (Laser) Honeywell
- - - - - - - -

2D (CMOS)
Honeywell

- - - - - - - -

do góry… do góry menu… menu

The collection and processing of data

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

MobiPad MP-HTK38 1D Laser 1d laser MobiPad MP-HTK38 wifi  2d scanner

Near Field Communication (NFC)


Its a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less.



MobiPad MP-HTK38 1D Laser 1d laser MobiPad MP-HTK38 wifi nfc



NFC
 Frequency 13.56 MHz
Reading distance od 3 do 5 cm
Supported card standard
Mifare
Supported standards  ISO/IEC 14443 A

ISO/IEC 15693

go top... do góry menu… menu

Resitance

Applicable standards

Operating -10°C -- +50°C
Storage -20°C -- +70°C
Humidity 5% - 90% RH | non-condensing
Dust IP6x (dust)
Water IPx5 (water)
Drop  5ft./1.5m

go top... do góry menu… menu

MobiPad MP-HTK38 1D Laser 1d laser MobiPad MP-HTK38 wifi gorilla glass

IP65 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from solid objects greater than 50mm in diameter
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection from water projected from a nozzle


7

Protection against immersion


8


Protection against complete, continuous submersion in water

go top... do góry menu… menu



Modules and Wireless Networks

MobiPad MP-HTK38 Laser 1d laser MobiPad MP-HTK38 wifi gps modules

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 4G module used in MobiPad MP-HTK38 adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

WiFi  802.11 b/g/n
GPS  Yes
Bluetooth  Bluetooth  V4.0
4G

4G/3G/GPRS/WCDMA/CDMA

CDMA 1X/EV: BC0, GSM 900/1800 MHz
WCDMA: B1/B5/B8, TD-SCDMA B34/B39

FDD-LTE: B1/B3 TD-LTE: B38/B39/B40/B41

  The ability to make voice calls

go top... do góry menu… menu

Minimalism

mobipad 1d laser MobiPad MP-HTK38 functional keys

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have MobiPad MP-HTK38. The device weighs just 260g and its dimensions  (166 x 68 x 28mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that MP-HTK38 is in a group of devices which enjoy great popularity in the European market in the industrial segment.

 Dimensions 166 ×68 × 28mm
 Weight 260g



Quick change battery

Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.

MobiPad MP-HTK38 1D Laser 1d laser MobiPad MP-HTK38 wifi fast replacement battery

go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP65
Humidity: 90% (no condensation)
Waterproof: IP65
Weight:
Temperature: Operating temperature: -10°C -- +50°C
Storage temperature: -20°C -- +70°C
Shock: -----
Vibration: -----
Drop: 1.5 meters
Sand and dust: IP65
1D barcode scanner (reader): -----
2D barcode scanner (reader): 2D (CMOS) Honeywell N3680
RFID scanner (reader): -----
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: -----
COM port: -----
Dispaly: 3,5' (800x480) IPS | Gorilla Glass 3 | Capacitive
Brightness: -----
Contrast: -----
Touch screen: Yes
Graphics card: -----
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: -----
Processor: Qualcomm MSM8916 Quad-Core 1.2GHz
Chipset: -----
BIOS: -----
Memory: 1GB
Hard Drive: -----
Flash Memory: 8GB
Battery: 3.8V 4000mAh Li-Ion
Working time on battery: >12 hours
HotSwap battery: -----
Fast battery replacement ability: Yes
Size: 166 × 68 × 28mm- 260g
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Android 4.4
LAN: No
WLAN: 802.11 b/g/n
Bluetooth: Bluetooth 4.0
WAN: 4G/3G/GPRS/WCDMA/CDMA
GSM 900/1800 MHz
CDMA 1X/EV: BC0,
WCDMA: B1/B5/B8,
TD-SCDMA B34/B39
FDD-LTE: B1/B3
TD-LTE: B38/B39/B40/B41
GPS: Built-in
Flash Card Reader: microSD (max. 32GB)
CD/DVD: -----
Camera: No
Audio: AudioJack : Built-in Speaker : Microphone
Seciurity: -----
In/Out: 1 x microUSB 2.0, 1 x AudioJack , 1 x Micro SD(max.32GB), 1 x SIM
Keyboard: Numeric (+ function keys) : On-screen
Additional Navigation Devices : -----
Color: -----
Optional accessories: -----
Other: -----


CURRENT PRICE
1459.31 € Net
1794.95€ Gross
