Industrial Data Collector MobiPad MP-Q62 v.3
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-kolektor-danych-mobipad-mp-q62-v.3-produkt-88242.html

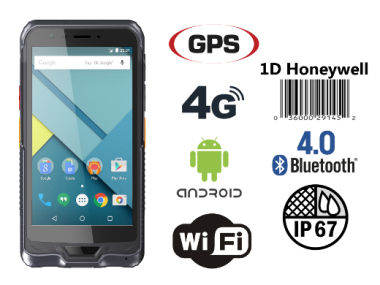

Industrial Data Collector MobiPad MP-Q62 v.3

Przemysłowy kolektor danych MobiPad MP-Q62


MobiPad MP-Q62 has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP67 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.



Description

MobiPad MP-Q62 1d laser

 Processor  Qualcomm MSM8909 Quad-Core Cortex-A7 1.1GHz
 GPU  Qualcomm Adreno 304
 Display  5.98" (1280x720 IPS) Gorilla Glass 3 | Capacitive
 RAM  2GB
 ROM  16GB
 Connectors  Micro USB | Micro TF | Micro SIM | 3.5mm Jack | Micro HDMI
 GPS  GLONASS, QZSS, GPS
 Audio  AudioJack | Speaker | Microphone
 Camera  5MPX Rear, 2MPX Front
 Battery  3.7V/5000mAH
 Keyboard  On-Screen + Function keys
 Environment  Android 5.1
 Modules
 3G/4G | GPS | WIFI 802.11 b/g/n | BT 4.0 | IrDA | NFC (optional)
 Dimensions and weight
 185 x 93 x 20.7mm - 380g
 Resistance  IP67
 Readers(optional)  1D Honeywell | 2D Honeywell
 Sensors  G-sensor | Gyroscope | E-compass



Select a version for yourself

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".



  v.1
v.2 v.3 v.4 v.5  v.6
NFC - - -
1D Honeywell - - - -
1D Honeywell
- - - -

do góry… do góry menu… menu

The collection and processing of data

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quicklyMobiPad MP-Q62 1D 2D Laser 1d 2d laser MobiPad MP Q62 wifi

Near Field Communication (NFC)


Its a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less.

MobiPad MP-Q62 1D 2D Laser 1d  2d laser MobiPad MP Q62 wifi nfc



NFC
 Frequency 13.56 MHz
Reading distance from 3 to 5 cm
Supported card standard
Mifare
Supported standards  ISO/IEC 14443 A

ISO/IEC 15693

go top... do góry menu… menu

Resitance

Applicable standards

Storage -30°C -- +70°C
Operating -20°C -- +60°C
Dust IP6x (dust)
Water IPx7 (water)
Drop  1.2m
Humidity 0% - 95% non-condensing

go top... do góry menu… menu

MP-Q62 1d 2d Mobipad kolektor danych

IP67 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from solid objects greater than 50mm in diameter
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection from water projected from a nozzle


7

Protection against immersion


8


Protection against complete, continuous submersion in water

go top... do góry menu… menu



Modules and Wireless Networks

mobipad MP-Q62 gps 4g 3g wifi bluetooth 4.0

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 4G module used in MobiPad MP-Q62 adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

WiFi  802.11(b/g/n) 2.4GHz
GPS  Yes
Bluetooth  Bluetooth  V4.0
4G

CMCC 5M:LTE 1/3/7/20/38/39/40/41

WCDMA 1/2/5/8

TD-SCDMA 34/39

GSM 2/3/5/8

  The ability to make voice calls

go top... do góry menu… menu

Minimalism

mobipad MP-Q62 1d 2d laser kolektor danych wymiary

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have MobiPad MP-Q62. The device weighs just 380g and its dimensions  (185 x 93 x 20.7mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that MP-Q62 is in a group of devices which enjoy great popularity in the European market in the industrial segment.

 Dimensions 185 x 93 x 20.7mm
 Weight 380g



Quick change battery

Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.

MobiPad MP-Q62 1D 2D Laser 1d 2d laser MobiPad MP Q62 wifi

go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

product does not have any accesories in set...


Durability: IP67
Humidity: 95% (no condensation)
Waterproof: IP67
Weight:
Temperature: Operating temperature: -20°C -- +60°C
Shock: -----
Vibration: -----
Drop: 1.2 meters
Sand and dust: IP67
1D barcode scanner (reader): Honeywell N4313
2D barcode scanner (reader): -----
RFID scanner (reader): NFC 13.56MHz (ISO15693 , ISO14443A/B, ISO14443A, Mifare)
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: -----
COM port: -----
Dispaly: 5,98' (1280x720) IPS | Gorilla Glass 3 | Capacitive
Brightness: 430Nit
Contrast: -----
Touch screen: Yes
Graphics card: Qualcomm Adreno 304
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: -----
Processor: Qualcomm MSM8909 Quad-Core Cortex-A7 1.1GHz
Chipset: -----
BIOS: -----
Memory: 2GB
Hard Drive: -----
Flash Memory: 16GB
Battery: 3.7V 5000mAH
Working time on battery: -----
HotSwap battery: -----
Fast battery replacement ability: Yes
Size: 185 x 93 x 20.7mm - 380g
Casing material: -----
Fanless casing: Yes
Operating System: Android 5.1
LAN: No
WLAN: 802.11 b/g/n
Bluetooth: Bluetooth 4.0
WAN: 4G/3G
CMCC 5M:LTE 1/3/7/20/38/39/40/41
WCDMA 1/2/5/8
TD-SCDMA 34/39
GSM 2/3/5/8
GPS: Built-in
Flash Card Reader: microSD (max. 64GB)
CD/DVD: -----
Camera: Rear: 5Mpx, Front: 2Mpx
Audio: AudioJack : Built-in Speaker : Microphone
Seciurity: -----
In/Out: 1 x microUSB, 1 x AudioJack , 1 x Micro SD, 1 x Micro SIM 1 x Micro HDMI
Keyboard: On-screen + Function Keys
Additional Navigation Devices : -----
Color: -----
Optional accessories: -----
Other: -----


CURRENT PRICE
1945.89 € Net
2393.44€ Gross
