Industrial Data Collector MobiPad MV1HP v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-kolektor-danych-mobipad-mv1hp-v.2-produkt-88668.html

Industrial Data Collector MobiPad MV1HP v.2

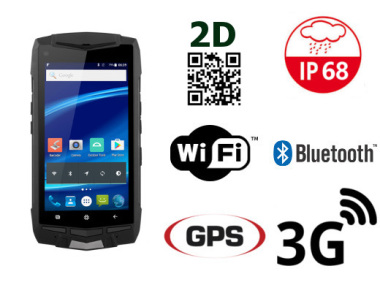

MobiPad MV1HP IP68 2D scanner Bluetooth WiFi GPS 3G


MobiPad MV1HP has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP68 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.



Description

MobiPad MV1HP microusb audiojack

 Processor Qualcomm MSM8916 Quad-Core 1.3GHz
 Display  5" (1280x720) IPS |  Gorilla Glass | Capacitive
 RAM  2GB
 ROM  16GB
 Connectors  microUSB | DualSIM (2x MicroSIM or 1x MicroSIM + 1x MicroSD)
 GPS  GPS
 Audio  AudioJack | Speaker | Microphone
 Camera Front: 2Mpx Rear: 8Mpx + LED Flash
 Battery  3.7V 4500mAh Li-Ion
 Keyboard  Numeric (+function keys) + On-Screen
 Environment  Android 6.0
 Modules(optional)
 3G | WiFi | Bluetooth | GPS | NFC
 Dimensions  163mm*82mm*15mm
 Resistance  IP68
 Readers(optional)  1D (Laser) | 2D (CMOS)



Select a version for each other

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".



  1D(Laser) Motorola SE955

2D(CMOS) Motorola SE4750

2D(CMOS) Honeywell N3680 3G WiFi Bluetooth GPS
NFC
v.1 - -
v.2
- -
v.3 - -

do góry… do góry menu… menu

The collection and processing of data

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

MobiPad MV1HP 2D Laser 2d laser MobiPad MV1HP wifi

Near Field Communication (NFC)


Its a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less.



MobiPad MV1HP 2D CMOS 2d cmos MobiPad MV1HP wifi nfc



NFC
Frequency 13.56 MHz
Reading distance od 3 do 5 cm

Supported card standard
Mifare(Mifare 1K/4K)

Supported standards

ISO/IEC 14443A ISO/IEC 14443B PCD 106 kbit/s do 848 kbit/s

 ISO/IEC 14443A  ISO/IEC 14443B PICC 106 kbit/s do 424 kbit/s


ISO/IEC 15693

go top... do góry menu… menu

Resitance

Applicable standards

Operating -20°C -- +60°C
Storage -30°C -- +70°C
Humidity 95% RH | non-condensing
Dust IP6x (dust)
Water IPx8 (water)
Drop 1.2m

go top... do góry menu… menu

MobiPad MV1HP 2D CMOS 2d cmos MobiPad MV1HP wifi

IP65 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from solid objects greater than 50mm in diameter
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection from water projected from a nozzle


7

Protection against immersion


8

Protection against complete, continuous submersion in water

go top... do góry menu… menu



Modules and Wireless Networks

MobiPad MV1HP Laser 2d cmos MobiPad MV1HP wifi gps

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in MobiPad MV1HP adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

WiFi  802.11 b/g/n
GPS  Yes
Bluetooth  Bluetooth  V4.0
3G

GSM: B5/850; B8/900; B3/1800; B2/1900
3G WCDMA: B1/2100; B2/1900; B5/850; B8/900

  The ability to make voice calls

go top... do góry menu… menu

Minimalism

mobipad 2d CMOS MobiPad MV1HP

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have MobiPad MV1HP. The device weighs just 250g and its dimensions  (163 x 82 x 15mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that MV1HP is in a group of devices which enjoy great popularity in the European market in the industrial segment.

 Dimensions 163 × 82 × 15mm
 Weight 250g




MobiPad MV1HP 2D Cmos 2d cmos MobiPad MV1HP wifi

go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

product does not have any accesories in set...


Durability: IP68
Humidity: 95% (no condensation)
Waterproof: IP68
Weight:
Temperature: Operating temperature: -20°C -- +60°C
Storage temperature: -30°C -- +70°C
Shock: -----
Vibration: -----
Drop: 1.2 meters
Sand and dust: IP68
1D barcode scanner (reader): -----
2D barcode scanner (reader): 2D (CMOS) Motorola Symbol SE4750
RFID scanner (reader): NFC 13.56 MHz
ISO/IEC 14443A ISO/IEC 14443B PCD 106 kbit/s do 848 kbit/s
ISO/IEC 14443A ISO/IEC 14443B PICC 106 kbit/s do 424 kbit/s
ISO/IEC 15693
od 3 do 5 cm
Mifare(Mifare 1K/4K)
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: -----
VESA standard – holders and mounts support: -----
COM port: -----
Dispaly: 5" 1280x720 HD IPS | Gorilla Glass | Capactive
Brightness: -----
Contrast: -----
Touch screen: Yes
Graphics card: -----
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: -----
Processor: MTK6735 Quadcore 1.3MHz
Chipset: -----
BIOS: -----
Memory: 2GB
Hard Drive: -----
Flash Memory: 16GB
Battery: 3.7V 4500mAh Li-Ion
Working time on battery: >14-15 talking time, standby up to 30 days
HotSwap battery: -----
Fast battery replacement ability: Yes
Size: 163 × 82 × 15mm- 250g
Casing material: high quality plastic and rubber
Fanless casing: Yes
Operating System: Android 6.0
LAN: No
WLAN: 802.11 b/g/n (2.4G,5G)
Bluetooth: Bluetooth 4.0
WAN: GSM: B5/850; B8/900; B3/1800; B2/1900
3G WCDMA: B1/2100; B2/1900; B5/850; B8/900
GPS: Built-in
Flash Card Reader: microSD (max. 32GB) integrated with DualSIM
CD/DVD: -----
Camera: No
Audio: AudioJack : Built-in Speaker : Microphone
Seciurity: -----
In/Out: 1 x microUSB, 1 x USB Type C, 1 x AudioJack , DualSIM(2x MicroSIM lub 1x MicroSIM + 1x MicroSD[max.32GB]
Keyboard: Numeric (+ function keys) : On-screen
Additional Navigation Devices : -----
Color: -----
Optional accessories: -----
Other: -----


CURRENT PRICE
2287.31 € Net
2813.39€ Gross
