Industrial Computer Fanless MiniPC IBOX-102 v.3
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-komputer-fanless-minipc-ibox-102-v.3-produkt-89064.html

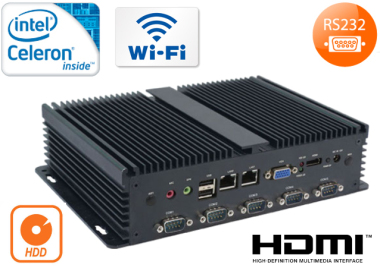

Industrial Computer Fanless MiniPC IBOX-102 v.3

Industrial Fanless MiniPC IBOX-102 com rs232 hdmi vga




Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MiniPC IBOX-102 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimensions are 234 (W) x 122 (L) x54 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2GB/4GB DDR3 memory. Integrated Intel HD Graphics video allow you to play a wide range of applications - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD and 500GB HDD.

Industrial Fanless MiniPC IBOX-102 com rs232 hdmi vga

go topdo góry   menu… menu


Communication & Connectors

Integrated cards - Intel RTL8111E and the WiFi moduleallows connection to the network. The computer is equipped with: two RJ-45 LAN ports, one VGA port, one HDMI port, six USB 2.0 ports, six RS232 COM ports and a built-in connector on the motherboard: one mini SATA, one SATA slot and two Mini-PCIE connectors.



BACK:



Industrial Fanless MiniPC IBOX-102 com rs232 hdmi vga



FRONT:



Industrial Fanless MiniPC IBOX-102 com rs232 hdmi vga



Industrial Fanless MiniPC IBOX-102 com rs232 hdmi vga




Cooling

The industrial fanless  MiniPC IBOX-102 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

Industrial Fanless MiniPC IBOX-102 com rs232 hdmi vga

go topdo góry   menu… menu

Application

      Industrial  MiniPC IBOX-102 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications Industrial Fanless MiniPC IBOX-102 com rs232 hdmi vgaand industrial applications. The biggest advantages of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Fanless MiniPC IBOX-102 com rs232 hdmi vga


Areas of use of industrial MiniPC

Digital Engine

Industrial Fanless MiniPC IBOX-102 com rs232 hdmi vga

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Industrial Fanless MiniPC IBOX-102 com rs232 hdmi vga
Industrial Fanless MiniPC IBOX-102 com rs232 hdmi vga

Magazine

Industrial fanless  MiniPC IBOX-102 by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars


MiniPC IBOX-102 can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.


Industrial Fanless MiniPC IBOX-102 com rs232 hdmi vga

Industrial Fanless MiniPC IBOX-102 com rs232 hdmi vga



Specifications


    Dimension





   H: 54 mm

   L: 152 mm

   W: 234 mm

   Processor
   Intel Celeron J1900 (4x 2.0GHz)
   Chipset
   Intel express chipset
   RAM Memory
   2GB/4GB DDR3
   Graphic Card
   Intel HD Graphics
   WLAN
   2x RTL8111E
   Connectors

    2x RJ-45 LAN

    6x USB 2.0

    1x HDMI

    1x VGA

    1x Power ON/OFF

    6x RS232 COM

    1x Audio

    1x Mic

    Bluetooth

    Wi-Fi

Industrial Fanless MiniPC IBOX-102 com rs232 hdmi vga


Others: -----
Chipset: Intel NM10
CPU Support: -----
Installed CPU: Intel Celeron J1900 (4x 2.0GHz)
Memory Support: DDR3 (max. 4GB)
Installed Memory: 4GB DDR3
Graphic Card: Integrated HD Graphic Card
Storage (HDD) Support: -----
Installed Storage (HDD): 500GB HDD
CD/DVD Drive: -----
LAN: 2x RTL8111E
Wireless LAN card: Yes
Bluetooth: Yes
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0 ~ 255 sec
Front Panel (ports): 4x USB2.0
1x RS232 COM
Power ON/OFF
Rear Panel (ports): 1x HDMI
1x VGA
2x USB 2.0
5x RS232 COM
2x RJ-45 LAN
1x Audio
1x Mic
DC 12V
Power: 12V
Supported OS: Microsoft Windows: 7/8/8.1/10, Linux
Installed OS: -----
Dimensions: 234mm x 122mm x 54mm
Weight: ~2.5kg
Expansion: -----
Fanless: Yes
Humidity: 0 ~ 95%
Temp: -20 ~60℃
IP Norm: -----
Storage temperature: -20 ~ 70℃


CURRENT PRICE
1204.21 € Net
1481.18€ Gross
