Industrial Computer Fanless MiniPC IBOX-Core I3-4030U-NUC1 v.3
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-komputer-fanless-minipc-ibox-core-i3-4030u-nuc1-v.3-produkt-88319.html

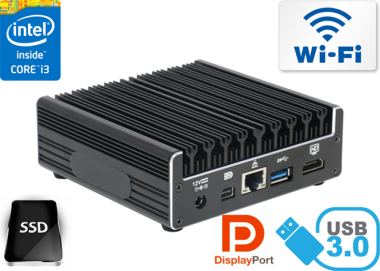

Industrial Computer Fanless MiniPC IBOX-Core I3-4030U-NUC1 v.3

Industrial Computer Fanless MiniPC IBOX-Core I3-4030U-NUC1




Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

IBOX-Core I3-4030U-NUC1 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimensions are 115 (W) x111 (L) x39 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.6 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC892 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB SSD.

Industrial Computer Fanless MiniPC Nuc IBOX-Core I3-4030U-NUC1

go topdo góry   menu… menu


Communication & Connectors

Integrated card - Intel 82574L Gigabit 1000M Lan and WiFi module allows connection to the network. The computer is equipped with: one LAN port,  one mini DP port, one HDMI port, three USB 3.0 ports and a built-in connector on the motherboard: one SATA  port and one Mini-PCIE connector.

Industrial Computer Fanless MiniPC IBOX-Core I3-4030U-NUC1



Industrial Computer Fanless MiniPC IBOX-Core I3-4030U-NUC1

Industrial Computer Fanless MiniPC IBOX-Core I3-4030U-NUC1


Industrial Computer Fanless MiniPC IBOX-Core I3-4030U-NUC1

Cooling

The industrial fanless MiniPC IBOX-Core I3-4030U-NUC1 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go topdo góry   menu… menu

Application

      Industrial MiniPC Series IBOX-Core I3-4030U-NUC1 are based on high-performance dual-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesIndustrial Computer Fanless MiniPC IBOX-Core I3-4030U-NUC1 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC IBOX-Core I3-4030U-NUC1


Areas of use of industrial MiniPC

Digital Engine

Industrial Computer Fanless MiniPC IBOX-Core I3-4030U-NUC1

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Industrial Computer Fanless MiniPC IBOX-Core I3-4030U-NUC1
Industrial Computer Fanless MiniPC IBOX-Core I3-4030U-NUC1

Magazine

Industrial fanless MiniPC IBOX-Core I3-4030U-NUC1 by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless IBOX-Core I3-4030U-NUC1 can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC IBOX-Core I3-4030U-NUC1

Industrial Computer Fanless MiniPC IBOX-Core I3-4030U-NUC1



Industrial Computer Fanless MiniPC IBOX-Core I3-4030U-NUC1

go topdo góry   menu… menu

Specifications


    Dimension





   H: 39 mm

   L: 111 mm

   W: 115 mm

   Weight    1,6 kg
   Processor
   Intel i3 Dual Core 4030U (2x 1,9GHz)
   Chipset
   Intel express chipset
   RAM Memory
   8GB DDR3
   Graphic Card
   Intel HD Graphics
   Sound Card
   Realtek ALC892
   WLAN
   Intel 82574L Gigabit 1000M Lan
   Connectors

   1x wyjście 12V DC_JACK

   3x USB 3.0

   1x RJ-45 LAN

   1x mini DP

   1x HDMI

   1x Audio

   WiFi

Industrial Computer Fanless MiniPC IBOX-Core I3-4030U-NUC1


Others: Colour Black/Silver
Chipset: Intel express chipset
CPU Support: -----
Installed CPU: Intel i3 Dual Core 4030U (2x1,9GHz)
Memory Support: 2GB DDR3 (can up to 8GB)
Installed Memory: 8GB DDR3
Graphic Card: Intel HD Graphics
Storage (HDD) Support: -----
Installed Storage (HDD): 128 GB SSD
CD/DVD Drive: -----
LAN: Intel 82583V 1000M Lan
Wireless LAN card: Yes
Bluetooth: -----
3G: -----
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0 ~ 255 sec
Front Panel (ports): 2x USB 3.0,
1x Audio,
Power ON/OFF
Rear Panel (ports): DC-IN 12V,
1x RJ-45 LAN,
1x mini DP
1x USB 3.0,
1x HDMI
Power: 12V
Supported OS: Microsoft Windows: 7/8/8.1/10, Linux
Installed OS: -----
Dimensions: 115 x 111 x 39 mm
Weight: 1.6 kg
Expansion: -----
Fanless: Yes
Humidity: 0 ~ 95%
Temp: -10 ~60℃
IP Norm: -----
Storage temperature: -10 ~ 60℃


CURRENT PRICE
1639.77 € Net
2016.92€ Gross
