Industrial Computer Fanless MiniPC Nuc IBOX-Nano-J1900 N2A v.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-komputer-fanless-minipc-nuc-ibox-nano-j1900-n2a-v.1-produkt-87155.html

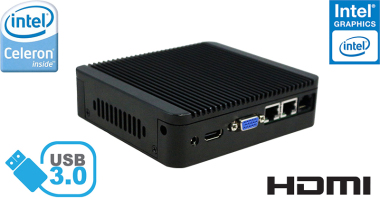

Industrial Computer Fanless MiniPC Nuc IBOX-Nano-J1900 N2A v.1

Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900




Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

IBOX-Nano-J1900 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimensions are 134 (W) x124 (L) x36 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.6 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB SSD.

Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900

go topdo góry   menu… menu


Communication & Connectors

Integrated card - Intel 1000M Lan RTL8111E and WiFi module allows connection to the network. The computer is equipped with: two LAN port, one RJ-45 COM port, one HDMI port, one VGA port, three USB 2.0 ports, one USB 3.0 port, one way audio, one input mic and a built-in connector on the motherboard: one NB connector, one Mini-SATA  connector, one SATA  port and one Mini-PCIE connector.

Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900

1. 3x USB 2.0
3. Audio/Mic
2. 1x USB 3.0
4. Power ON/OFF

Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900

1. DC-IN 12V
  5. 1x RJ-45 COM
2. 1x HDMI

3. 1x VGA

4. 2x RJ-45 LAN


Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900

Cooling

The industrial fanless MiniPC IBOX-Nano-J1900 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go topdo góry   menu… menu

Application

      Industrial MiniPC Series IBOX-Nano-J1900 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesIndustrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900

Dual dispaly

Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900



Areas of use of industrial MiniPC

Digital Engine

Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900
Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900

Magazine

Industrial fanless MiniPC IBOX-Nano-J1900 by four USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless IBOX-Nano-J1900 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900

Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900



Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900

go topdo góry   menu… menu

Specifications


    Dimension





   H: 36 mm

   L: 124 mm

   W: 134 mm

   Weight    1,6 kg
   Processor
   Intel Celeron Quad Core J1900 (4x 2GHz)
   Chipset
   Intel express chipset
   RAM Memory
   4GB DDR3
   Graphic Card
   Intel HD Graphics
   Sound Card
   Realtek ALC662
   WLAN
   Intel RTL8111E 1000M Lan
   Connectors

   1x RJ-45 COM

   1x wyjście 12V DC_JACK

   3x USB2.0

   1x USB3.0

   2x RJ-45 LAN

   1x wyjście Audio

   1x HDMI

   1x VGA

Industrial Computer Fanless MiniPC Nuc IBOX-Nano- J1900


Others: Colour Black
Chipset: Intel express chipset
CPU Support: -----
Installed CPU: Intel Celeron Quad Core J1900 (4x2GHz)
Memory Support: 2GB DDR3 (can up to 8GB)
Installed Memory: 4GB DDR3
Graphic Card: Intel HD Graphics
Storage (HDD) Support: -----
Installed Storage (HDD): 32 GB SSD
CD/DVD Drive: -----
LAN: Intel RTL8111E 1000M Lan
Wireless LAN card: Yes
Bluetooth: -----
3G: -----
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0 ~ 255 sec
Front Panel (ports): 1x USB 3.0,
3x USB 2.0,
Audio/Mic,
Power ON/OFF
Rear Panel (ports): DC-IN 12V,
1x HDMI,
1x VGA,
2x RJ-45 LAN,
1x RJ-45 COM
Power: 12V
Supported OS: Microsoft Windows: XP/Vista/7 , Linux
Installed OS: -----
Dimensions: 134 x 124 x 36 mm
Weight: 1.6 kg
Expansion: -----
Fanless: Yes
Humidity: 0 ~ 95%
Temp: -20 ~60℃
IP Norm: -----
Storage temperature: -20 ~ 60℃


CURRENT PRICE
975.34 € Net
1199.67€ Gross
