Industrial MiniPC mBOX-T5200U v.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-minipc-mbox-t5200u-v.1-produkt-87620.html

Industrial MiniPC mBOX-T5200U v.1

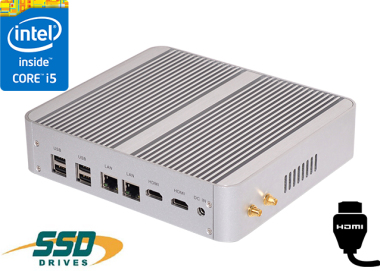

Industrial MiniPC mBOX-T5200U




Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

Industrial MiniPC mBOX-T5200U
is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimension are 240 (W) x180 (L) x45 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 3 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics 5500 video and audio Realtek ALC892 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB SSD or 500GB HDD.

Industrial MiniPC mBOX-T5200U

go topdo góry   menu… menu


Communication & Connectors

Integrated card - Intel RTL8111E 1000M allow connection to the network. The computer is equipped with: two LAN ports, four USB 2.0 ports, four USB 3.0 ports, one SPDIF input, two HDMI output, one SD card  reader, one way audio and one microphone input.


Industrial MiniPC mBOX-T5200U

1. Power ON/OFF
4. 1x SPDIF
2. 4x USB 3.0
5. 1x Mic
3. 1x SD card reader
6. 1x Audio



Industrial MiniPC mBOX-T5200U

1. 4x USB 2.0
4. DC-IN 12V
2. 2x RJ-45
5. 2x WiFi
3. 2x HDMI


Industrial MiniPC mBOX-T5200U

Cooling

The industrial fanless Industrial MiniPC mBOX-T5200U uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go topdo góry   menu… menu

Application

      Industrial MiniPC Series mBOX-T5200U are based on high-performance processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini cIndustrial MiniPC mBOX-T5200Uomputer to multimedia applications and industrial applications. The biggest advantages of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial MiniPC mBOX-T5200U


Areas of use of industrial MiniPC

Digital Engine

Industrial MiniPC mBOX-T5200U

Trade

Small, less computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Industrial MiniPC mBOX-T5200U
Industrial MiniPC mBOX-T5200U

Magazine

Industrial MiniPC mBOX-T5200U by to USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

Industrial MiniPC mBOX-T5200U can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial MiniPC mBOX-T5200U

Industrial MiniPC mBOX-T5200U



Industrial MiniPC mBOX-T5200U



Specifications


    Dimension





   H: 45 mm

   L: 180 mm

   W: 240 mm

   Weight    3kg
   Processor
   Intel i5 5200U (2x2,2GHz)
   Chipset
   Intel Chipset
   RAM Memory
   4GB DDR3L (DDR3L 1333/1600 MHz, 1.35V)
   Graphic Card
   Intel HD Graphics 5500
   Sound Card
   Realtek ALC892
   WLAN
   Intel RTL8111E 1000M Lan
   Connectors

   1x wyjście 12V DC_JACK

   4x USB 2.0

   4x USB 3.0

   2x RJ-45

   1x wyjście Audio

   1x SPDIF

   1x Mic

   2x HDMI

Industrial MiniPC mBOX-T5200U


Others: Colour Black/Silver, Aluminum
Chipset: Intel Chipset
CPU Support: -----
Installed CPU: Intel i5 5200U (2x2,2GHz)
Memory Support: 2GB DDR3L (can up to 16GB)
Installed Memory: 4GB DDR3L 1333/1600 MHz, 1.35V
Graphic Card: Intel HD Graphics 5500
Storage (HDD) Support: 2*MSATA SSD and 1* 2.5 inch SATA HDD
Installed Storage (HDD): 32GB SSD
CD/DVD Drive: -----
LAN: Intel RTL8111E 1000M Lan
Wireless LAN card: No
Bluetooth: No
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0~255 sec
Front Panel (ports): Power ON/OFF,
1x SPDIF,
4x USB 3.0,
1x SD Card Reader,
1x Mic,
1x Audio
Rear Panel (ports): DC-IN 12V,
2x HDMI,
4x USB 2.0,
2x RJ-45
Power: 12V
Supported OS: Microsoft Windows: 7/8/8.1, Linux
Installed OS: -----
Dimensions: 240 x 180 x45 mm
Weight: 3kg
Expansion: -----
Fanless: Yes
Humidity: 0 ~ 95%
Temp: 0 - 50 ℃
IP Norm: -----
Storage temperature: -15 - 70 ℃


CURRENT PRICE
1441.69 € Net
1773.28€ Gross
