Industrial Control Panel HMI N5030LI
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-panel-sterowniczy-hmi-n5030li-produkt-89505.html

Industrial Control Panel HMI N5030LI

Panel sterowniczy HMI Panel operatorski Windows CE Modbus

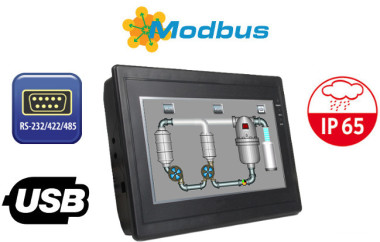

Industrial operator panels also known as control panels are devices that control other electronical devices using convenient and intuitive touch interface. Thanks to its robust design, these devices are suitable for use even in harsh environments. Model N5030LI has a IP65 standard which classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures.



up… do góry   menu… menu

Processor 400MHz RISC
Screen 7" (800x480), Resistive
RAM 64MB
Flash memory 128MB
Connectors USB 2.0 Host | USB 2.0 Client | RS232/422/485
System operacyjny Windows CE 7.0 | Linux | WECON OS (Manufacturer's dedicated system)
Dimensions 201mm x 146.6mm x 36.5mm
Weight ~600g
Protection IP65 (Front panel)
PLC Protocols Standard | Modbus

Check "Available versions" tab to see available configurations of this device. To get more information about this product click "Ask about the product" or use the Contact form.

up… do góry   menu… menu

operator panel control panel hmi panel modbus com usb

Multitasking OS

HMI can be equipped with a Windows CE, Linux or WECON operating system, which ensures maximum efficiency of the device and easily copes with multiple processes simultaneously. Convenient interface makes the operator panels as much intuitive as possible.

Efficient processor

An important advantage of the HMI N5030LI is a powerful combination of small size with considerable capabilities through the use of the processor  with 600MHz clock speed, which, combined with 64MB of RAM gives us a powerful, multi-purpose, quality device for a low price.

Small size

HMI N5030LI is equipped with a 7 inch screen and the overall size of its design is only 201mm x 147mm x 36.5mm, with a cutout size of 192mm x 138mm and its weight is only 600 grams. With such a small size it can be used in even if there is not much available space. In addition, HMI has the possiblility to mount it on a wall for the greatest convenience and ease of access.

Solid construction

HMI enclosure is made from a specialized blend of ABS providing a very high resistance to mechanical damage. With this construction it is ready for use even in extreme conditions such as heat, cold or vibration at any time. In addition, the front panel of the device has IP65 international standard, which confirms the water resistance and a complete protection against dust.

Low power consumption

Using the latest technology, HMI N5030LI is designed for continuous operation with low power consumption of less than 5W at 24V.





up… do góry   menu… menu

IP65 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.



No protection 0 0 No protection
Protection against any large surface of the body, such as the back of a hand 1 1 Protection against vertically dripping water
Protection from object > 12mm, e.g. Fingers or similar objects 2 2 Protection against vertically dripping water when device is tilted at an angle up to 15 degrees
Protection from object > 2.5mm, e.g tools, thick wires, etc. 3 3 Protection against direct sprays of water when device is tilted at an angle up to 60 degrees
Protection from object > 1mm, e.g. most wires, slender screws, large ants etc. 4 4 Protection from sprays and splashing of water in all directions
Dust protected - Ingress of dust is almost entirely prevented. 5 5 Protection from low pressure water projected from a nozzle with a 6.3mm diameter opening in any direction
Dust tight - No ingress of dust, complete protection against contact. 6 6 Protection from water projected in powerful jets from a nozzle with a 12.5mm diameter opening in any direction
7 7 Protected from immersion in water with a depth of up to 1 meter (or 3.2ft) for up to 30 mins
8 8 Protected from immersion in water with a depth of more than 1 meter

Work temperature -10℃ - 60℃
Storage temperature -30℃ - 70℃
Humidity 10% - 90%
Dust resistance (Front panel) IP6x
Water resistance (Front panel) IPx5

up… do góry   menu… menu



Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".



SUPPORT FOR INDIVIDUAL OPERATING SYSTEMS

  wecon os
Development tool LEVI Studio
Cost Free
System tool Display adjust
Communication parameters configuration
Documentation Yes
Technical support Professional support for hardware and software development
Default screen WECON factory sceen



  Windows ce 7.0
Development tool Visual Studio .NET
Cost Free (not licensed) / Paid (licensed)
System tool CETOOL tool
Documentation Microsoft documentation
Technical support Driver developmnet only
Default screen Windows CE 7.0 desktop



  linux
Development tool Qt
Cost Free
System tool No
Dokumentacja No
Technical support Driver developmnet only
Default screen Standard Linux command line





up… do góry   menu… menu


operator panel control panel hmi panel modbus com usb




Modbus

Modbus is a serial communications protocol initially for use with programmable logic controllers (PLCs). Simple and robust, it has since become a standard communication protocol, and it is now a commonly available means of connecting industrial electronic devices. Modbus enables communication among many devices connected to the same network, for example a system that measures temperature and humidity and communicates the results to a computer. Modbus is often used to connect a supervisory computer with a remote terminal unit (RTU) in supervisory control and data acquisition (SCADA) systems.



Connectors:


Connector type Quantity
USB 2.0 Host 1
USB 2.0 Client 1
COM 1
DC 24V 1





COM ports:



Numer portu supported protocols
COM1 RS232/RS422/RS485





PLC

PLC is a universal microprocessor device designed to control the operation of the machine or technological equipment. PLC must be adapted to the HMI device by introducing into its memory the desired algorithm for operation of the plant. A characteristic feature of the PLC controller distinguishes this from other drivers computer is cyclic circulation of program memory. The algorithm is stored in a dedicated controller programming language. You can change the algorithm by changing the contents of program memory. The driver provided with a suitable number of input circuits gathering information on the object status and requests service and the appropriate number and type of output devices connected to the actuators, signaling or data.



PLC is not included in the standard equipment - it must be purchased separately.





up… do góry   menu… menu

operator panel control panel hmi panel modbus com usb



Smart Home



Thanks to its transparent and intuitive touch interface, the HMI device can be easily adapted to the Smart Home, this solution allows you to control functions such as music, heating and air conditioning, from one place. The ideal device for people who like to have everything at your fingertips.



operator panel control panel hmi panel modbus com usb



Warehouse



Industrial HMI operator panel can be used to connect multiple devices in the warehouse and make them easier to control. And its robust design is perfectly designed for the harsh conditions prevailing in these areas. Dust or dirt will not prevent this device from working, it will work flawlessly even in polluted environments.

operator panel control panel hmi panel modbus com usb



Industry



Thanks to the ease with which the operator panel HMI can be customized for specific tasks, it's widely used escpecially in industry. Thanks to its functionality and mediation between machines and man, HMI is the center management processes, giving you the ability to control devices and to respond to specific situations.



You can find more photos of this device in Gallery. Specification of the given version is available in the Technical data tab.

Color: Gray
Processor: 400MHz RISC
Communication protocols: Modbus
ROM: 128MB
RAM: 64MB DDRAM
Screen size: 7"
Resolution: 800x480px
Touchscreen: 4-wire resistive
Graphic Card: -----
LAN: No
Bluetooth: No
Wi-Fi: No
Power: 24V
Supported OS: Windows CE 7.0 / Linux / WECON OS (Dedicated)
Installed OS: -----
Dimensions: 201mm x 146.6mm x 36.5mm
Weight: ~600g
Expansion: -----
Connectors: 1x USB 2.0 Host
1x USB 2.0 Client
COM1: RS232/422/485
Fanless: Yes
Humidity: 10% - 90%
Temp: -20°C - 60°C
Storage Temp: -20°C - 70°C
IP Norm: IP65 (front panel)
Contrast Ratio: 500:1
Brightness: 300cd/m²
Color Resolution: 65536
Housing material: ABS
Power Consumption: Less than 5W
Others: -----
PLC: No
Digital I/O (PLC): -----
Analog I/O (PLC): -----
Output type (PLC): -----
COM port (PLC): -----
Temperature sensor (PLC):


CURRENT PRICE
646.95 € Net
795.75€ Gross
