« Back    Home / Industrial Panel PC / Archives

Industial PanelPC D-SYS 17 v.6

Industial PanelPC D-SYS 17 v.6

Data update: 2015-07-23

guarantee 2 years

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated



Compare all versions



DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3

Industrial Panel PC

Industrial Panel PC are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation.

Description


DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3

DNSYS

Industial PanelPC D-SYS 17v.6






DNSYS

DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3

CPU: Intel® Core™ i7-3770 (8M Cache, 4 x 3.40 GHz)


Memory: 2GB RAM


Disk: 64 GB SSD /  500 GB HDD (optoin)


System: Windows 8 / Windows 7


Screen: 17" / 1280x1024 / 4:3 / 5 - Wire Resistive



Expansion cards:
1 x PCIe x16, 1 x mini-PCIe



Detailed specification of the configuration available in the "Technical data"


Using the latest technology Panel PC is designed for continuous multitasking operating with low power consumption (80 W). An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Core i5 processor family, Intel chipsets and DDR2 memory. Integrated Intel®HD Graphics video graphics card and audio Realtek ALC109 allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB SSD to 512GB SSD (320GB to 1TB HDD option).

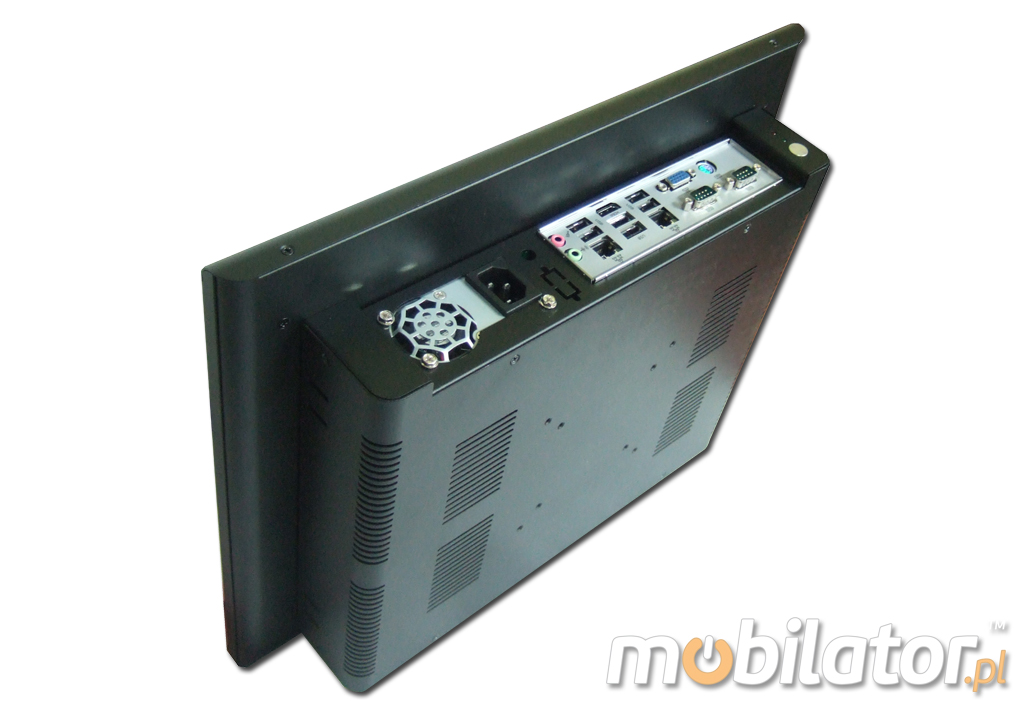

Dimensions:

Housing dimension are 400.7 (W) x 333.1 (L) x 88 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 7 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3

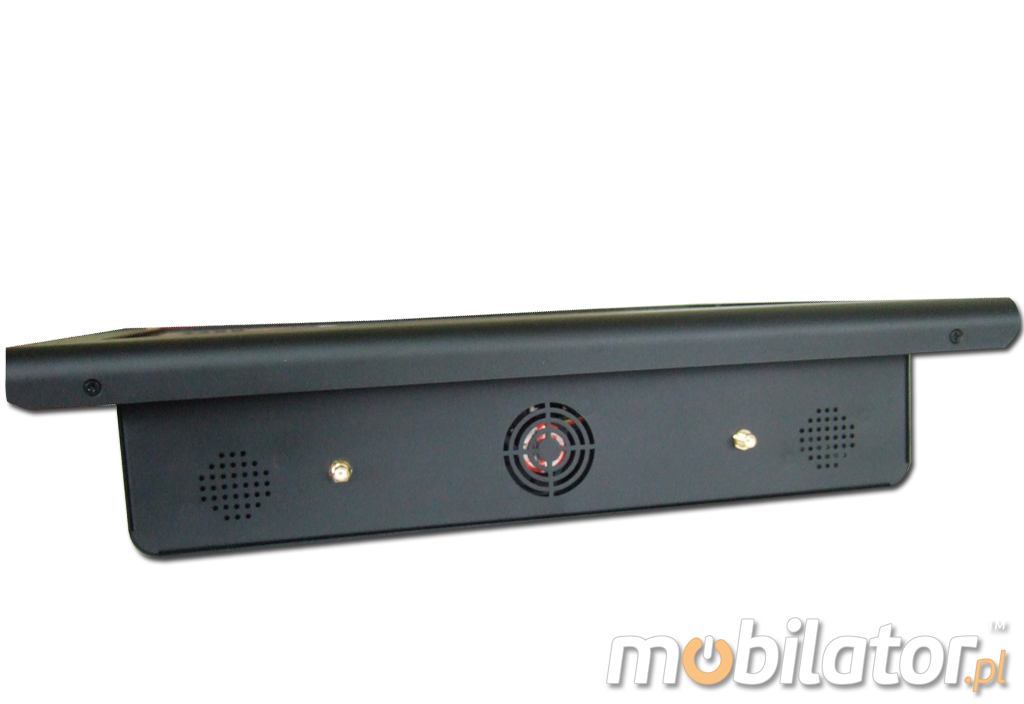

Cooling:

Industial PanelPC D-SYS 17  is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3

The computer panel DNSYS 17 uses a proven method of cooling. It takes place mainly through the fan mounted inside the enclosure. Making industrial Panel PC is faster and more efficiently cooled.
go top… do góry   menu… menu

Communication & Connections

Communication:

Industial PanelPC D-SYS 17 optional has a system of wireless Wi-Fi communication.

DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3

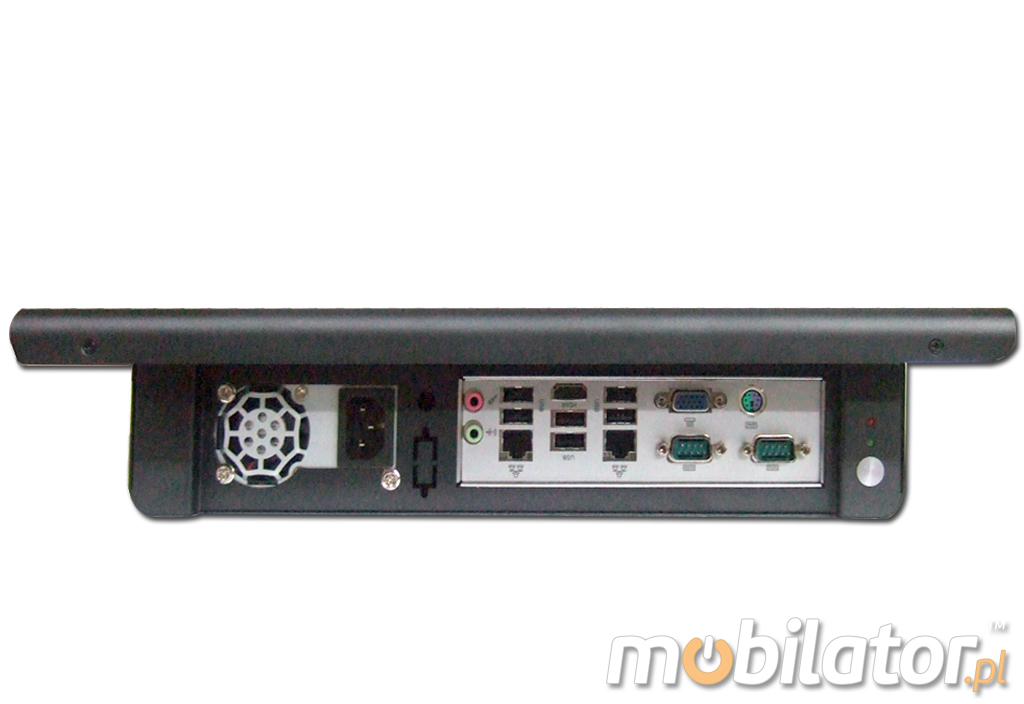

Connector:

Integrated GbE LAN1 NIC: Intel 82583V, LAN2: Intel 82579V, WIFI (optional) allows you to connect the device to the network. The computer is equipped with: two LAN connector, two COM ports (RS232), one VGA output, one HDMI output, six USB 2.0 ports, one audio input, one microphone, one PS2 port and power connector.
Additionally, the panel can be equipped with three COM connectors and one parallel port.

DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3

1. DC-in 5. HDMI
9. 2xRS232
2. Mic 6. 6 x USB 2.0 10. Power ON/OFF
3. Audio
7. VGA

4. 2x RJ45
8. PS2

DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3

Screen

Industial PanelPC D-SYS 17 has a water-resistant front panel and scratch resistant LCD screen. With 1280x1024 resolution and high brightness of 350 cd/m2, screen of "5 wire resistive" type with high sensitivity to touch, offers the user a clear picture and ease of use.

DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3



Resistive screen

A resistive touchscreen comprises of several layers, out of which the flexible plastic and glass layers are two important electrically resistive layers. The front surface of resistive touchscreen panel is a scratch-resistant plastic with coating of a conductive material (mostly Indium Tin Oxide, ITO), printed underside.  The second important layer is either made of glass or hard plastic and is also coated with ITO.  Both the layers face each other and are separated with a thin gap in between. An electrical resistance is created between both the layers in such a way that charge runs from top to bottom in one layer and side-to-side in another.  When a finger or stylus tip presses down on the outer surface, both the ITO films meet. It is the measure of the resistance of both the layers at point of contact, which leads to get an accurate measurement of the touch position. The accuracy also relies on the evenness of the coating of ITO on both the layers.

DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3
Resistive screen ensures good visibility, which falls quite firmly in the sun. This type of screen as opposed to a capacitive screen, allows you to use handwriting (stylus comes in handy here).

5-WIRE RESISTIVE SCREENS

The 5-wire Resistive Touch Screen is the preferred solution for applications requiring durability and reliability. Similar to the 4-wire technology, the 5-wire touch screen also consists of a conductive glass bottom layer and conductive top film layer. The fundamental difference between the two is, in the 5-wire construction, all the electrodes are on the bottom layer and the top layer acts as a voltage-measuring probe. With this structure, the touch screen may still work properly even when the top layer is slightly scratched or damaged. The result is an accurate, durable and reliable touch screen that offers a higher touch life.

Resistive screens are very durable and can be used in a variety of environments. This type of screen is recommended for demanding point-of-sale systems, restaurant systems, industrial controls, and other workplace applications.

Application

Industial PanelPC D-SYS 17 is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial front panel and aluminum housing protects the display from the outside against mechanical damage, drops of water, sand and dust. DNSYS 17 is the best solution for extreme applications in dust or moisture.

DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3

 Operating Temp
0-50 °C
 Operating Humidity 85 % RH

DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3

Industrial Panel PCs with DNSYS companies are based on the efficient two-core processors and high-quality components.

Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3

Areas of use of industrial panel computers.

DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3

Trade

Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register),  factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.

DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3
DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3

Magazine

Industrial Panel PC through COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas.  Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

 Transport & Automotive

Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 12V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3

DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3

go top… do góry   menu… menu

Versions


                                     v. 1
v. 2
 v. 3  v. 4  v. 5  v. 6  v. 7 v. 8
Wi-Fi - - -
Intel® Core™ i3-3240
- - - - - -
Intel® Core™ i5-3470
- - - - -
Intel® Core™ i7-3770
- - - - -
RAM: 2 GB
- - - - -
RAM: 4 GB - - -
500 GB HDD / 64 GB SSD
- -
128 GB SSD
- - - - - -

go top… do góry   menu… menu

Specifications


   Display

   Screen: 17"

   Resolution: 1280 x 1024

   Type: 5 - Wire Resistive
   Resistance IP

   none

   Communication

   Wi-FI (option)

   Dimensions





   Height:  333.1 mm

   Width: 88 mm

   Length: 400.7 mm

   Weight    7 kg
   Processor    Intel® Core™ i7-3770 (8M Cache, 4 x 3.40 GHz)
   Chipset
   Intel®H61 Chipset
   Memory RAM
   2GB (optional up to 16GB)
   Graphics Card
   Intel® HD Graphics
   Sound Card

   Realtek ALC109

   Option:

    2 x speakers

   Network Card
   GbE LAN1:Intel 82583V, LAN2: Intel 82579V
   Ports & interfaces

   6 x USB 2.0

   2 x RJ-45,

   2 x COM (RS-232)

   1 x VGA,

   1 x HDMI,

   1 x Mic-in

   1 x Line-out

   Option:

   3 x COM

   1 x parallel connector
DNSYS Industrial Przemys³owy PanelPC D-SYS 17  Komputer panelowy Panel PC  Przemys³owy komputer panelowy wy¶wietlacz 17 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Core i3
