Dust-proof industrial tablet Emdoor I86H 4G - Win 10 PRO
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/pyloszczelny-wstrzasoodporny-tablet-przemyslowy-emdoor-i86h-4g--win-10-pro-produkt-89834.html

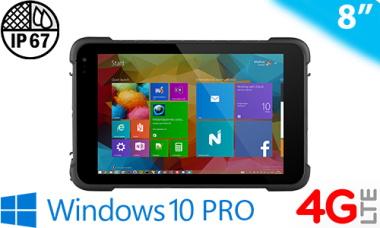

Dust-proof industrial tablet Emdoor I86H 4G - Win 10 PRO

Dust-proof industrial tablet Emdoor I86H Standard

Emdoor I86H dustproof industrial tablet is a new 8 inch tablet that works with Windows 10 Home or Professional. The tablet has a specially designed, reinforced construction, adapted to work in harsh environmental conditions, such as in production halls where there is a lot of dust. The machine is ideally suited not only for typical industrial conditions but also for wide application in normal home environments.



Descrition

Dust-proof industrial tablet Emdoor I86H Standard

The EMDOOR I86H industrial tablet is powered by the latest Intel® Atom™ Z8350/Z8300 quad-core processor, which delivers superior performance, low power consumption and long battery life. The processor makes the device run very smoothly and without problems it is done in everyday work. The tablet works with the Windows® 10 operating system to meet the growing demands of industrial and more.

 Processor  Intel® Atom™ Processor Z8300 (QUAD CORE 1.44GHz)
 Graphics  Intel HD Graphic (Gen7)
 Display  8” (1280*800)
Display Type  LED | IPS | Gorilla  Glass 3 | Capacitive (10-point)
 LEDs  Power
 Brightness  320nits
 RAM  4GB DDR3L
 ROM  64GB eMMc
 Connectors  mini HDMI 1.4a | Czytnik Micro-SD | USB 2.0 | micro USB | Docking | DC In
 GPS  u-Blox NEO-7 (GLONASS+QZSS+GPS)
 Audio  Built-in microphone | 1x - 0.8W / 8Ω speaker | Audio Jack
 Camera  Front: 2Mpx
   Back: 5Mpx
 Battery  Lithium-Polymer 3.7V 8500mAh
 Keyboard  Onscreen | Function buttons
   Volume + | Volume - | Power | Function (scanner)
 System (factory)  Windows 10 Pro with Bing
 System (optional)  Windows 10 home with Bing
 Modules (factory)  802.11 a/b/g/n | Bluetooth 4.0 (LE) | GSM/3G | GPS
  4G LTE
 Weight and dimensions  225*143*16,5mm - 750g
 Resistance  IP67
 Readers (optional)  NFC | 1D Scanner | 1D/2D Scanner
 Sensors (factory)  G-Sensor
 Warranty  12 months
Check the "Available Versions" tab for the version of your device. For additional information on the device, click on "Ask a product" or go to the contact form.

Dust-proof industrial tablet Emdoor I86H Standard

Choose a version that suits your needs

Choose the version that fits your needs and needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters listed below. Any additional configuration is valued at customer's request. Detailed parameters are available in the "Technical Data" tab.

Dust-proof industrial tablet Emdoor I86H Standard

[tab_wersja_id_15]

up… do góry menu… menu

Barcode scanners and NFC reader

Barcode reader (optional)

A bar code reader enables you to read, decode and send data to a computer written in a bar code. With dynamic scanning capabilities and a large reading range, the data collector gets the data accurately, helping to increase speed and productivity. You can quickly launch the scanner because of the simplified installation procedure and intuitive, convenient construction of the scanner to work is very easy.



  scanner 1D scanner 2D motorola
 Model scanner Motorola SE655 Motorola SE4710
 Scanner type 1D 1D/2D
 Type of matrix CCD CMOS

Dust-proof industrial tablet Emdoor I86H Standard

NFC (optional)

Near-field communication is a technology used to communicate between devices and to read information from special tags that are attached to items by radio. Depending on the type of tag, the amount of information that it can store as well as the maximum distance from which data can be read varies.

  NFC
Frequency 13.56 MHz
Reading distance up to 4 cm
Supported standards  ISO14443

Dust-proof industrial tablet Emdoor I86H Standard nfc sim 3g



Dust-proof industrial tablet Emdoor I86H Standard

up… do góry menu… menu

Resistance and strength

The standard of resistance, that is the strength of the tablet

EMDOOR I86H is designed for use in a variety of environments. Resistance to shocks, vibrations, falls and work over a wide temperature range makes the tablet able to be used in both industrial and military environments. IP67 is fully water and dust resistant. The enclosure can be cleaned with water to reduce the spread of infection. for medical use.

Dust-proof industrial tablet Emdoor I86H Standard IP67

 Working temperature -20°C -- +60°C
 Tempetarure of rest -30C -- +70°C
 Dust IP6x
 Water IPx7
 Humidity 95% non-condensig
 Drop 1.2m throughout the temperature range



MIL-STD-810G

Robustness is one of the most important factors to consider when choosing a mobile solution, so EMDOOR ensures that its fully durable devices work even after falling to concrete or used in harsh environmental conditions such as heat and cold, dust and rain. The rigorous testing that passes the EMDOOR products ensures that our customers receive products that meet the highest standards of durability and reliability. EMDOOR guarantees compliance with the most stringent standard in the field - MIL-STD 810G according to which its products are tested. This standard, established by the US military, is the most widely used international standard.

MIL-STD 810G
covers a wide range of tests used to measure equipment reliability:

Hight temperature: MIL-STD 810G Metoda 501.5

This procedure determines the computer performance test during exposure at high temperatures. This test differs from the standard tests in that the performance of the computer is judged under elevated ambient temperatures.

Low Temperature: MIL-STD 810G Metoda 502.5
This procedure determines the computer performance test during exposure at low temperatures. Such tests differ from standard tests in that the performance of the computer is judged under low ambient temperatures.

Temperature change: MIL-STD 810G Metoda 503.5

Testing for temperature changes is to determine if the computer components can withstand the sudden changes in the surrounding temperature and do not cause any damage or deterioration.

There are two objectives in this study: whether the tested object can still be safely operated and meets operational requirements when exposed to sudden changes in ambient temperature.

Rain: MIL-STD 810G Metoda 506.5

Rainfall testing is conducted to determine rain and wind resistance.

Drop: MIL-STD 810G Metoda 516.6

Free fall tests (shocks) are performed to ensure that the equipment is able to withstand relatively rare, non-repeated shocks and vibrations occurring during loading, transport and collisions.

The standard test requires 26 falls from 1.2 m (4 ft) per plywood.



 Shock 10Hz - 500Hz
 Drop 1.2m

Rugged battery ensures long-term operation

The high quality Lithium-Polymer battery provides a very long operating time under severe temperature conditions. With the EMDOOR I86H you can work outdoors at temperatures as low as -20 ° C and in temperatures up to 60 ° C.

up… do góry menu… menu

Dust-proof industrial tablet Emdoor I86H Standard windows 10

Resistance - IP67

IP classes are the classification of the different degrees of protection of electrical equipment that are provided by the enclosures of these devices in accordance with PN-92 / E-08106. The number after the "IP" is actually two digits. The first means protection against the access of people and animals to dangerous parts and protection against pollution, such as dust. It is mainly about the access of foreign objects to the interior of the device. The second digit is the degree of protection against water.

Total dust protection.
6

7

Water can not penetrate
device if it is
immersed with consideration
time and pressure conditions (up to 1m).

up… do góry menu… menu

Modues and wireless networks

Dust-proof industrial tablet Emdoor I86H Standard windows 10 home pro

With the 4G module it is enough that the user inserts the SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and configure connections to mobile networks. In addition, the internal 4G module adapts automatically to the transfer and network coverage. Built-in speaker and microphone for voice calls.

 WIFI  802.11 a/b/g/n
 GPS u-Blox NEO-7 (GLONASS+QZSS+GPS)
 Bluetooth  Bluetooth 4.0 (LE)
 3G GSM/WCDMA (850 / 900 / 1900 / 2100 MHz)
 4G LTE (LTE FDD/LTE | TDD/WCDMA/TD-SCDMA/GSM)

Dust-proof industrial tablet Emdoor I86H Standard connectors

up… do góry menu… menu

Functionality

Dust-proof industrial tablet Emdoor I86H Standard

Access to real-time information is very important for mobile users. The EMDOOR I86H offers a number of modules (3G, 4G LTE, GPS, WiFi, Bluetooth) that allow users to connect in the way that best suits their needs. With a built-in rear 5 megapixel camera, users can take high quality pictures and videos. The I86H can also use a front 2-megapixel camera for video and video recording.

Dust-proof industrial tablet Emdoor I86H Standard camera 5 mpx

 Size 228 x 145 x 16.5mm
 Weight 750g



Dust-proof industrial tablet Emdoor I86H Standard

up… do góry menu… menu

Optional accessories

The following table lists all the accessories that the manufacturer offers: I86H. Accessories are only available when ordering with the device.

Additional charger* Stylus


ładowarka Emdoor I16H ładowanie szybkie wygodne mobilator.pl



rysik pojemnościowy Emdoor I16H precyzja wygoda komfort mobilator.pl pojemniościowy

Wrist grip Car charger


Emdoor I16H uchwyt na nadgarstek wygoda komfort mobilator.pl

ładowarka do samochodu Emdoor I16H wygoda  samochód praca w samochodzie



Car holder (short) Car holder (long)

krótki uchwyt samochodowy Emdoor I16H wygoda  samochód praca w samochodzie

Emdoor I16h uchwyt samochodowy długi mobilator.pl wygoda praca w samochodzie

Docking station

stacja dokowania Emdoor I16H ładowanie wygoda nowoczesny mobilator.pl



Dust-proof industrial tablet Emdoor I86H Standard



up… do góry menu… menu


more photos in the "Gallery"...

the specification of the version is available in the tab "Technical data" ...


Durability: IP67
Humidity: 95% non-condensing
Waterproof: IPX7
Weight:
Temperature: Operating: -20°C -- +60°C
Storage temperature: -30°C -- +70°C
MIL-STD-810G
Shock: MIL-STD-810G
Vibration: MIL-STD-810G
Drop: 1.2m - the entire temperature range
MIL-STD-810G
Sand and dust: IP6X
1D barcode scanner (reader): -----
2D barcode scanner (reader): -----
RFID scanner (reader): -----
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: Yes - (12pin) Pogo Pin
VESA standard – holders and mounts support: No
COM port: No
Dispaly: 8” (1280*800) 16:10
LED | IPS
Brightness: 320nits
Contrast: -----
Touch screen: Yes - capacitive
Graphics card: Intel HD Graphic (Gen7)
Swivel Hinge: -----
VGA out: -----
TV Out: -----
TV Tuner: -----
Processor: Intel® Atom™ Processor Z8350 (QUAD CORE 1.44 - 1.92GHz)
Chipset: -----
BIOS: -----
Memory: 4GB DDR3L
Hard Drive: 64GB eMMc
Flash Memory:
Battery: Li-Poly 3.7V 8500mAh
Working time on battery: 7-9 hours (depending on usage)
8hrs(default 50% volumn,default 200 nit brightness,play 1080P HD Video)
HotSwap battery: No
Fast battery replacement ability: No
Size: 228 x 147 x 16.5mm
750g
Casing material: -----
Fanless casing: Yes
Operating System: Windows 10 Pro with Bing (factory)
Windows 10 Home (optional)
LAN: -----
WLAN: 802.11 a/b/g/n
Bluetooth: Bluetooth 4.0 (LE)
WAN: GSM/WCDMA (850 / 900 / 1900 / 2100 MHz) HSUPA
4G (LTE FDD/LTE | TDD/WCDMA/TD-SCDMA/GSM)
GPS: u-Blox NEO-7 (GLONASS+QZSS+GPS)
Unicorecomm UM220-III (GPS+Beidou) - (optional)
Flash Card Reader: Micro-SD Card Reader (wsparcie SDHC/SDXC)
max. 128GB
CD/DVD: -----
Camera: FRONT: 2Mpx
REAR: 5Mpx
Audio: Built-in Microphone | 1x - speaker 0.8W/8Ω | Audio Jack
Seciurity: IP67
In/Out: 1x - mini HDMI 1.4a (type C)
1x - Micro-SD Reader
1x - USB 2.0
1x - micro USB (OTG)
1x - Docking port - (12pin) Pogo Pin
1x - Audio Jack
DC In
Keyboard: on-Screen | Function keys
Volume + | Volume - | Power | Home | Functional (Barcode Trigger)
Additional Navigation Devices : -----
Color: -----
Optional accessories: Docking Station
1x - Charging port (device)1x - RJ45
1x - DC In

Wrist Strap
Other: G-Sensor


CURRENT PRICE
2768.32 € Net
3405.03€ Gross
