QBOX-15BO0R v.3 (IP68) - 15 inch, shockproof military industrial panel - SSD extension

Data update: 2020-07-06

guarantee 1 year

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
14 - 20 workdays
CURRENT PRICE
1234.96
Net
1519.00
Gross
Znak akceptacji płatno?ci pl



Compare all versions





Porównaj wszystkie wersje

industrial panel pc durable resistant monitor lcd screen ip68








Industrial PC panels are integrated devices consisting of a PC computer and a touch monitor. Due to their design, they can work even under severe conditions prevailing in industrial environments, such as high humidity, high dustiness, contact with water or very low or high temperatures. These panels are characterized by high efficiency and stability of operation in all conditions.






Wodoodporny
The IPX8 Protection against complete, continuous submersion in water.


Dustproof
The dustproof IP6X standard on the front panel protects the panel against dust and access to hazardous parts.





Efficient
The dual-core Intel core i3 processor supported by 4GB of RAM improves the device's performance.
Bright Screen
The display with 300cd/ m² brightness makes the picture much more vivid and better readable when used outside in the sun.






Wireless network
The panel can be connected to nearby wireless networks by equipping it with an optional Wi-Fi module.
Resistive screen
The resistive screen allows you to freely use the touch screen of the PC panel in gloves or with a stylus.






up… do góry   menu… menu



Specifications and parameters








Performance
Processor Intel Core I3-6100 (2x 2.3 GHz)
Graphics card Intel HD Graphics 520
Operating system Windows 7/8/10/CE | Linux
RAM 4GB DDR4
Drive 128GB SSD
Display
Screen 15" (1024x768)
Touch screen Resistive
Brightness 300cd/m²
Contrast 1000:1
View angle 85/85/85/85
Hardness 3H
Interfaces
Communication Wi-Fi | 4G*
Connectors

 RJ45 | 2x USB 2.0| 1x USB 3.0 | 1xRS232 | DC 12V

1xVGA

Memory card No
SIM card No
Other
Protection IP68
Dimensions 360mm x 283mm x 50mm
Weight 7kg


* Optional equipment, available only in specific versions of the device.



Detailed device specification is available in the "Technical data" tab.





The dust-proof industrial PC panel uses an efficient and energy-saving Intel Corer i3 6100 processor. In its interior there are two cooperating cores enabling more efficient processing of many tasks at the same time. Shared cache memory in which a multi-level hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory. Improved graphics card technology allows you to enjoy movies at full resolution and HD quality

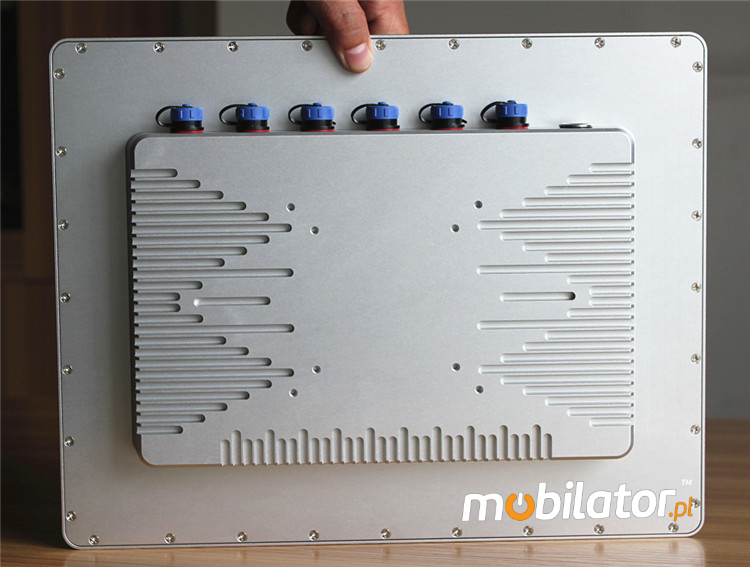

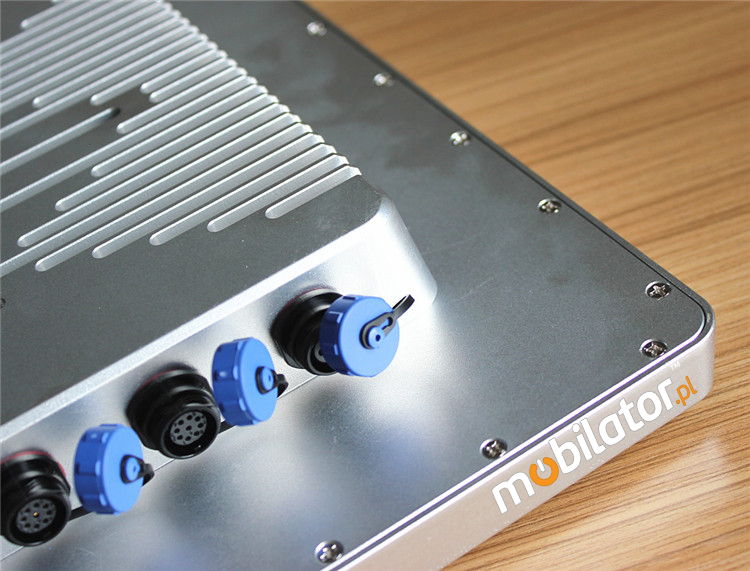

Reinforced 15-inch waterproof (IP68) computer (panel) for industry



More photos in full resolution available in the "Gallery" tab.





up… do góry   menu… menu



Display and touch





Amplified, waterproof industrial computer QBOX-15BO0R-15BO0R has a water-resistant and scratch-proof 15" LED screen 1024x768 resolution offers good image quality, and high brightness in the 300 cd/m² range gives better color saturation and contrast and allows significantly improved visibility even in the case of incident The display of the resistive type provides the user with a clear image and ease of use by touch.






Resistive Screen






In the resistive screen, the sensitive surface is made of two plastic plates. The plate on the surface is made of thin and scratch-resistant plastic. It is also covered with a thin layer of conductive materials placed on the bottom of the screen. Under the top glass (i.e. below the conductive material) is a second plastic plate. Both tiles have no contact with each other until the user of the device has pressed the screen with a finger or stylus. Then there is contact between slightly separated screens. As a result of their contact, a short-circuit is created, which by measuring the vertical and horizontal resistance is converted into data indicating the processor's contact point.





up… do góry   menu… menu



Resistance and protection








PROTECTION STANDARD IP68

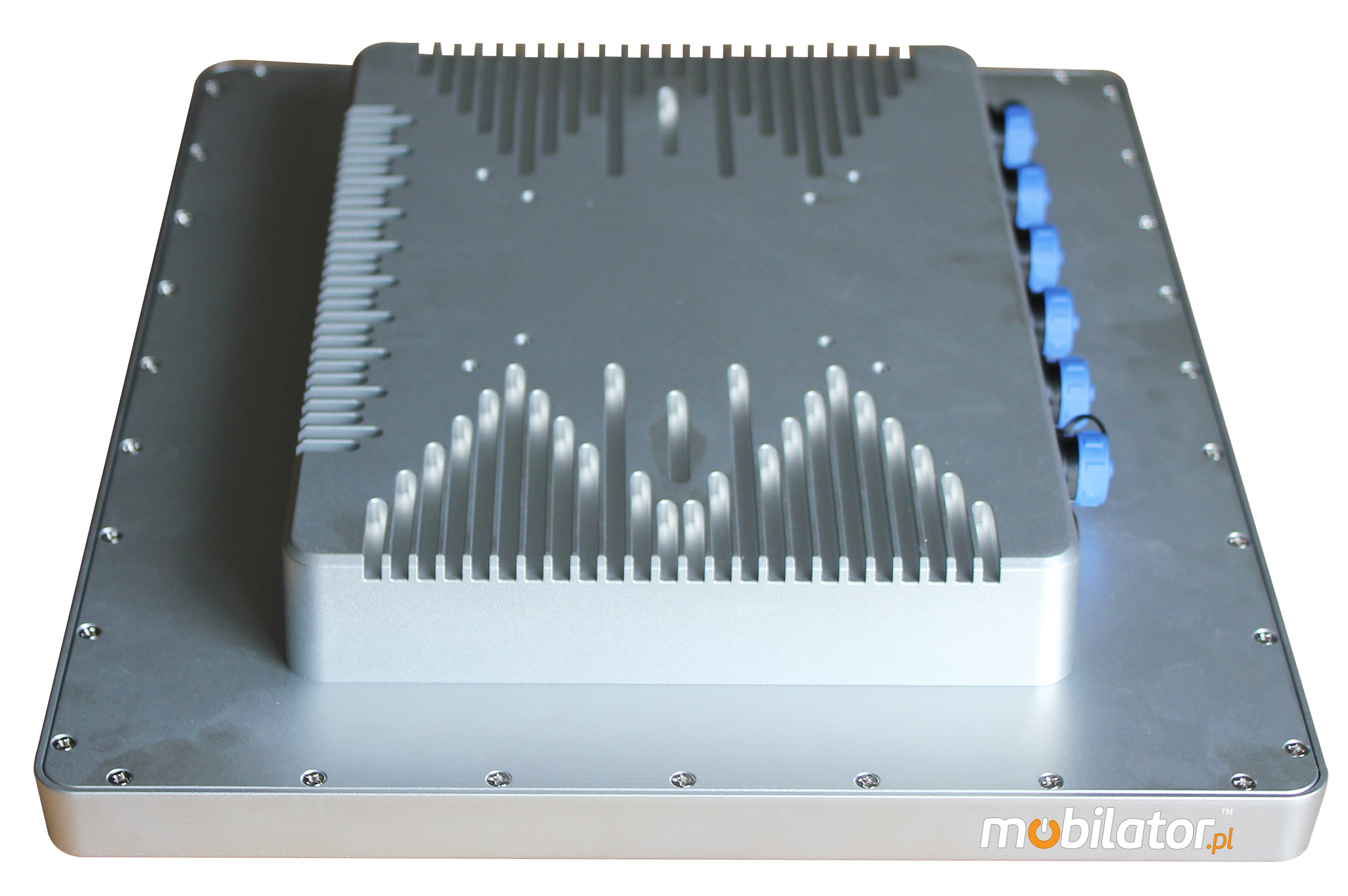

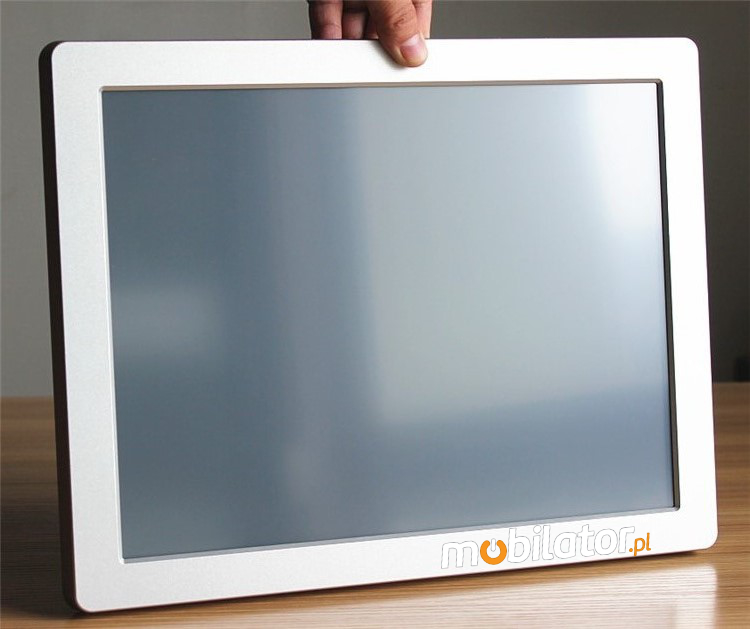

Reinforced 15-inch waterproof (IP68) computer (panel) for industry



IP norm (International Protection Rating) determines the degree of protection provided by the housing of an electrical device against such factors as: access to dangerous parts inside the housing, penetration of foreign solids and splashing or immersion. The first characteristic number means that the housing protects people against access to dangerous parts located inside the device, and at the same time provides protection against penetration of foreign solids. The second characteristic digit means that the housing provides protection against the effects of water penetration.





IP6X Protection against access to dangerous parts with wire.
Dustproof protection.
IPX8 Protection against complete, continuous submersion in water.









EXtreme temperatures

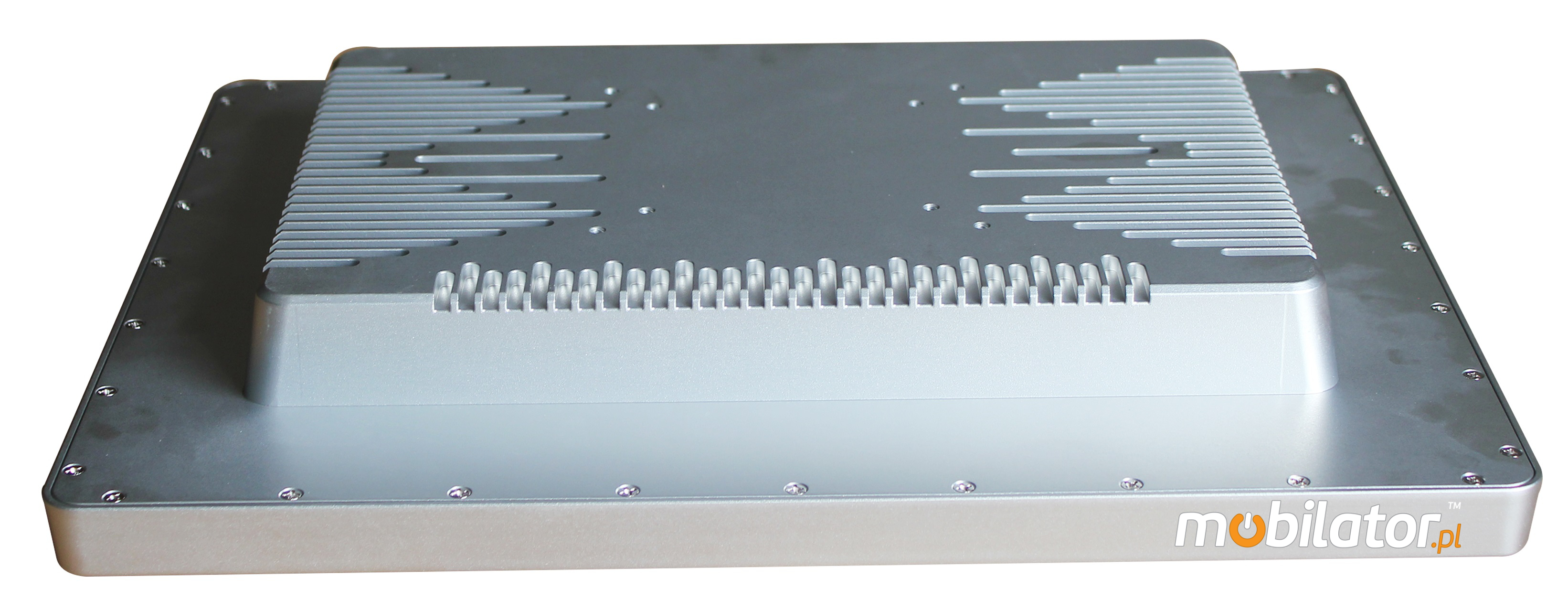

Reinforced 15-inch waterproof (IP68) computer (panel) for industry

PanelPC QBOX-15BO0R is adapted for continuous operation in both very low and high temperatures in the range from 0 ° C to 60 ° C. If the device is switched off, it can already handle temperatures between -20 ° C and 80 ° C. In addition, the durable PanelPC is perfect for rooms with increased humidity, ensuring proper functioning even in the case of 95% relative humidity.





Work temp. 0°C do 60°C
Storage temp. -20°C do 80°C
Humidity 10% - 95%





up… do góry   menu… menu



Komunikacja i złącza








WIreless Wi-Fi network






The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. The shockproof industrial panel QBOX-15BO0R has been equipped with standards - 802.11n, which allows transfer of files at a dizzying speed of up to 150 Mb/s.





Standards 802.11a/b/g/n
Frequencies 2.4GHz | 5GHz

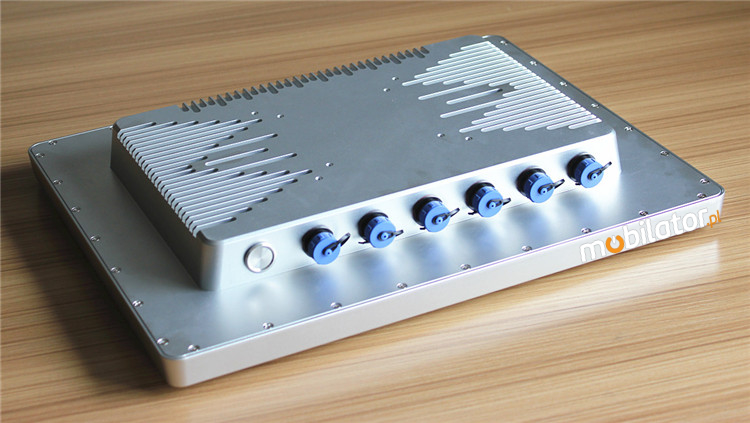

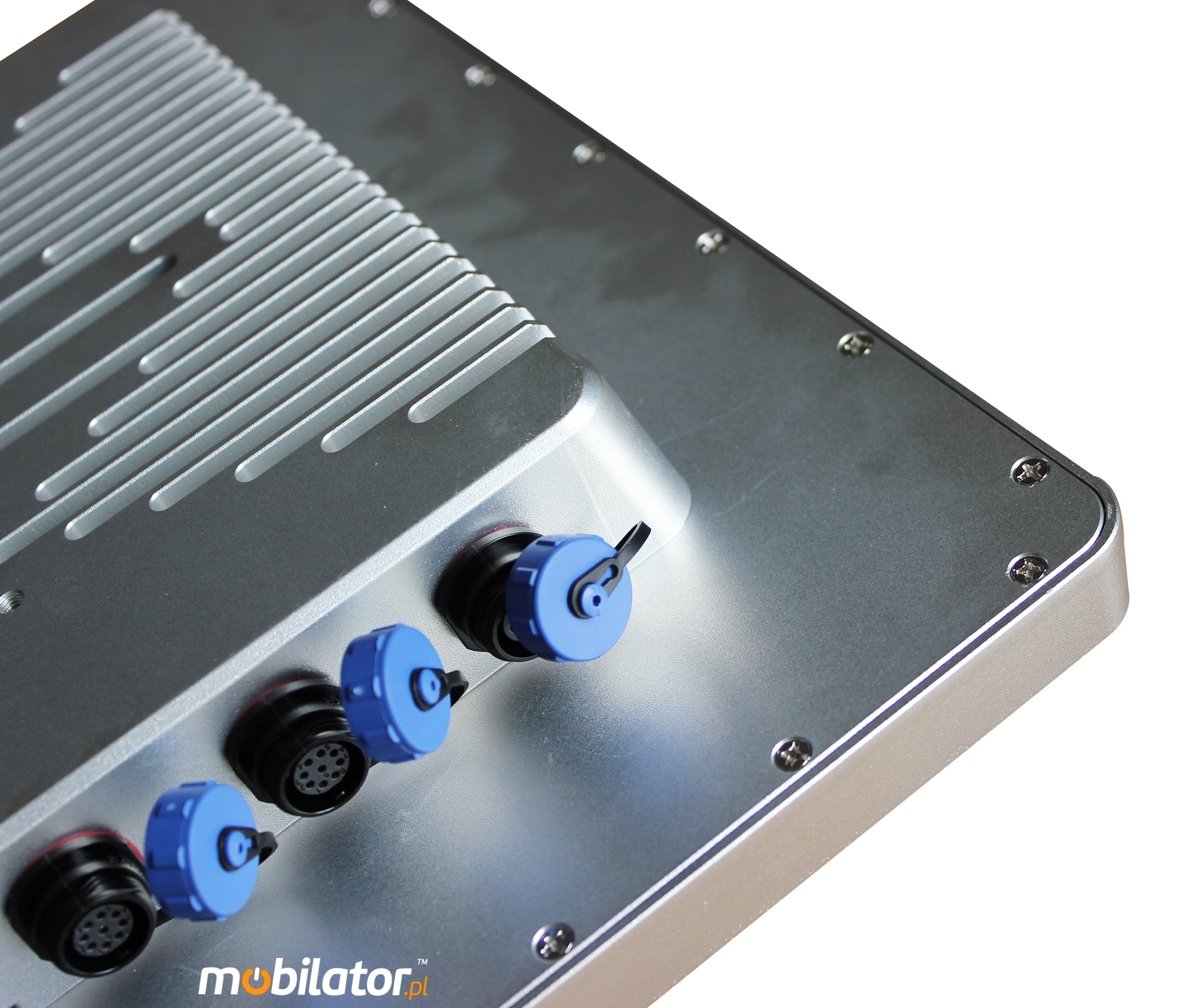

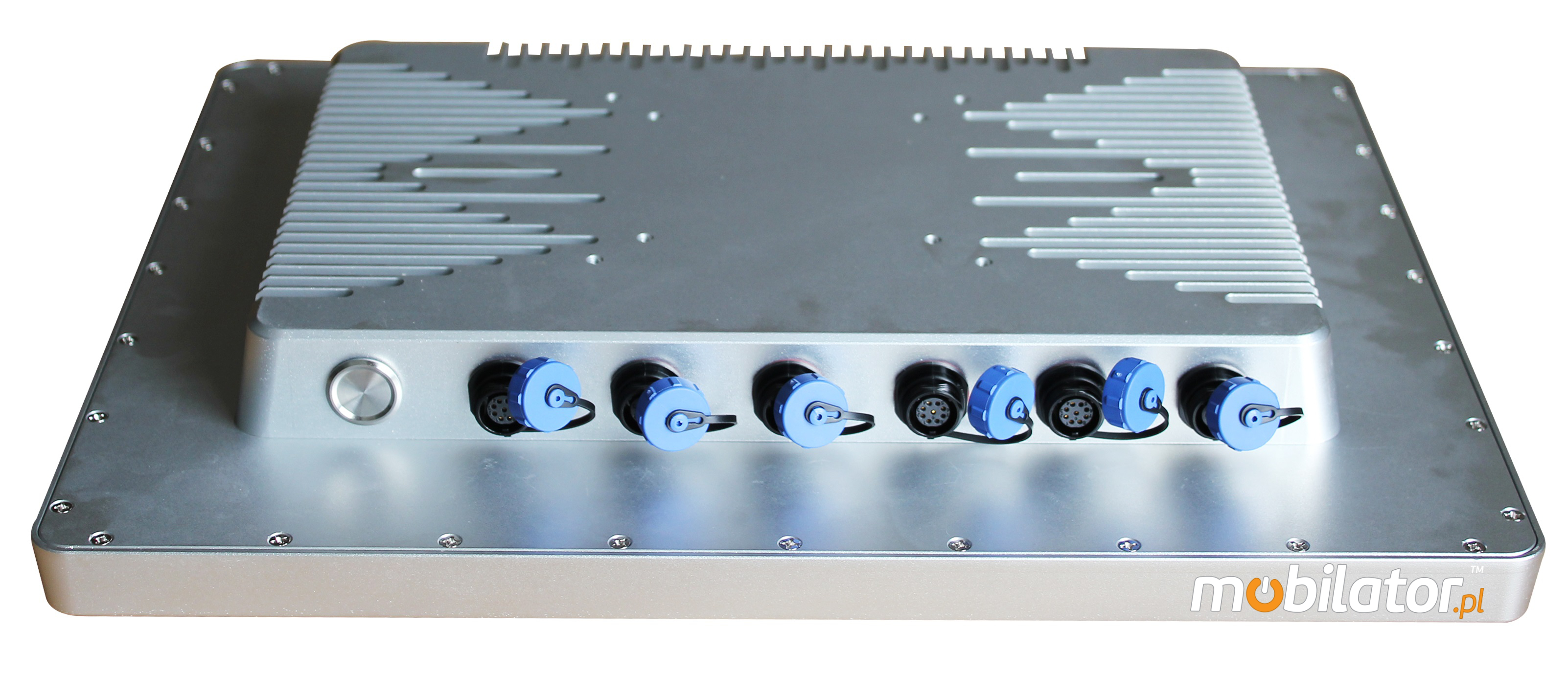

Connectors and interfaces




industrial panel pc durable resistant monitor lcd screen ip68





up… do góry   menu… menu



Application





trade and services






Waterproof and dustproof PC Panel is widely used primarily in the commercial industry, for example for controlling the sales system, displaying product information on monitors or advertising on large screens. With the VESA holder in the housing there are many possibilities for its assembly, eg in stores (at the cash register) in factory halls, in a car delivering products, etc. It will certainly be used in all types of retail chains.






warehouse and management






The industrial panel computer thanks to the RS232 interface can be used to connect many devices in the warehouse and facilitate their control. And its rugged housing is ideally suited to the harsh conditions prevailing in such rooms. No dust or dirt will prevent him from working, he will work without complaints even in a large dusty and dirty environment.






Transport and motorization






Panel computers can be used in transport by adapting it to work on 12V power supply. Then Panel PC can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. Thanks to the integrated monitor, these panels perform very well in vehicles where mobility and the small size of the device are important.





up… do góry   menu… menu



Available versions and accessories







Industrial industrial computer QBOX-15BO0R is offered in several versions adapted to different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.

 v.1v.2v.3v.4v.5v.6
4GB RAM
32GB SSD
64GB SSD
128GB SSD
256GB SSD
4G
WiFi
