Rugged Tablet MobiPad EM-I12A v.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/tablet-przemyslowy-mobipad-em-i12a-v.1-produkt-87428.html

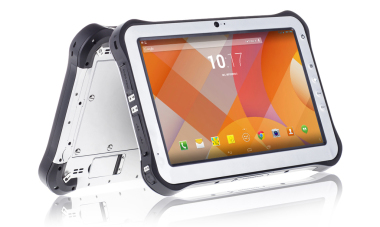

Rugged Tablet MobiPad EM-I12A v.1

mobipad i12a android 4.4 rugged tablet


MobiPad I12A is a new proposal 10.1 - inch tablet works with Android 4.4. The tablet has a specially designed, reinforced structure, adapted for use in harsh environmental conditions. The device works great when in the home and industrial use.

Description

processor z3735d 10.1 rugged tablet

MobiPad I12A is offered with the latest quad-core Intel® Atom ™ processor Z3735D / Z3735F to ensure the highest performance, low power consumption and long battery life. The tablet works with Android operating system to meet the growing requirements in industrial applications.

 Processor  Intel® Atom™ Processor Z3735D/Z3735F (QUAD CORE 1.33 - 1.83GHz)
 Graphics  Intel HD Graphic (Gen7)
 Display  10.1” (1280*800) 16:10
 Type of display
 LED | IPS | Gorilla Glass 3 | Capacitive (10-points)
 LED
 Power
 Brightness  400nits
 RAM  2GB DDR3L
 ROM  32GB FLASH
 Connectors  HDMI 1.4a | Micro-SD Reader | USB 2.0 | micro USB | Docking | DC In
 GPS (optional)  Unicorecomm UM220-III (GPS+Beidou)
 Audio  Built-in Microphone | Audio Jack | 2x - Speaker 0.8W/8Ω
 Camera  FRONT: 2Mpx
   REAR: 5Mpx
 Battery  Li-Poly 3.7V 10000mAh
 Keyboard  On-Screen | Functional keys

 Volume + | Volume - | Power | Home | Functional
 OS (factory)  Android 4.4.4
 Modules
 802.11 a/b/g/n : Bluetooth 4.0
 Dimensions  272*195*22mm - 700g (with battery)
 Resistance  IP65
 Readers (optional)
 3G | NFC | 1D Scanner | 1D/2D Scanner | Fingerprint
 Sensors (factory)  G-Sensor
 Warranty
 12 months
Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

i12a mobipad rfid uhf hf 3g gsm

Select a version for each other

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".

versions mobipad i12a rugged tablet waterproof


v.1
v.2 v.3 v.4 v.5 v.6 v.7 v.8 v.9 v.10 v.11 v.12
32GB
3G - - - - - -
GPS - - - - - - - -
NFC
- - - - - - - - -
1D Motorola (CCD)
- - - - - - - - -
2D Motorola (CMOS)
- - - - - - - - - -
Fingerprint - - - - - - -   - - -

go top... do góry menu… menu

The collection and processing of data

Barcode Scanner (optional)

Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code.With dynamic scanning capabilities and wide range of reading MobiPad device and I12A quickly and accurately retrieves the data, which helps to increase the rate and efficiency.

tablet przemysłowy motorola se4500 se955 newland czytnik kodow kreskowych

 Model
Motorola SE655
Motorola SE4710
 Type of scanner
1D
1D/2D
 Display type
CCD CMOS

tablet przemysłowy NFC 13.56mhz rfid uhf rugged tablet 10.1

NFC (optional)

Near field communication (NFC) is a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm (3.9 in) or less.

  NFC
 Frequency 13.56 MHz
 Reading distance
to 4 cm
 Supported standards
 ISO14443 A/B

ISO15693
  ISO18092
  MIFARE

3g wcdma dustproof tablet 10 inches

Fingerprint (optional)

Fingerprint security feature makes our tablet becomes even more personal, allows you to secure the device fingerprint. This is possible through the use of a small fingerprint scanner. Solutions of this kind are very effective at securing devices containing important data and confidential and also allow for easy and quick log-in to the system. It is an ideal solution for business use, when we need to effectively protect your data.

czytnik linii papilarnych fingerprint kolektory danych tablet przemysłowych

go top... do góry menu… menu



Resistance and strength

Standards

In terms of device ruggedness, the I12A can withstand a 4-foot drop, and with IP65 sealing, where the first digit "6" means the device is dustproof and the second digit "5" means that the device has the ability to handle low pressure water jets from all directions. The tablet can operate in temperature range of -20° to 60°C, optimized for most industrial deployments. I12A is a sharp looking, sturdy and powerful device that can hold up well against use in harsh environment with its industrial grade rugged design.

 Operating temperature
-20°C -- +60°C
 Storage temperature
-40C -- +80°C
 Dust IP6x | MIL-STD 810G 510.5
 Water IPx5 | IEC529 (JIS C0920) MIL-STD810G 506.5-III
 Drop MIL-STD-810G Method 516.6 -  4ft./1.2m



MIL-STD 810G



Durability is one of the most important factors to consider when choosing mobile solutions, which is why Getac ensures that its fully rugged units operate even when dropped onto concrete, or used in harsh environmental conditions such as heat and cold, dust and rain. Rigorous tests that pass Getac products ensures that our customers receive products that meet the highest standards of durability and reliability. Getac ensures compliance with the most rigorous standards in this area - MIL-STD 810G according to test its products. This standard, set by the US military, is the most widely used international standard.

MIL-STD 810G covers a broad range of tests used to measure equipment reliability:

High Temperature: MIL-STD 810G Method 501.5
This test procedure determines computer's operating performance during exposure to high temperatures. This test differs from the standard test that the computer is evaluated under conditions of elevated temperature.

Low Temperature: MIL-STD 810G Method 502.5
This test procedure determines computer's operating performance during exposure to low temperature. This test differs from the standard test that the computer is evaluated under conditions of low temperature.

Changing Temperatures: MIL-STD 810G Method 503.5
Research on temperature changes is to determine whether the components can withstand sudden changes in the surrounding temperature and do not cause of damage or deterioration in performance.

In this study they are to establish two goals: whether the test item can still be safely operated, and whether it meets the requirements, after being exposed to sudden changes in ambient temperature.

Rain: MIL-STD 810G Method 506.5
Tested rain is conducted in order to determine the resistance to rain and wind-driven rain.

The collapse of MIL-STD 810G Method 516.6
Tests of free fall (shock) are performed to ensure that equipment can withstand relatively infrequent, non-repetitive shocks and vibrations encountered during handling, transportation and collisions.

The standard requires 26 drops from 1.2 m (4 ft) onto plywood.



 Shock 10Hz - 500Hz
 Drop 1.2m

The battery at its best

High quality Li-Polymer battery provides a long operating life under severe temperature conditions. With MobiPad I12A you can easily work out at temperatures as low as -20 ° C.

go top... do góry menu… menu

external battery zewnetrzna bateria i12a mobipad

IP65

IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust.  The second digit is a degree of protection against water.

Complete protectionm against contact, protection from infiltration of dust.
6

5

Protection from water projected from a nozzle.

go top... do góry menu… menu

Modules and Wireless Networks

mobipad i12a unicorecomm bluetooth 4.0

Winmate describes the M101B tablet as "rugged" and with its corner protection it certainly looks much tougher than all those Barbie-thin and fragile consumer tablets. MobiPad's experience in rugged mobile computing, we assume those are just partial specs.

 WIFI  802.11 a/b/g/n
 GPS (optional) Unicorecomm UM220-III (GPS+Beidou)
 Bluetooth  Bluetooth 4.0
 3G (optional)
WCDMA

barcode scanner 1d/2d rugged tablet

go top... do góry menu… menu

Functionality

hdmi microusb otg barcode scanner docking port physical keys

Real-time data access to the right information is very important to mobile users. I12A offers 3G, GPS, WiFi 802.11 a/b/g/n, Bluetooth 4.0 which enable users to get connect in the way that best suits their needs. With built-in 5.0 Mega Pixels camera on rear side, users can capture photos, videos, documents instantly, or utilize the front 2.0 Mega Pixel camera for application such as user self video recording, or video communication.

mobipad hdmi connectors camera 2/8mpx

 Dimensions 272 x 195 x 22mm
 Weight 700g



fingerprint mobipad i12a tyl connectors speakers

go top... do góry menu… menu

Additional equipment

Docking Station

The docking station (optional) enables simultaneous battery charging device and the battery itself. When you dock your device will be extended to additional ports located directly at the station. You can buy an accessory in the "Accessories" or direct contact with the shop.

stacja dokujaca i12a usb rj45 dc in

 Number of ports
2x - charging ports
 Available ports
3x - USB 2.0 | RJ45 | DC In

Wrist Strap

Working comfort with the device can help you by buying durable strap (optional). It provides a stable position or facilitate safe movement on the tablet.

mobipad i12a wrist strap

go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP65
Humidity: -----
Waterproof: IP6x
Weight:
Temperature: Operating: -20°C -- +60°C
Storage temperature: -40°C -- +80°C
MIL-STD-810G
Shock: MIL-STD-810G
Vibration: MIL-STD-810G
Drop: 1.2m (MIL-STD-810G Method 516.6)
Sand and dust: IPx5
1D barcode scanner (reader): -----
2D barcode scanner (reader): -----
RFID scanner (reader): -----
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: Yes
VESA standard – holders and mounts support: No
COM port: No
Dispaly: 10.1” (1280*800) 16:10
LED | IPS | GORILLA GLASS 3
Brightness: 400nits
Contrast: -----
Touch screen: Yes - capacitive (10-points)
Graphics card: Intel HD Graphic (Gen7)
Swivel Hinge: -----
VGA out: -----
TV Out: -----
TV Tuner: -----
Processor: Intel® Atom™ Processor Z3735D/Z3735F (QUAD CORE 1.33 - 1.83GHz)
Chipset: -----
BIOS: -----
Memory: 2GB DDR3L
Hard Drive: 32GB FLASH
Flash Memory:
Battery: Li-Poly 3.7V 10000mAh
Working time on battery: 7-9 hours (depending on usage)
HotSwap battery: No
Fast battery replacement ability: Yes
Size: 272 x 195 x 22mm - 700 (with battery)
Casing material: -----
Fanless casing: Yes
Operating System: Android 4.4.4
LAN: -----
WLAN: 802.11 a/b/g/n
Bluetooth: Bluetooth 4.0
WAN: -----
GPS: -----
Flash Card Reader: microSD
CD/DVD: -----
Camera: Front: 2Mpx
Rear: 5Mpx
Audio: Built-in Microphone | Audio Jack | 2x - Speaker 0.8W/8Ω
Seciurity: IP65 | MIL-STD-810G
In/Out: mini HDMI
Micro-SD Reader
USB 2.0
micro USB (OTG)
Docking port
DC In
Keyboard: on-Screen | Function keys
Volume + | Volume - | Power | Home | Functional
Additional Navigation Devices : -----
Color: -----
Optional accessories: Docking Station
1x - Charging port (device)
1x - Charging port (battery)
3x - USB 2.0
1x - RJ45
1x - DC In

Wrist Strap
Shoulder Strap
Other: G-Sensor


CURRENT PRICE
2659.71 € Net
3271.44€ Gross
