Rugged Tablet MobiPad EM-I8A v.8
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/tablet-przemyslowy-mobipad-em-i8a-v.8-produkt-87720.html

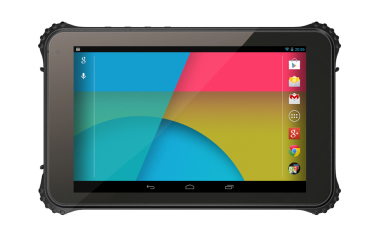

Rugged Tablet MobiPad EM-I8A v.8

mobipad i8a windows 8.1 rugged tablet


MobiPad I8A is a new proposal 8 - inch tablet works with Windows 8.1. The tablet has a specially designed, reinforced structure, adapted for use in harsh environmental conditions. The device works great when in the home and industrial use.

Description

mobipad i8a rugged tablet

MobiPad I8A is offered with the latest quad-core Intel® Atom ™ processor Z3735D / Z3735F to ensure the highest performance, low power consumption and long battery life. The tablet works with Windows 8.1 operating system to meet the growing requirements in industrial applications.

 Processor  Intel® Atom™ Processor Z3735F (QUAD CORE 1.33 - 1.83GHz)
 Graphics  Intel HD Graphic (Gen7)
 Display  8” (1280*800) 16:10
 Type of display
 LED | IPS | Dragontrail | Capacitive (5-points)
 LED
 Power
 Brightness  320nits
 RAM  2GB DDR3L
 ROM  32GB eMMc
 Connectors  HDMI 1.4a | Micro-SD Reader | USB 2.0 | micro USB | Docking port | DC In
 GPS (factory)  u-Blox NEO-7 (GLONASS+QZSS+GPS)
 GPS (ptional)  Unicorecomm UM220-III (GPS+Beidou)
 Audio  Built-in MIC | 1x - Speaker 0.8W/8Ω | Audio Jack
 Camera  FRONT: 2Mpx
   REAR: 5Mpx
 Battery  Li-Poly 3.7V 8500mAh
 Keyboard  on-Screen | Functional keys

 Volume + | Volume - | Power | Functional (Barcode Trigger)
 System (ffactory)  Windows 8.1 with Bing
 Modules (factory)
 802.11 a/b/g/n | Bluetooth 4.0 (LE) | GSM/3G | GPS
 Dimensions  228*147*16.5mm - 630g (with battery)
 Resistance  IP67
 Sensors (optional)
 RFID HF | 1D Scanner | 1D/2D Scanner | Fingerprint
 Sensors (factory)  G-Sensor
 Warranty
 12 months
Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

tablet for warehouse rugged drop test

Select the version dedicated to yourself

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".

versions of mobipad i8a rugged tablet rugged


v.1
v.2 v.3 v.4 v.5 v.6 v.7 v.8 v.9 v.10 v.11 v.12
32GB - - - - -
64GB - - - - - - -
3G
GPS
RFID HF
- - - - - -
1D (CCD)
- - - - - - - -
2D (CMOS)
- - - - - - - -
Fingerprint - - - - - - - - -

go top... do góry menu… menu

The collection and processing of data

Barcode Scanner (optional)

Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code.With dynamic scanning capabilities and wide range of reading MobiPad device and I8A quickly and accurately retrieves the data, which helps to increase the rate and efficiency.

rugged tablet motorola se4710 se655 newland barcode scanner

 Model Motorola SE655
Motorola SE4710
 Type of scanner
1D
1D/2D
 Display type
CCD CMOS

rugged tablet android 4.4 waterpoof warehouse

NFC (optional)

Near field communication (NFC) is a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm (3.9 in) or less.

   NFC
 Frequency 13.56 MHz
 Reading distance
to 4 cm
 Supported standards
 ISO14443 A/B

ISO15693
  ISO18092

mobipad em-i8a SIM 3G



Fingerprint (optional)

Fingerprint security feature makes our tablet becomes even more personal, allows you to secure the device fingerprint. This is possible through the use of a small fingerprint scanner. Solutions of this kind are very effective at securing devices containing important data and confidential and also allow for easy and quick log-in to the system. It is an ideal solution for business use, when we need to effectively protect your data.

fingerprint fingerprint data collector mobipad i8a

go top... do góry menu… menu



Resistance and strength

Standards

In terms of device ruggedness, the I8A can withstand a 4-foot drop, and with IP65 sealing, where the first digit "6" means the device is dustproof and the second digit "5" means that the device has the ability to handle low pressure water jets from all directions. The tablet can operate in temperature range of -20° to 60°C, optimized for most industrial deployments. I8A is a sharp looking, sturdy and powerful device that can hold up well against use in harsh environment with its industrial grade rugged design.

tablet waterpoof dustproof mobipad i8a

 Operating temperature
-20°C -- +60°C
 Storage temperature
-30C -- +70°C
 Dust IP6x
 Water IPx5
 Humidity 95% non-condensing
 Drop 1.2m



MIL-STD 810G



Durability is one of the most important factors to consider when choosing mobile solutions, which is why MobiPad ensures that its fully rugged units operate even when dropped onto concrete, or used in harsh environmental conditions such as heat and cold, dust and rain. Rigorous tests that pass MobiPad products ensures that our customers receive products that meet the highest standards of durability and reliability. MobiPad ensures compliance with the most rigorous standards in this area - MIL-STD 810G according to test its products. This standard, set by the US military, is the most widely used international standard.

MIL-STD 810G covers a broad range of tests used to measure equipment reliability:

High Temperature: MIL-STD 810G Method 501.5
This test procedure determines computer's operating performance during exposure to high temperatures. This test differs from the standard test that the computer is evaluated under conditions of elevated temperature.

Low Temperature: MIL-STD 810G Method 502.5
This test procedure determines computer's operating performance during exposure to low temperature. This test differs from the standard test that the computer is evaluated under conditions of low temperature.

Changing Temperatures: MIL-STD 810G Method 503.5
Research on temperature changes is to determine whether the components can withstand sudden changes in the surrounding temperature and do not cause of damage or deterioration in performance.

In this study they are to establish two goals: whether the test item can still be safely operated, and whether it meets the requirements, after being exposed to sudden changes in ambient temperature.

Rain: MIL-STD 810G Method 506.5
Tested rain is conducted in order to determine the resistance to rain and wind-driven rain.

The collapse of MIL-STD 810G Method 516.6
Tests of free fall (shock) are performed to ensure that equipment can withstand relatively infrequent, non-repetitive shocks and vibrations encountered during handling, transportation and collisions.

The standard requires 26 drops from 1.2 m (4 ft) onto plywood.



 Shock 10Hz - 500Hz
 Drop 1.2m

The battery at its best


High quality Li-Polymer battery provides a long operating life under severe temperature conditions. With MobiPad I8A you can easily work out at temperatures as low as -20 ° C.

go top... do góry menu… menu



rugged rfid 13.56mhz nfc rugged tablet 8

IP67

IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust.  The second digit is a degree of protection against water.



Complete protectionm against contact, protection from infiltration of dust.
6

7

Protection against immersion.

go top... do góry menu… menu



Modules and Wireless Networks

docking station mobipad i8a

Winmate describes the I8A tablet as "rugged" and with its corner protection it certainly looks much tougher than all those Barbie-thin and fragile consumer tablets. MobiPad's experience in rugged mobile computing, we assume those are just partial specs.

 WIFI  802.11 a/b/g/n
 GPS (factory) u-Blox NEO-7 (GLONASS+QZSS+GPS)
 GPS (optional) Unicorecomm UM220-III (GPS+Beidou)
 Bluetooth  Bluetooth 4.0 (LE)
 3G (factory)
GSM/WCDMA (850 / 900 / 1900 / 2100 MHz)
 4G (optional) (LTE FDD/LTE | TDD/WCDMA/TD-SCDMA/GSM)

mobipad em-i8a mini hdmi

go top... do góry menu… menu

Functionality

hdmi microusb otg barcode scanner connectors mobipad em-i8a

Real-time data access to the right information is very important to mobile users. I8A offers 3G, GPS, WiFi 802.11 a/b/g/n, Bluetooth 4.0 which enable users to get connect in the way that best suits their needs. With built-in 5.0 Mega Pixels camera on rear side, users can capture photos, videos, documents instantly, or utilize the front 2.0 Mega Pixel camera for application such as user self video recording, or video communication.

mobipad i8a hdmi connectors camera 2/5mpx

 Dimensions 228 x 147 x 16.5mm
 Weight 630g (with battery)



fingerprint mobipad i8a rear connectors

go top... do góry menu… menu



Additional equipment

Docking station (optional)

The docking station (optional) enables simultaneous battery charging device and the battery itself. When you dock your device will be extended to additional ports located directly at the station. You can buy an accessory in the "Accessories" or direct contact with the shop.

docking station i8a usb rj45 dc in

 Available ports
3x - USB 2.0
  1x - RJ45
  1x - DC In
 Weight 290g

go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP67
Humidity: 95% non-condensing
Waterproof: IP6x
Weight:
Temperature: Operating: -20°C -- +60°C
Storage temperature: -30°C -- +70°C
MIL-STD-810G
Shock: MIL-STD-810G
Vibration: MIL-STD-810G
Drop: 1.2m - the entire temperature range
MIL-STD-810G
Sand and dust: IPx7
1D barcode scanner (reader): MOTOROLA SE655 (CCD)
Interface - COM
2D barcode scanner (reader): -----
RFID scanner (reader): RFID/NFC (13.56MHz)
ISO14443 A/B
ISO15693
ISO18092
reading distance: do 4 cm
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: Yes - (12pin) Pogo Pin
VESA standard – holders and mounts support: No
COM port: No
Dispaly: 10.1” (1280*800) 16:10
LED | IPS | DRAGONTRAIL
Brightness: 320nits
Contrast: -----
Touch screen: Yes - capacitive (5-points)
Graphics card: Intel HD Graphic (Gen7)
Swivel Hinge: -----
VGA out: -----
TV Out: -----
TV Tuner: -----
Processor: Intel® Atom™ Processor Z3735D/Z3735F (QUAD CORE 1.33 - 1.83GHz)
Chipset: -----
BIOS: -----
Memory: 2GB DDR3L
Hard Drive: 64GB eMMc
Flash Memory:
Battery: Litowo-Polimerowa 3.7V 8500mAh
Working time on battery: 7-9 hours (depending on usage)
8hrs(default 50% volumn,default 200 nit brightness,play 1080P HD Video)
HotSwap battery: No
Fast battery replacement ability: Nie
Size: 228 x 147 x 16.5mm
630g (with battery)
Casing material: -----
Fanless casing: Yes
Operating System: Android™ 4.4.4
LAN: -----
WLAN: 802.11 a/b/g/n
Bluetooth: Bluetooth 4.0 (LE)
WAN: GSM/WCDMA (850 / 900 / 1900 / 2100 MHz) HSUPA
4G (LTE FDD/LTE | TDD/WCDMA/TD-SCDMA/GSM) - optional
GPS: u-Blox NEO-7 (GLONASS+QZSS+GPS)
Unicorecomm UM220-III (GPS+Beidou) - (optional)
Flash Card Reader: Micro-SD Card Reader (wsparcie SDHC/SDXC)
max. 64GB
CD/DVD: -----
Camera: FRONT: 2Mpx
REAR: 5Mpx
Audio: Built-in Microphone | 1x - Głośnik 0.8W/8Ω | Audio Jack
Seciurity: IP67
In/Out: 1x - mini HDMI 1.4a (type C)
1x - Micro-SD Reader
1x - USB 2.0
1x - micro USB (OTG)
1x - Docking port - (12pin) Pogo Pin
1x - Audio Jack
DC In
Keyboard: on-Screen | Function keys
Volume + | Volume - | Power | Home | Functional (Barcode Trigger)
Additional Navigation Devices : -----
Color: -----
Optional accessories: Docking Station
1x - Charging port (device)1x - RJ45
1x - DC In

Wrist Strap
Other: G-Sensor
Fingerprint


CURRENT PRICE
2524.17 € Net
3104.73€ Gross
