Waterproof industrial tablet MobiPad RQT88 v.4.1
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/wodoszczelny-tablet-przemyslowy-mobipad-rqt88-v.4.1-produkt-89916.html

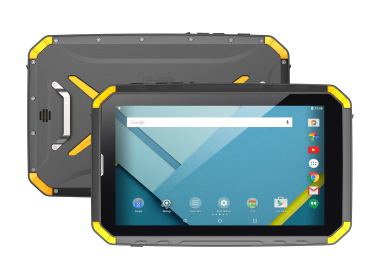

Waterproof industrial tablet MobiPad RQT88 v.4.1

wodoodporny wstrz±soodporny przemys³owy wytrzyma³y odporny tablet NFC 4G windows 10 wojskowy IP67 MIL-STD 810G skaner kodów kreskowych 1D 2D





MobiPad RQT88 is a modern, waterproof industrial tablet designed for extreme applications. It has a specially designed, reinforced construction that meets the requirements of IP67, which confirms the protection of the device against dust and water. Like the military equipment, the tablet has the MIL-STD 810 military standard.


Specification



MobiPad RQT88
Processor MediaTek MT6753 (8x 1.3GHz)
Graphics ARM Mali-T720
Operating system Android 7.0
RAM 3GB DDR3
ROM 32GB EMMC
Display 8", 800 x 1280
Touch screen Capacitive
Battery 3.8V/8500mAh
Camera 2Mpx Front | 8Mpx Rear + Flash
Protection IP68 | 1m. drops
Communication 3G/4G | Bluetooth | NFC | Wi-Fi | GPS
Connectors Micro USB | Audio Jack
Memory card Micro SD (max. 128GB)
SIM card 2x Micro SIM
RFID Reader* RFID UHF
1D Scanner* Newland NLS-EM3096
2D Scanner* Newland NLS-EM3096

* Optional equipment, available on specific versions only.

informacja infoDetailed specification of the device is available in the tab "Technical data".

Dustproof industrial tablet MobiPad RQT88 was equipped with high performance, energy-efficient MediaTek MT6753 processor. Inside, there are eight cores that allow for more efficient processing of multiple tasks simultaneously. Shared caching, which uses a multi-level hierarchy, is dynamically allocated to each processor core according to the load. This reduces the average access time to main memory. Enhanced graphics card technology lets you enjoy full HD video and movies. Low power consumption guarantees long battery life.






Ergonomic design




wodoodporny wstrz±soodporny przemys³owy wytrzyma³y odporny tablet NFC 4G windows 10 wojskowy IP67 MIL-STD 810G skaner kodów kreskowych 1D 2D




MobiPad RQT88 industrial tablet is designed for resistance and convenience. The sleek and rugged 13.5mm thick design and stylish case will make the tablet very well suited for industrial use and more. The unique size has been carefully thought out to make the device more comfortable and ergonomic. The non-slip casing makes it safe and secure to hold it in your hand, and the rubber corners further protect your device against possible damage as a result of falls.



Dimensions 226.4mm x 142mm x 13.5mm
Net weight 665g






Capacitive screen




capacitive touch screen



With the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our tablet or the collector with a few fingers at once.



REsistance





wodoodporny wstrz±soodporny przemys³owy wytrzyma³y odporny tablet NFC 4G windows 10 wojskowy IP67 MIL-STD 810G skaner kodów kreskowych 1D 2D






IP68 Protection

The IP standard defines the degree of protection provided by the enclosure of an electrical device against such factors as: access to dangerous parts inside the enclosure, penetration of foreign matter, splashing or immersion.



IP6X No ingress of dust, complete protection against contact. A vacuum must be applied. Test duration of up to 8 hours based on air flow.
IPX8 The equipment is suitable for continuous immersion in water under conditions which shall be specified by the manufacturer.






MIL-STD 810 Standard

The MIL-STD-810 is a strict military standard used in the United States Army. It determines the immunity of the equipment to severe environmental and weather conditions such as extreme low and high temperatures, temperature changes, rain or dust, as well as various accidents (shocks, floods, high altitude falls, etc.). Although the MIL-STD-810 is mainly used for military equipment, it is often used by private companies that produce equipment that requires unmatched durability.






1.2m drop resistance

Specially designed construction gives the machine a chance of accidental falls from up to 1.2 meters in operating mode, even on hard surfaces. In addition, the tablet screen is protected by specially tempered glass Gorilla Glass.







Extreme temperatures

MobiPad RQT88 is suitable for continuous operation in both low and high temperatures in the range of -20 ° C to 60 ° C. When the device is off, it can handle temperatures ranging from -20 ° C to 60 ° C. In addition, the rugged industrial tablet performs well in rooms with increased humidity, ensuring proper operation even with 99% relative humidity.



Working Temp. -20°C to 60°C
Storage Temp. -20°C do 60°C
Humidity 0% do 99%


data collecting






NFC (option)



Short-range communication, known as NFC, is a radio communication standard that allows for wireless data exchange at a distance of a few centimeters. This technology is a simple extension of the proximity card standard that combines smart card interface and reader in one device. NFC devices can communicate with existing equipment in the standard ISO / IEC 14443 (cards and readers) as well as with other NFC devices, and thus are compatible with existing and already used public transport and payment infrastructures such as MIFARE.



waterproof shocproof industrial rugged durable tablet NFC 4G android 7.1 military IP67 MIL-STD 810G barcode scanner 1D 2D








RFID Reader (option)



RFID is a technology used to identify objects and to control the flow products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.



RFID LF (option)

Option 1:  134.2KHz (FDX),read distance up to 3cm

Support ISO11784/5, IC cards



Option 2:  134.2KHz (FDX), read distance up to 10cm

Support ISO11784/5, IC cards





Option 3:  125KHz, support ID cards

RFID UHF (option)

Bulit-in ceramic antenna

Support EPC C1 GEN2/ISO 18000-6C protocol

Read distance up to 1m





Barcode scanner (option)







wodoodporny wstrz±soodporny przemys³owy wytrzyma³y odporny tablet NFC 4G windows 10 wojskowy IP67 MIL-STD 810G skaner kodów kreskowych 1D 2D



Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.



wireless communication





 4G Module

4G technology is based on a radio network with fast transmission and the rare occurrence of downtime or transfer errors. The main distinguishing feature of the 4G from its predecessor (3G) is the speed of transfer between devices. The fourth generation network offers 100 Mb / s of mobile internet speed and 25 Mb / s of packet transfer. Technology enables users, including: extremely fast radio networks, Internet access, personalized telephony, and access to modern media and games services.



4G Module FDD-LTE: B1/B3/B5/B7/B8  2100/1800/850/2600/900
TDD-LTE :
Band38:2570 MHz - 2620 MHz,
Band39: 1880 MHz - 1920 MHz,
B41: 2555-2655MHz,
B40: 2300-2400MHz, B38/B39/B41/B40/B38/B39/B40/B41
3G Module GSM: 850/900/1800/1900   B5/B8/B3/B2
WCDMA: B1/B2/B4  2100/1900/1700
TD-SCDMA: B34/B39






GPS Navigation

Waterproof tablet MobiPad RQT88 is equipped with a professional GPS module with GLONASS support, combining low power consumption with high accuracy. Navigation is fast and smooth, allowing you to easily and easily reach any destination.








Bluetooth 4.0

Bluetooth enables wireless short-range communication between various electronic devices, such as the keyboard, computer, laptop, palmtop, mobile phone and many others. In the fourth version of this standard, energy consumption was reduced considerably, at the expense of lower transfer costs, and real operating coverage increased.







 Wi-Fi network

Dual-band Wi-Fi provides fast network access wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a work or residence router and a wireless network that can be used at no extra cost. The shock-resistant industrial tablet, the Emode I18H, is equipped with the latest 802.11n technology, which allows file transfer speeds up to 150 Mb/s.



Standards 802.11(a/b/g/n)
Frequencies 2.4GHz/5.8GHz (Dual-Band)


Application



Trade and Services

Thanks to their size and light weight, tablet and smartphone data collectors are a useful tool for sales representatives. Today's applications running under the collector system enable even entering the data collector's contractor database, which allows us to later search for it quickly by name or NIP number. We can do the same with our commodity base, which can work in parallel with the database of contractors. Additional use of collectors in the trade, such as sending orders or invoices directly to the company through the GSM network or Wi-Fi.



waterproof shockproof industrial rugged durable tablet NFC 4G android 7.1 military IP67 MIL-STD 810G barcode scanner 1D 2D






Industry and Construction



Industrial tablets and data collectors are characterized by high resistance to adverse working conditions. Tightness, dust and water resistance of enclosures, certified by IP (dust and water resistance standards) and often MIL-STD military standard, can withstand even the harshest conditions in industrial infrastructure or on the construction site. With appropriate applications, collectors can be used for control and control of various industrial processes, as well as for data collection and analysis.


waterproof shocproof industrial rugged durable tablet NFC 4G android 7.1 military IP67 MIL-STD 810G barcode scanner 1D 2D






Warehouse



An industrial data sheet is the ideal solution for quick stocktaking. In addition, depending on the software used, it streamlines the process of entering and delivering goods into the warehouse, enables price control and dispensing, helps to collect and order orders, and identifies customers and servicing the rental. The advantages of using data collectors are undoubtedly: time savings, customer satisfaction thanks to the correct price and speed of operation.


waterproof shocproof industrial rugged durable tablet NFC 4G android 7.1 military IP67 MIL-STD 810G barcode scanner 1D 2D




Available versions and accessories





The industry-leading MobiPad RQT88 tablet is available in several versions to suit different needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters given in the table below. In addition, on request, you can create a configuration not currently available in the offer.



   v.1
 v.2
 v.3
 v.3.1
 v.4
 v.4.1
 v.5
 v.6
 v.7
 v.8
FHD Resolution
1D Infrared
2D Scanner
Temperature scanner
RFID UHF






inforamcja infoMore pictures available in the "Gallery" tab.

Durability: IP68
Humidity: 0% -- 99%
Waterproof: IPX8
Weight:
Temperature: Operating temperature: -20°C -- 60°C
Storage temperature: -20°C -- 60°C
Shock: -----
Vibration: -----
Drop: 1m
Sand and dust: IP6X
1D barcode scanner (reader): Newland NLS-EM3096 (CMOS)
2D barcode scanner (reader): Newland NLS-EM3096 (CMOS)
RFID scanner (reader): No (available in other configuration)
Magnetic card reader (MSR): No
Microchip card reader: No
Docking station connector: Yes
VESA standard – holders and mounts support: No
COM port: No
Dispaly: 8" (1980x1200px)
Brightness: ~280Nit
Contrast: -----
Touch screen: Capacitive
Graphics card: ARM Mali-T720`
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: No
Processor: MediaTek MT6753 (8x 1.3GHz)
Chipset: -----
BIOS: -----
Memory: 3GB
Hard Drive: -----
Flash Memory: 32GB EMMC
Battery: 3.8V 8500mAh Lithium
Working time on battery: 8h
HotSwap battery: No
Fast battery replacement ability: No
Size: 226.4mm x 142mm x 13.5mm - 665g
Casing material: -----
Fanless casing: Yes
Operating System: Android 7.0
LAN: No
WLAN: IEEE 802.11 a/b/g/n (Dual band)
Bluetooth: Bluetooth 4.0
WAN: 4G: FDD-LTE - B1/B2/B3/B4/B5/B7/B8/B20 (B12/B17/B28A/B28B)
3G: WCDMA: B1/B2/B4/B5/B8
GPS: Yes
Flash Card Reader: micro SD (max. 128GB)
CD/DVD: -----
Camera: Rear: 8Mpx, Flash
Front: 2Mpx
Audio: Built-in microphone and speaker
Seciurity: -----
In/Out: Audio Jack | Micro USB
Keyboard: Onscreen
Additional Navigation Devices : -----
Color: -----
Optional accessories: -----
Other: -----


CURRENT PRICE
1806.97 € Net
2222.57€ Gross
