Efficient Industrial Computer with a dedicated graphics card Nvidia GT1030 MiniPC with BOX-PSO-i7 v.6

Efficient Industrial Computer with a dedicated graphics card Nvidia GT1030 MiniPC with BOX-PSO-i7 v.6

Data update: 2019-03-05

guarantee 1 year

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
14 - 20 workdays
CURRENT PRICE
967.52
Net
1190.05
Gross



Compare all versions



Efficient Industrial Computer with a dedicated graphics card Nvidia GT1030 MiniPC with BOX-PSO-i7


The robust mini Industrial Computer zBOX-PSO-1030 is a device designed for all industrial and non-continuous applications requiring continuous operation - 24 hours, 7 days a week.



 MiniPC zBOX-PSO-1030 compact size, Small
Small dimensions
The compact housing means that the Mini PC will fit wherever you need it and is easy to carry.

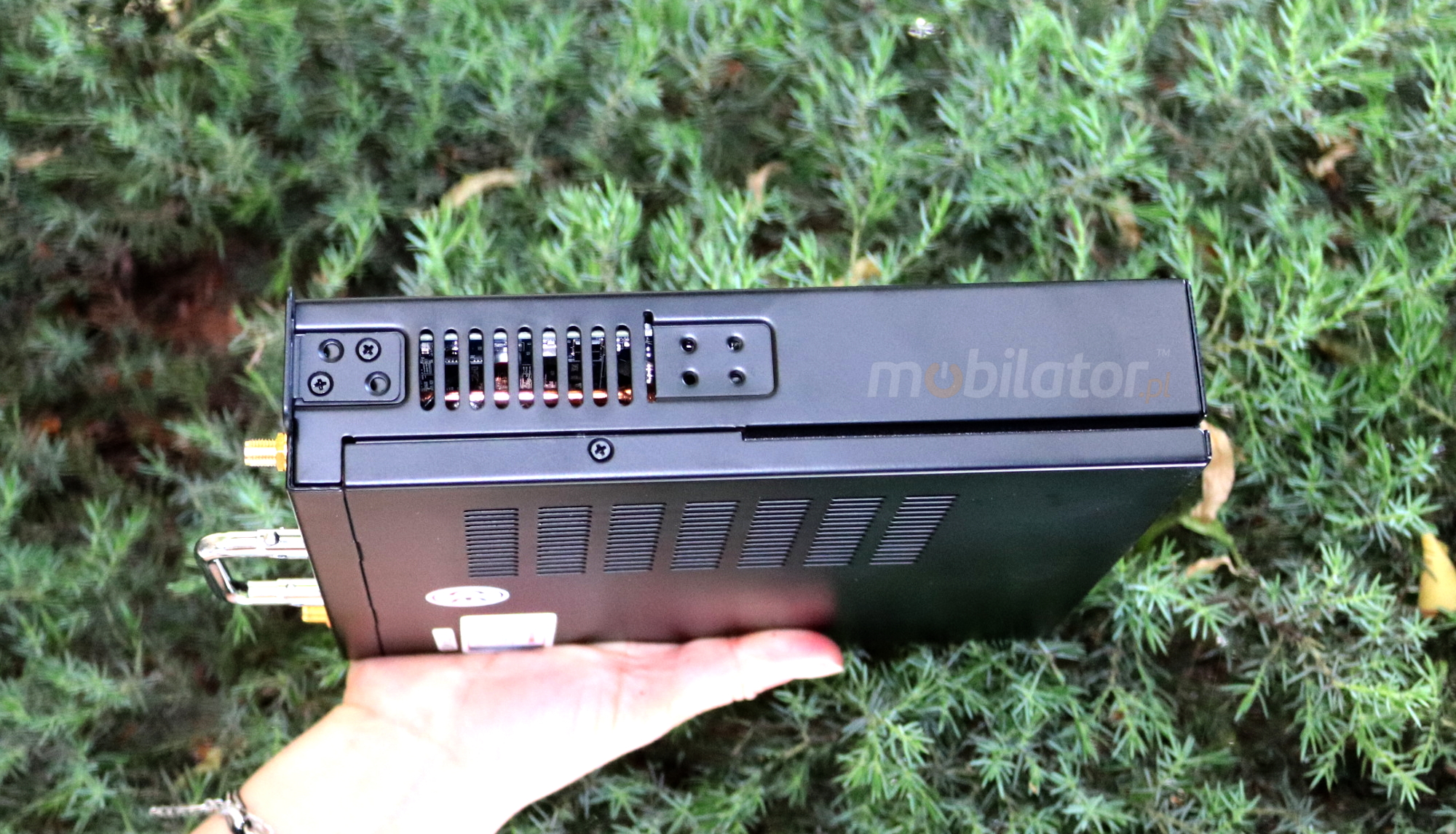

MiniPC BOX-PSO-1030 lightweight
Lightweight design
The computer's weight does not exceed 2.0kg, so it can be conveniently carried in a bag or backpack.



MiniPC zBOX-PSO-1030 high performence efficent
Efficent components
The Intel Core i7-7700 quad-core CPU provides the best device performance.
MiniPC zBOX-PSO-1030 high performence efficent
Wireless network
The mini PC can be connected to nearby wireless networks by equipping it with an Wi-Fi module.



MiniPC zBOX-PSO-1030 HDD Disc hdd  efficent
Data Storage
The large disk capacity allows to store and archiving important user data.
MiniPC zBOX-PSO-1030 fan cooling
Fan Cooling
The use of a fan in the Mini PC ensures adequate cooling of the processor.






Optional equipment, available only in other versions of the device.



go up… do góry menu… menu



SPECIFICATION



Performance
Processor Intel Core i7 7700 (4x 3.60 GHz) LGA1151
Graphics card Intel HD Graphics 630  &  Nvidia GT-1030
Operating system Support:  Windows 8/8.1/10 | Linux
RAM 16GB DDR4
Drive

HDD: 500GB ( 7200 rpm )

Interfaces
Connectivity

Wi-Fi

LAN - 1x RTL8111F  Gigabit Ethernet

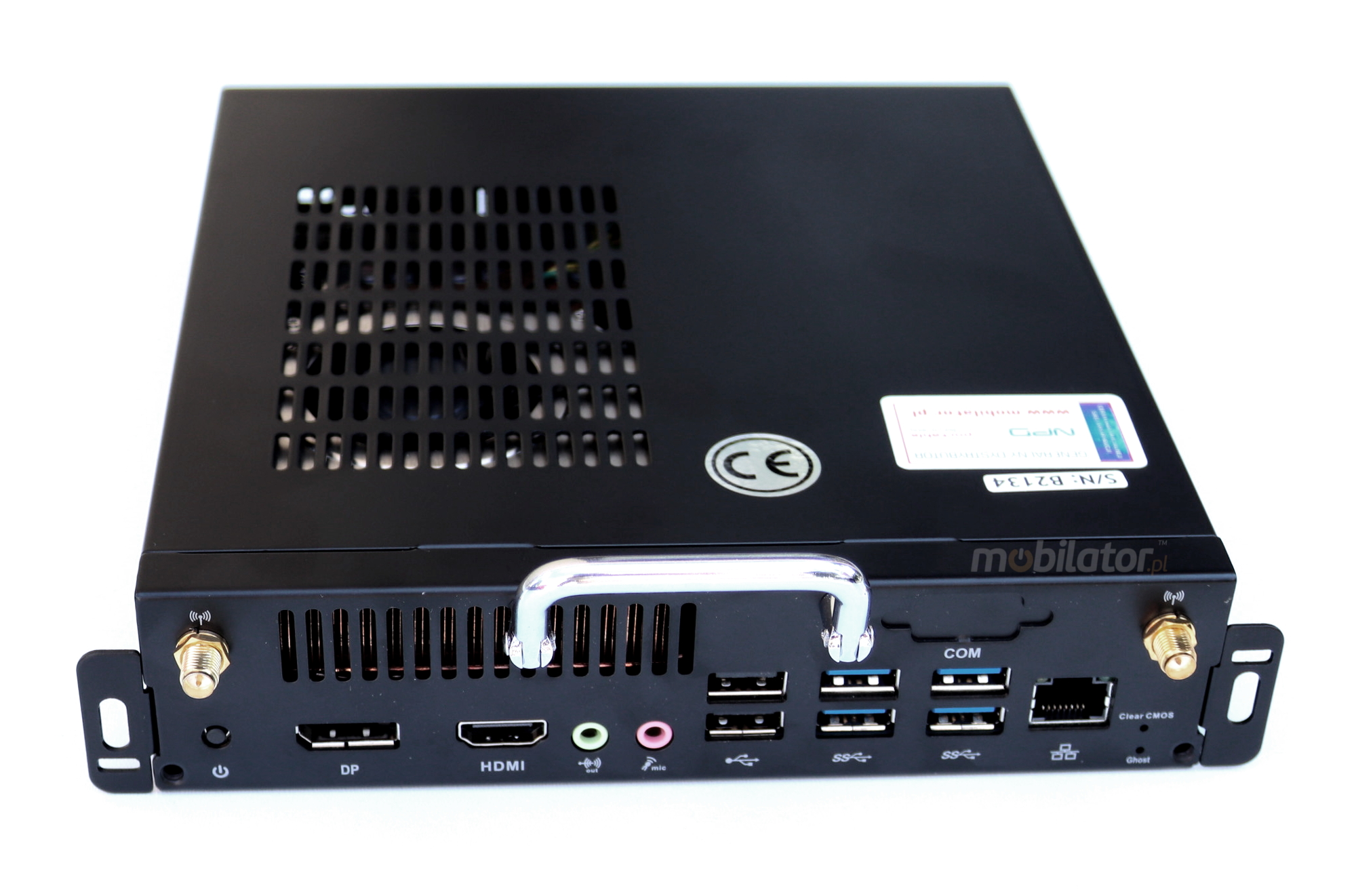

Front panel Power button | Display-Port | HDMI | 1x Audio | 1x Mic
2x USB 2.0 | 4x USB 3.0 | 1x LAN | 1x RS-232 (Optional)
Rear panel

Power connector - DC19V | 1x OPS JAE TX25

Other
Available colors Black
Dimensions 195mm x 180mm x 42,5mm
Weight 1.80kg
* Optional equipment, available only in other versions of the device.



EFFICIENT PROCESSOR



The industrial computer zBOX-PSO-1030 uses a very efficient Intel Core i7-7700 processor model. Inside it there are four cooperating cores enabling more efficient processing of many tasks at the same time. The shared SmartCache memory, which has a capacity of up to 8MB, uses multi-level hierarchy is dynamically allocated to each processor core depending on the load. This reduced the average access time to the main storage.



MiniPC zBOX-PSO-1030 Intel Processor 7'th generation  INTEL 7th generation  intel7th gen





EFFICIENT GRAPHIC


The industrial computer zBOX-PSO-1030 usues a very efficient GPU model from NVIDIA. On the motherboard there is a graphic card GT1030 with a memory capacity of 2GB and type GDDR5, which enables verry efficient processing of many precise tasks related to graphic processing of digital images in graphic programs such as: Adobe Photoshop, GIMP, CorelDraw, Inkscape or AutoCAD. The card`s memory uses a multi-level rendering hierarchy, it is dynamically allocated to the core graphics processor depending on the load.





TABLE WITH SPECIFICATION



NVIDIA  GeForce  GT1030
Generation Pascal 14nm
Graphic layout Pascal GP108
Stream processors 384
Texture units 24
Rasterizing units 8
Core clock 1227 / 1468 MHz
Computing power 1,13 TFLOPS
Video memory 2GB
Speed memory bus 64-bit
Memory clock 6008MHz
Memory type GDDR5
Memory bandwith  48 GB/s



MiniPC zBOX-PSO-1030 with a dedicated card Nvidia GT1030  built-in graphic card Nvidia GT 1030

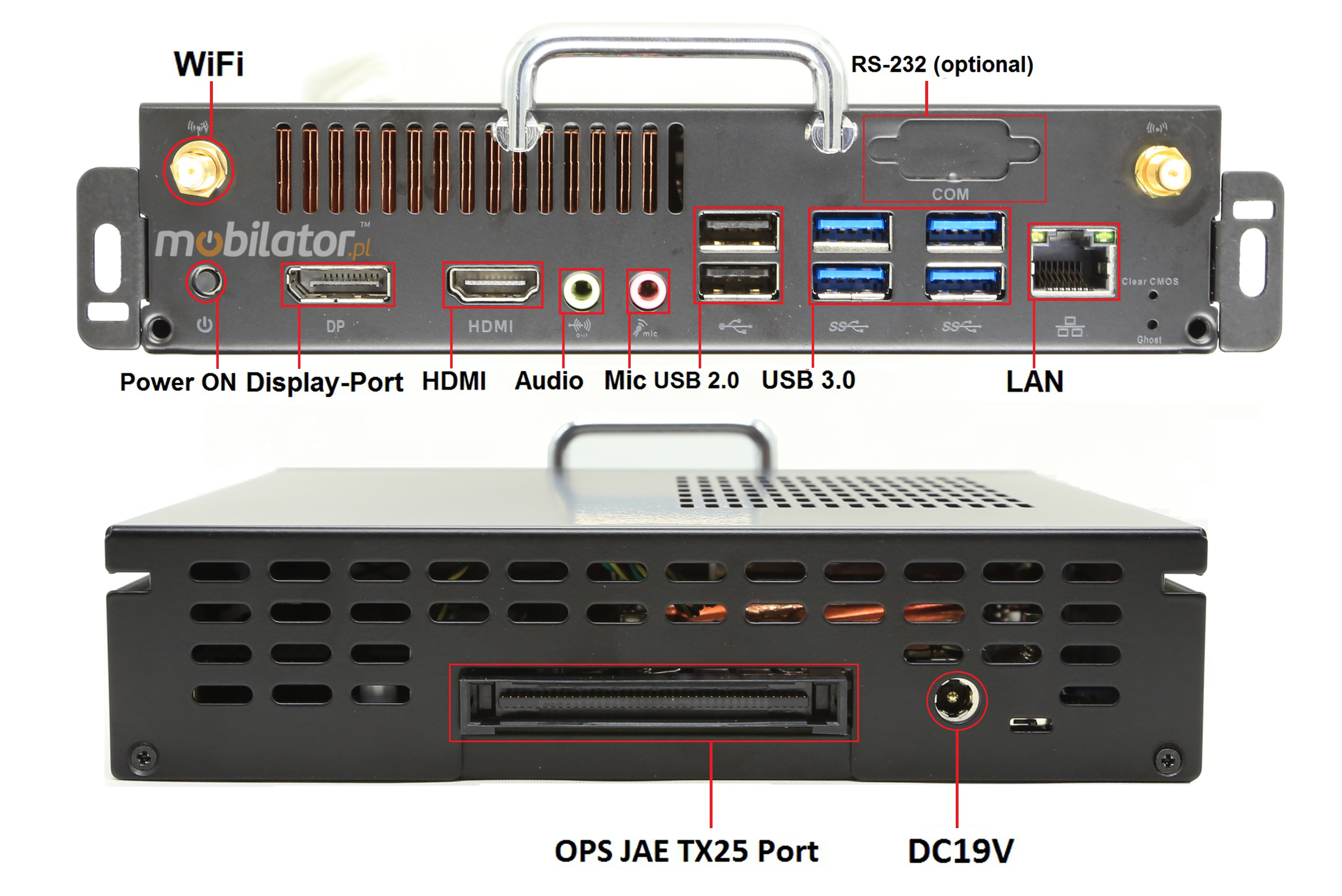

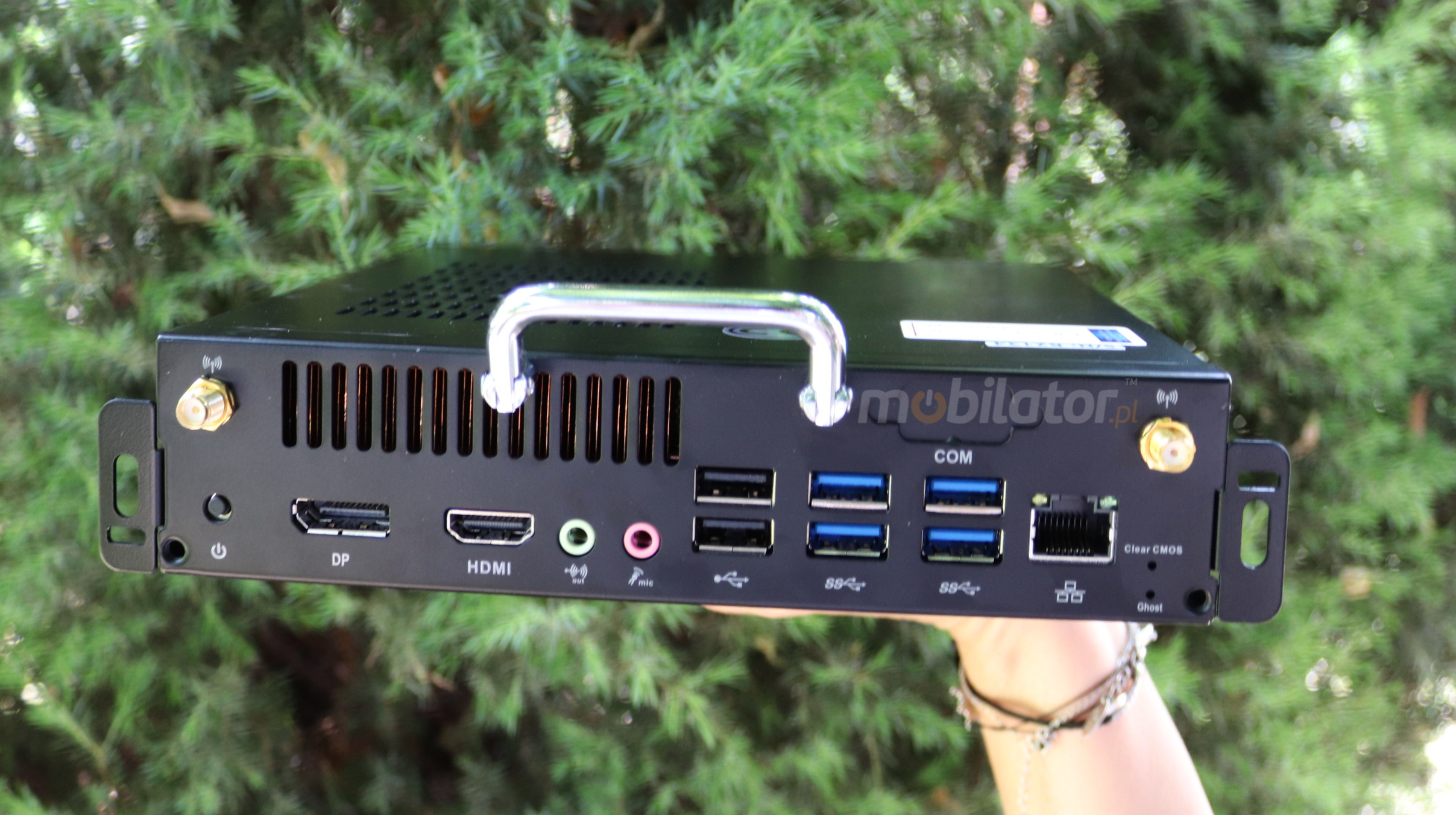

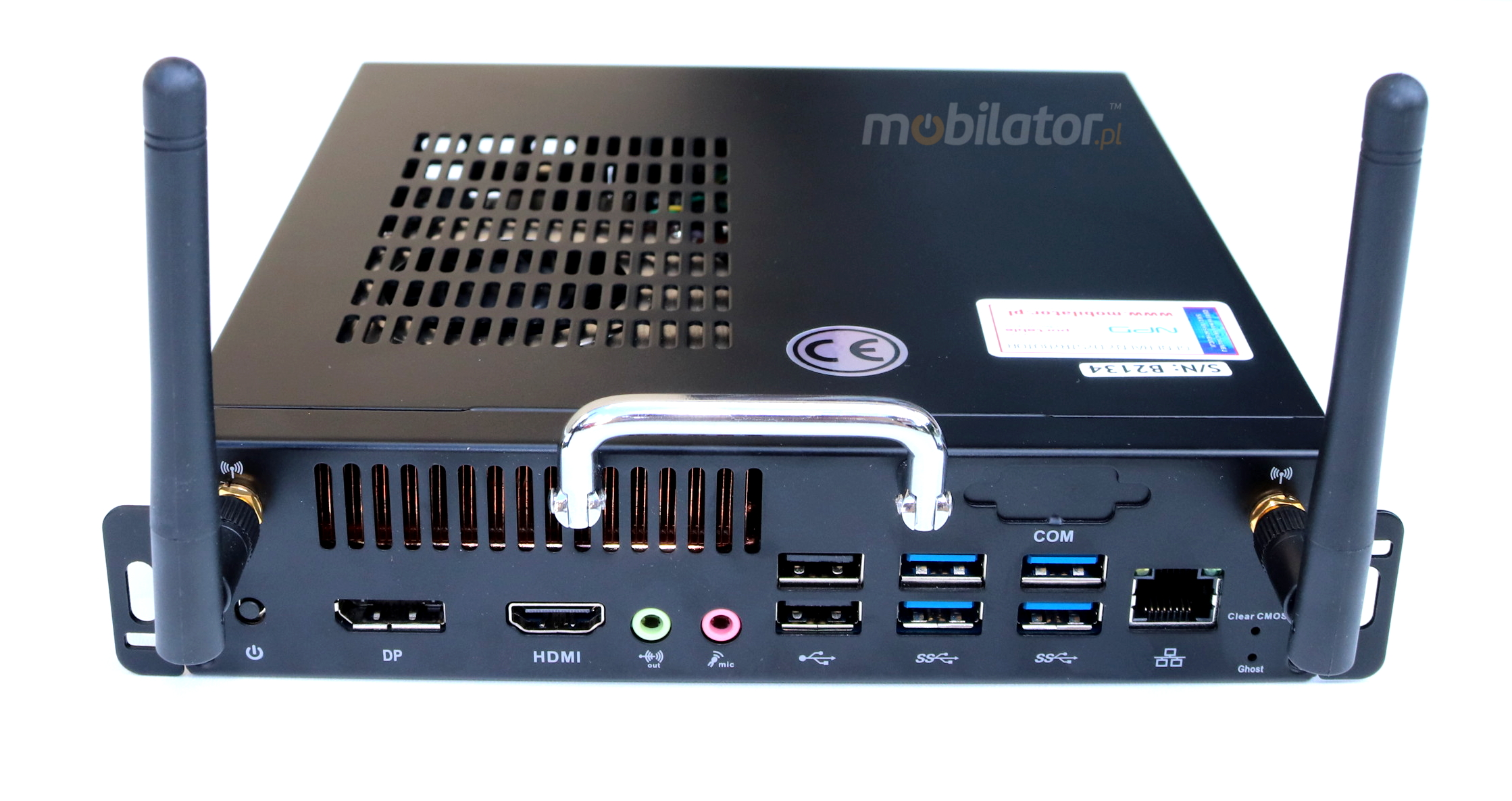

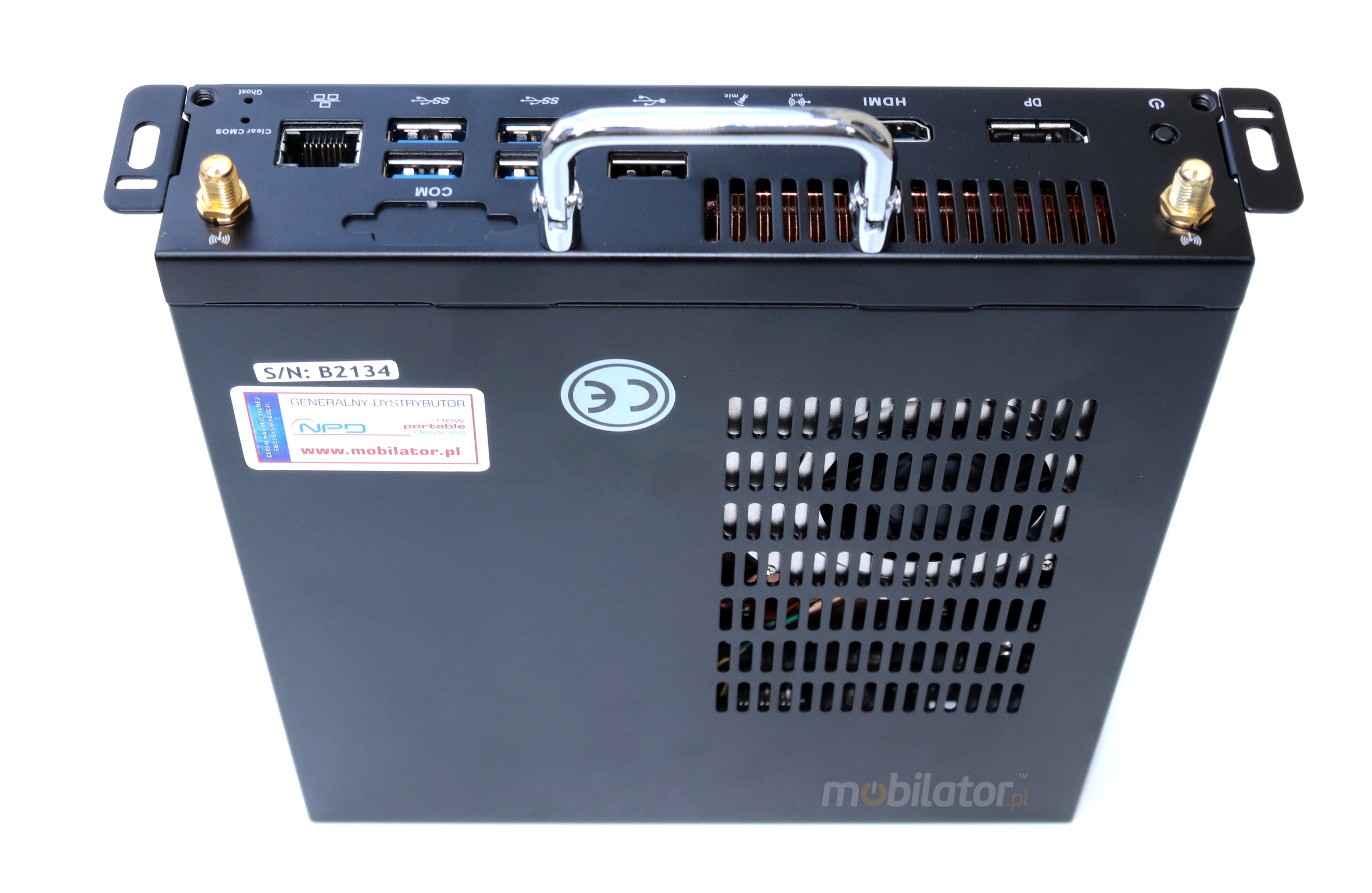

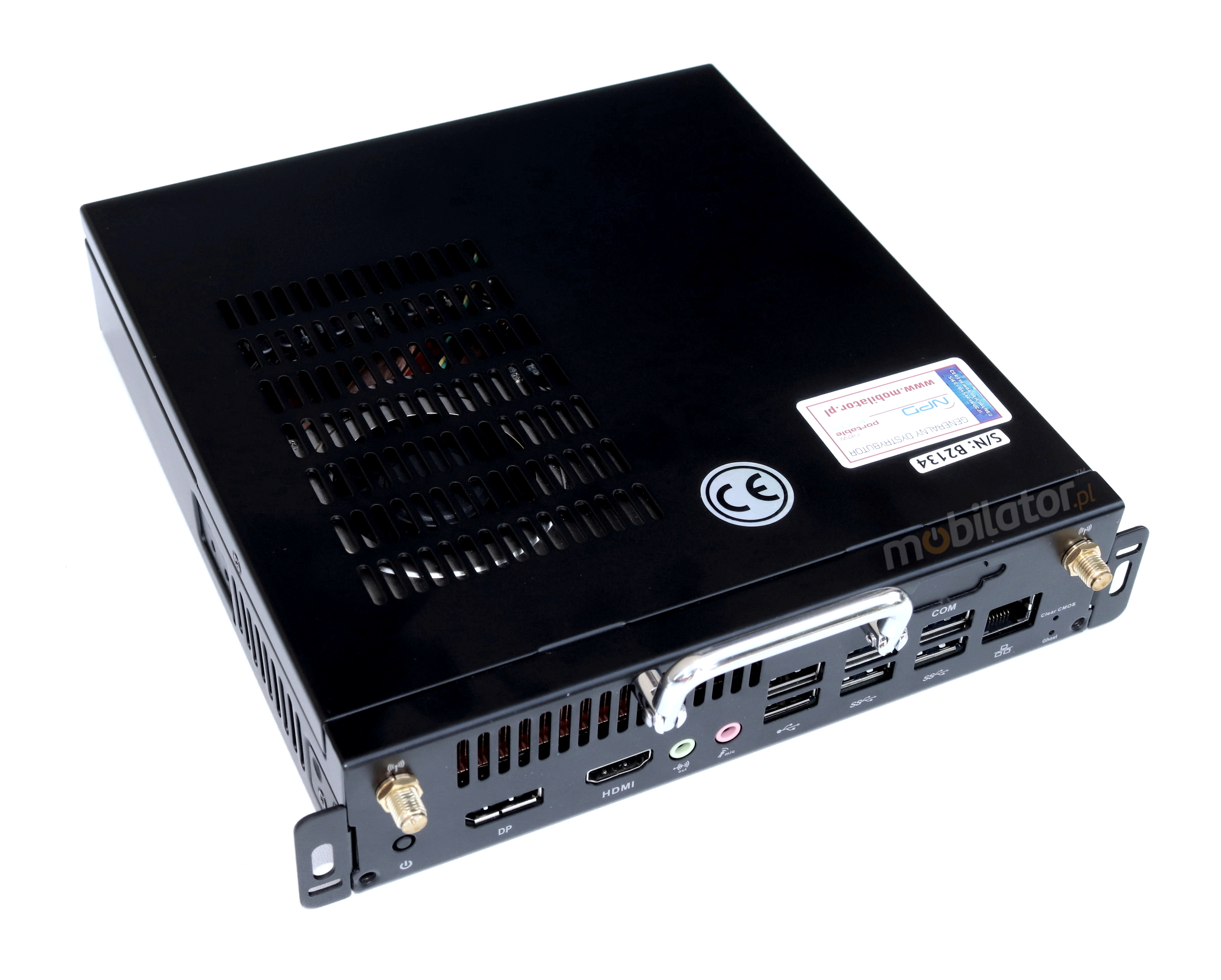

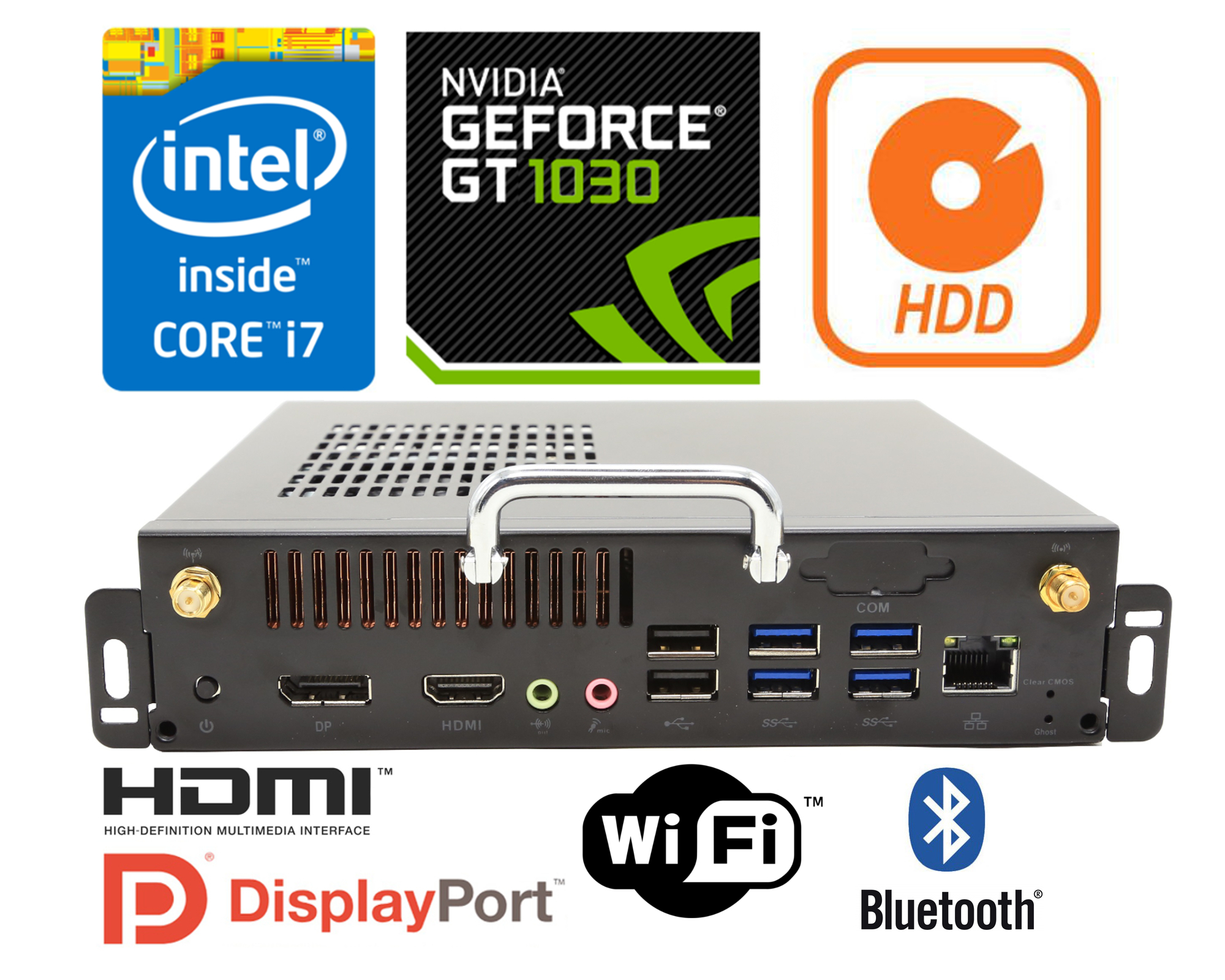

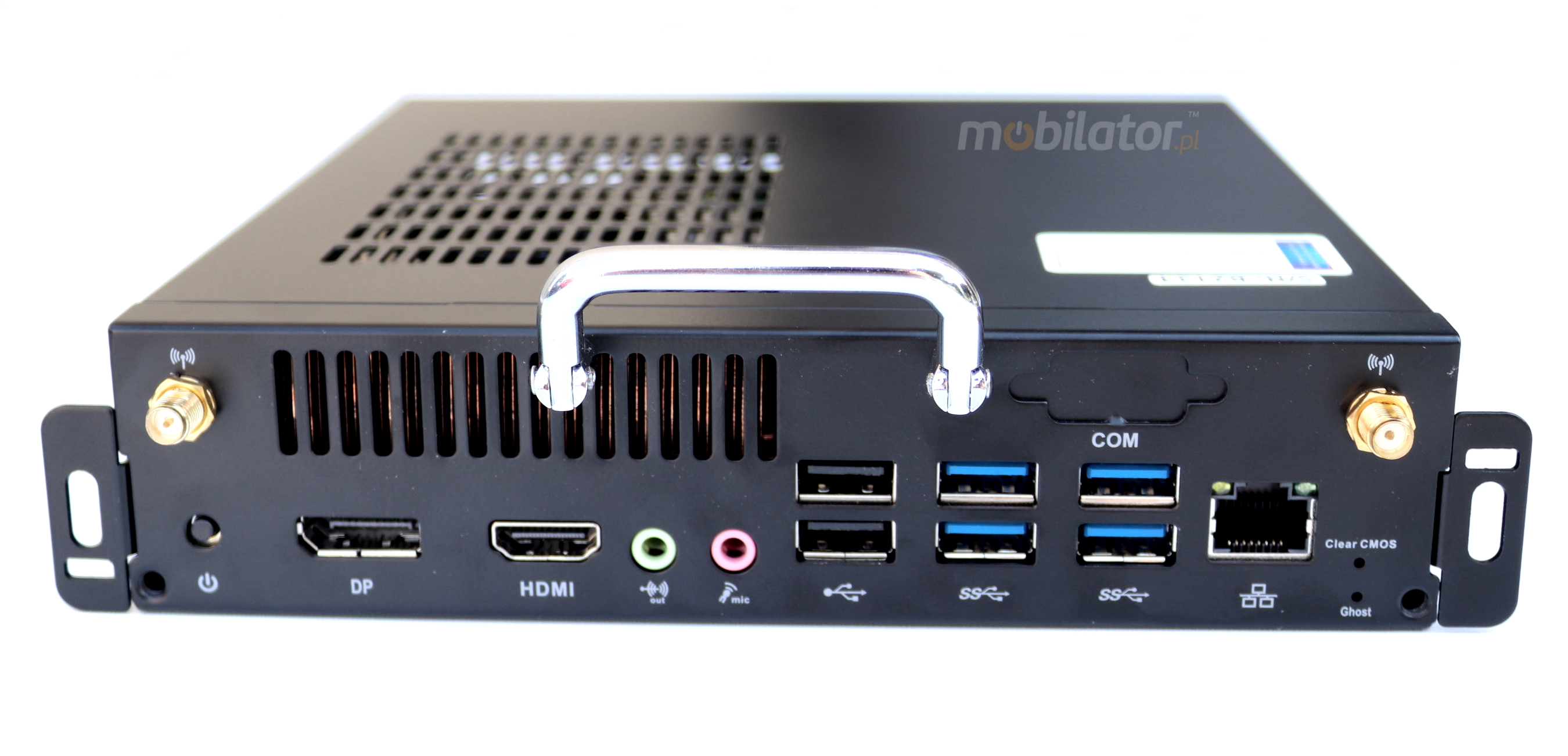

CONNECTORS / INTERFACES

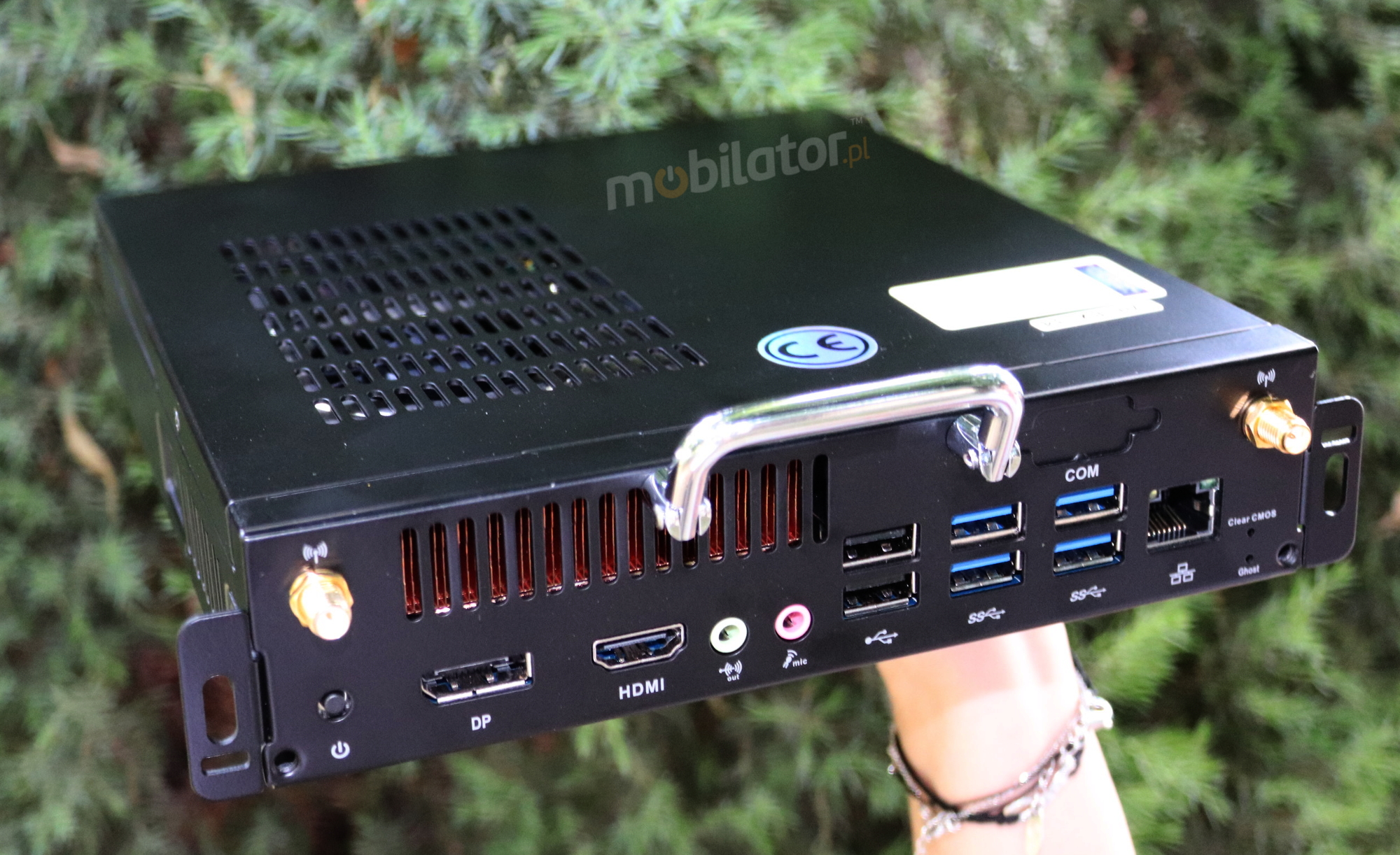

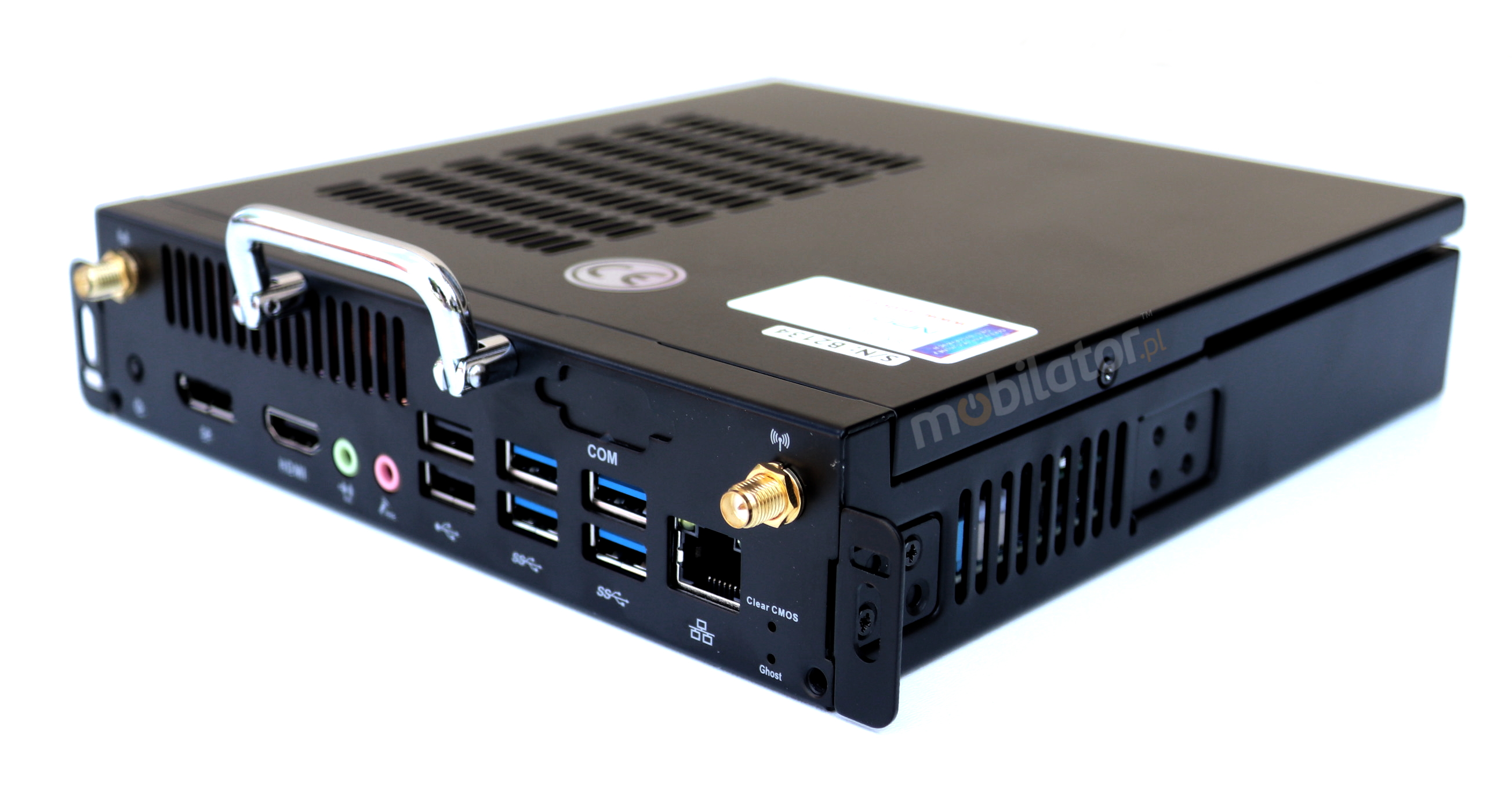

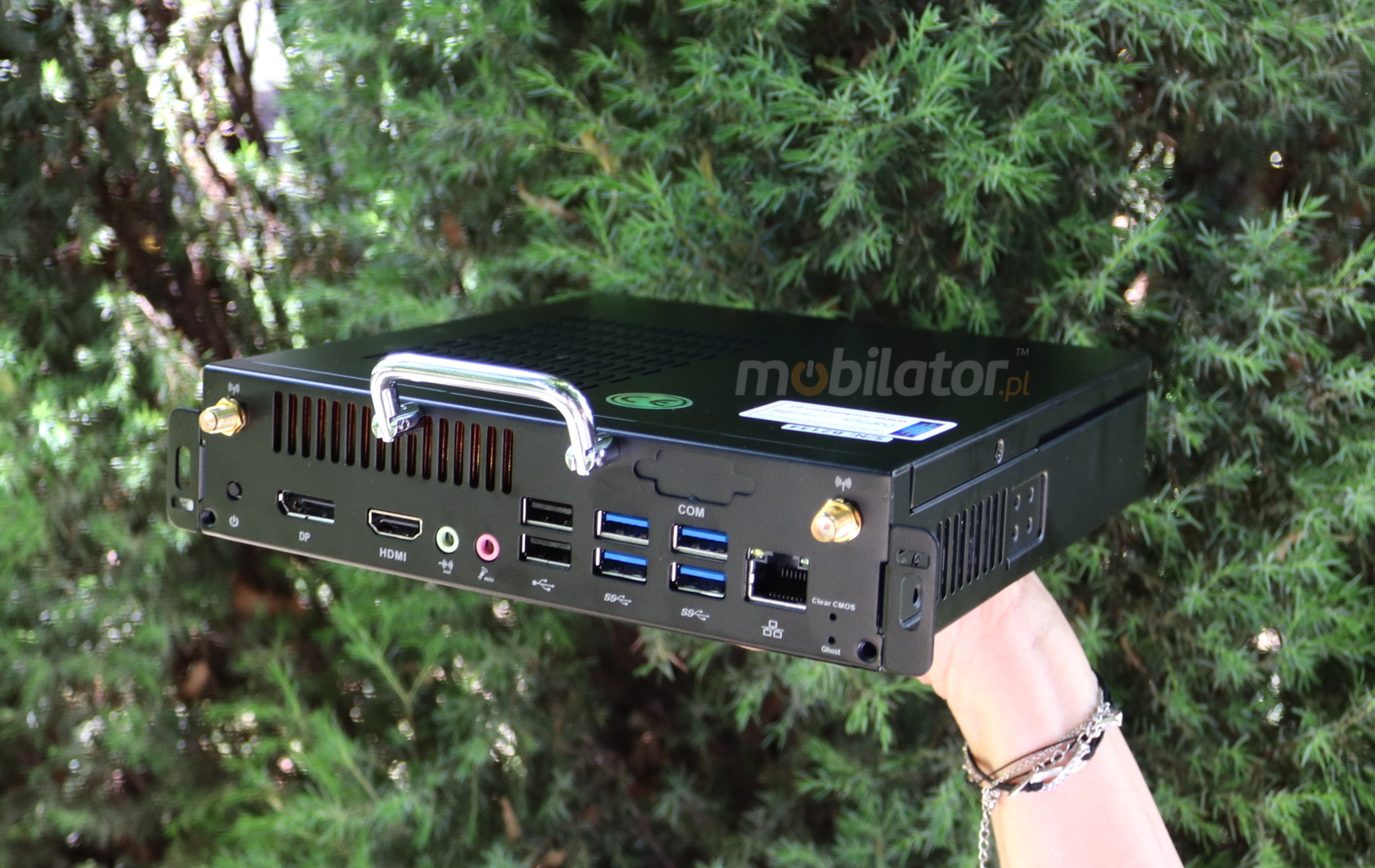

Strengthened Industrial Computer  connectors WIFI Wi-Fi HDMI Display-port DP USB 3.0 LAN DC 19 V

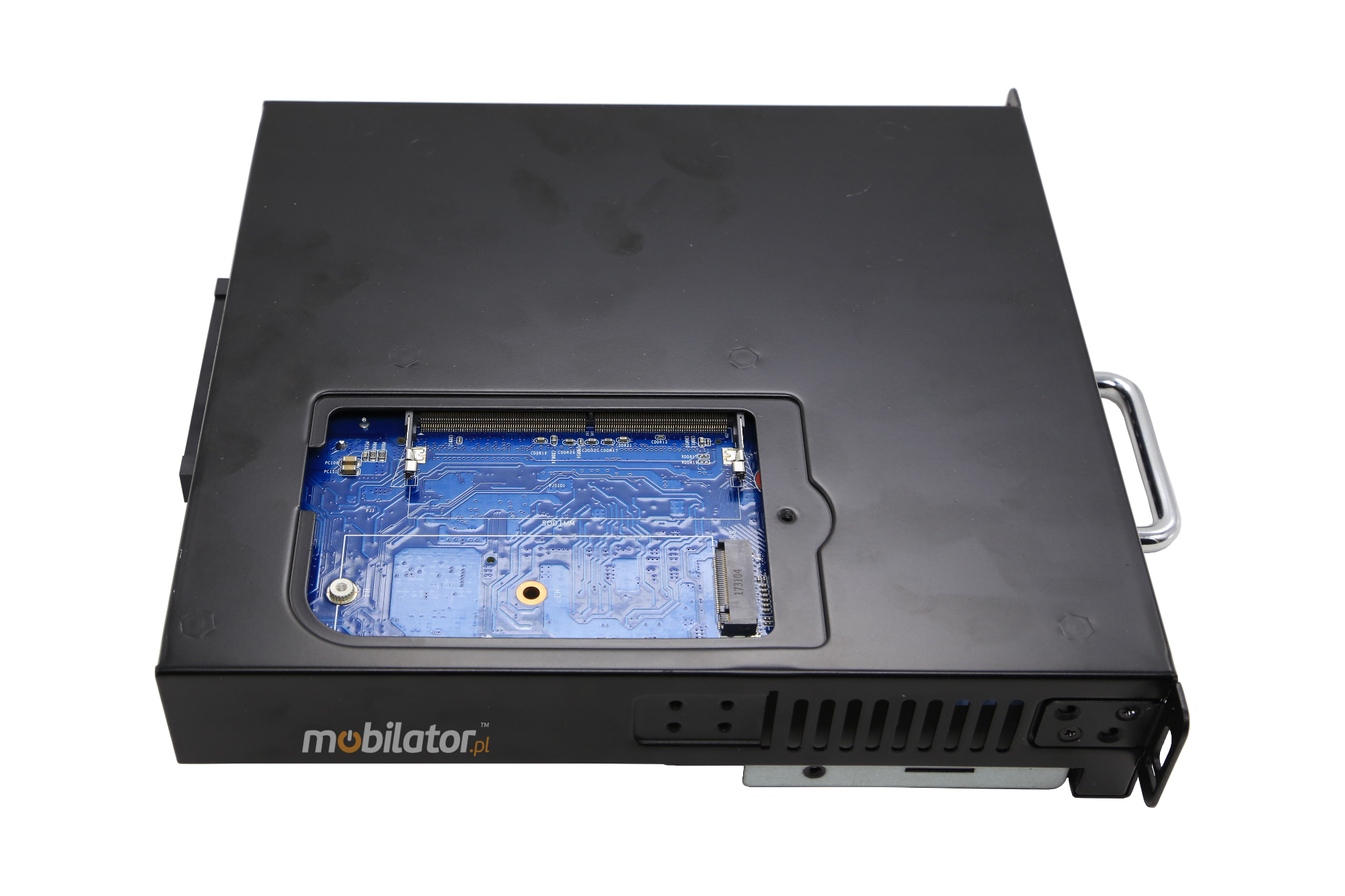

M.2 PORT (OPTION)

Industrial computer zBOX-PSO-1030 uses the M.2 connector to support very fast SSDs just on the M.2 connector. These drives offer higher performance than the SATA III and mSATA standard. Mobilator offers the M.2 SSD with 256GB of capacity.





Optional equipment, available only in other versions of the device.

Comprasion table for disks speed
Hard drive HDD Read: 170MB/s | Write: 140MB/s
Disk SSD 2.5" Read:  560MB/s | Write:  530MB/s
Disk SSD M.2 2280 128GB Read:  1550 MB/s | Write:  530MB/s
Disk SSD M.2 2280 256GB Read:  1650MB/s | Write:  950 MB/s
Disk SSD M.2 2280 512GB Read:  1650MB/s | Write: 1000MB/s


MiniPC zBOX-PSO-1030 SSD M.2

Strengthened Industrial Computer with a M.2 Port  Port M2



DIMENSIONS



 MiniPC BOX-PSO-1030  width 195 mm length 180 mm height 42,5 mm 195x180x42,5 mm



Detailed device specification is available in the "Technical data" tab.

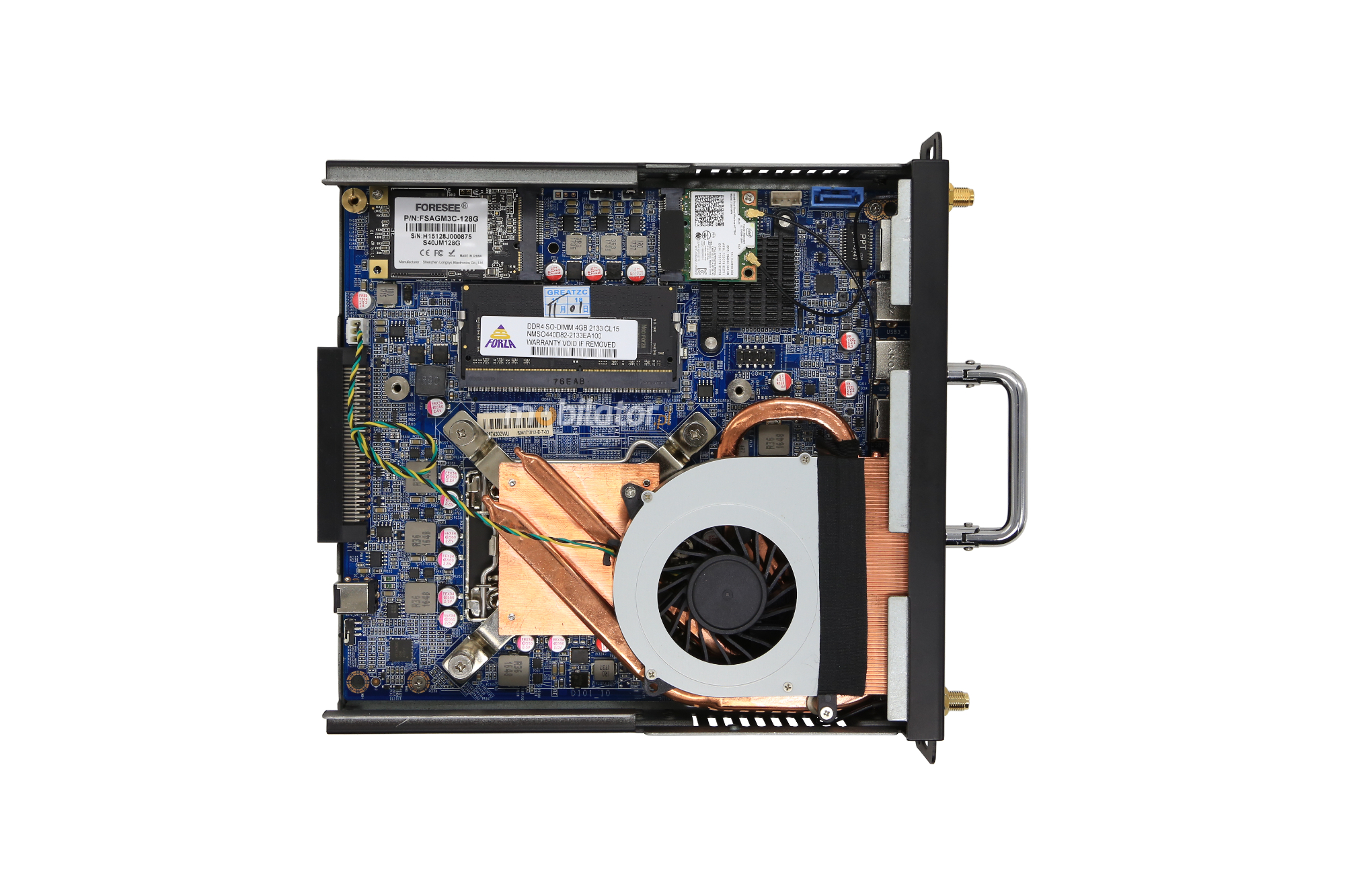

FAN cooling

The industrial Mini PC uses a proven cooling system, based only on solid elements, mainly heat sinks. The system uses the phenomenon of metals passing thermal energy into the environment through openings in the housing. This solution provides better cooling in relation to pasive cooling.


go up do góry menu… menu



RESISTANCE



Temperatures

zBOX-PSO-103 is designed for continuous operation in both very low and high temperatures ranging from -10 ° C to 50 ° C. If the device is switched off, it can already handle temperatures in the range of -20 ° C to 70 ° C.

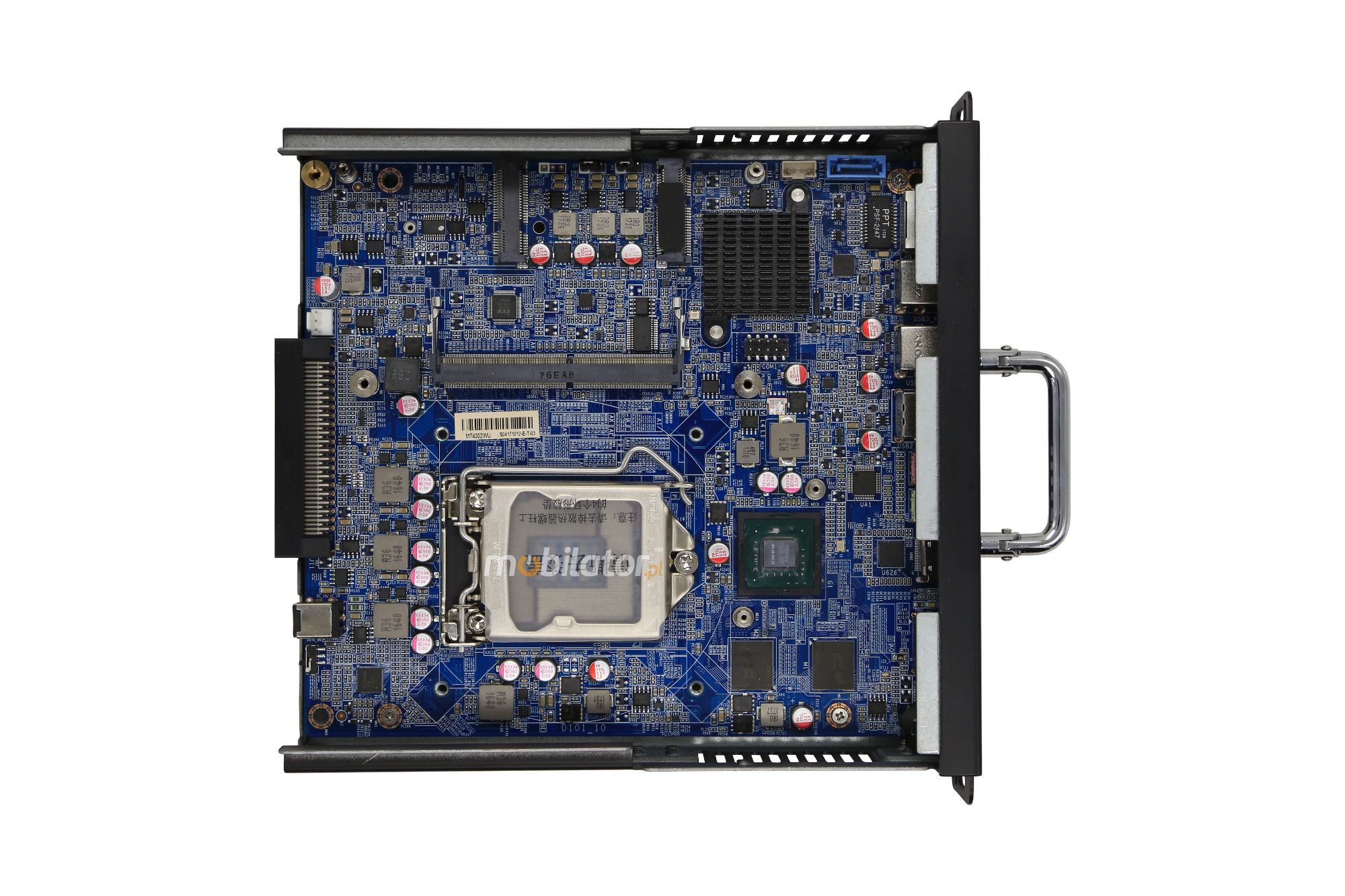

Strengthened Industrial Computer with a resistant mainboard



Work temp. -10°C — 50°C
Storage temp. -20°C — 70°C
Humidity 5% — 95%


go up do góry menu… menu



CONNECTION

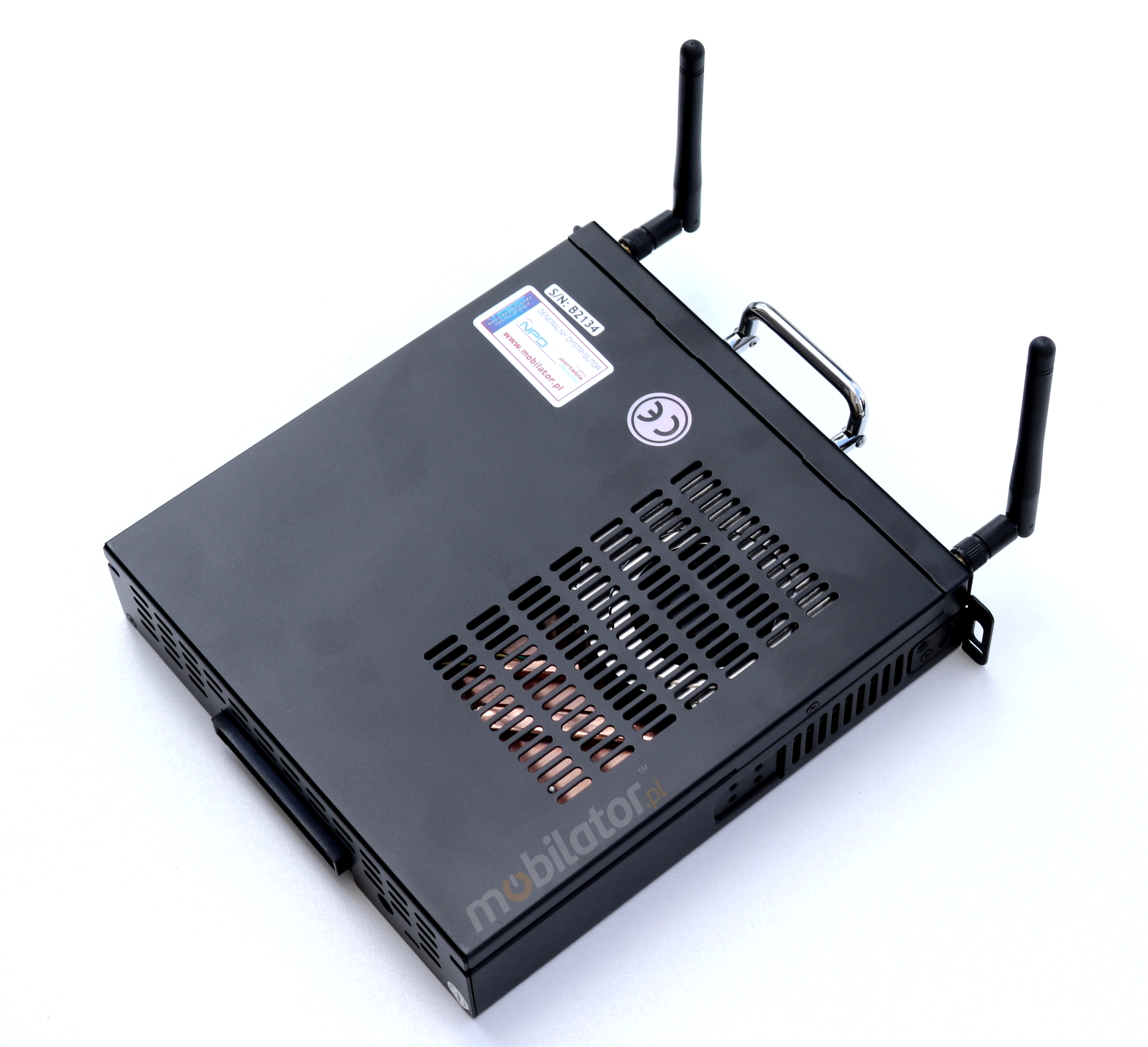

Wireless network

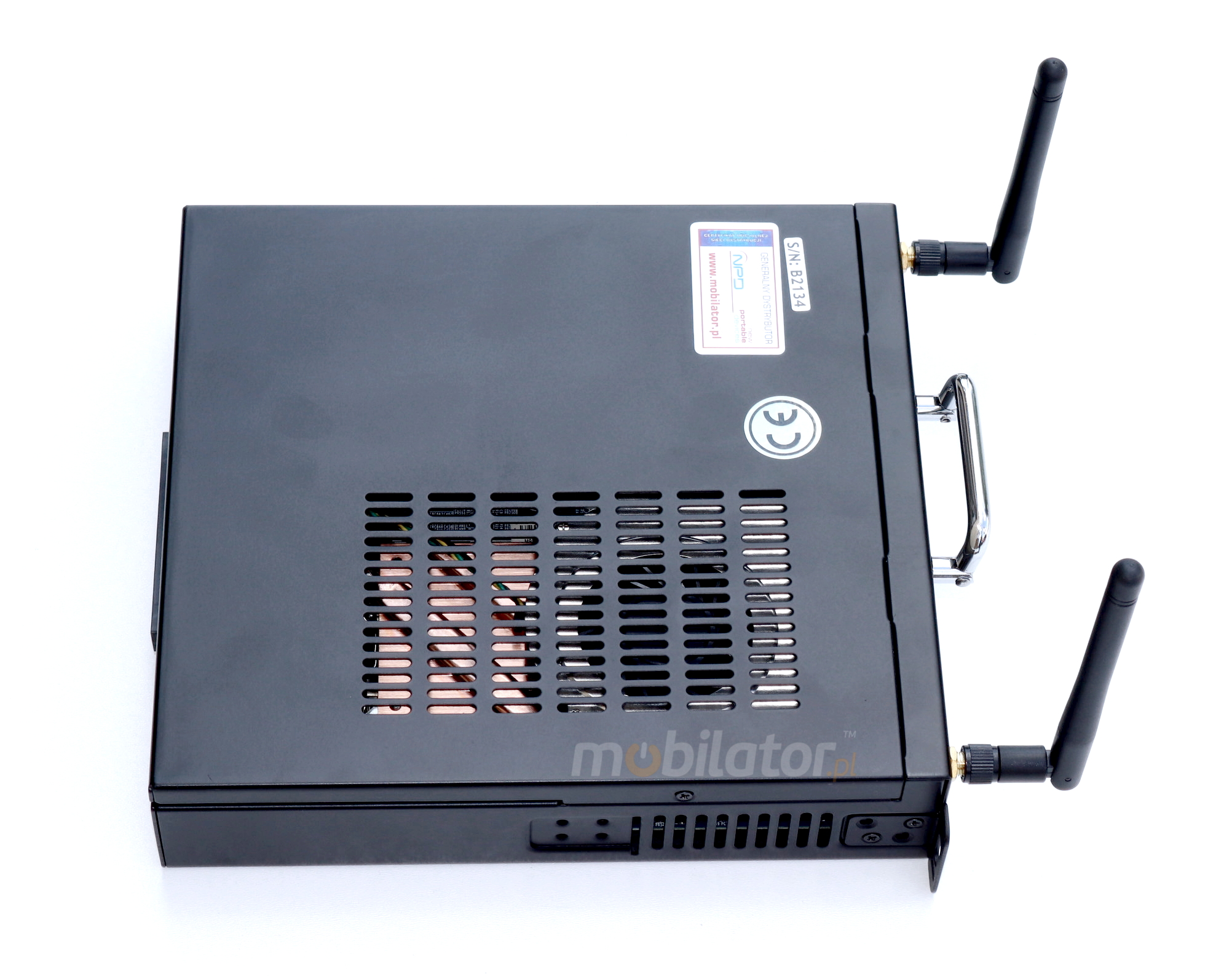

The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. Industrial mini-PC zBOX-PSO-1030 has been equipped the standard of  - 802.11n, which allows transfer of files at a dizzying speed of up to 300 Mb / s.





WIRED LAN NETWORK

The MiniPC zBOX-PSO-1030 has built-in Realtek RTL8111F network adapter that can work in a fast Gigabit Ethernet network.




Strengthened Industrial Computer with a LAN Connetion



go up do góry menu… menu



APPLICATIONS



Trade and services

Mini PC is an ideal tool to support us in the implementation of many activities in the field of trade, small dimensions increase the possibility of its adaptation to activities such as issuing invoices or preparing documentation, which in turn allows us to convenient and optimal sales management.


MiniPC zBOX-PSO-1030 Shop usage shopping trading


Warehouse and logistics

Thanks high performance an industrial computer can be used to connect multiple devices in a warehouse and make their management much easier.


 MiniPC zBOX-PSO-1030 logistic usage warehouses  storekeeper

More pictures of the device available in the "Gallery" tab.

go up do góry menu… menu



VERSIONS



The industrial mini-computer zBOX-PSO-1030 is offered in several versions to suit different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.




Porównaj wszystkie wersje



 v.0v.1v.2v.3v.4v.5v.6v.7v.8
WiFi
Bluetooth
4GB RAM
8GB RAM
16GB RAM
32GB RAM
64GB SSD
128GB SSD
240GB SSD
500GB HDD
1TB HDD
2TB HDD



Compare all versions
