Durable strengthened Industrial Tactile PanelPC QBOX 10 v.2.3
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/wytrzymaly-wzmocniony-przemyslowy-dotykowy-panelpc-qbox-10-v.2.3-produkt-89946.html

Durable strengthened Industrial Tactile PanelPC QBOX 10 v.2.3



Windows 10 WiFi mobilator.pl PanelPC 10 inch 10,4 inch resolution 800x600



Durable strengthened Industrial PanelPC QBOX 10, its 10 inch industrial computer of type AiO(All-in-One, thats it connecting the monitor and computer in one closed housing) adapted to work in places with high pollination level. Additional thanks carefully designed case, device got IP65 norm(for front panel).

Durable strengthened Industrial PanelPC QBOX 10 fanless mobilator.pl



To produce industrial PanelPC used high quality materials. Inside of device mounted professional modules and components makes that device is not only durable but also very efficient.

Specification of device is on the bottom of this description. To find more details click on "Technical data" overlap.


go up…do góry menu… menu



Display and IP norm

mobilator.pl ports HDMI VGA usb lan WiFi panelpc computer All-in-One AiO

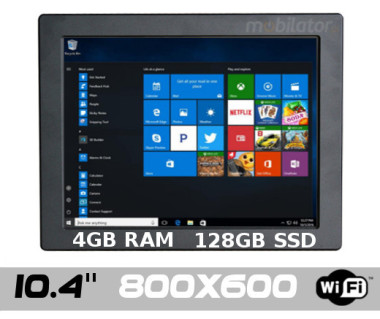

QBOX 10 has been equipped with 10.4 inch LED screen, with 800x600 pixels resolution showing high quality image making possible to comfortable work for eyes.



IP65 ip65 norm rate durable dustproof waterproof



IP65 norm is granted to devices which pass series of specialist tests exploring their durability for dust and water. IP norm  consist of two digitals. First means the level of dust resistance, second to water. Industrial PanelPC QBOX 10  have IP65 norm for front panel.

Full specification of IP norms.



The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids

No special protection

0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8

Protection against complete, continuous submersion in water

go up…do góry menu… menu



Communication and ports

mobilator.pl 10 inch 10.4 inch industrial panelpc qbox durable

Strengthened Industrial PanelPC QBOX 10  is equipped with a number of ports like: VGA, HDMI, RJ-45, USB or RS232. Their placement in the current model is presented in the following graphics.

mobilator.pl IP65 for front panel ports VGA usb DC-in 12V HDMI RS232

Additional QBOX 10 might be equipped with wireless WiFi module making possible to data transfer - depends of version. Below You can find a label with all available interfaces.

Input/Output Interfaces
Image 1x VGA | 1x HDMI
Internet 2x RJ-45 | WiFi(factory)
Communication
1x USB 2.0 | 1x USB 3.0
Other 1x RS232



Type of installed modules depends of chosen version of device. Table with all available options is on the bottom of this description.

go up…do góry menu… menu


Application



Trade





High performance and quality of Industrial PanelPC make possible to present the latest sales offers for products, information about building - for example in shopping center - or any other visualization directed at the potential customers.








Transport nad Services



Modern forms of electronic payment are becoming more and more popular. Because of this much more often We can see possition where customers can buy themselves, for example food or bus tickets.  Strengthened Industrial AiO computer is well-suited to this role reducing queues and makes that employees will be able to do rest of their works.





Information Panels for employees





Real-time message transfer is necessary to increase the efficiency of the team and entire departaments in enterprises, for example between the production manager and his subordinates in the factory. Displaying new tasks for actuall day and other notifications lead to more coordinated and controlled actions. A helpful device in this area can be Industrial PanelPC QBOX 10, which can handle such tasks without any problems.





Control of devices








Thanks to the appropriate connectors, the Industrial PanelPC QBOX 10 can be used as controling unit for other devices. Using a properly prepared application, it is possible to control, for example lighting, air conditioning, electric windows or machines on the production hall.




go up…do góry menu… menu


Additional accessories

mobilator.pl accessories for industrial PanelPC QBOX fanless 10 inch 800x600 pixels

We offer a number of additional accessories and operating systems for Industrial PanelPC QBOX 10 to further enhance its functionality and comfort of work. Below You find list with all available accessories. Point the mouse at the picture to read short description or click it to move to the full description.



Stylus
VESA handle

resistive stylus for QBOX panels

VESA handle bracked to mount on wall QBOX

Windows 10 Home
Windows 10 Pro

Windows 10 Home

Windows 10 Pro

*product does not contain any elements in the kit,

except products marked with star...


up go…do góry menu… menu


Specification for PanelPC QBOX 10



mobilator.pl panelpc Durable strengthened Industrial PanelPC QBOX 10 durable size weight ports

Table below presents techical data of this device. Type of installed modules depends of chosen version. Look at table with device's versions on the bootom of description.

More details about acctually chosen version You can find in "Technical data" overlap which is on the top of description.

Display
Size and resolution 10.4 (800x600)
Type of display LED
Type of touch Resistive (Type of touch: 4-wire resistive)
Protection IP65 (for front panel)
Screen ratio 16:9
Brightness 400 cd/m2
Contrast
500:1
Processor
Model Intel® Celeron™ Processor J1900
Timing 2.0GHz
Cores 4
Graphic
Model
Intel HD Graphic
RAM memory
Capacity 2GB(optional) | 4GB(factory) | 8GB(optional)
Type of memory DDR3
Flash memory
Capacity 32GB(optional) | 64GB(optional) | 128GB(factory) | 256GB(optional)
Type of memory SSD
 Operating system(optional)
Windows
Windows 10 Home | Windows 10 Pro
Other
Linux
I/O ports
1x HDMI | 1x VGA
Network and communication 2x RJ-45(LAN) | WiFi(factory)
Data transfer 1x USB 2.0 | 1x USB 3.0
Audio
AudioJack
Other
1x Port RS232 | DC In 12V
Data input
Keyboard On screen
Functional keys Power
Size
Weight
2000g
Dimensions 255 x 200 x 56mm
Certyfications
Level of security IP65(for front panel)
Additional
CE
Other optional
Accessories
Stylus |  VESA handle

*license of Windows 10 is included only in chosen versions...

go up…do góry menu… menu







CURRENT PRICE
2740.68 € Net
3371.04€ Gross
