Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21 v.6
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/wzmocniony-mini-komputer-przemyslowy-fanless-minipc-ibox-nm21-v.6-produkt-90128.html

Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21 v.6

Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21  umpc mobilator intel celeron J1900




Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.
Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimensions are 148 (W) x126,5 (L) x48,5 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and  8GB DDR3L memory. Disks offer free space 256GB SSD .

[tab_wersja_id_51]

Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21  umpc mobilator Intel celeron J1900

go topdo góry   menu… menu


Communication & Connectors

Integrated card - Intel 82583V 10/100/1000M LAN and 4G module allow connection to the network. The computer is equipped with: four LAN ports, one USB 2.0 port, one USB 3.0 port, one COM RJ-45 port, one VGA port.

Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21  mobilator umpc



Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21  mobilator umpc


Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21  umpc mobilator

Cooling

The Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go topdo góry   menu… menu

Application

    Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21  are based on high-performance quad core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesStrengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21  umpc mobilator of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial Computer Fanless MiniPC IBOX-513NB


Areas of use of industrial MiniPC

Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21  umpc mobilator intel celeron J1900

Digital Engine

Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21  umpc mobilator intel celeron J1900


Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21  umpc mobilator
Industrial Computer Fanless MiniPC IBOX-513NB

Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21 by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21  can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial Computer Fanless MiniPC IBOX-513NB

Industrial Computer Fanless MiniPC IBOX-601i3U



Specifications


    Dimension





   H: 48,5 mm

   L: 126,5 mm

   W: 148 mm

   Processor
   Intel Celeron J1900  quad core 2.0GHZ
   Chipset
  Intel express chipset
   RAM Memory
   8GB
   Graphic Card
   Integrated HD Graphic card
   Sound Card
   -----
   WLAN
  Intel WG82583 10/100M/1000M Lan
   Connectors

  1x  12V D-IN

   1x USB 2.0

   1x USB 3.0

    4x RJ-45 LAN

    1x RJ-45 COM (RS232)

    1x 4G

Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21  umpc mobilator intel celeron J1900


Others: Colour Black
4G
Chipset: Intel express chipset
CPU Support: -----
Installed CPU: Intel Celeron J1900 Quad Core (4x2.0GHZ)
Memory Support: DDR3L SO-DIMM
Installed Memory: 8GB
Graphic Card: Integrated HD Graphic card
Storage (HDD) Support: SSD/HDD
mSATA
Installed Storage (HDD): 256GB
CD/DVD Drive: -----
LAN: Intel 82583 10/100/1000M Lan
Wireless LAN card: Yes - 802.11 b/g/n
Bluetooth: -----
3G: 4G
4G LTE:
TV Tuner: -----
Watch Dog Timer: -----
Front Panel (ports): 1*USB3.0, 1*USB2.0, 1*Power switch,1*VGA, 1*RJ45 COM

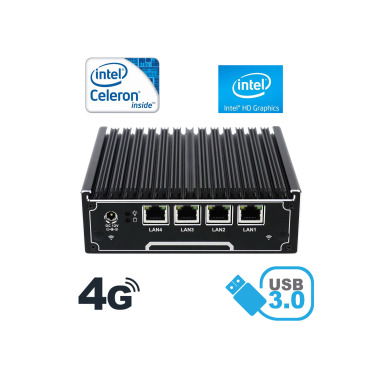

Rear Panel (ports): 4*RJ45 1000M LAN, 1*DC 12V input,
Power: 12V
Supported OS: Microsoft Windows: 7/8/8.1/10, Linux
Installed OS: -----
Dimensions: 148 x 126,5 x 48,5 mm
Weight: 1000g
Expansion: -----
Fanless: Yes
Humidity: 0 ~ 95%
Temp: -10 ~60℃
IP Norm: -----
Storage temperature: -10 ~ 60℃


CURRENT PRICE
1938.48 € Net
2384.33€ Gross
