Rugged waterproof industrial data collector Emdoor I62H 2D Scanner + NFC
e-mail: sklep@mobilator.pl
phone: +48 508-235-505
www.mobilator.pl/wzmocniony-wstrzasoodporny-kolektor-przemyslowy-emdoor-i62h-standard-2d-skaner-nfc-produkt-89772.html

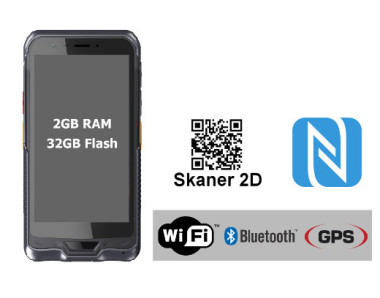

Rugged waterproof industrial data collector Emdoor I62H 2D Scanner + NFC

Emdoor I62H wifi 6' ekran

Rugged waterproof industrial data collector Emdoor I62H has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP67 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.



Description

Emdoor I62H 1d 2d barcode reader

 Processor  Intel Cherrytrail Z8350
 GPU  Intel HD Graphics 400
 Display  5.98" (1280x720 IPS) Gorilla Glass | Capacitive (5-point)
 RAM memory  2GB DDR3L
 ROM memory  32GB
 Connectors  Micro USB | Micro SD | SIM | 3.5mm Jack | Docking
 GPS GLONASS, QZSS, GPS
 Audio Speaker | Microphone
 Camera  5Mpx Rear, 2Mpx Front
 Battery  3.7V/5000mAH
 Keyboard  On-Screen + Function keys
 Environment  Windows 10 IoT Enterprise(optional)

 Modules(factory)

 3G | GPS | WiFi 802.11 b/g/n | Bluetooth 4.1 | NFC
 Dimensions and weight  185 x 93 x 20.7mm - 380g
 Resistance  IP67

 Readers(actory)

 Readers(optionalf)

 2D Honeywell

 1D Honeywell
 Sensors  G-sensor | Gyroscope | E-compass | Light indicator





The collection and processing of data

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.Emdoor I62H 1D 2D Laser 1d 2d laser Emdoor I62H wifi

Near Field Communication (NFC)


Its a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less.

Emdoor I62H 1D 2D Laser 1d 2d laser Emdoor I62H wifi nfc



 NFC
 Frequency 13.56 MHz
Reading distance up to 4 cm
Supported card standard Mifare
Supported standards  ISO/IEC 14443 A
  ISO/IEC 15693
  ISO/IEC 18092

go top... do góry menu… menu





Resitance

Applicable standards

Storage -30°C -- +70°C
Operating -20°C -- +60°C
Dust IP6x (dust)
Water IPx7 (water)
Drop  1.2m
Humidity 95% non-condensing

go top... do góry menu… menu

Emdoor I62H 1D 2D Laser 1d 2d laser Emdoor I62H wifi

IP67 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection
0

0
No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water
Protection from solid objects greater than 50mm in diameter
2

2
Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3
Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4
Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5
Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6
Protection from water projected from a nozzle



7
Protection against immersion



8

Protection against complete, continuous submersion in water

go top... do góry menu… menu



Modules and Wireless Networks

Emdoor I62H Laser 1d 2d laser Emdoor I62H wifi gps

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in  Emdoor I62H adjusts automatically to transfer and network coverage.

WiFi  Dualband 802.11(a/b/g/n) 2.4GHz+5. 8G
GPS  GLONASS, QZSS, GPS
Bluetooth  Bluetooth  V4.1
3G

WCDMA(900/2100MHz)  GSM（900/1800MHz），
HSDPA 7.2Mbps，HSUPA 5.76


go top... do góry menu… menu

Minimalism

Emdoor I62H1d 2d laser Emdoor I62H

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have Emdoor I62H. The device weighs just 380g and its dimensions  (185 x 93 x 20.7mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that  Emdoor I62H  is in a group of devices which enjoy great popularity in the European market in the industrial segment.
 Dimensions 185 x 93 x 20.7mm
 Weight 380g



Quick change battery

Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.

Emdoor I62H1D 2D Laser 1d 2d laser Emdoor I62H wifi

go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

product does not have any accesories in set...

Operating System: Windows 10 IoT Enterprise(optional)
Dispaly: 5.98" (1280x720 IPS) Gorilla Glass | Capacitive (5-point)
Brightness: 430Nit
Processor: Intel Cherrytrail Z8350 1.44Ghz-1.92GHz
Memory: 2GB DDR3L
Hard Drive: -----
Flash Memory: Yes
Touch screen: Yes
Durability: IP67
Drop: 1.2 meters
Shock: -----
Vibration: -----
Temperature: Operating Temperature: -20°C -- +60°C
Storage temperature: -30°C -- +70°C
Humidity: 95% (no condensation)
1D barcode scanner (reader): lack(available in other version)
2D barcode scanner (reader): 2D (CMOS) Honeywell N3680
RFID scanner (reader): NXP NFC 13.56MHz
ISO/IEC 14443A/14443B/15693/18092/mifare
Distance up to 4cm
Other: -----
Battery: 3.7V 5000mAH
Working time on battery: -----
Fast battery replacement ability: Yes
HotSwap battery: -----
LAN: No
WLAN: Dual Band 802.11 a/b/g/n 2.4G + 5.8G
Bluetooth: Bluetooth 4.1
class 1.5 | range up to 10m
WAN: 3G
WCDMA(900/2100MHz) GSM（900/1800MHz），HSDPA 7.2Mbps，HSUPA 5.76
GPS: Built-in
Camera: Rear: 5Mpx, Front: 2Mpx
In/Out: 1 x microUSB, 1 x AudioJack , 1 x Micro SD, 1 x SIM 1 x Docking
Optional accessories: -----
Docking station connector: Yes
VESA standard – holders and mounts support: -----
COM port: -----
Magnetic card reader (MSR): -----
Microchip card reader: -----
Contrast: -----
Graphics card: Intel HD Graphics 400
Chipset: -----
BIOS: -----
Casing material: -----
Flash Card Reader: microSD (max. 128GB)
CD/DVD: -----
Audio: AudioJack : Built-in Speaker : Microphone
Keyboard: On-screen + Function Keys
Additional Navigation Devices : -----
Color: -----
Swivel Hinge: -----
VGA out: No
TV Out: -----
TV Tuner: -----
Seciurity: MIL-STD-810G
Waterproof: IP67
Sand and dust: IP67
Size: 185 x 93 x 20.7mm - 380g
Fanless casing: Yes
Weight:


CURRENT PRICE
626.31 € Net
770.37€ Gross
